Product Code: FA05-HX4-06105-05
10 999 грн.
Buy this product in 1 click:
Main specifications
Battery Support:
4–5.7 V (input)
Dimensions:
94.5×44.3×17.3 mm (board); Cube 38.4×38.4×22 mm
Features:
Built-in ADS-B; dual I2C for 2 GPS/compasses
Firmware:
ArduPilot (default)
Gyroscope:
In the Cube module
All specifications
We will deliver this product:
Payment
Description

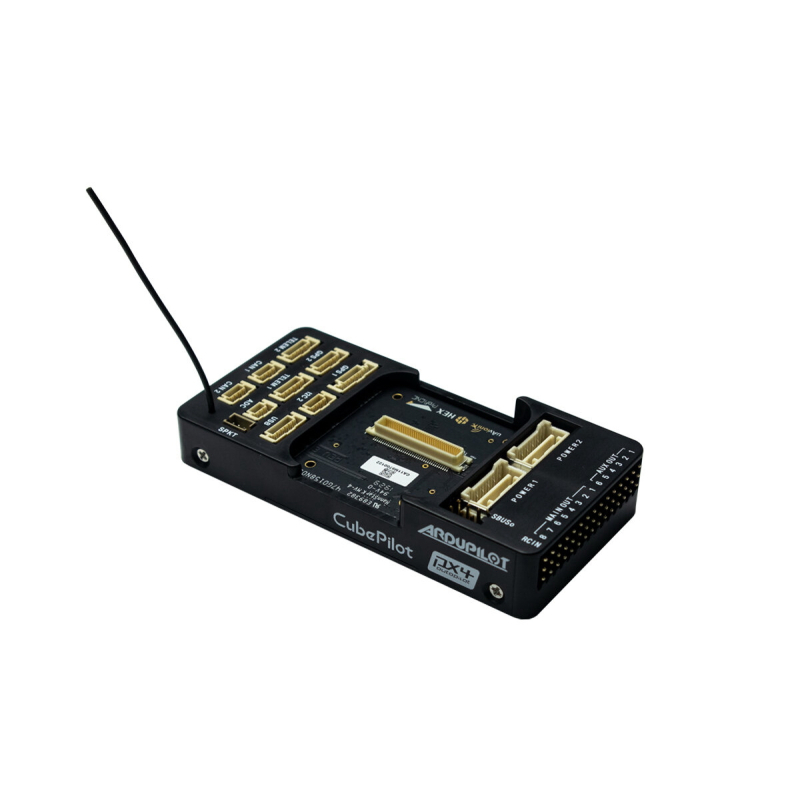

ADSB Carrier Board Flight Controller Board
Features:
- Integrated ADS-B receiver for detecting manned aircraft
- Reliable circuitry
- Dual I2C lines for connecting two GPS / compasses without conflicts
- Extended set of control circuits for maximum reliability
- Enhanced protection against EMI and static
Specifications:
- Type: Stabilization System
- Purpose: RC Cars; Helicopters; Multicopters; Airplanes
- Main Controller: External (Cube module)
- Stabilization: In the main controller module
- Compass: External
- Barometer: In the main controller module
- Number of PWM outputs: 14
- Peripheral Interface: ADC; CAN; DigitalLED; I2C; S.BUS; SPI; SWD; SmartAudio; UART
- Receiver Interface: DSM; PPM; S.BUS
- Protocols: DShot1200; Dshot150; Dshot300; Dshot600; Multishot; OneShot125; Oneshot42; PWM; PWM (coll. motors); Proshot1000
- Number of UART ports: 6
- Number of I2C ports: 2
- Number of SPI ports: 2
- Number of CAN ports: 2
- OSD: External
- USB port: Yes
- Debugging Interface: SWD; USB
- Input Voltage: 4 - 5.7 V
- BlackBox: MicroSD
- Functions: Return to Home; Waypoint Flight; POI Mode; Position Hold; Altitude Hold
- Compass Flight: Yes
- Dimensions: 94.5x44.3x17.3 mm (interface board)
- Dimensions: 38.4x38.4x22 mm (CUBE PC)
- Weight: 41 g
Package Contents:
- Interface board - 1 pc
- Hardware - 4 pcs
Specifications
Battery Support
4–5.7 V (input)
Dimensions
94.5×44.3×17.3 mm (board); Cube 38.4×38.4×22 mm
Features
Built-in ADS-B; dual I2C for 2 GPS/compasses
Firmware
ArduPilot (default)
Gyroscope
In the Cube module
Interfaces
6×UART, 2×I2C, 2×SPI, 2×CAN; ADS-B; DSM/PPM/S.BUS
Logging
MicroSD (Blackbox)
Processor
External Cube Module
Protocols
DShot1200/600/300/150, Proshot1000, Oneshot, Multishot, PWM
Type
Carrier board (autopilot)
Weight
41 g
