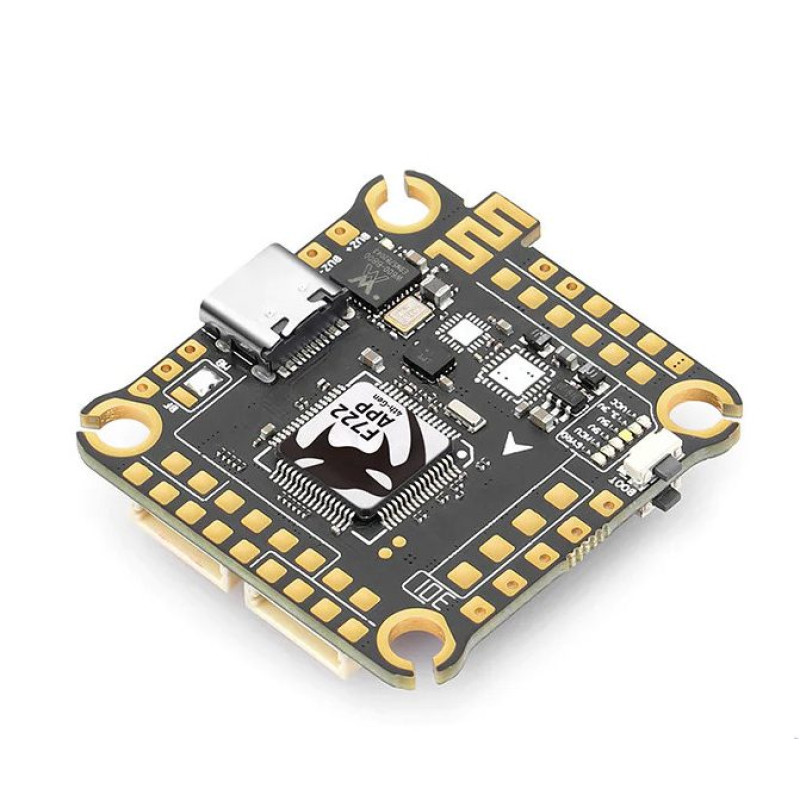

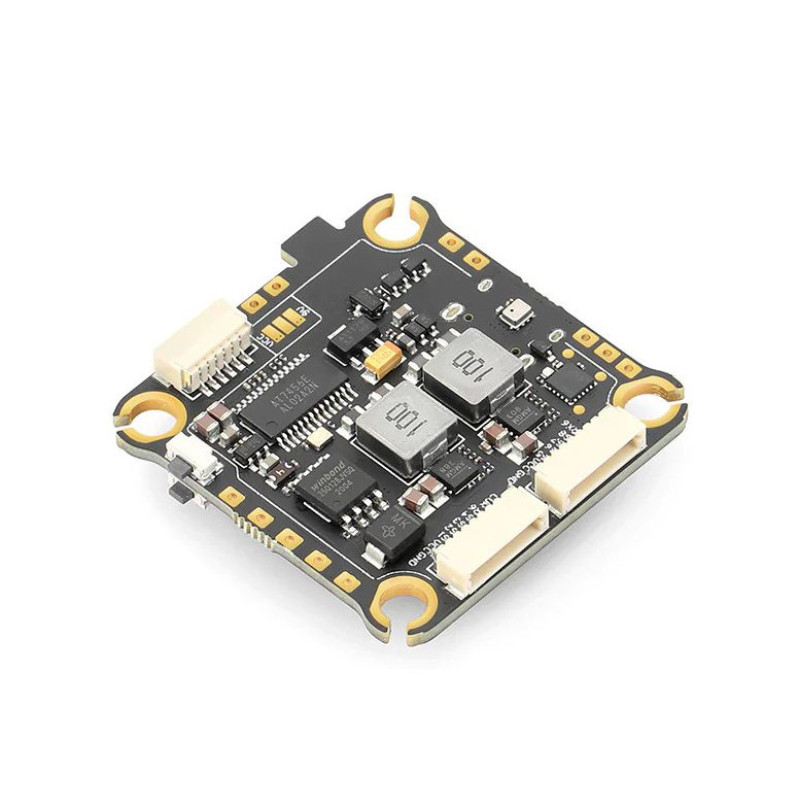

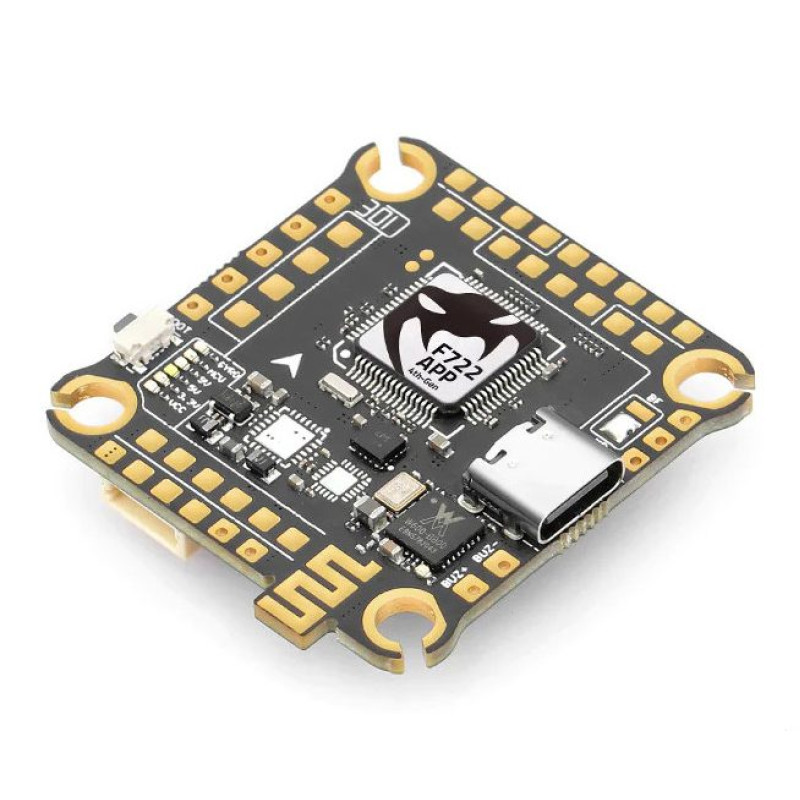

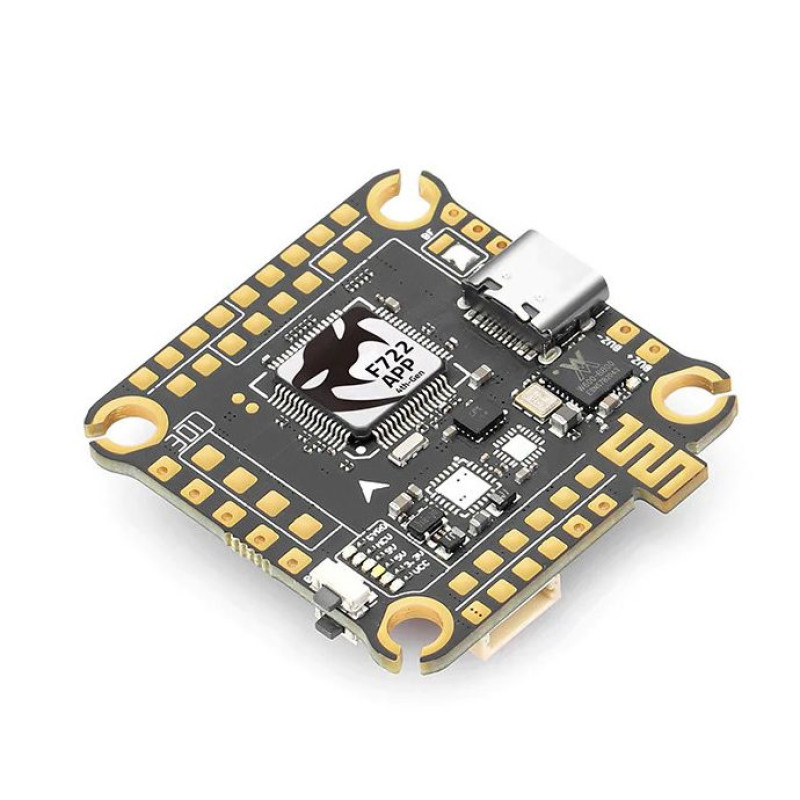

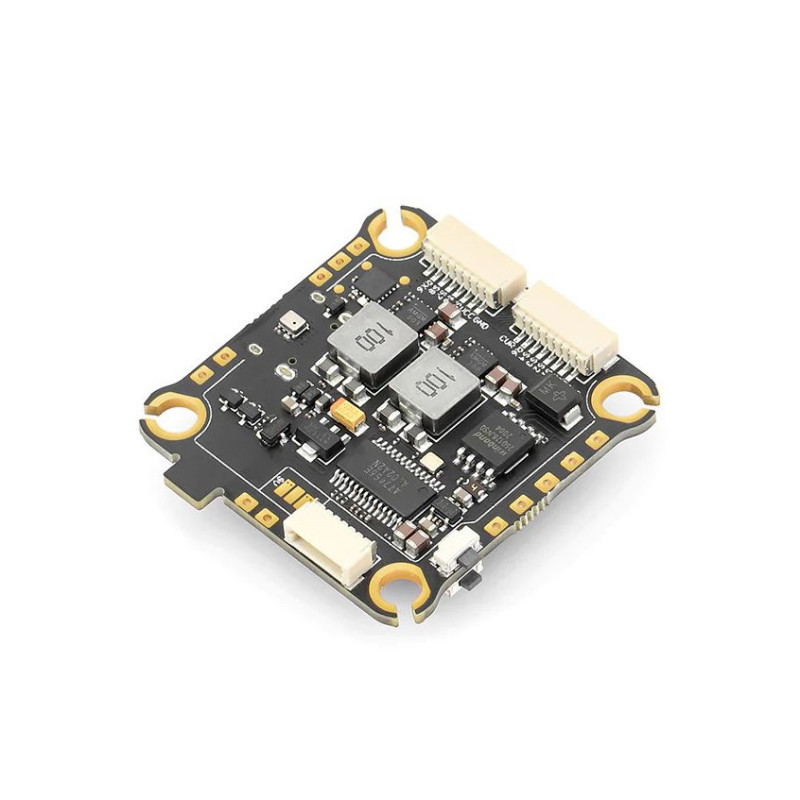

Diatone MAMBA MK4 F722APP Flight Controller — a high-performance flight controller for Diatone FPV drones, combining a powerful computing core with a set of high-precision sensors, advanced protections, and a rich set of interfaces. At the center of the board is a 32-bit STM32F722RET6 MCU with a clock frequency of 216 MHz, ensuring fast telemetry processing and minimal control delays. For precise flight stabilization, ICM42688P and MPU6000 IMU modules are used, the SPL06 barometer accurately determines altitude and vertical speed, and the built-in BF OSD on the AT7456E chip displays necessary data directly on the video feed. For flight analysis and logging, a built-in 16 MB Blackbox memory is provided.
Key Advantages
The Diatone MAMBA MK4 F722APP board is designed for enthusiasts and professionals who value reliability and flexible settings: Betaflight support, WiFi connectivity via the SpeedyBee app, an Air Unit port, and extended BEC and TVS protections. The presence of 6 UARTs, F.Port and I2C support, as well as a set of BEC channels (3.3V at 0.5A; 5V at 3A; 9V at 3A) allow easy integration of the controller into various frame configurations and power systems. Built-in MB LED and BF LED indicators simplify board diagnostics during flight and setup.
Technical Specifications
| Parameters | Specification |
|---|---|
| MCU | 216 MHz STM32F722RET6 32BIT |
| IMU | ICM42688P / MPU6000 |
| Barometer | SPL06 |
| OSD | BF OSD AT7456E |
| Blackbox | 16 MB |
| Receiver Protection | Yes |
| WIFI | SpeedyBee APP |
| Software | Betaflight |
| BEC Protection | Yes |
| TVS Protection | Yes |
| AIR UNIT Port | Yes |
| ESC Signal | 8 sets |
| Buzzer | Yes |
| VTX Switch | Yes |
| BEC 3.3V | 0.5A |
| CURR Pad | Yes |
| Input | 6S Lipo |
| MB LED | Yes |
| BF LED | Yes |
| Uarts | 6 |
| BEC 9V | 3A |
| BEC 5V | 3A |
| F.Port | Yes |
| I2C | Yes |
| Mounting | 30.5 x 30.5 mm / m3 |
| Size | 38.0 x 40.5 x 8 mm |
| Weight | 10 g |
Package Contents:
1 x Diatone MAMBA MK4 F722 APP (WiFi) Flight Controller
5 x M3 ESC Insulation Dampers
5 x M3 Silicone Dampers
1 x 6-pin Air Unit Cable
2 x 8-pin Cable
This controller is ideal for building 4- and 6-motor FPV multirotors with up to 6S power. The 8 ESC signal channels allow for various motor configurations, while thoughtful protections and reinforced BEC channels ensure reliable electronics operation in extreme flight conditions. The integrated OSD and Blackbox make setup and subsequent flight analysis convenient for experienced pilots and enthusiasts, and SpeedyBee WiFi support simplifies wireless settings changes.
