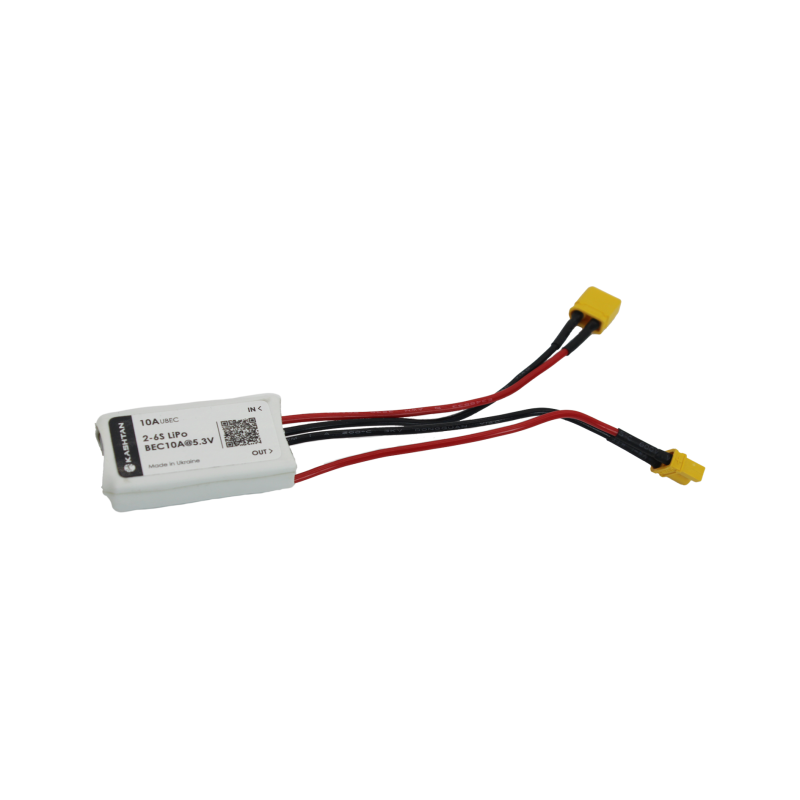

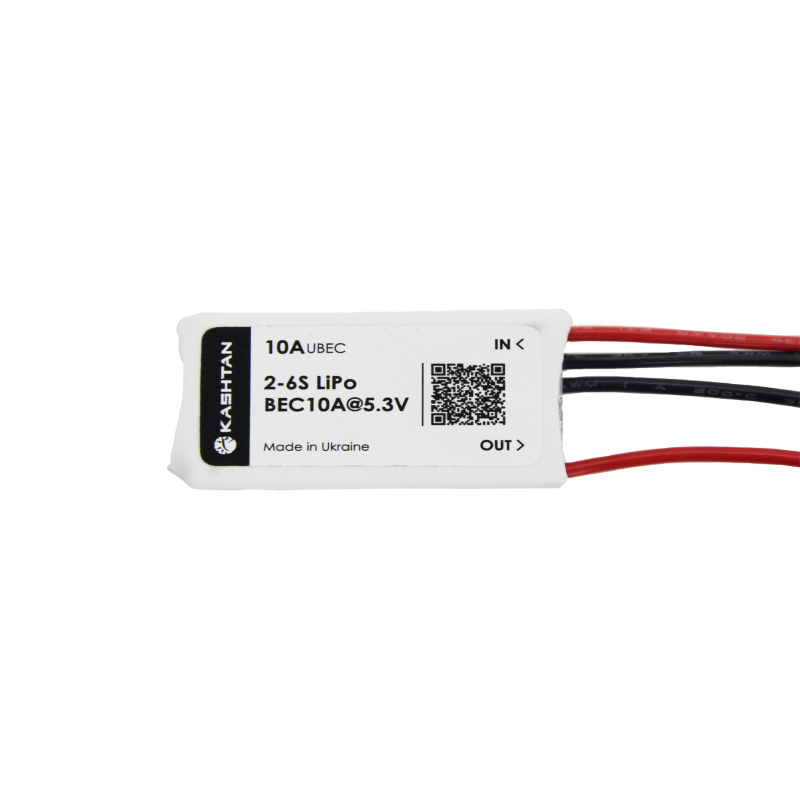

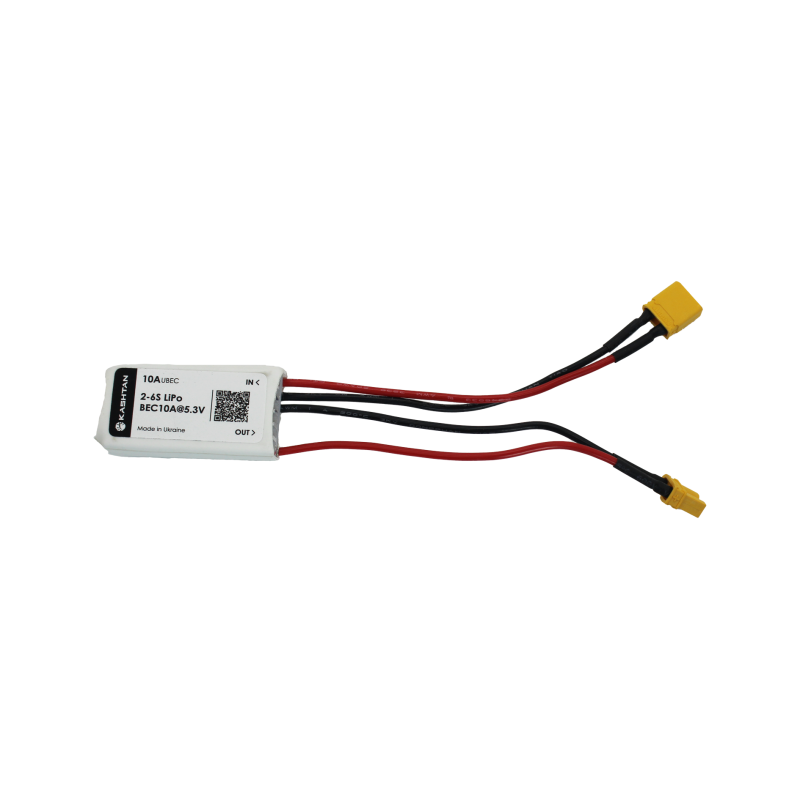

KASHTAN UBEC 10A 2-6S Power Regulator

KASHTAN UBEC 10A 2-6S — a compact external switching power regulator designed for stable and reliable power supply to sensitive electronic components directly from LiPo batteries with an operating voltage of 2S to 6S (8–26 V). The device provides a continuous output current of 10 A and a peak current of 12 A for up to 5 seconds, with a maximum of 10 A sustainable for up to 10 minutes. The output voltage is stably regulated at 5.3 V, making it compatible with the vast majority of servos, radio modules, and control systems.

Specifications

• Input Voltage: 8–26 V (2–6S LiPo).
• Output Voltage: 5.3 V (stably regulated).
• Output Current: 10 A (continuous), 12 A (peak, up to 5 sec.), max 10 A for up to 10 minutes.
• Size: 20.5×40×12 mm.
• Weight: 27 g.
• Protection: overvoltage, short circuit, overheating, and overload.

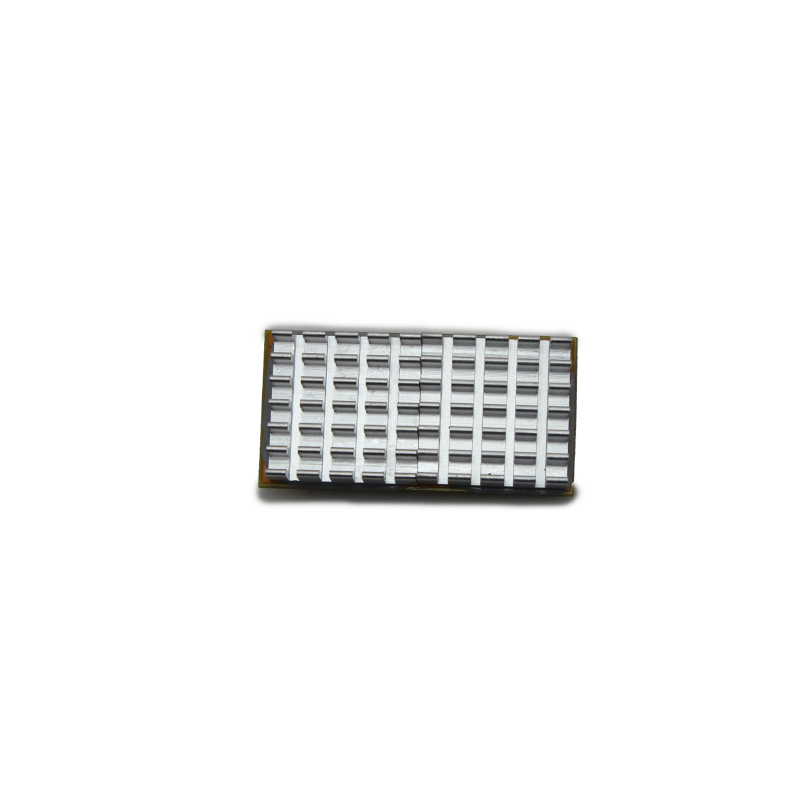

• Cooling: integrated heatsink.

Thanks to its compact dimensions of 20.5×40×12 mm and a weight of only 27 g, the KASHTAN UBEC 10A 2-6S is ideal for installation in models with limited space: quadcopters, airplanes, cars, and robotic platforms. The integrated heatsink and high conversion efficiency reduce device heating and save battery energy during intensive tasks.

Advantages

• High energy conversion efficiency, minimizing losses and overheating.
• Compact and lightweight design allows installation even in small models.
• Compatibility with a wide range of systems: quadcopters, airplanes, cars, robotics.
• Reliable power supply for servos and electronic units without voltage sag.

Package Contents

• 1 × KASHTAN UBEC 10A 2-6S Power Regulator

DATASHEET

Recommendations and Warnings

• Before installation, always check power compatibility with other model components to avoid overload and damage.
• Soldering may be required for mounting and connection. Use a quality soldering iron and carefully insulate all connections.
• After flights or tests, always disconnect the battery to prevent over-discharge.

Manufacturer: KASHTAN. Purpose: accessory for drones and other radio-controlled models that require a stable 5.3 V power source with a high current reserve. The product belongs to the category: Drones & Quadcopters > Stacks (FC+ESC).

The regulator is suitable for use with powerful servos, power controllers, flight control systems, and other power-intensive components where voltage stability and protection against emergency situations are important.

Information on technical specifications, protections, and package contents fully corresponds to the original product description; before installation, we recommend reviewing the datasheet and manufacturer's recommendations.
