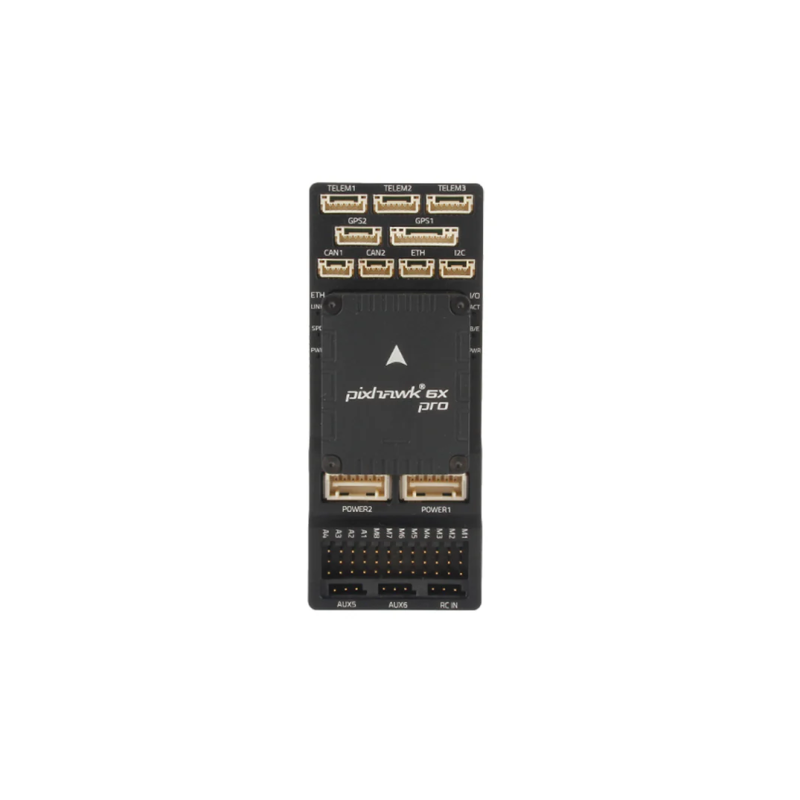

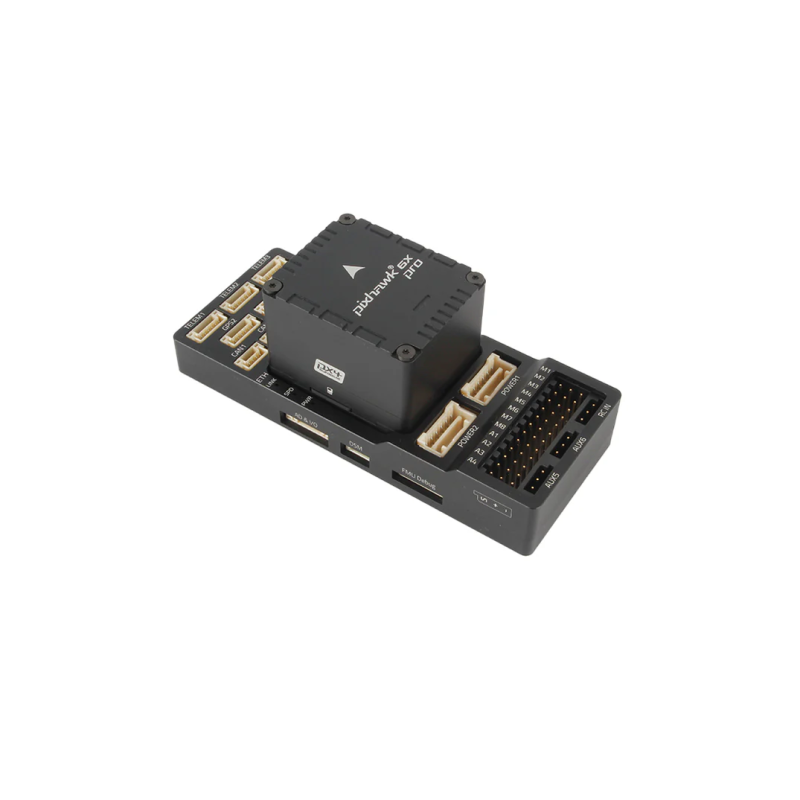

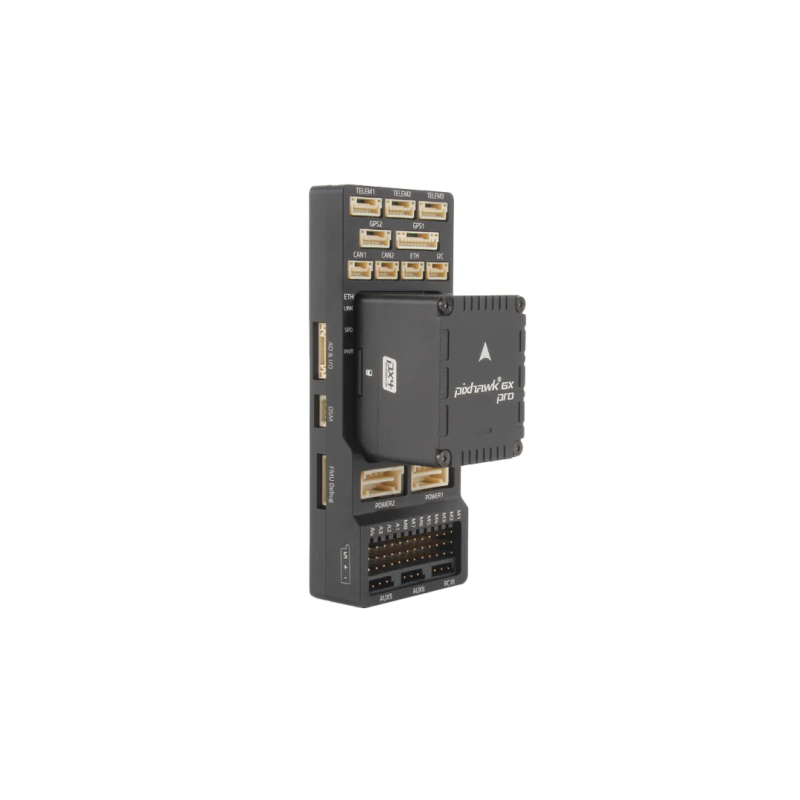

Holybro Pixhawk 6X Pro Standard v2B — Flight Controller for Industrial Drones

The Holybro Pixhawk 6X Pro Standard v2B Flight Controller from Holybro is designed for industrial and commercial UAV applications where precision, reliability, and fault tolerance are critical. It is a modular Pixhawk-class flight controller (FC) stack with advanced sensor and hardware redundancy capabilities, making it an ideal choice for critical missions and demanding operating conditions.

The controller is equipped with three independent inertial measurement units (IMUs) and two barometers, ensuring high stability and positioning accuracy even in challenging environments. A high-performance FMU STM32H753 processor (32-bit Arm® Cortex®-M7, 480 MHz) with 2 MB flash memory and 1 MB RAM is used for flight algorithm processing, while an IO STM32F103 processor (32-bit Arm® Cortex®-M3, 72 MHz, 64 KB RAM) handles I/O. The system features hardware redundancy to ensure stable operation in extreme situations.

Sensors and Security

Built-in sensors include ADIS16470 accelerometers and gyroscopes (±40g, vibration-isolated, industrial IMU), IIM-42652 (±16g, vibration-isolated, industrial IMU), and ICM-45686 with BalancedGyro™ technology (±32g, rigidly mounted). Barometers: ICP20100 and BMP388. The BMM150 magnetometer and NXP EdgeLock SE050 secure element add a layer of security and data protection.

Electrical Specifications

• Maximum input voltage: 6 V.
• USB power: 4.75–5.25 V.
• Servo rail power: 0–36 V.
• Current limit for Telem1 output: 1.5 A.
• Total output current limit for other ports: 1.5 A.

Mechanical Specifications

• Flight controller module dimensions: 38.8 x 31.8 x 30.1 mm.
• Standard baseboard dimensions: 52.4 x 102 x 16.7 mm.
• Flight controller module weight: 50 g.
• Standard baseboard weight: 72.5 g (aluminum).

Design and Operation Features

The device features a new vibration isolation system made of high-quality silicone material, which significantly improves IMU damping and enhances sensor accuracy in flight. Additionally, a thermo-controlled IMU board is implemented to maintain optimal operating temperature for the sensors. The controller also supports Ethernet integration for high-speed connection to a mission computer, which is convenient for transmitting large volumes of telemetry and quick configuration.

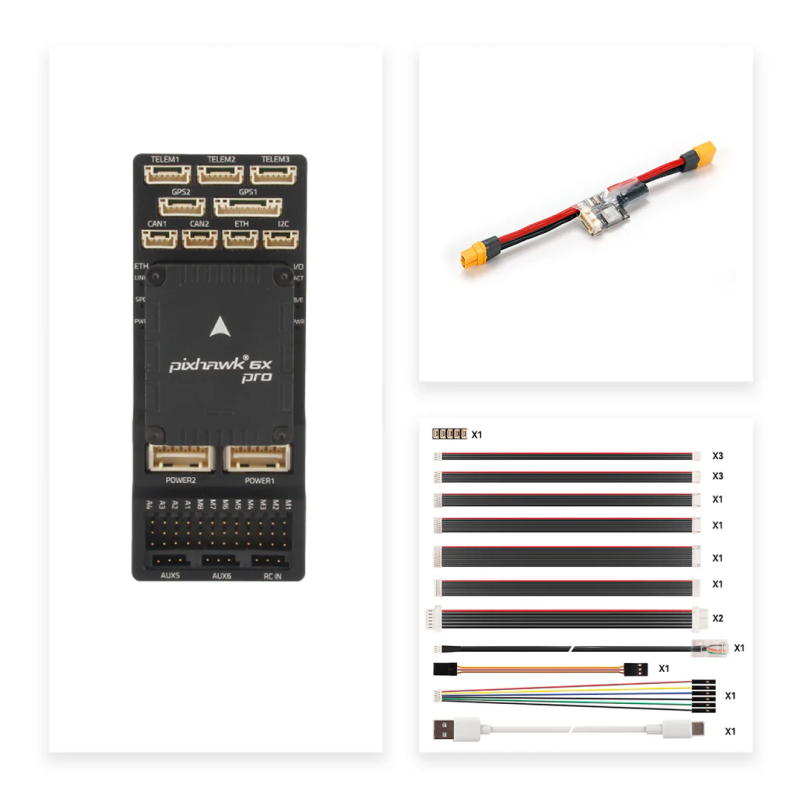

Package Contents

• Pixhawk 6X Pro Flight Controller Module.
• Standard v2B Baseboard.
• PM02D HV Power Module.
• Cable set.

The Holybro Pixhawk 6X Pro Standard v2B is a comprehensive hardware solution for professional applications: from drones for mapping and inspections to industrial platforms performing critical tasks. By combining a powerful FMU, sensor redundancy, isolated IMUs, and reliable electrical characteristics, the controller ensures stable operation even in complex and demanding conditions.

Other technical details and device compatibility can be clarified in the manufacturer's specifications or with Holybro technical support. For projects where fault tolerance and positioning accuracy are important, the Pixhawk 6X Pro Standard v2B will be a reliable choice.
