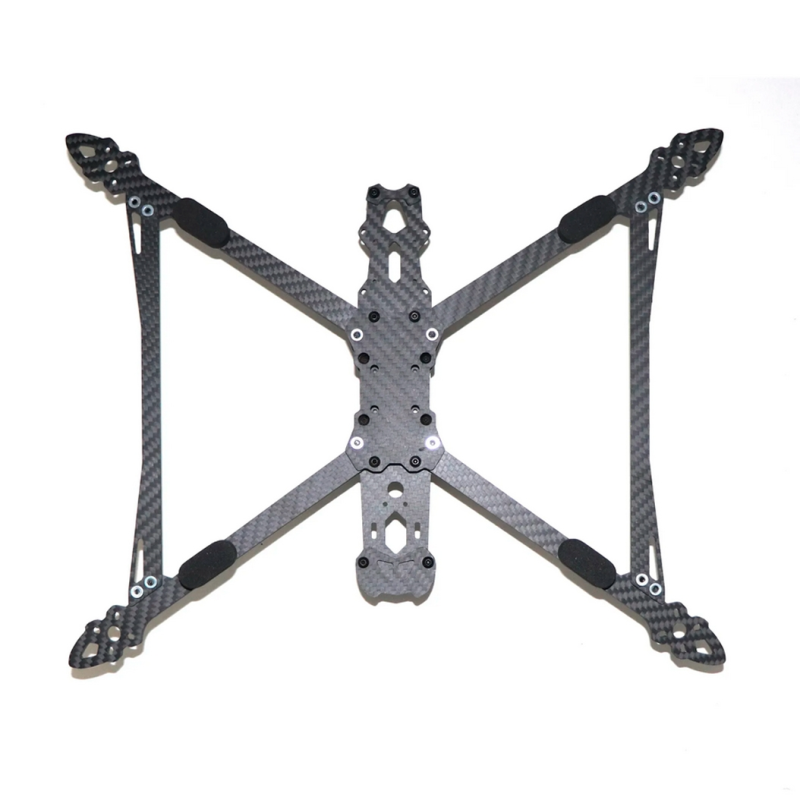

MARK4 V2 8inch Carbon Frame — a high-quality carbon structure designed for FPV drones, combining lightness and enhanced strength. This Mark4 8″ (MARK4 V2 8inch) model offers optimal dimensions of 255x365 mm, ensuring excellent maneuverability, aerial stability, and the ability to install 8-inch propellers for efficient flight.

Key Advantages

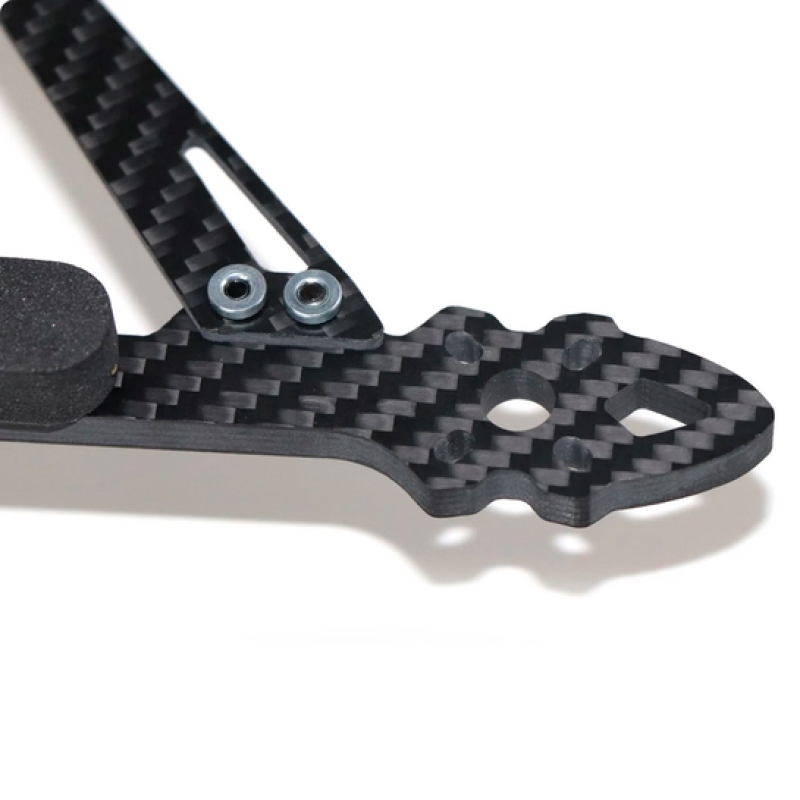

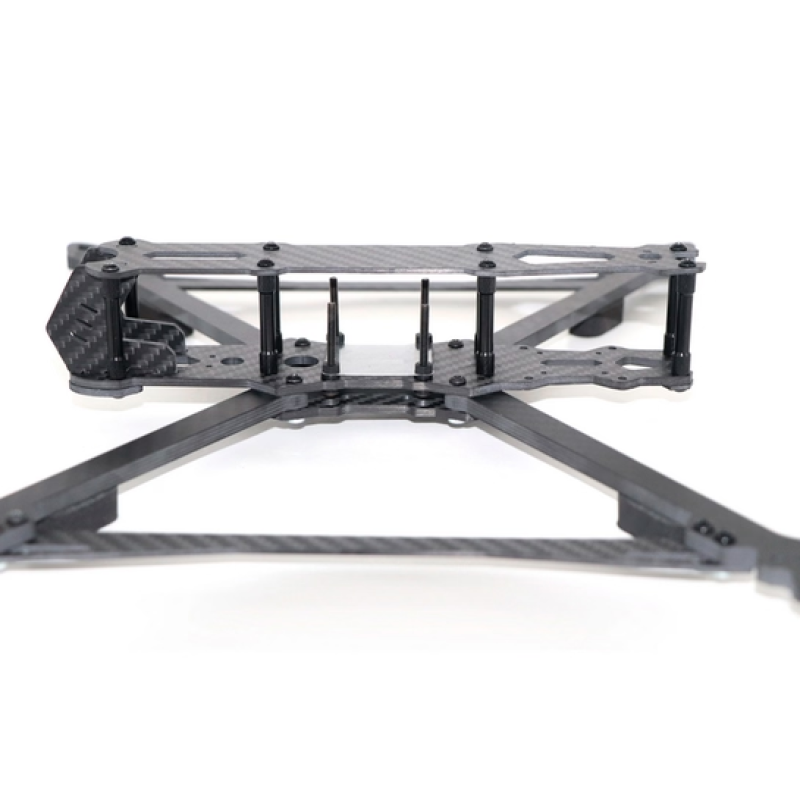

The frame is made of carbon, guaranteeing high rigidity with minimal weight. The arm thickness is 5 mm, and the top and bottom plates are 2.5 mm each, providing reliable electronics protection and stable rigidity during aggressive maneuvers. The 19.3 mm camera mount securely fixes video equipment without play, which is crucial for high-quality FPV footage.

Additional Information

Model: Mark4 8″. The controller mounting holes have a standard size of 30/30 mm, simplifying the installation of popular flight controllers. The frame design allows for neat cable and power supply organization, and provides sufficient space for equipment mounting.

Specifications:

• Model: Mark4 8″
• Size: 255x365 mm
• Controller mounting holes: 30/30 mm
• Arm thickness: 5 mm
• Top plate thickness: 2.5 mm
• Bottom plate thickness: 2.5 mm
• Camera mount size: 19.3 mm

The kit also includes one 30 cm strap (battery velcro) for easy battery fixation and improved usability. The frame is ideal for both experienced FPV pilots and enthusiasts building racing or freestyle drones.

Manufacturer: China. Product category: Drones & Quadcopters > Frames. The MARK4 V2 8inch offers an excellent price-to-quality ratio, suitable for complex flight tasks and aggressive piloting styles.

This frame will provide a reliable platform for your FPV project thanks to its thoughtful design, durable materials, and standard mounting points that facilitate the integration of controllers and cameras.
