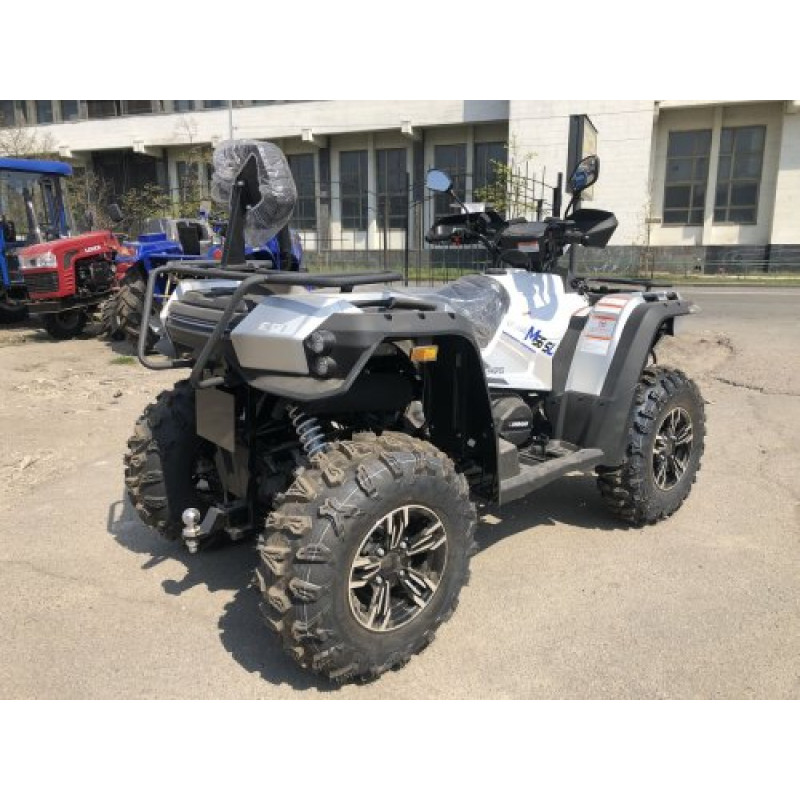

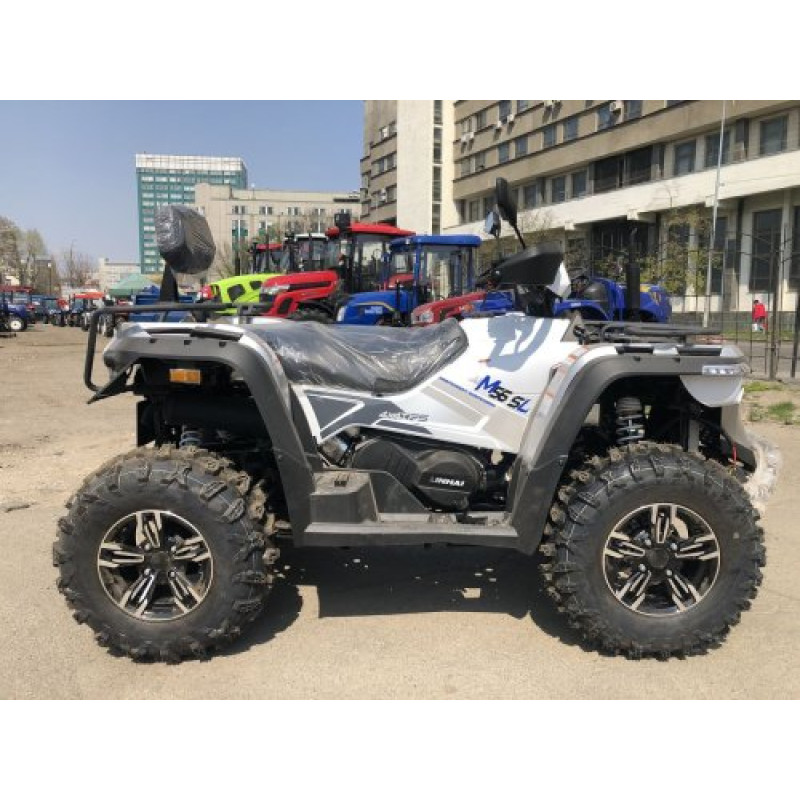

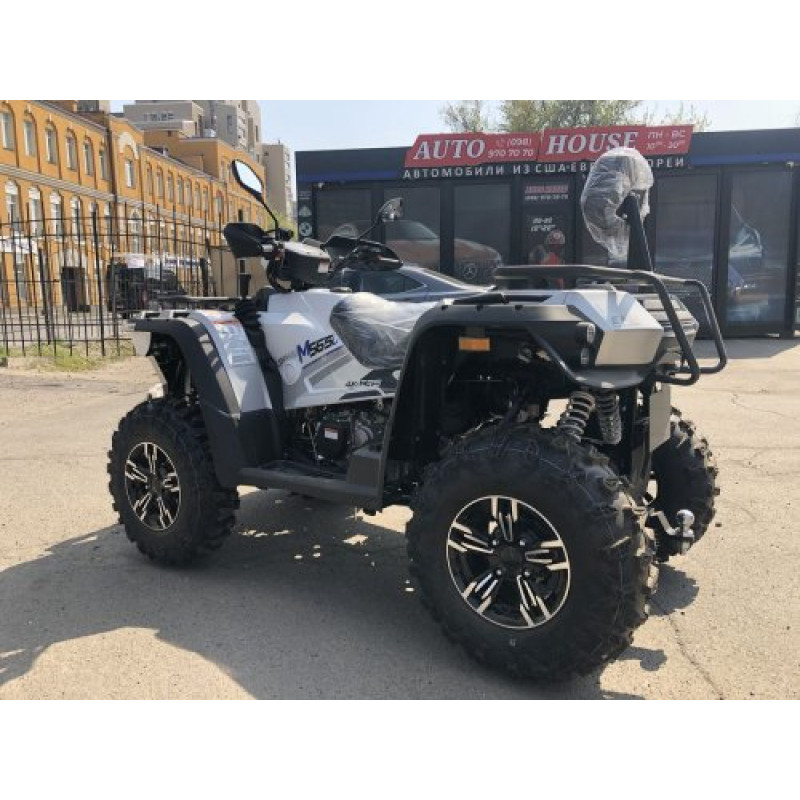

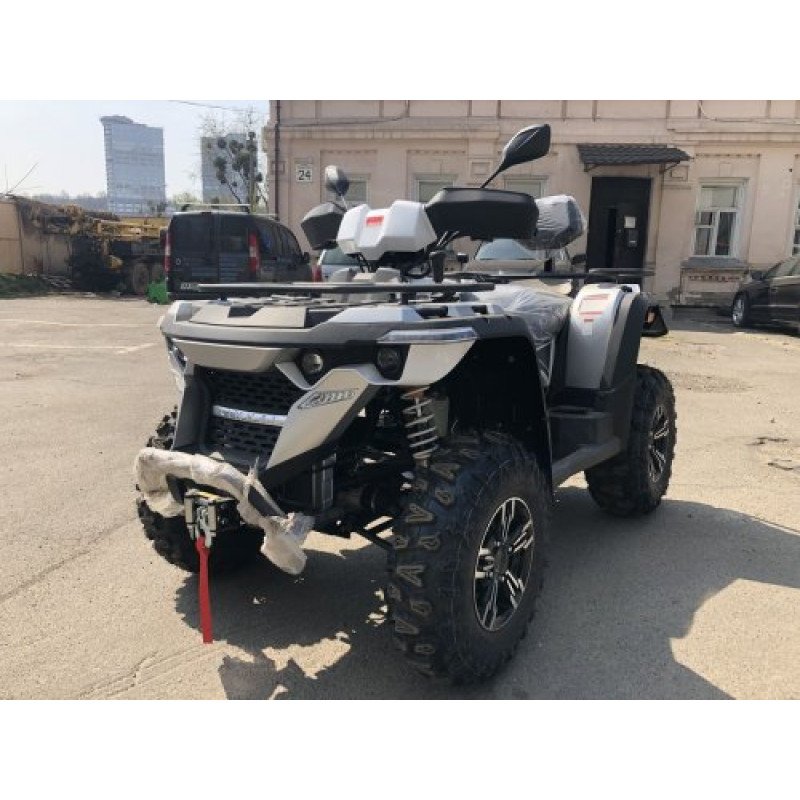

Linhai 565 LI ATV — Power and Reliability for Extreme Rides

The Linhai 565 LI ATV from the LINHAI brand combines the quality of Japanese engineering with the affordability of Chinese manufacturing. The model was created through a collaboration between Jiangsu Linhai Power Machinery Group Corporation and YAMAHA Motor Co., which resulted in a vehicle with high performance characteristics at an attractive price. The Linhai 565 LI is designed for users looking for a capable and reliable all-terrain vehicle with modern equipment.

Key Technical Specifications and Advantages

This model is equipped with a 4-stroke gasoline engine with a displacement of 500 cm3, an EFI injection system, and a power output of 39 hp. Starting is via an electric starter, and the liquid cooling system ensures stable engine operation and extends its lifespan. The Linhai 565 LI features 4x4 all-wheel drive and a rear differential lock for confident driving on challenging terrain, while the automatic transmission — a V-belt variator — offers L/H/neutral/reverse modes.

• Engine: gasoline, 4-stroke, EFI injector, 500 cm3 displacement, 39 hp, electric starter.
• Cooling: liquid cooling system.
• Drive: 4x4, rear differential lock: yes.
• Transmission: automatic (V-belt variator) with L/H/neutral/reverse modes.
• Torque: 47 Nm at 5750 rpm; nominal engine speed 6900±150 rpm.
• Average fuel consumption: approximately 6 l/100 km; fuel tank capacity 14.2 l.

Brake System, Suspension, and Wheels

The Linhai 565 LI is equipped with combined hydraulic disc brakes at the front and rear. The front hydraulic disc brakes on each wheel, actuated by the handlebar, are combined with the rear brakes; the rear brake is a hydraulic disc on the axle, actuated by the pedal. The parking brake locks the rear caliper with a manual actuator and a lock on the handlebar. Brake hoses are reinforced.

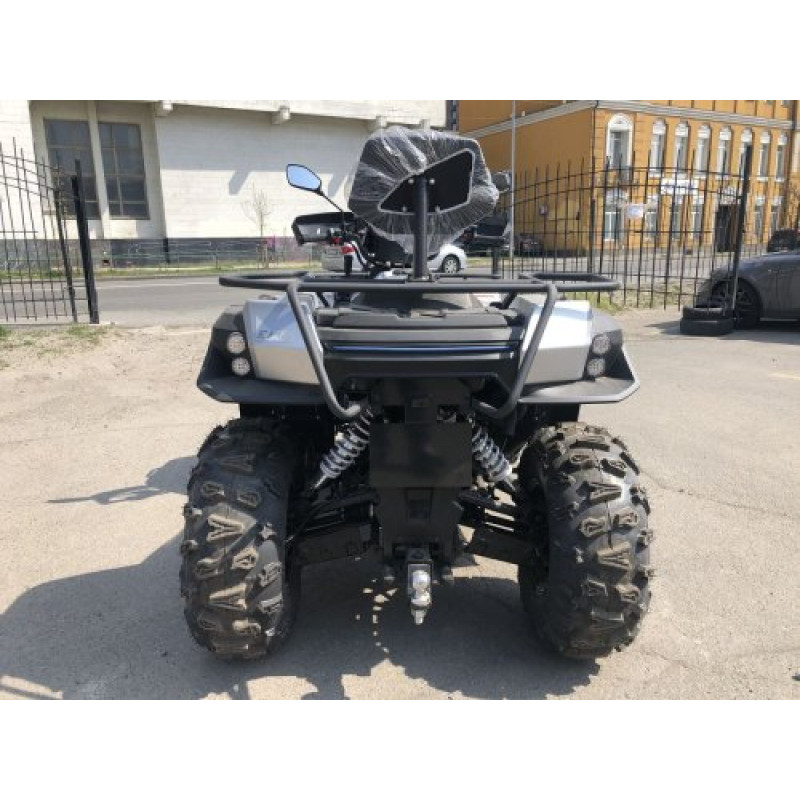

The front suspension is independent with McPherson struts; the rear is independent with double A-arms and an anti-roll bar. Wheelbase is 1350 mm, tire sizes: front 25x8-12, rear 25x10-12.

Comfort, Electronics, and Configuration

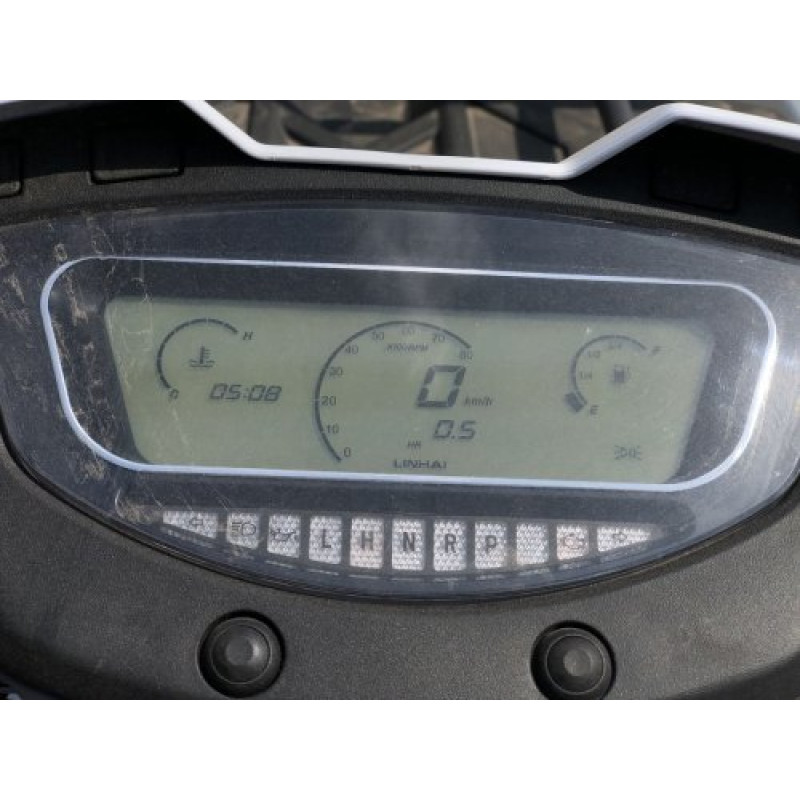

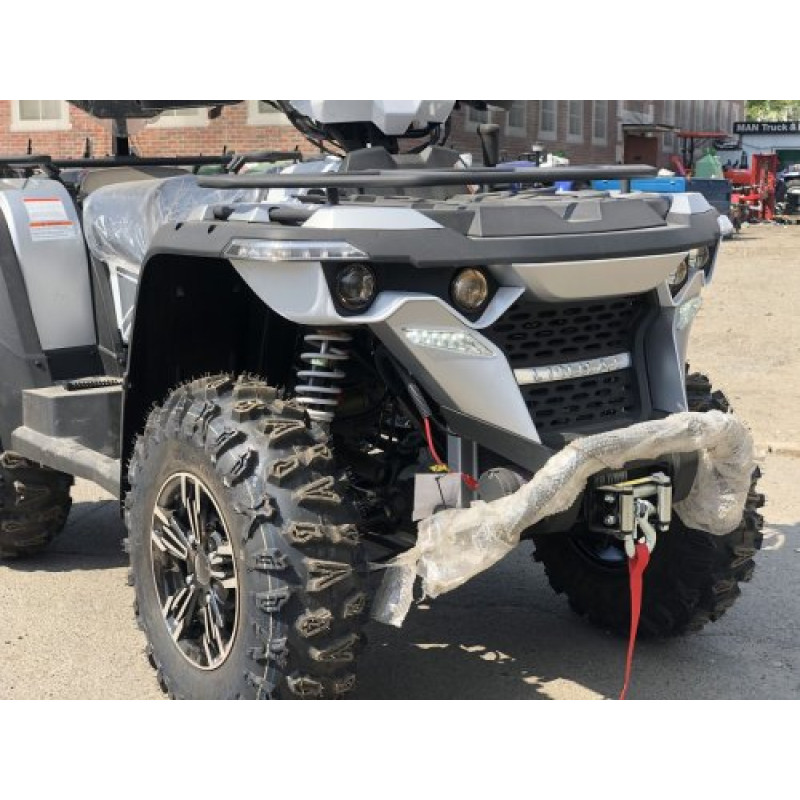

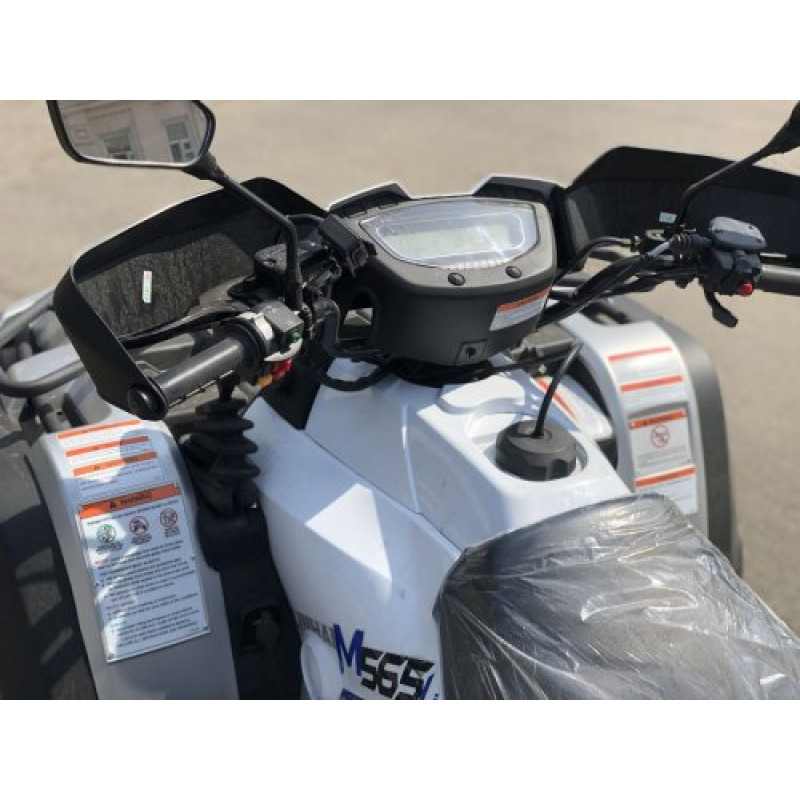

The basic configuration includes rearview mirrors, handguards, an instrument panel with an LCD screen, a winch, alloy wheels, and a tow hitch. Lighting equipment includes front lenses with H4 35W halogen lamps (low/high beam), front and rear marker lights, a stop light, turn signals, a horn, and a speedometer. The battery is a sealed lead-acid battery 12V 18Ah.

The plastic body kit is made of high-strength ABS plastic (front bumper, side mudguard, fender flares). The metal body kit is tubular, integrated into the frame with the possibility of installing additional cases. ATV dimensions: 2330x1160x1265 mm. The final drive is direct.

Practicality and Operation

The model demonstrates good fuel efficiency with an average fuel consumption of approximately 6 l/100 km. The presence of a winch and tow hitch makes the Linhai 565 LI a versatile assistant in agriculture, hunting, fishing, and for active recreation. Modern design, comprehensive lighting equipment, and a convenient instrument panel enhance driving comfort.

If you decide to buy the Linhai 565 LI ATV, you can place an order in the online store with a few clicks through the cart — leave your contact details, and our manager will contact you to clarify the details. The price of the model is affordable for equipment of this class; additional service and consultations on technical specifications are possible.

Technical specifications:

The Linhai 565 LI model is an excellent choice for active users who need a practical and reliable ATV for work and recreation. The combination of a powerful engine, efficient transmission, and all-wheel drive makes it a versatile vehicle for any task.
