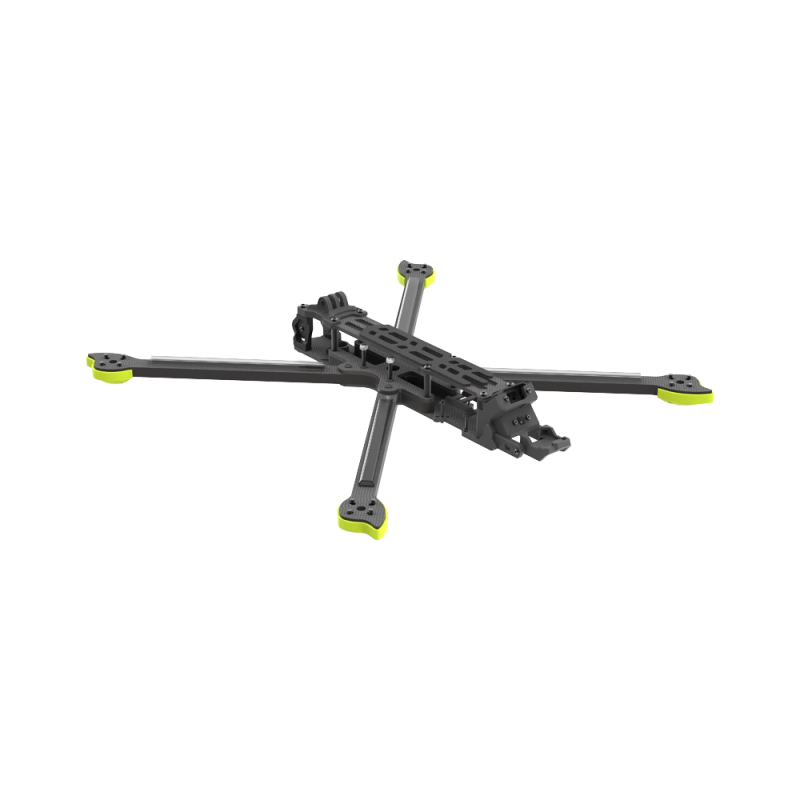

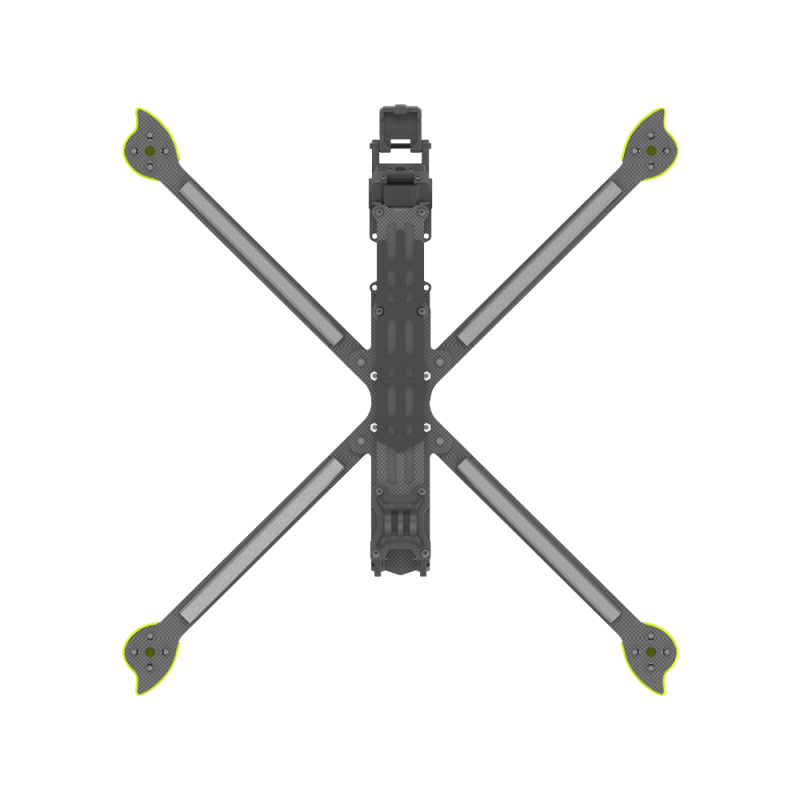

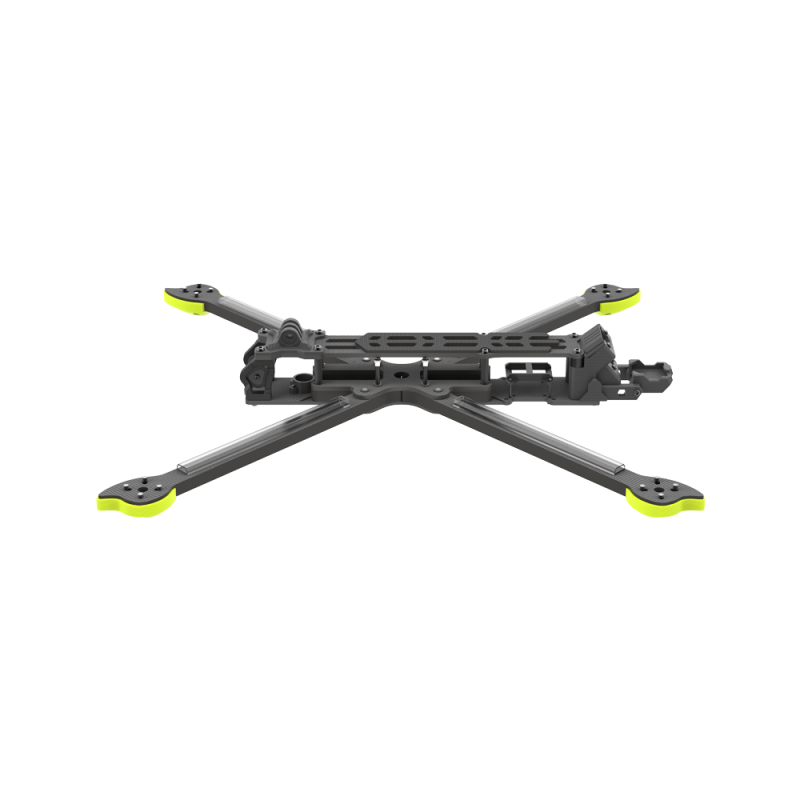

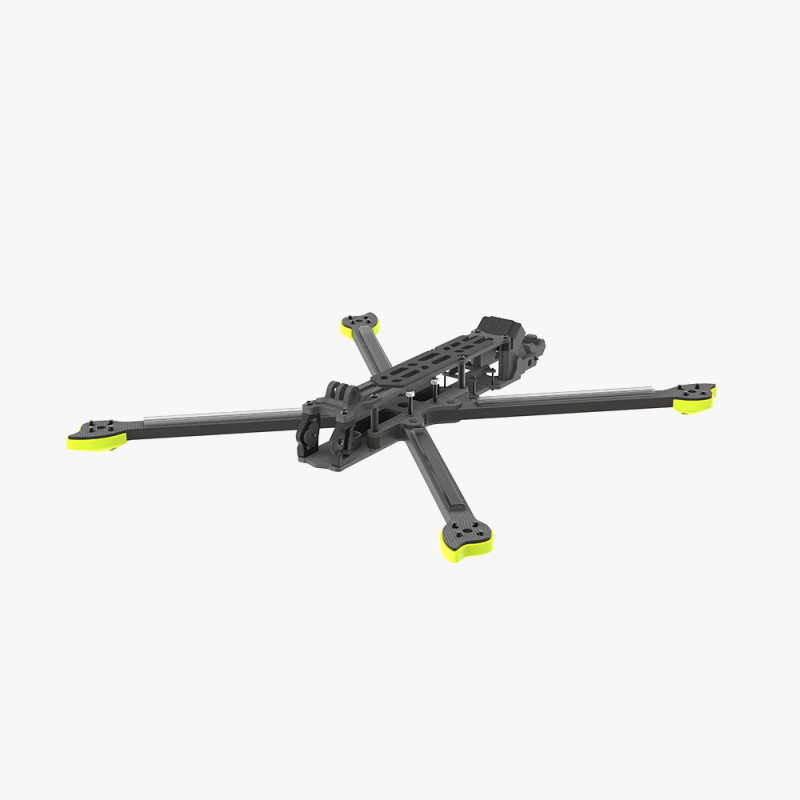

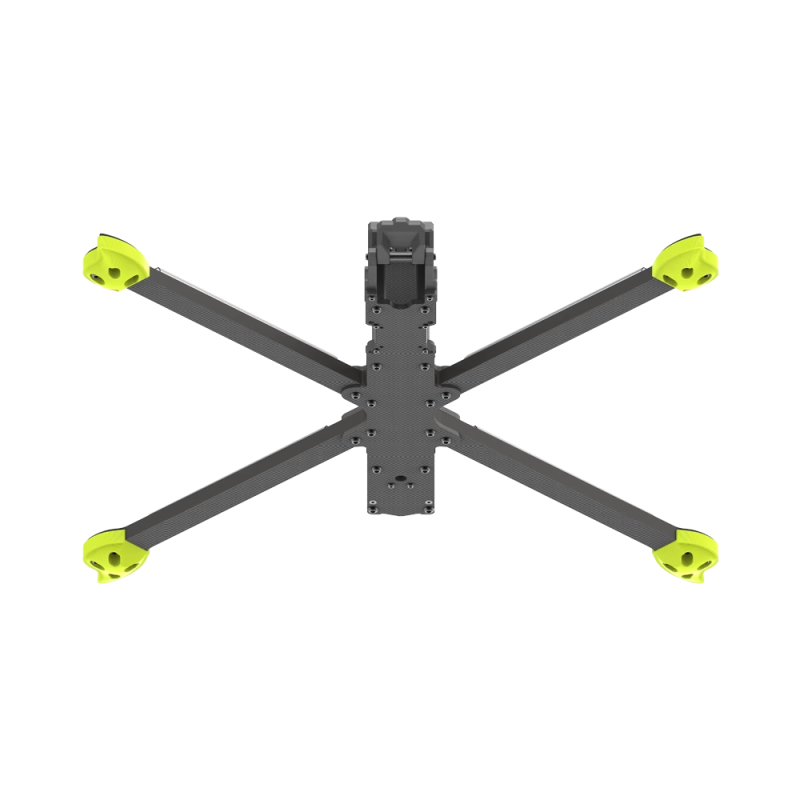

iFlight Nazgul XL10 Carbon Frame — Durable and Thoughtful Design for FPV
The iFlight Nazgul XL10 Carbon Frame is designed for pilots seeking a reliable and rigid frame for racing or freestyle drones. The iFlight brand guarantees high-quality materials and thoughtful engineering: the base is made of 3K carbon fiber, and the True-X configuration with a 420mm diagonal ensures an optimal balance of maneuverability and stability in flight.
Key Features
| Specifications | Value |
|---|---|
| Material | 3K Carbon Fiber |
| Size | 420mm Diagonal |
| Configuration | True-X |
| Compatibility | 30.5×30.5 and 20×20 |
| Electronics Compatibility | DJI O3, Caddx Vista HD, BLITZ Whoop 1.6W |
| Protection | 360° TPU, Antenna Mount |
| Frame Size | 297×297×35 mm |
| Side Plate Thickness | 7 mm |
| Bottom Plate Thickness | 3 mm |
| Top Plate Thickness | 3 mm |
| Max Flight Controller Stack Height | 19 mm |
| Max Video Transmitter Height | 29 mm |
| Motor Mount | 16×16 mm / 19×19 mm |
| Video Transmitter Mount | 20×20 Ø2 mm / 25.5×25.5 Ø2 mm / 30.5×30.5 Ø3 mm |
| Weight | 345±5 grams |
This frame is designed with modern FPV component needs in mind: it supports popular flight controller mounting formats (30.5×30.5 and 20×20), offers multiple video transmitter and motor mounting options, and includes electronics protection with a 360° TPU kit and a dedicated antenna mount. The 7mm side plate thickness and 3mm top and bottom plates make the structure relatively light while maintaining high rigidity.
Who It's For
The iFlight Nazgul XL10 frame is ideal for pilots planning to install DJI O3 systems or Caddx Vista-based HD solutions, as well as those using powerful video transmitters like the BLITZ Whoop 1.6W. Standard mounting distances and maximum stack heights (19mm for controller, 29mm for VTX) allow for flexible component selection and optimization of the drone's weight.
Package Contents
Included in the set:
- Nazgul XL10 V6 Frame – 1 pc
- Screw Bag – 1 pc
- TPU Kit – 1 pc
- Anti-slip Battery Mat – 1 pc
- Battery Strap (random color) – 2 pcs
The frame weighs approximately 345±5 grams, allowing for lighter builds for long or dynamic flights. Durable 3K carbon ensures resistance to impacts and vibrations, while the thoughtful True-X geometry provides predictable control responses.
Brand: iFlight. Product Category: Drones & Quadcopters > Frames.
