Product Code: 68770-0004-99
In Stock
1 520 грн. -13%
1 320 грн.
You save: 200 грн.
Promotion will end in:
Days
:
hours
:
minutes
:
seconds
Buy this product in 1 click:
Main specifications
Camera mount size: Plastic FPV Camera Mount (Standard)
Compatibility: FPV Drones with 10"–11" Propellers, Heavy Platforms (up to 5 kg MTOW)
Kit Contents: Aluminum frame with plastic cover and screws, self-adhesive battery pad, plastic camera mounts, RX and VTX antenna mounts
Materials: Aluminum alloy, plastic
Mount type: Screw mount (hex screws), modular attachments
All specifications
We will deliver this product:
Payment
Description

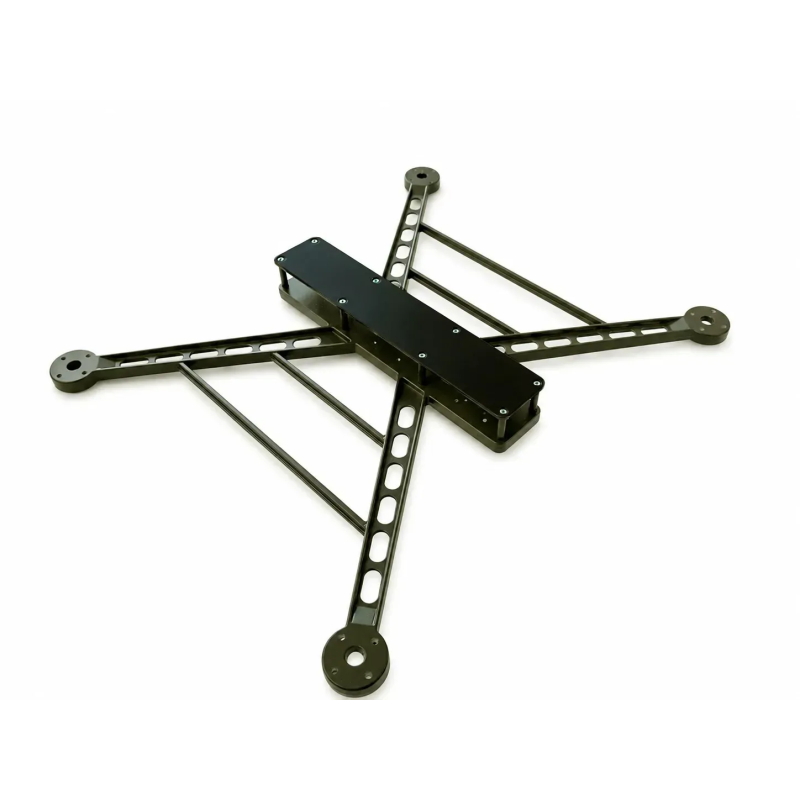

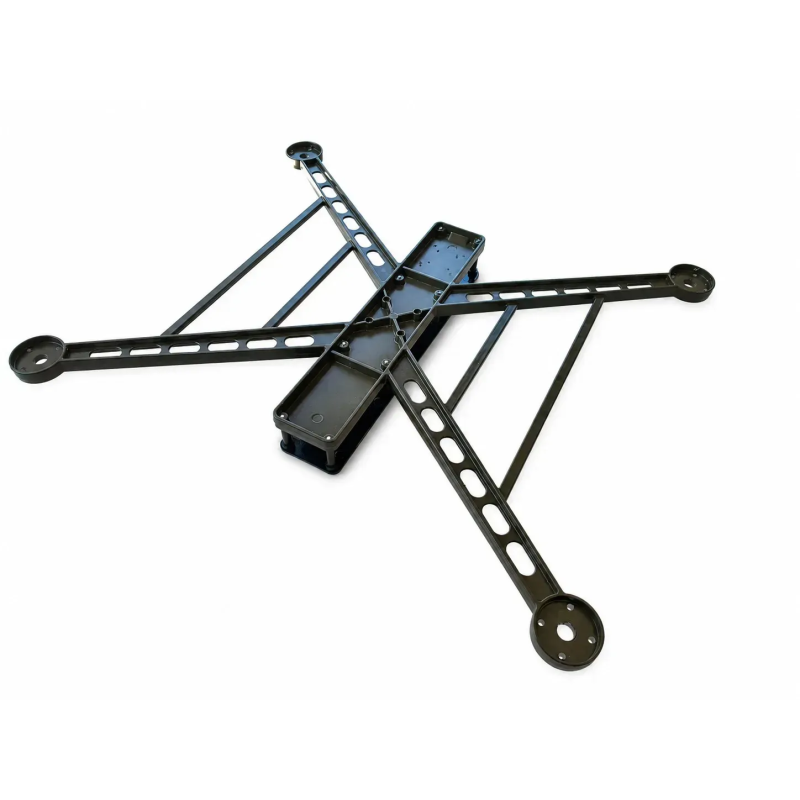

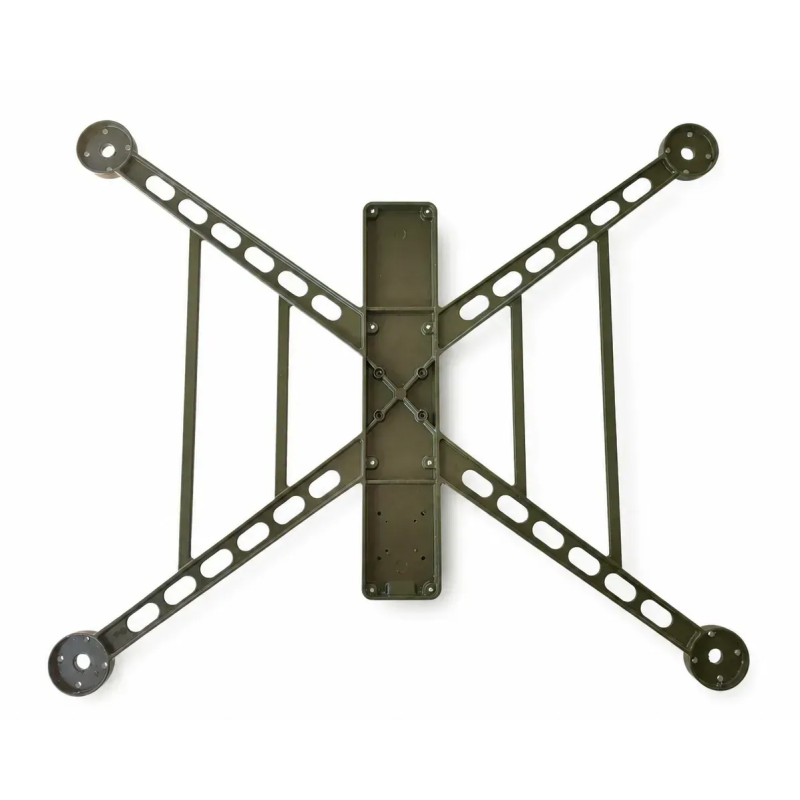

The frame is made by casting from an aluminum alloy with post-processing by vibratory tumbling.

KARMA — a series of aluminum frames for heavy FPV drones. The version for 10–11" propellers is designed for a take-off weight of up to 5 kg.

SPECIFICATIONS:

  • Material: aluminum
  • Weight: 469 g
  • Diagonal: 515 mm
  • Length: 408 mm
  • Width: 360 mm
  • Height: 50 mm
  • Arm length: 218 mm
  • Propeller size: 10" or 11"
  • Estimated UAV take-off weight: up to 5000 g

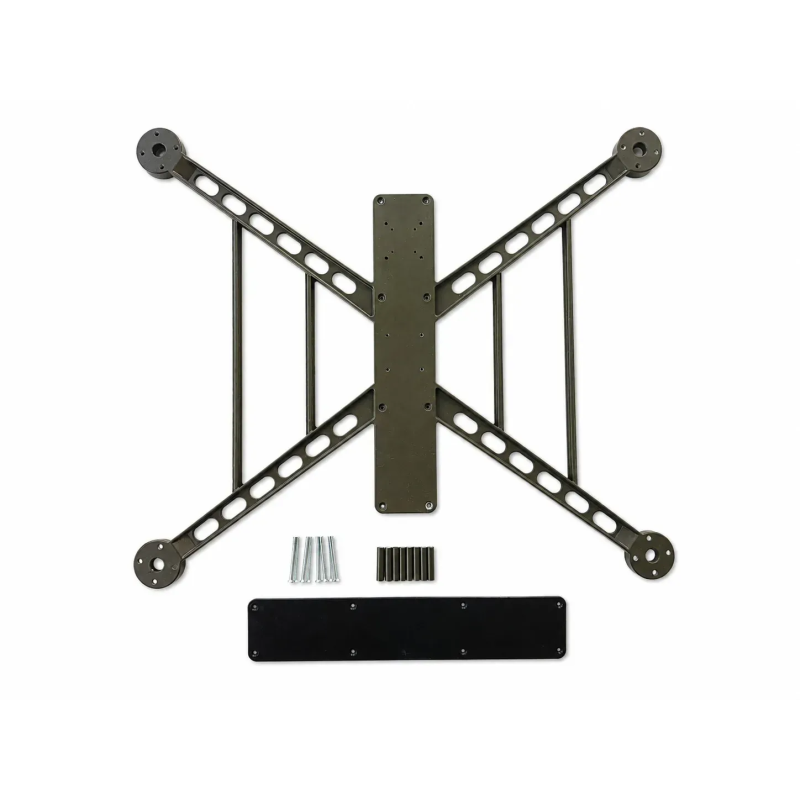

PACKAGE CONTENTS:

  • Aluminum frame with plastic cover and hex screws
  • Self-adhesive battery pad
  • Plastic mounts for video camera
  • Plastic mounts for RX and VTX antennas
Specifications
Camera mount size Plastic FPV Camera Mount (Standard)
Compatibility FPV Drones with 10"–11" Propellers, Heavy Platforms (up to 5 kg MTOW)
Kit Contents Aluminum frame with plastic cover and screws, self-adhesive battery pad, plastic camera mounts, RX and VTX antenna mounts
Materials Aluminum alloy, plastic
Mount type Screw mount (hex screws), modular attachments
Product type Aluminum Frame for FPV Drone
Type of Construction Rigid aluminum frame (casting + vibratory tumbling)
Weight 469 g
Size 408×360×50 mm
