Brotherhood 7" Fiberglass and Aluminum Drone Frame — Disassembled Frame
The drone frame from the Brother Hood brand combines aluminum arms and a body made of reliable STEFF-1 fiberglass, ensuring an optimal balance of strength, weight, and durability. The design is specifically optimized for 7" propellers and is suitable for enthusiasts and professionals who need a reliable platform for custom quadcopters.
Materials and Configuration
Material: aluminum alloy (arms) and STEFF-1 fiberglass (body). The frame is offered in two configurations: assembled frame and disassembled frame. In both options, all parts and hardware are included in the price. Additional service: frame painting of your choice. *prices are exclusive of VAT
Key Specifications
- Assembled frame weight: 256 g
- Fiberglass weight: 92 g
- Arm weight: 142 g
- Size with arms (mm): 259x259x41
- Size without arms (mm): 209x91x31
- Distance between motor centers (mm): 227
- Motor mounting size (mm): 19 mm
- Camera mounting size (mm): 19 mm
- Arm (aluminum profile) (mm), wall (mm): 10x20x172 / 1.5
- Bottom plate (fiberglass) (mm): 209x91x3
- Top plate (fiberglass) (mm): 209x45x3
- Camera bracket (fiberglass) (mm): 31x26x3
- Additional plate (fiberglass): none
- Perimeter according to arms: perimeter size 250/250 mm
The frame provides a balanced size and platform stability. The distances and mounting points are designed to facilitate the installation of typical motors and cameras; if necessary, it is possible to order changes to the mounting holes for motors and other elements. We offer the possibility of individual modifications to the design according to your requirements and the manufacture of any number of finished drones or individual elements.
Additional Information
Country of origin: Ukraine
Type: Frames, Arms, Dampers

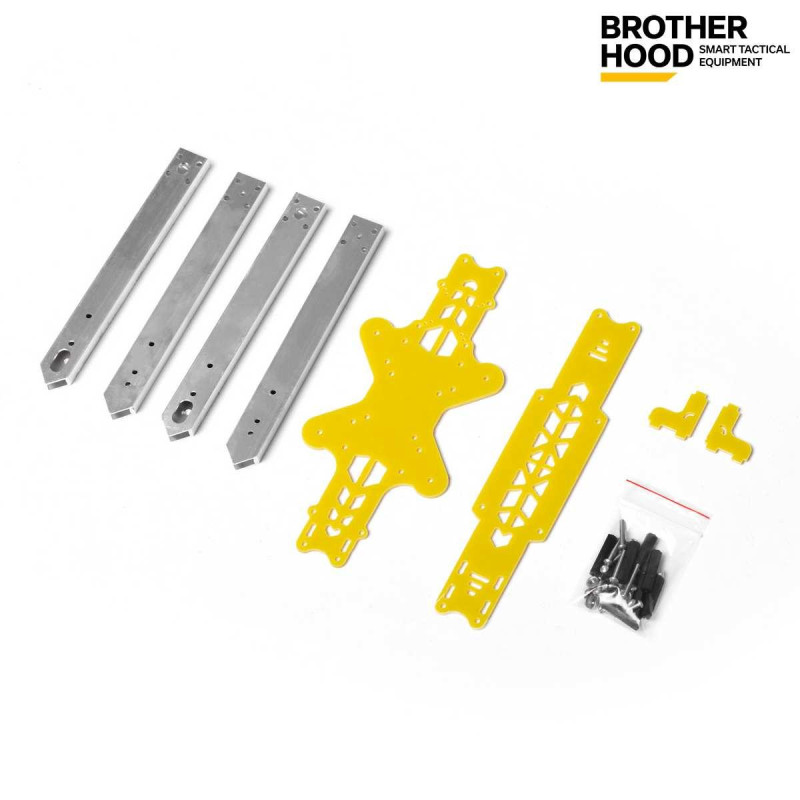

Configuration: Disassembled Frame
Weight (according to attributes): 256 g
The Brother Hood frame is a solution for those who value structural strength and customization options. The kit includes all necessary elements and fasteners, facilitating both self-assembly and serial production. The painting option allows for a personalized frame look for your project. Category marking and catalog path: Drones and Quadcopters > Drone Components > Drone Parts > Frames.
