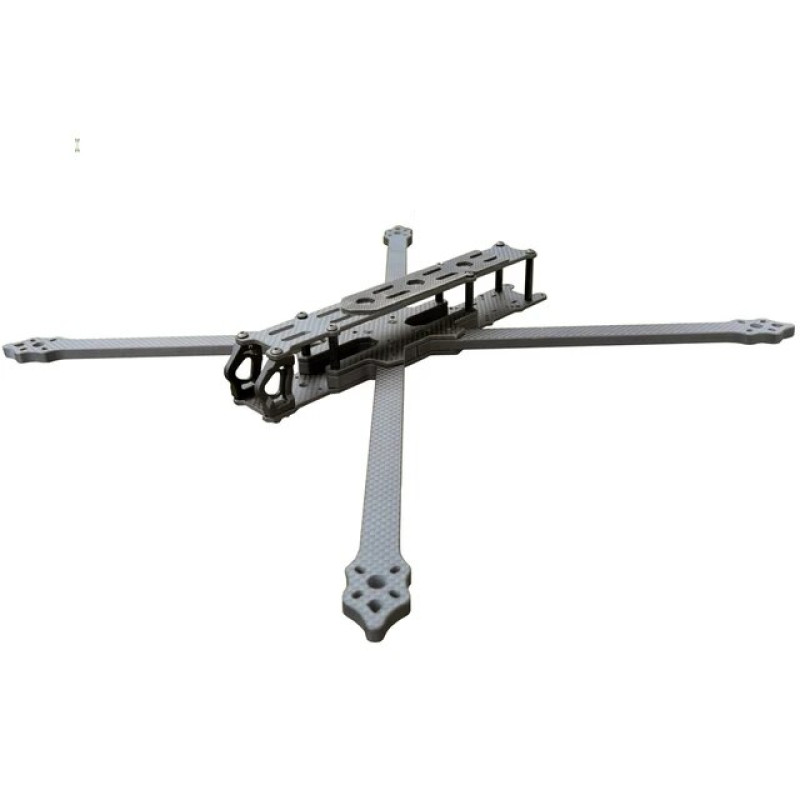

Mitoot XL10 V6 420mm Carbon Frame — Overview and Specifications

Mitoot XL10 V6 420mm 10inch — a premium carbon frame for FPV and heavier drones, combining strength, lightness, and a well-thought-out design. Manufacturer: Mitoot. Category: Drones & Quadcopters > Frames. This model is suitable for those building a quadcopter in a True-X configuration with a large payload capacity and a stable platform for cameras and video transmitters.

Key Advantages

Features:

• 1. Compatible with DJI O3 Air Unit, CADDX Vista, and BLITZ Whoop 1.6W VTX;
• 2. Fully made of 3K carbon — a lightweight material with high hardness and flexibility;
• 3. Popular True-X configuration for optimal maneuverability and flight endurance;
• 4. Maximum payload when using iflight Xing2 3110 motors can reach 1.5–2.5 kg;
• 5. Supports mounting action cameras: GoPro (5/6/7/8/9/10/11), DJI Action, Sony ZV-E10;
• 6. 7mm thick arms provide additional stability and structural strength;
• 7. 360° TPU protection and thoughtful antenna mounting for reliable protection and a clean signal.

Technical Specifications

Specifications:

Model: XL10 V6
Product Name: 10-inch Carbon Frame with 420mm Wheelbase
Wheelbase: 420 mm
Frame Size: 297x297x35 mm (LxWxH)
Arm Thickness: 7 mm
Bottom Plate Thickness: 3 mm
Top Plate Thickness: 3 mm
Upper Top Plate Thickness: 3 mm
Motor Mount: 16×16 mm / 19×19 mm
VTX Mount: 20×20 Φ2 mm / 25.5×25.5 Φ2 mm / 30.5×30.5 Φ3 mm
Weight: 345 ± 5 grams

Package Contents and Installation

Package Contents:

• 1x XL10 V6 Frame;
• 1x Screw Set;
• 1x Anti-slip Battery Pad;
• 2x Battery Straps (color sent randomly).

The Mitoot XL10 V6 frame was designed for builds with large cameras and video transmitters, providing ample space for wiring and power module installation. Thick 7mm arms and 3mm plates ensure stability even during aggressive maneuvers or when carrying payloads up to 2.5 kg.

This is an ideal choice for industrial and cinematic FPV solutions, for hybrid drones with cameras like GoPro or Sony ZV-E10, or for hobby pilots who want a reliable and easy-to-repair frame.

Brand: Mitoot. Product Type: 10" Drone Frame with 420mm Wheelbase. Weight and dimensions are specified by the manufacturer; please check motor and propeller compatibility with your electronics before installation.
