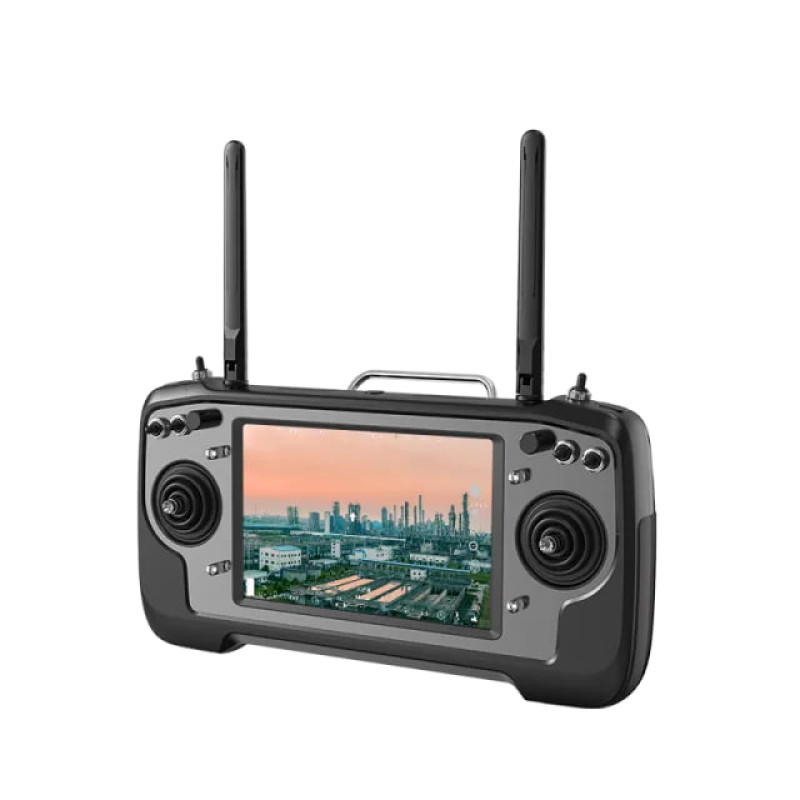

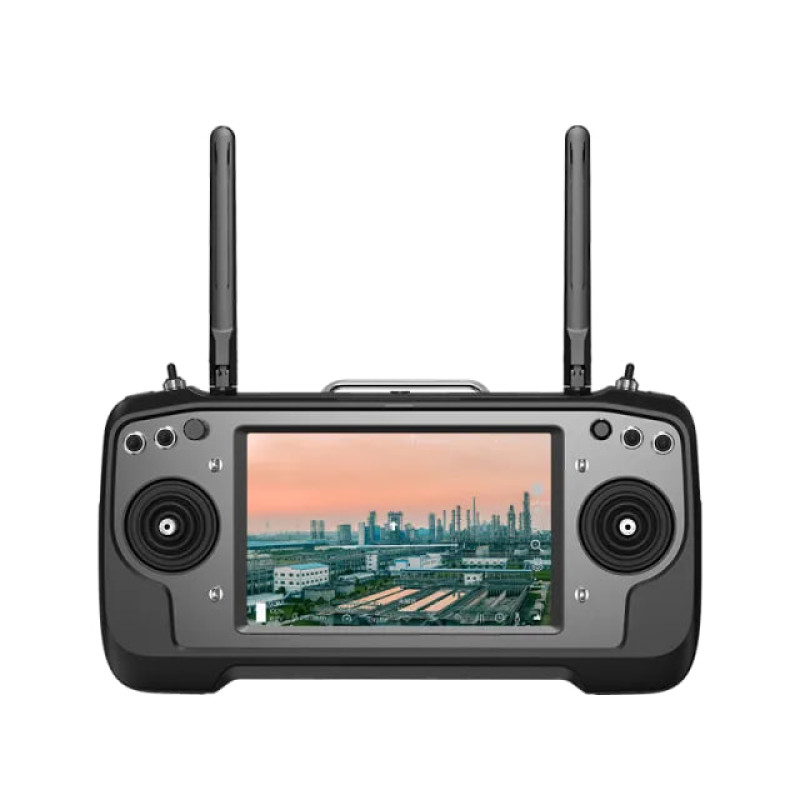

SIYI MK32 Touchscreen Radio System

SIYI MK32 Touchscreen Radio System from manufacturer SIYI — is a comprehensive solution for professional drones, combining a ground station and an air unit. The device is designed for aerial photography, search and rescue operations, monitoring, delivery, and inspection flights, ensuring reliable telemetry and video transmission over long distances thanks to a radio channel with a maximum range of up to 15 km in open, unobstructed areas.

Key Features

• Model: MK32
• Manufacturer: SIYI
• Maximum Transmission Range: 15 km (in open, unobstructed areas)
• Channels: 16 physical channels, 16 communication channels
• Compatible Datalink Flight Controllers: Pixhawk / APM-based controllers or any flight controllers with UART datalink output
• Image Transmission, Android GCS Compatibility: QGroundControl, SIYI FPV
• Image Transmission, Windows GCS Compatibility: QGroundControl

Ground Station

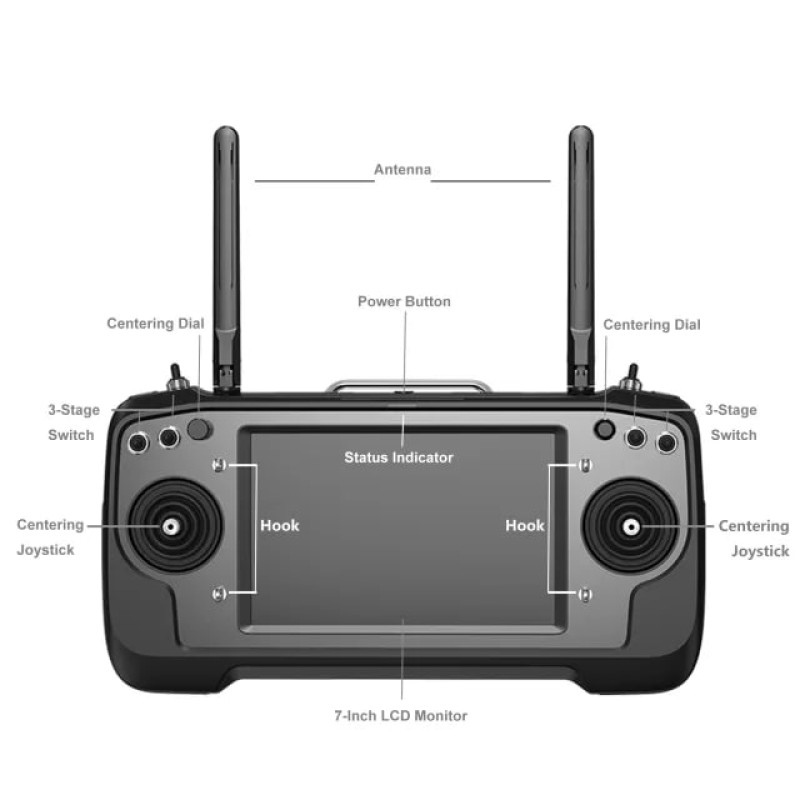

• Monitor: 7-inch high-definition, high-brightness touchscreen LCD
• Operating System and Memory: Android 9.0, 4G RAM and 64G ROM
• Dimensions (antenna folded): 308x148x72 mm
• Ground Station Weight: 1440 g
• Battery: 10200 mAh, 7.4 V, 2S li-ion, 75.48 Wh
• Fast Charging Protocol: PD 30W
• Charging Time: Approximately 3.5 hours (30W PD charging)
• Battery Life: Up to 10 hours

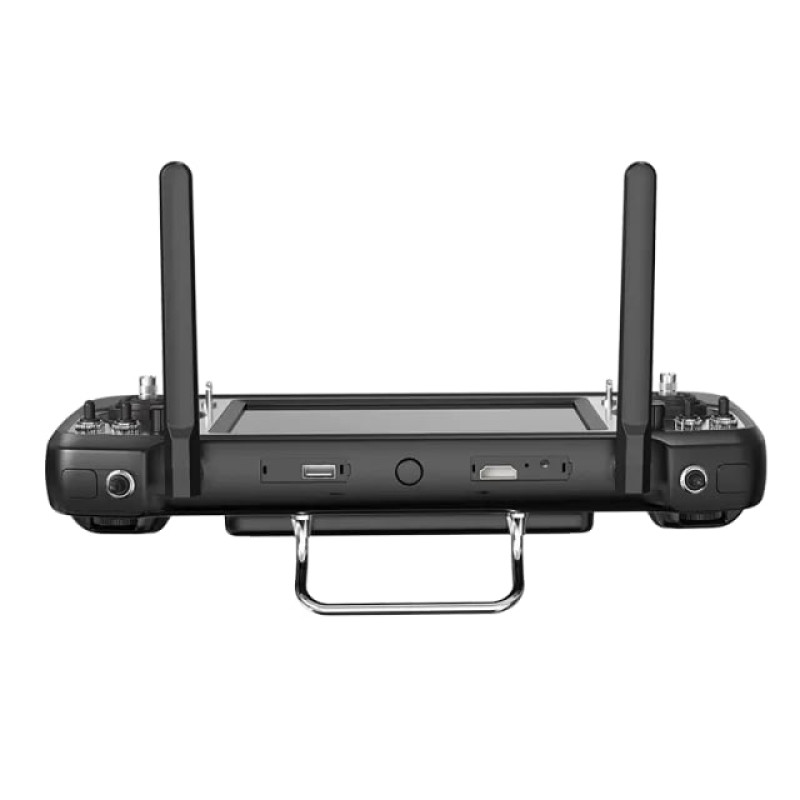

• Interfaces and Ports: Video output — standard HDMI; External device — USB-A; Microphone input — top audio port; Charging and firmware update — Type-C; File transfer — Type-C / USB-A
• 4G Cellular Network: SIM card slot
• External Storage: TF card slot / USB-A

Communication and Operating Conditions

• Communication: LAN (Ethernet)
• RC Input/Output: bottom audio port
• Dust/Water Protection Level: IP4X
• Operating Temperature: -10 to 50 °C

Air Unit

• Signal Output: 16 S.BUS channels, 5 PWM channels
• Interfaces and Ports: SBUS — 3-pin; Datalink to Flight Controller (FC) — UART 4-pin; PWM channel 1–5 — 6-pin
• Video Input: Ethernet 8-pin
• Firmware Update: Type-C
• Dimensions (antenna not included, fan included): 70x55x16 mm
• Weight (antenna not included): 74 g
• Antenna Gain (standard omni): 5 dBi
• Input Power: 11 to 16.8 V (extended operation up to 18V with BEC possible)
• Operating Temperature: -10 to 50 °C

Air Unit HDMI Input Converter

• HDMI Input Converter: available as an optional module or in a combined HDMI package
• Video Input Port: Mini HDMI
• Video Output Port: Ethernet
• Operating Voltage: 12 V
• Power Consumption: 3 W
• TF Card Recording Resolution: 1080P (1920×1080) at 30 fps, 720P (1280×720) at 30 fps
• Video Storage Bitrate: 12 Mbps
• File System Format: FAT32
• Video Format: H.265
• Supported MicroSD Cards: MicroSD CLASS 10, maximum 32 GB
• Operating Temperature: -10 to 50 °C
• Dimensions: 42x41x11 mm
• Weight: 26 g

The SIYI MK32 combines a powerful hardware platform and a user-friendly Android 9.0-based interface, making it ideal for professional UAV applications. The reliable radio channel, multi-channel S.BUS/PWM transmission, and compatibility with popular Pixhawk and APM controllers ensure flexible integration and stable operation in the field. The ground station with a high-capacity 10200 mAh battery and PD 30W support guarantees up to 10 hours of autonomous operation and quick recharging in about 3.5 hours. A wide range of interfaces (HDMI, USB-A, Type-C, SIM and TF card slots) provides efficient data exchange and external device connection, while the compact dimensions and low weight of the air unit and HDMI converter allow easy integration into various platforms without significantly increasing the overall mass. The device is suitable for operation in a wide temperature range from -10 to 50 °C.
