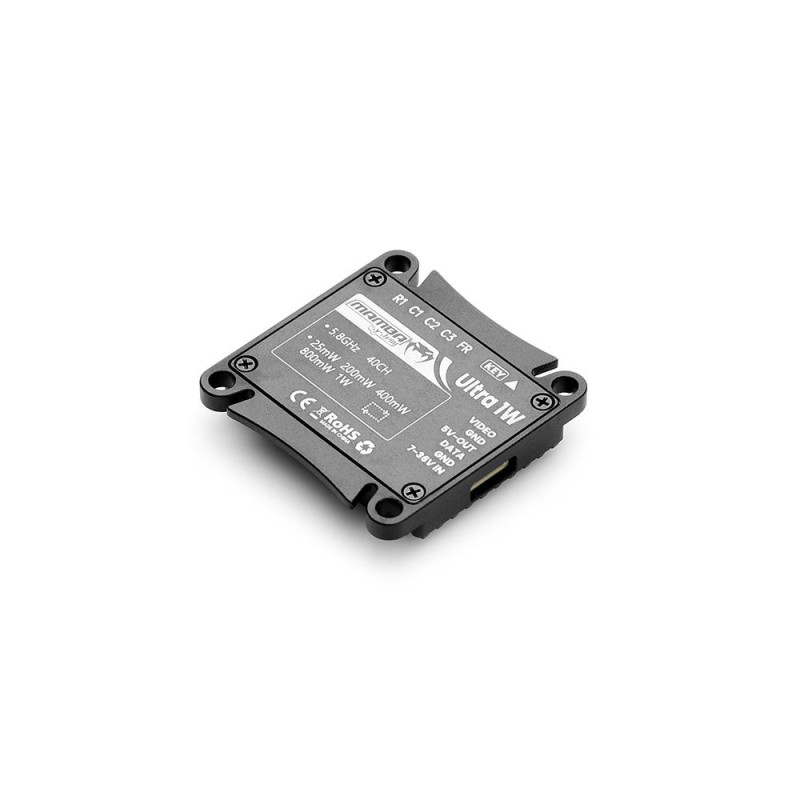

Diatone Mamba Ultra 1000 5.8G 25/200/400/800/1000mW Video Transmitter
Brand: Diatone. The Diatone Mamba Ultra 1000 5.8G 25/200/400/800/1000mW is a high-power, compact FPV video transmitter designed for racing and long-range flights where stable video signal transmission over long distances is required. The model combines a wide input voltage range, five output power levels, an efficient aluminum heatsink for cooling, and convenient mounting solutions.
Advantages and Features
- High power and signal stability for long-range connections.
- Five output power levels: 25 mW, 200 mW, 400 mW, 800 mW, 1000 mW — allowing adaptation to flight conditions and legal requirements.
- No frequency fluctuations on power-up — instant stable operation after power is applied.
- Built-in output power self-check function to verify correct settings.
- Supports NTSC and PAL video formats for compatibility with various cameras and monitors.
- Wide input voltage range (7-36 V) and relatively low power consumption at maximum power.

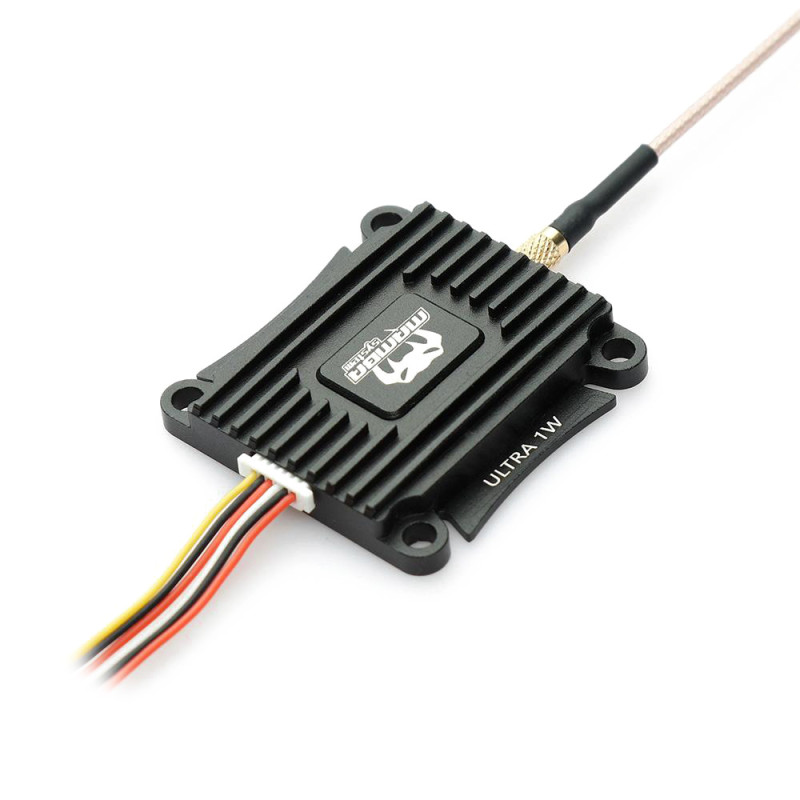

- Aluminum heatsink for efficient heat dissipation and protection against overheating, ensuring long-term operation.
- Mountable on a 30 x 30 mm stack with M3 threads (mounting holes 30.5 x 30.5 mm).
Technical Specifications
- Frequency: 5.8 GHz
- Number of Channels: 48CH (RaceBand / LowRace)
- Output Power: 25 mW / 200 mW / 400 mW / 800 mW / 1000 mW
- Input Voltage: 7-36 V
- Operating Current: 450 mA (12 V / 1000 mW)
- Video Input Impedance: 75 Ohm
- Video Format: NTSC / PAL
- Protocol: IRC

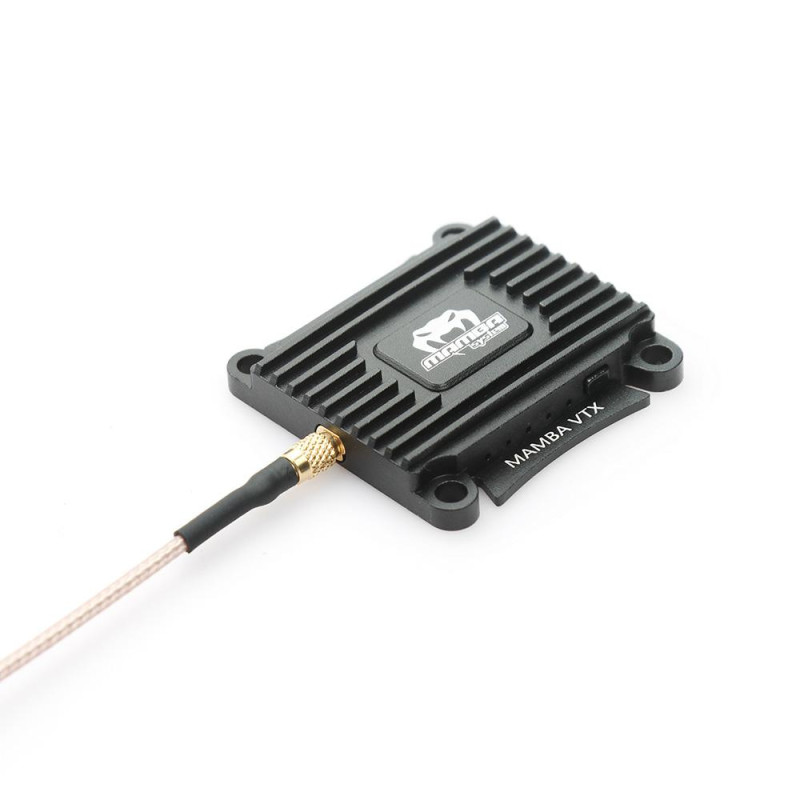

- Antenna Connector: MMCX
- Mounting Holes: 30.5 x 30.5 mm, M3 thread
- Dimensions: 36 x 36 x 6.5 mm
- Weight: 14 g
Compact dimensions of 36 x 36 x 6.5 mm and a weight of only 14 g make the Diatone Mamba Ultra 1000 an ideal choice for most racing frames and 30 mm stacks. The MMCX connector and included MMCX-SMA extension simplify antenna connection and allow optimal antenna placement for better reception. The transmitter is compatible with modern FPV cameras and video systems, providing easy connection and reliable operation across a wide voltage range. It is recommended to use quality antennas and adhere to local regulations regarding maximum permissible output power.
| Band (C4) | CHANNEL C1 C2 C3 | CHANNEL 1 | CHANNEL 2 | CHANNEL 3 | CHANNEL 4 | CHANNEL 5 | CHANNEL 6 | CHANNEL 7 | CHANNEL 8 |
|---|---|---|---|---|---|---|---|---|---|
| A | 1 press | 5865 | 5845 | 5825 | 5805 | 5785 | 5765 | 5745 | 5725 |
| B | 2 presses | 5733 | 5752 | 5771 | 5790 | 5809 | 5828 | 5847 | 5866 |
| E | 3 presses | 5705 | 5685 | 5665 | 5645 | 5885 | 5905 | 5925 | 5945 |
| F | 4 presses | 5740 | 5760 | 5780 | 5800 | 5820 | 5840 | 5860 | 5880 |
| R | 5 presses | 5658 | 5695 | 5732 | 5769 | 5806 | 5843 | 5880 | 5917 |
The table shows frequencies for quick channel setup in popular RaceBand and LowRace bands. With 48 channels, you can reduce the likelihood of interference and choose the optimal channel for flying in your region.
Package Contents
1 x Diatone Mamba Ultra 1000 Video Transmitter
1 x MMCX-SMA Extension Cable
2 x 6-pin Cable
The transmitter provides easy connection, reliable operation at 7-36 V, and is suitable for various FPV solutions — from racing drones to long-range aircraft. Thanks to built-in protective and diagnostic functions, you will get a stable video stream even in difficult conditions. Before use, we recommend checking antenna and settings compatibility with your equipment.
