The BAYCK ELRS receiver has two models with frequency ranges: RX580 operates at 550-700MHz, and RX4 at 400-550MHz. It uses the LR1121+C3 chip, which ensures stable communication with a transmission power of 100mW. The device is equipped with an IPEX 1 connector for antenna connection and supports input voltage from 3.6V to 5.5V. Thanks to its compact dimensions of 11x21mm and a weight of only 0.6g, the receiver is easily integrated into a drone.

Attention!!! The BAYCK ELRS RX4/RX580 433/580Mhz receiver is only compatible with the BAYCK ExpressLRS TX4/TX580 433/580Mhz Transmitter

Features

• Available in two frequency bands: RX580 (550-700 MHz) and RX4 (400-550 MHz).
• Uses the LR1121+C3 chipset for reliable and stable communication
• 100mW transmission power for improved radio signal
• Supports power supply voltage from 3.6V to 5.5V
• Compact dimensions

Specifications

Model: RX580 (580Mhz)

• Frequency range: 550-700Mhz
• IC: LR1121+C3
• Transmission power: 100mW
• Color: black
• Connector: IPEX 1
• Input power: 3.6V-5.5V
• Size: 11*21mm
• Weight: 0.6g (without antenna)

Model: RX4 (433Mhz)

• Frequency range: 400-550Mhz
• IC: LR1121+C3
• Transmission power: 100mW
• Color: black
• Connector: IPEX 1
• Input power: 3.6V-5.5V
• Size: 11*21mm
• Weight: 0.6g (without antenna)

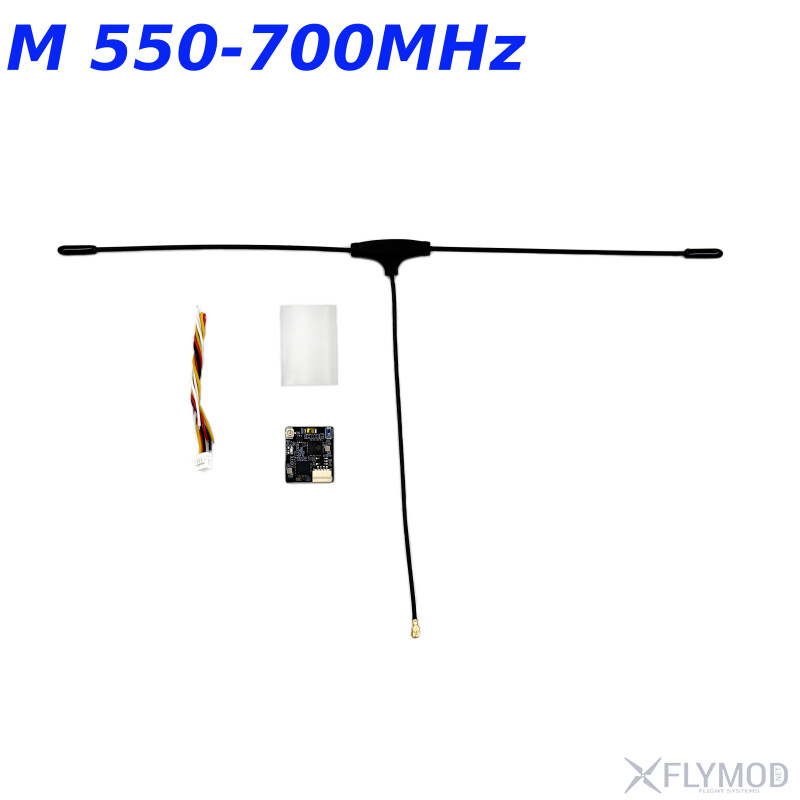

Package Contents

• 1 x BAYCK ExpressLRS RX4/RX580 receiver (optional)
• 1 x T-shaped antenna
• 1 x heat shrink tubing
• 1 x 30AWG 4Pin silicone wire
