Flight Controller OSA 12S H743 WING V1

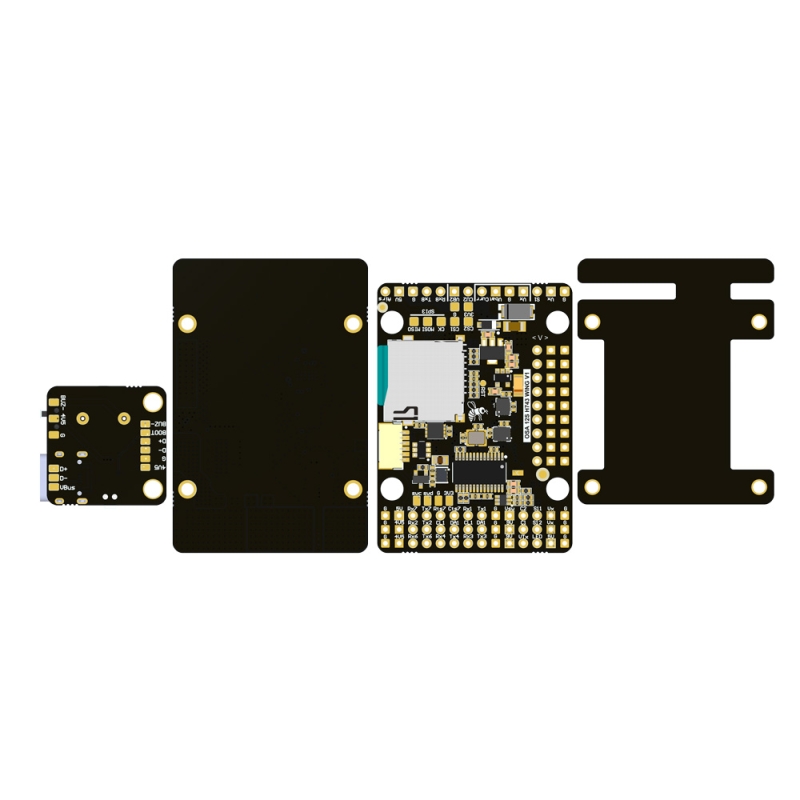

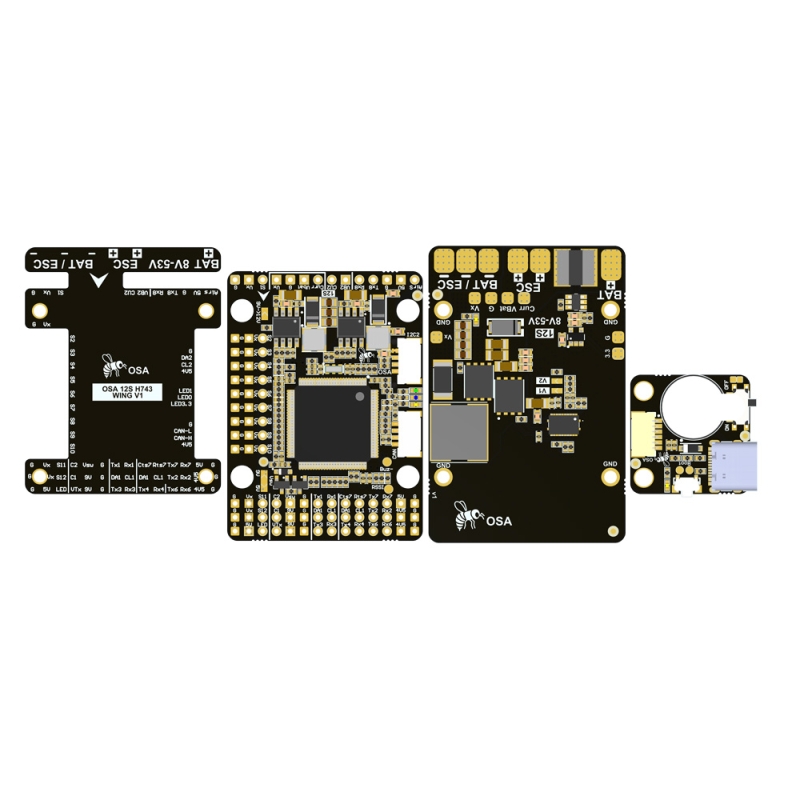

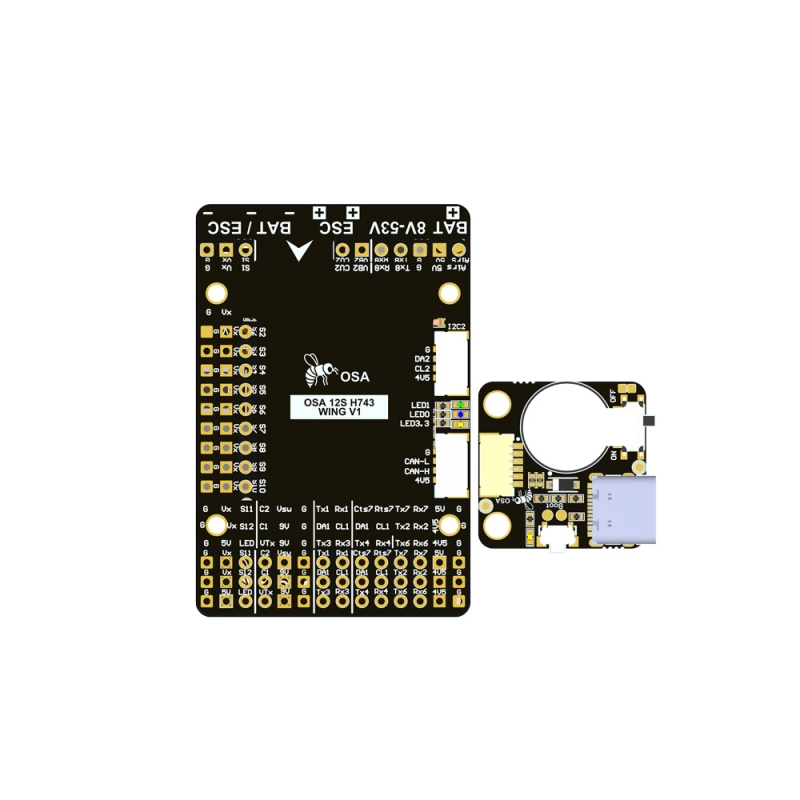

Flight Controller Description

• MCU:  STM32H743VIT6, 480MHz, 1MB RAM, 2MB Flash
• Input voltage: 3S-12S (8V-53V)
• BEC: 5V/2A; 9V or 12V /2A (other voltages possible by arrangement) (9V – reconfigurable to 12V via jumper); 3.3V/0.2A; 4.5V/1A
• Gyroscopes x2: ICM42688P + ICM42688P
• Barometer: DPS310
• OSD: AT7456E
• Blackbox: MicroSD card
• PWM x13: S1-S12, LED (PWM, DShot)
• CAN: Supported (C_H, C_L) (JST-GH-4P connector)
• C1, C2:  Camera 1, Camera 2  – analog video signal from cameras (C1 – Default)
• VTX: Analog video signal to video transmitter (VTx)
• UARTs x 7: UART1 (Rx1, Tx1); UART2 (Rx2, Tx2); UART3 (Rx3, Tx3); UART4 (Rx4, Tx4);UART6 (Rx6, Tx6); UART7 (Rx7, Tx7); UART8 (Rx8, Tx8)
• SPI3 x1:  Supported (MISO, MOSI, CK, CS1, CS2)
• I2C x2: Supported (DA1, CL1; DA2, CL2 (JST-GH-4P connector))
• ADC x6: VBAT (1K:18K), Current, RSSI, Analog AirSpeed (10K:10K), Vbat2 (1K:20K), Cur2 (0 – 3.3V)
• PIN IO1 (Vsw): 9V/12V or 5V voltage ON/OFF (depending on configuration option), max 1.5A load
• PIN IO2 (CAMERA SWITCH): Dual camera switching (C1 or C2)
• Firmware: MATEKH743
• Buzzer: Supported (BZ-)

BEC Vx Description

• Input voltage: 3S-12S (8V-53V)
• Current sensor: 90A continuous, up to 220A peak load
• BEC: 5V (default), 7.2V or 12V  configurable via jumper
• Permissible continuous current: 8A, peak — up to 10A

USB Board Description

• Connection: USB Type-C
• Buzzer (passive buzzer)

Dimensions

• Size: 54mm x 36mm x 13 mm
• Mounting holes: 30.5mm x 30.5mm (Ø4.2mm holes)

Firmware

• ArduCopter Firmware
• ArduPlane Firmware
