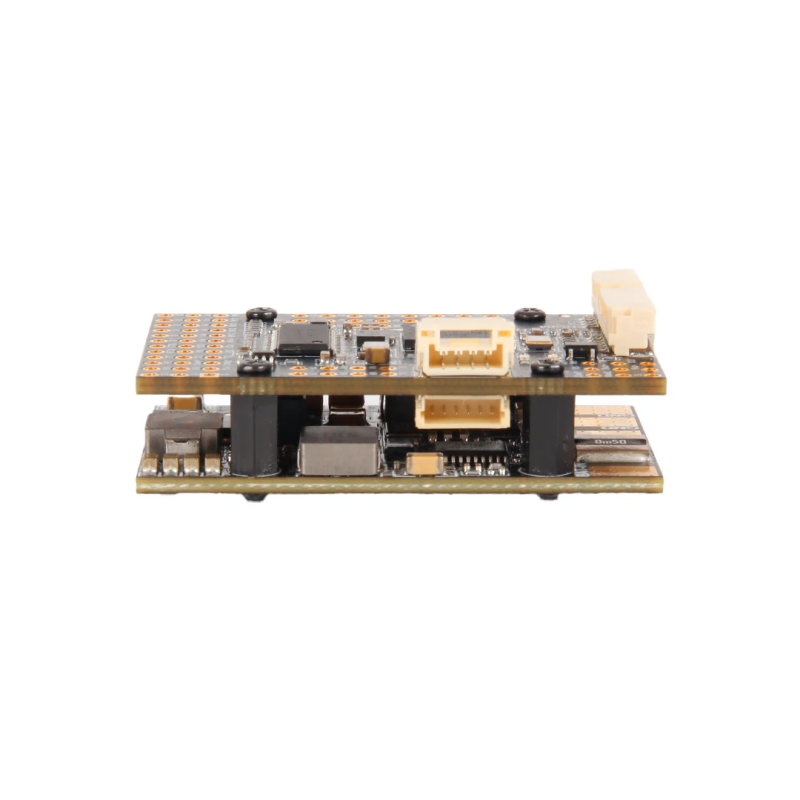

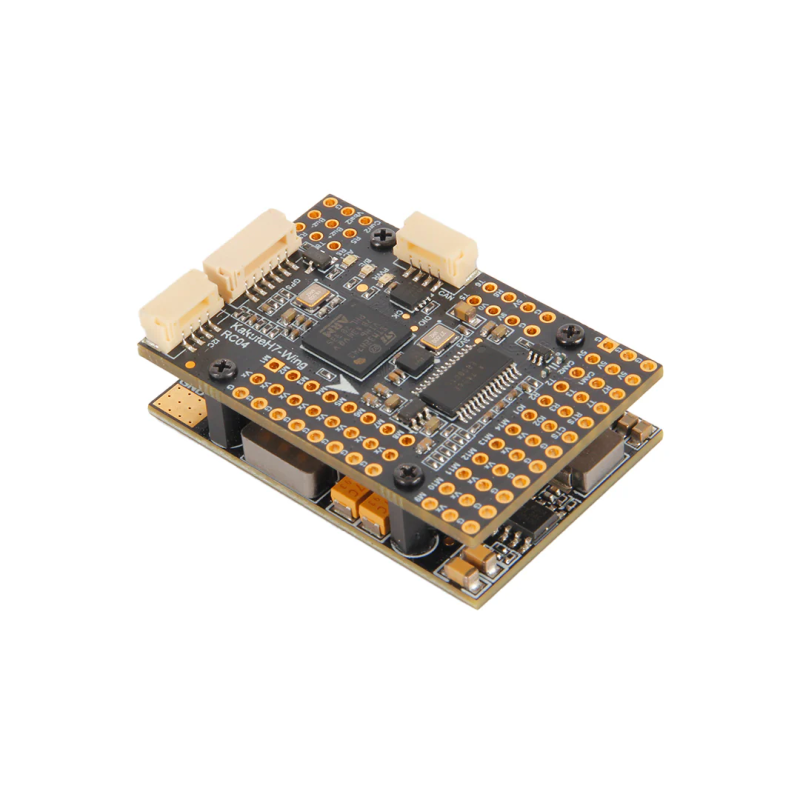

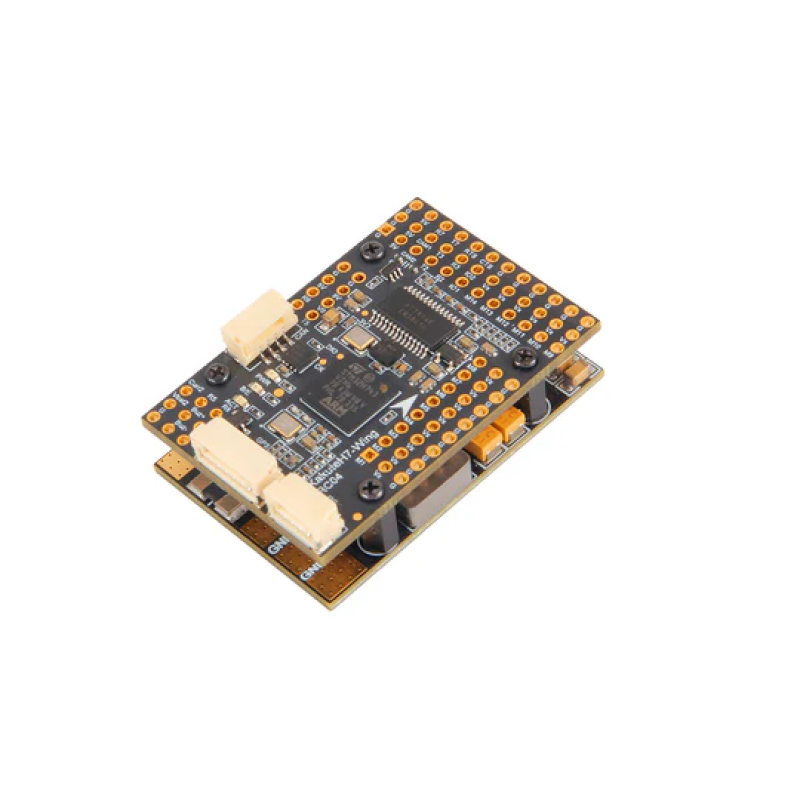

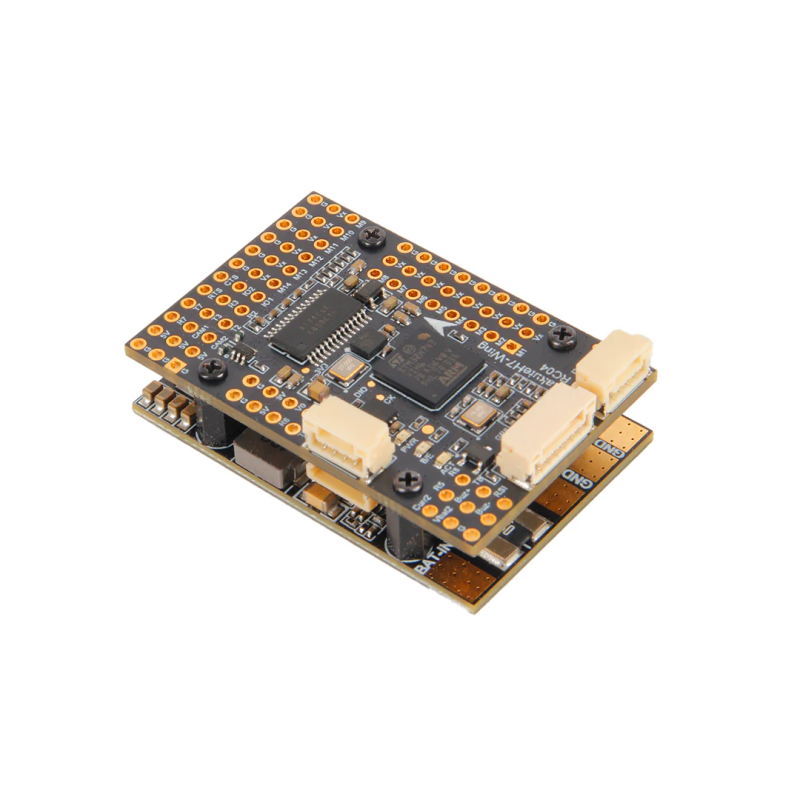

Holybro Kakute H743-Wing Flight Controller — a powerful and reliable controller for fixed-wing models and VTOL projects from Holybro. This module combines high computing power, a rich set of interfaces, and readiness for integration with modern autopilot systems, making it an excellent choice for professionals and hobbyists.
Device Overview
The Kakute H743-Wing is based on the STM32H743 processor with a clock speed of 480 MHz, equipped with 1 MB of RAM and 2 MB of flash memory. For precise orientation, a high-precision ICM-42688P (SPI3) IMU is used, and altitude is determined by the built-in BMP280 (I2C4) barometer. This platform ensures stable autopilot operation even in complex flight conditions.
Technical Specifications
- Processor: STM32H743, 480 MHz, 1 MB RAM, 2 MB Flash
- IMU: ICM-42688P (SPI3)
- Barometer: BMP280 (I2C4)
- Ports: 7 UART (with built-in inversion), 3 I2C, 1 CAN
- PWM Outputs: 14x for servos
- Analog Inputs: 5x ADC (for battery monitoring and RSSI)
- Connectivity: plug-and-play for GPS, CAN, I2C
- Power Sources: 3 built-in BECs (5V, 6V/8V, 9V/12V)
- PDB Input Voltage: 10-36V (3-8S LiPo)
- Power: supports up to 90A continuous current and up to 220A peak
- Mounting: 25×25 mm, M2 hole
- Dimensions: 45x30x13.5 mm

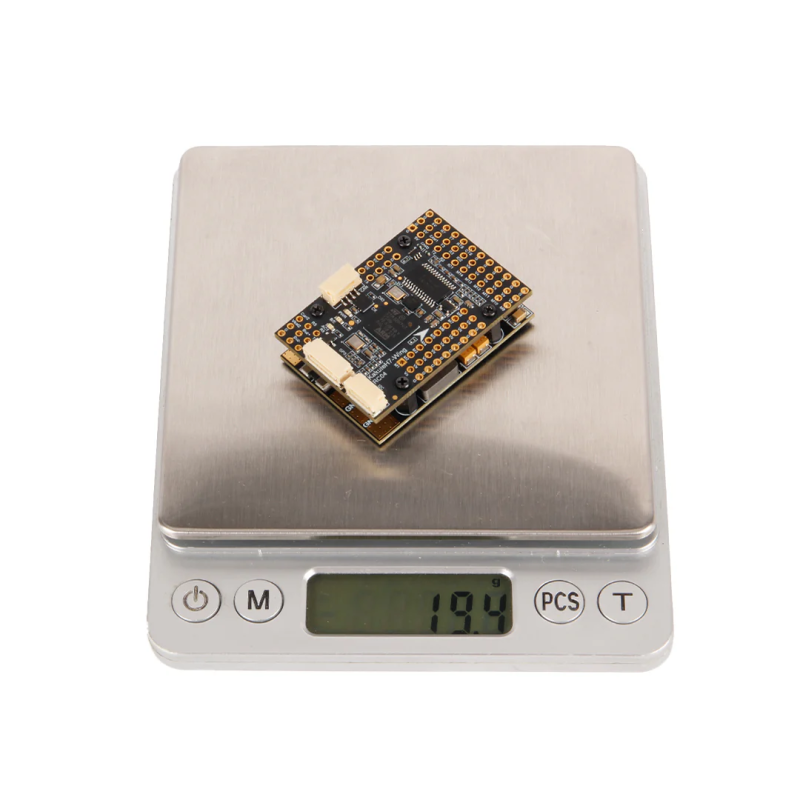

- Weight: 28 g with USB extender
Features and Compatibility
The Kakute H743-Wing supports switching between two cameras, Pit Switch on/off function, a built-in high-precision current sensor, and a barometer for accurate altitude control. The controller is compatible with ArduPilot (4.4 and newer) and INAV (6.1.1 and newer) firmwares, making it a versatile solution for a wide range of projects — from compact fixed-wings to complex VTOL configurations. Thanks to a large number of UART, I2C, and CAN interfaces and three built-in BECs, power and peripheral integration is simple and requires no additional modules.

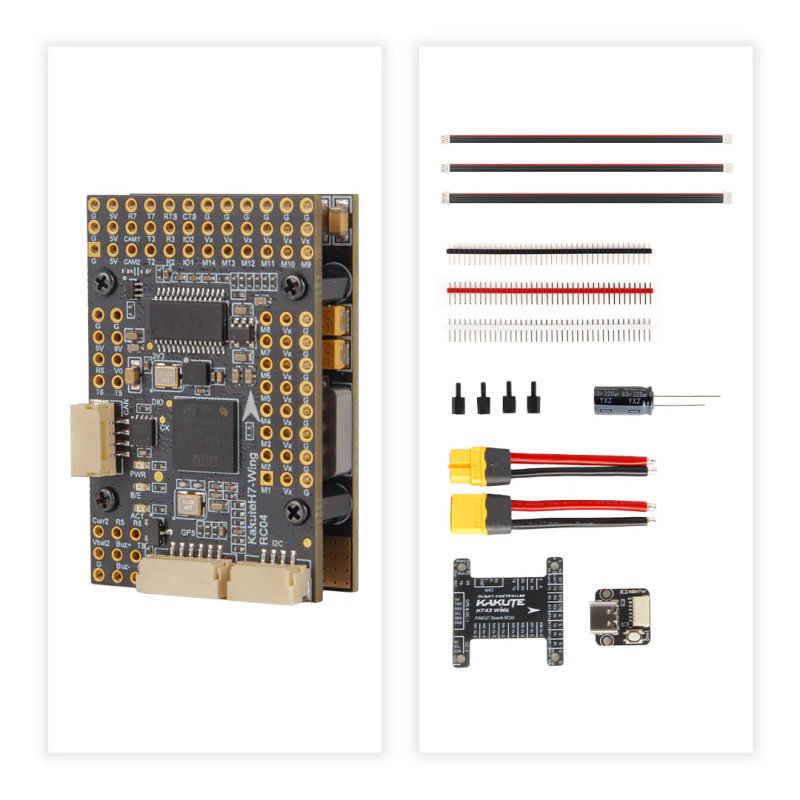

Package Contents
- 1x Kakute H743-Wing Flight Controller

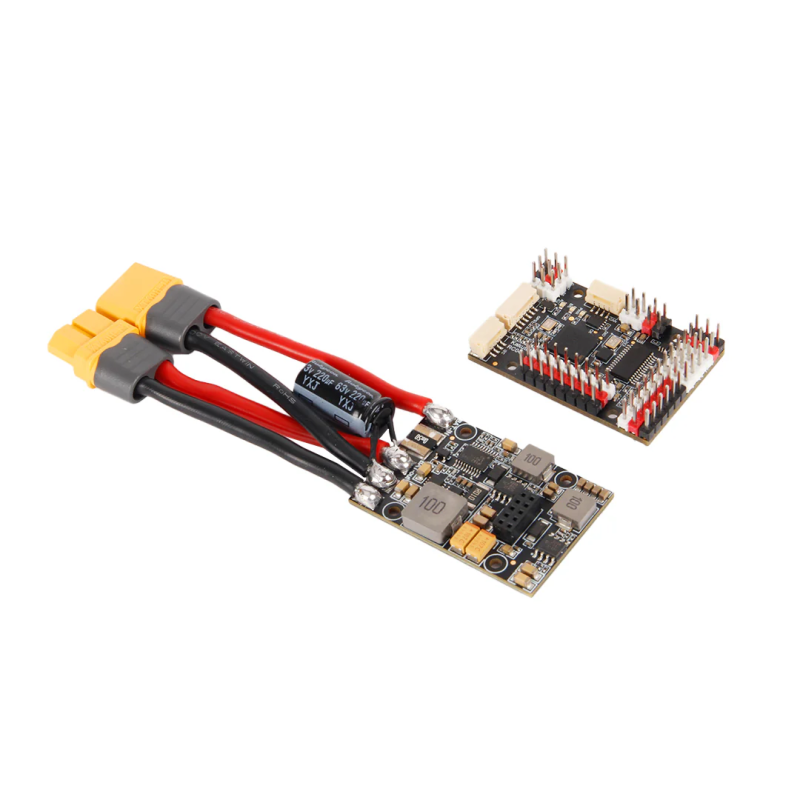

- 1x Power Distribution Board
- 1x Top Board

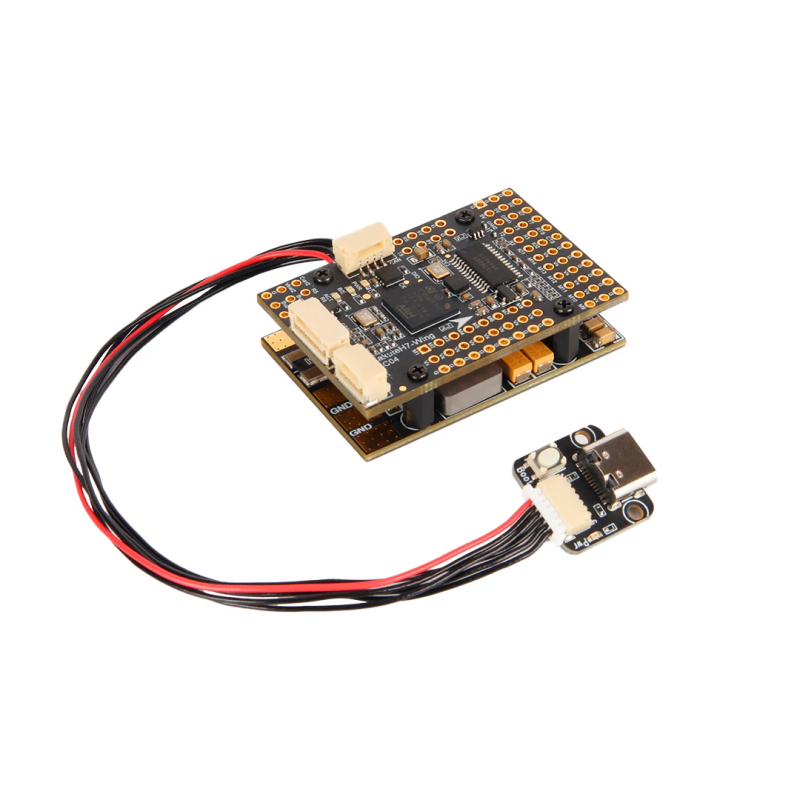

- 1x USB-EXT Board
- 1x 220uF 62V Electrolytic Capacitor

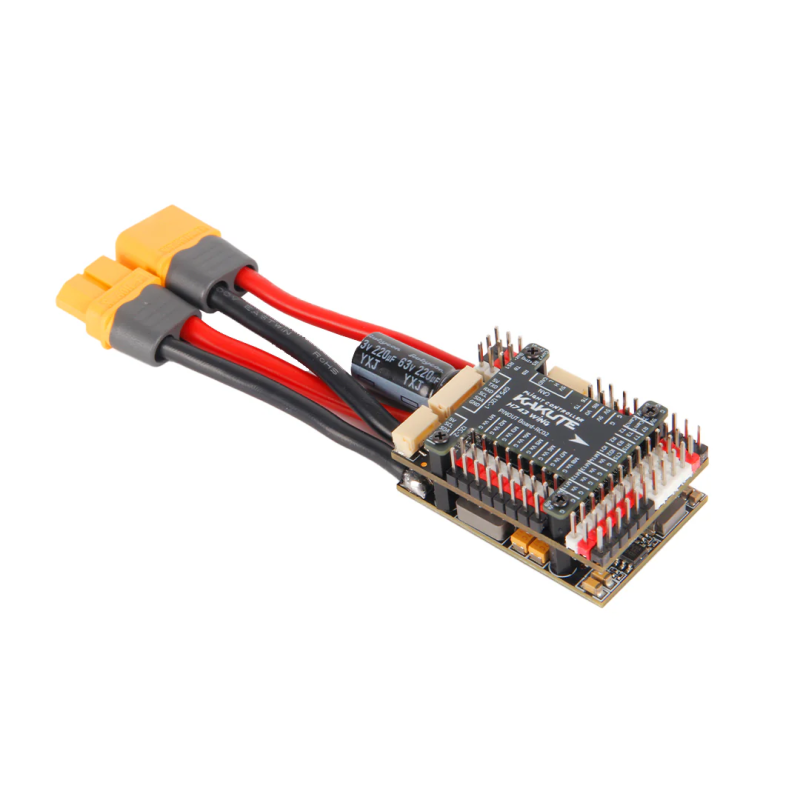

- 2x XT60 60mm Power Cable
- 3x 2.54 DuPont Pin
- 2x 15cm JST-GH 4Pin Cable (for CAN and I2C)
- 1x 15cm JST-SH 6Pin Cable (for USB-EXT Board)
This controller is ideal for projects where compactness, reliability, and a rich set of interfaces are important. The Holybro Kakute H743-Wing is suitable for both amateur and professional applications, providing high performance, flexible connectivity options, and ease of integration into existing systems. Recommended for fixed-wing models and VTOLs that require a stable autopilot with high sensor accuracy and extensive expansion capabilities.
