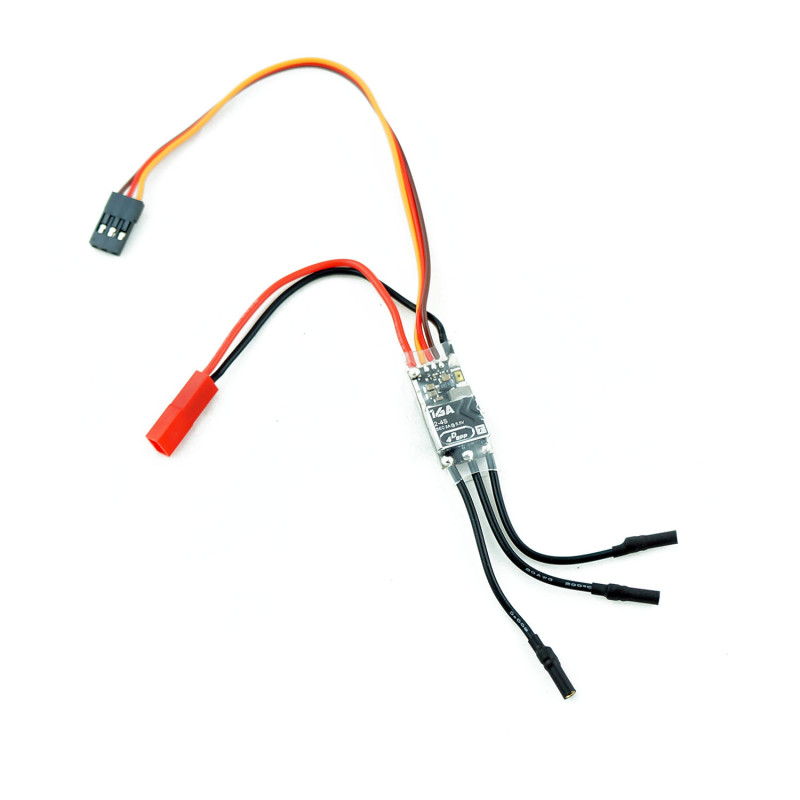

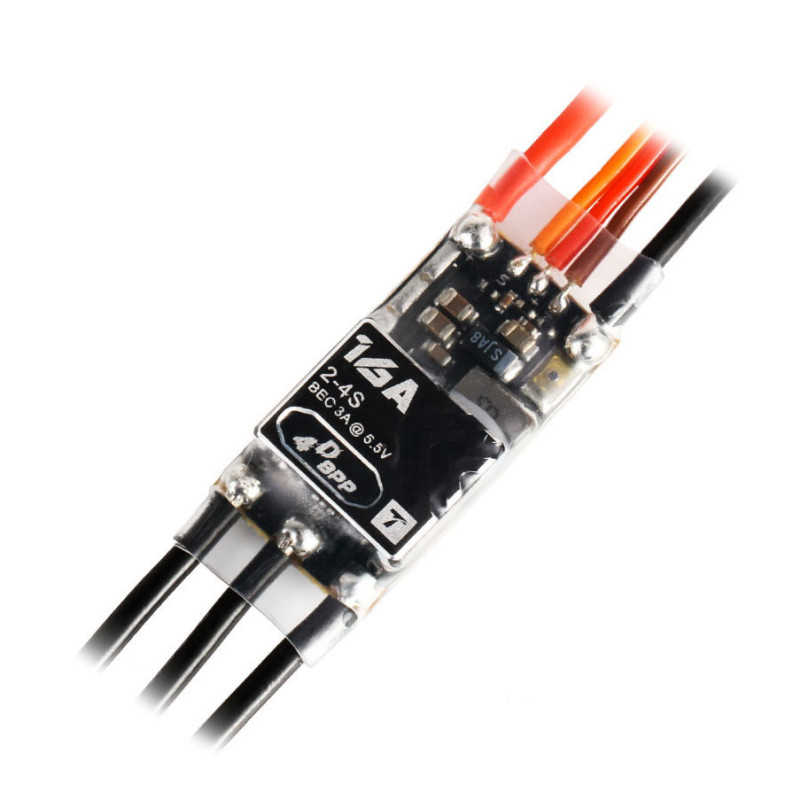

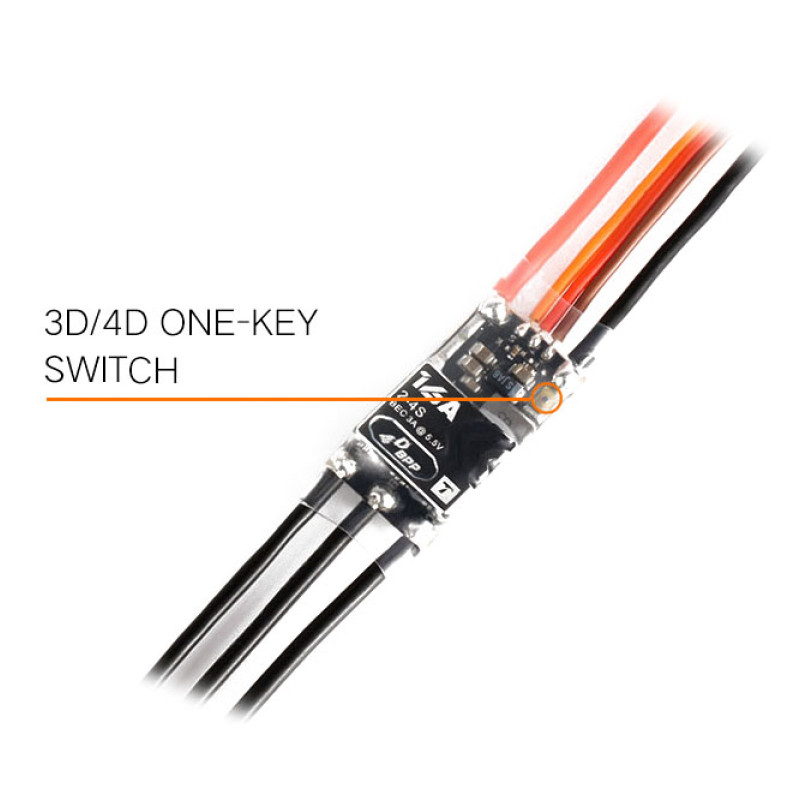

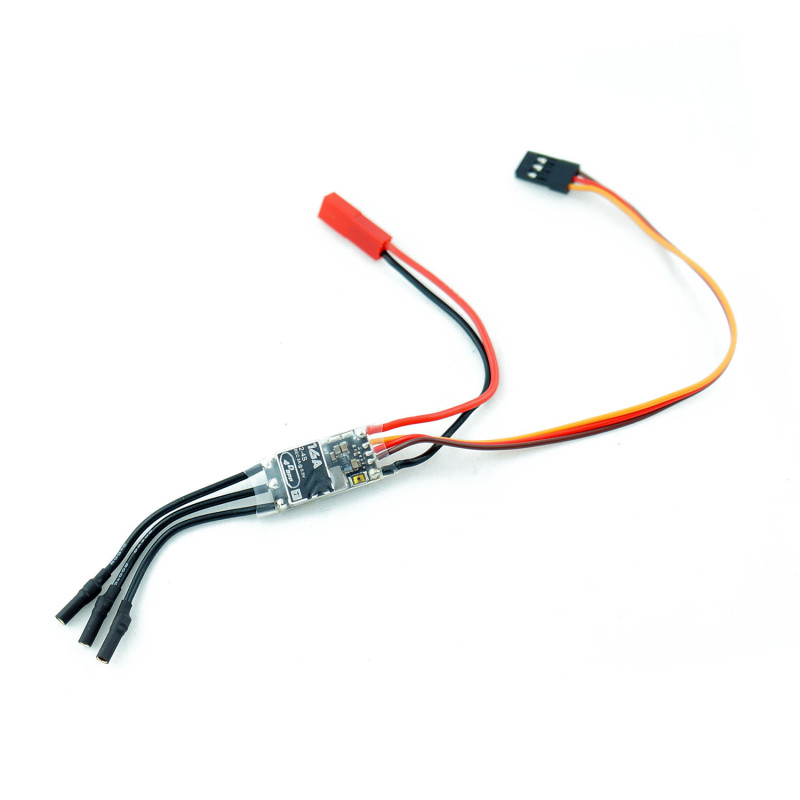

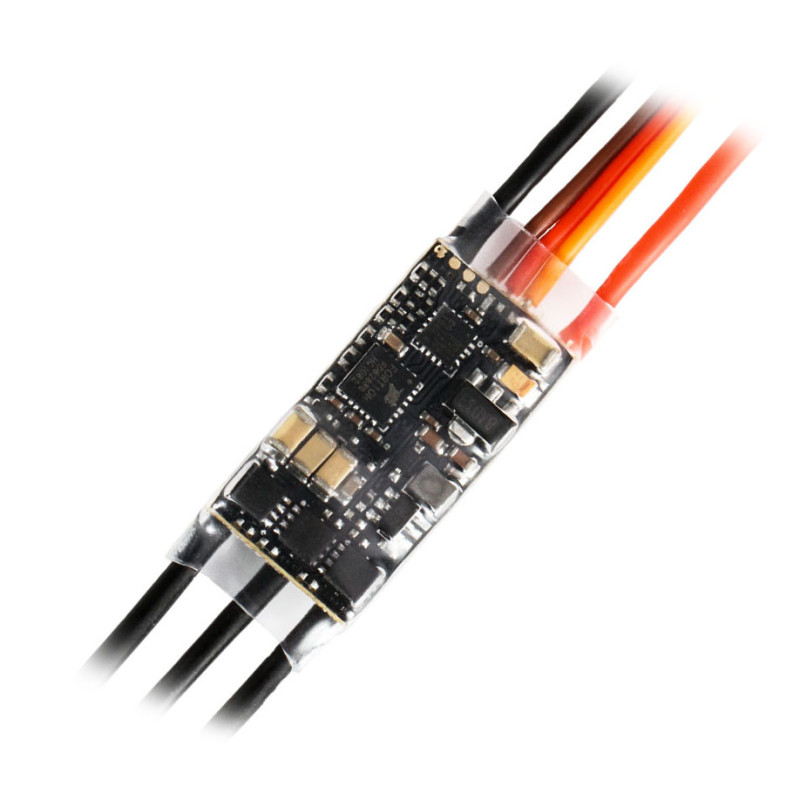

T-Motor AM16A F3P 3D/4D ESC from the T-Motor brand is a high-performance ESC specifically designed for lightweight models and F3P/3D/4D acrobatic flying. This ESC combines low weight, compact size, and stable electronics, making it an ideal choice for pilots seeking fast motor response and reliability in performing complex maneuvers.

Key Features

The AM16A is optimized for rapid throttle changes and high control precision in acrobatic modes. The main advantages of the model are:

• Continuous/Max Current: 16A / 25A — sufficient for compact and fast motors;
• LiPo Battery Support: 2-4S — flexibility in power selection;
• Ultra-lightweight design: weight 8.5 g — minimal impact on model mass;
• Built-in BEC: 5.5V / 3A — provides stable power to the receiver and servos;

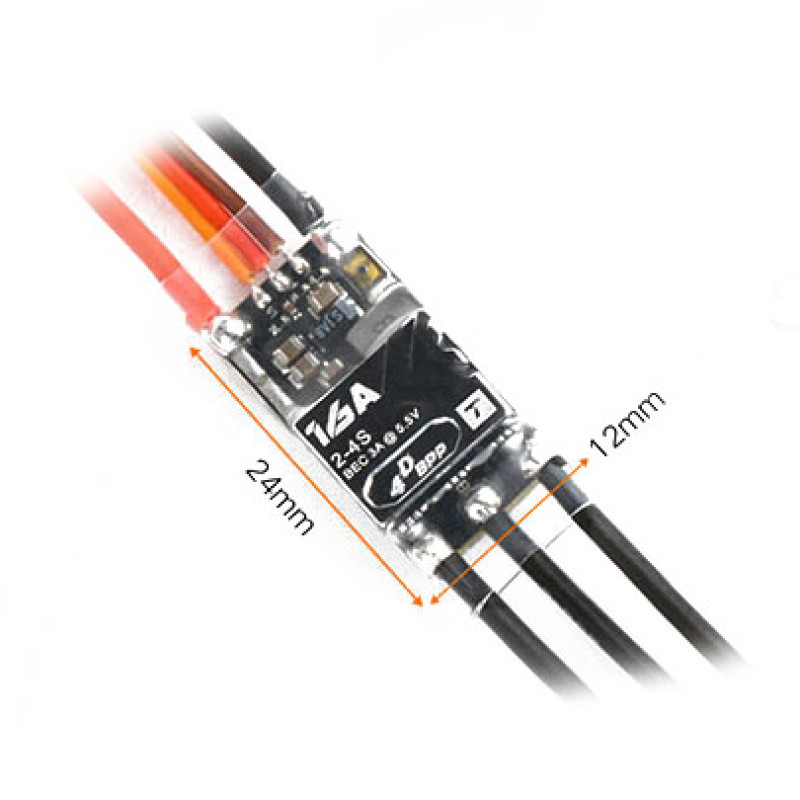

• Compact dimensions: 24×12 mm — convenient integration into tight mounting spaces.

Setup and Compatibility

The ESC has programmable parameters that allow fine-tuning of motor behavior to your flight style. Specifically, PWM frequency adjustment is available: 16-48 kHz, which allows finding the optimal compromise between noise, heating, and response. This is especially important for 3D/4D pilots where control response is critical.

Included: 1x speed controller, allowing quick installation and testing of the device in your model.

Who It's For

This ESC is recommended for hobbyists and professionals who build or upgrade miniature aircraft and drones for aerobatics: F3P aircraft, 3D and 4D multirotor projects where weight, size, and refined motor response are important.

The T-Motor AM16A F3P 3D/4D combines technical specifications and practicality: compact dimensions of 24×12 mm, lightweight 8.5 g, powerful 5.5V/3A BEC, and 2-4S LiPo support allow for the creation of a balanced and reliable power system for precise and stable flight.

If you are looking for an ESC for acrobatic models with fine PWM tuning capability and reliable electronics from the renowned manufacturer T-Motor, the AM16A F3P 3D/4D will be an excellent choice.
