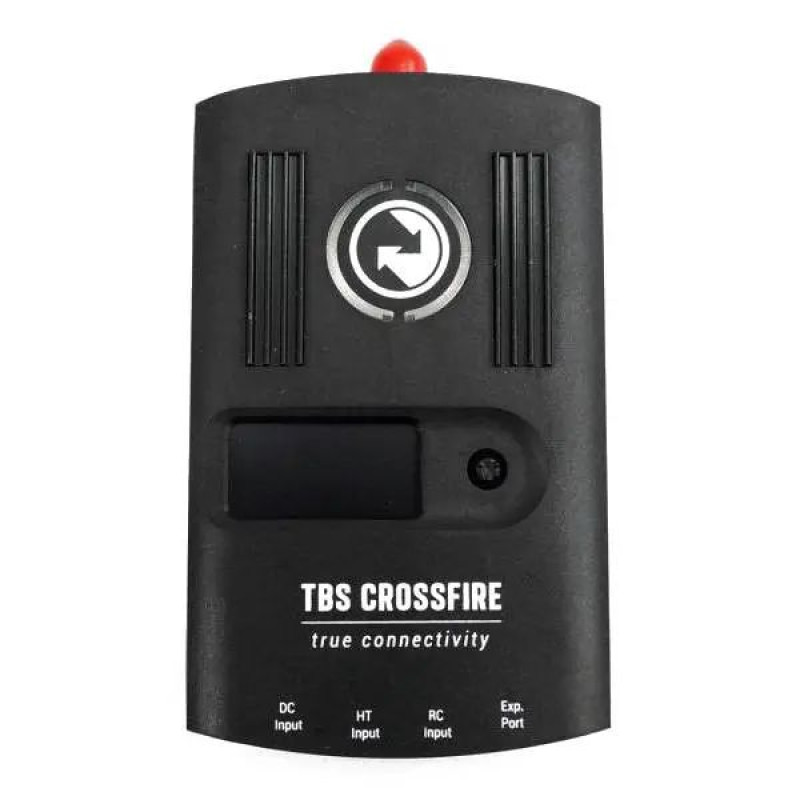

TBS Crossfire TX LITE Radio Signal Transmitter

Manufacturer: TBS. Category: Drones & Quadcopters > Drone Components > Drone Parts > Transmitters. Product Type: Drones & Quadcopters > Transmitters.

The TBS Crossfire TX LITE is a compact, high-performance long-range transmitter designed for reliable control of aircraft and FPV drones. The device combines adaptive radio link operation with two-way telemetry, allowing critical flight data to be displayed in real time. Thanks to its resistance to onboard interference and self-healing and frequency hopping (DSSS, FHSS) mechanisms, the transmitter ensures stable communication even in challenging conditions.

Key Advantages

• Adaptive and reliable remote control system for aircraft and drones.
• High insensitivity to onboard noise and external interference.
• Two-way communication with real-time telemetry display.
• Self-healing and frequency hopping (DSSS, FHSS) mechanisms for stable communication.
• Range optimization and adaptive bandwidth control.
• Serial modem for transmitting serial protocols in both directions.
• RX beacon mode for locating and recovering a downed aircraft.
• Fast binding and convenient setup via built-in OLED display and status indicators (LED).
• Low latency — 150 Hz refresh rate for an instant control feel.
• Support for simultaneous operation of multiple pilots (10 or more) for team flights.

Receivers and Outputs

• Two receiver models available: 8-channel diversity mini-receiver and 4-channel PPM/SBUS mini-receiver (4g mass).
• Output configurations: 8 or 12 channels via PPM/SBUS/CRSF on both receivers for flexible connection to flight controllers and peripherals.

Compatibility and Control

• Full configurability via OpenTX and TBS TANGO; remote control and updates via CRSF protocol.
• CRSF interface compatible with Betaflight, Kiss, and Raceflight flight controllers — reduced latency, higher refresh rate, and telemetry support.
• Expansion port for future features and software updates via RF Link.
• Dedicated head tracking input for full immersion in FPV flights.

Technical Specifications

• Frequency bands: 868 MHz (EU, Russia) / 915 MHz (USA, Asia, Australia).
• RF power selection: 10 mW to 2 W (subject to local restrictions).
• Power consumption: 1.1 W (@10 mW) – 3.2 W (@2000 mW).
• Input voltage: 3.5–13 V.
• Dimensions: 55 x 89 x 15 mm.
• Mass: 76 g.

The transmitter features an OLED display for built-in configuration and an LED status indicator for the connection. The micro-receiver is ideal for compact drones — it has minimal weight and helps reduce the overall system mass. Mobile telemetry support allows viewing flight parameters on a smartphone for convenient monitoring and analysis.

The TBS Crossfire TX LITE is a versatile solution for pilots who value reliability, low latency (150 Hz), and deep configurability via modern protocols. Features such as beacon mode, multi-pilot support, an expandable port, and updates via RF Link make this transmitter an excellent choice for serious FPV projects and competitions.

The description takes into account all provided characteristics and capabilities of the device: manufacturer TBS, category, key features, receiver models, compatibility, technical parameters, and additional options.
