RadioMaster Ranger 2.4 GHz ELRS Radio Transmitter

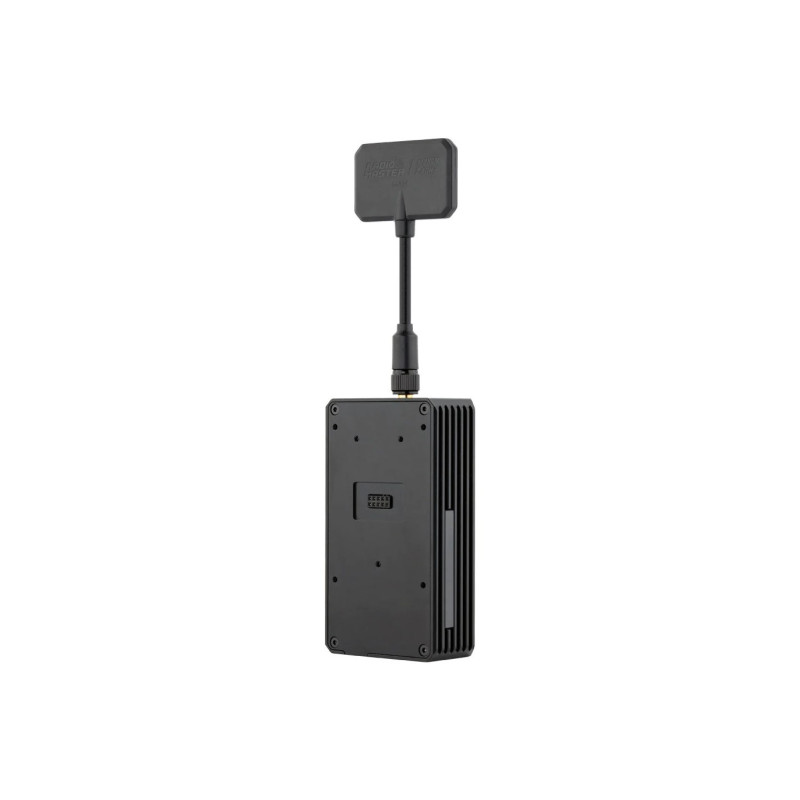

RadioMaster Ranger — a compact and powerful ExpressLRS module designed for drone pilots who require stable communication, extensive customization options, and reliability in challenging conditions. The housing is made of CNC-machmachined aluminum, which serves as an effective heatsink and allows for prolonged operation without overheating. Manufacturer: Radiomaster. Product category: Drones & Quadcopters > Drone Components > Drone Spare Parts > Transmitters.

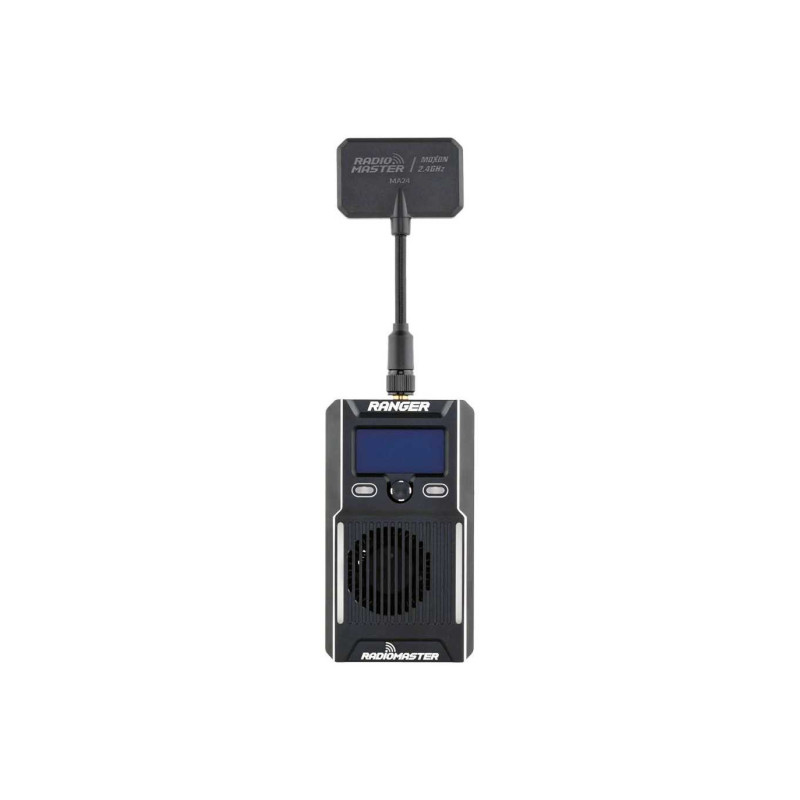

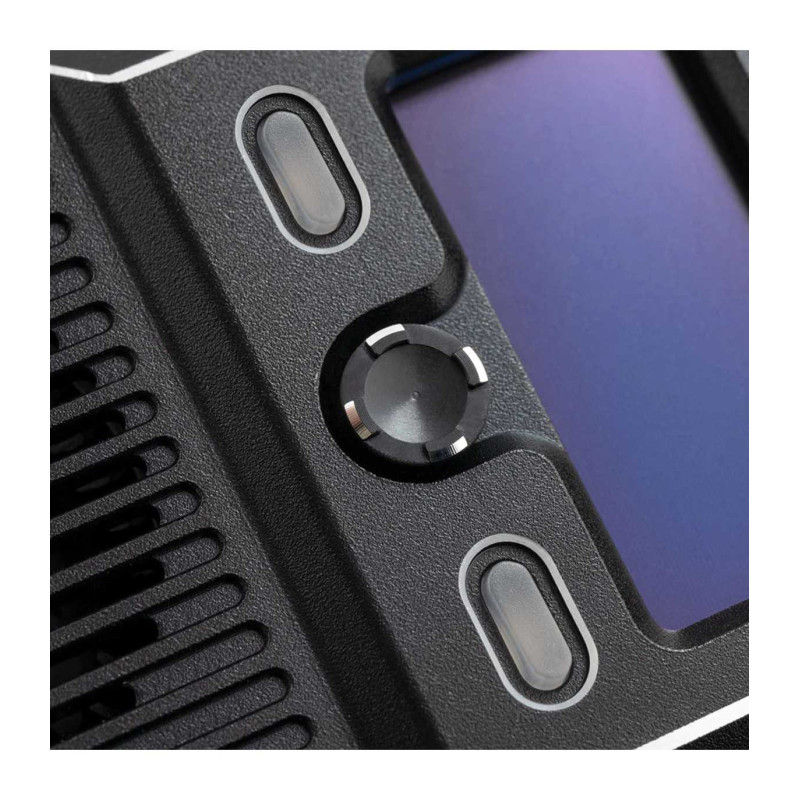

Intuitive Control and Interface. The Ranger features a clear OLED display, a convenient menu button with arrows, and two quick-access keys, allowing for effortless adjustments to module settings — even during pre-flight preparation. The built-in accelerometer simplifies calibration and additional functions, while RGB indication provides quick visual feedback.

Antennas and Compatibility. Two antennas are included: a versatile T-antenna for everyday flights and a RadioMaster Moxon antenna for long-range flights. The kit also includes a micromodule and a nanomodule adapter, ensuring Ranger's compatibility with most modern radios and transmitters on the market.

Available Module Options

• Ranger Micro ExpressLRS
• Ranger Nano ExpressLRS

Specifications

• Model: ELRS Ranger 2.4 GHz
• Frequency: 2400 – 2480 MHz
• Maximum Packet Rate: up to 1000 Hz
• Minimum Refresh Rate: 25 Hz
• Output Power: up to 30 dBm (region dependent)
• Features: OLED display, Wi-Fi, Bluetooth, built-in accelerometer, RGB light effects
• Power Supply Voltage: DC 6V – 16.8V

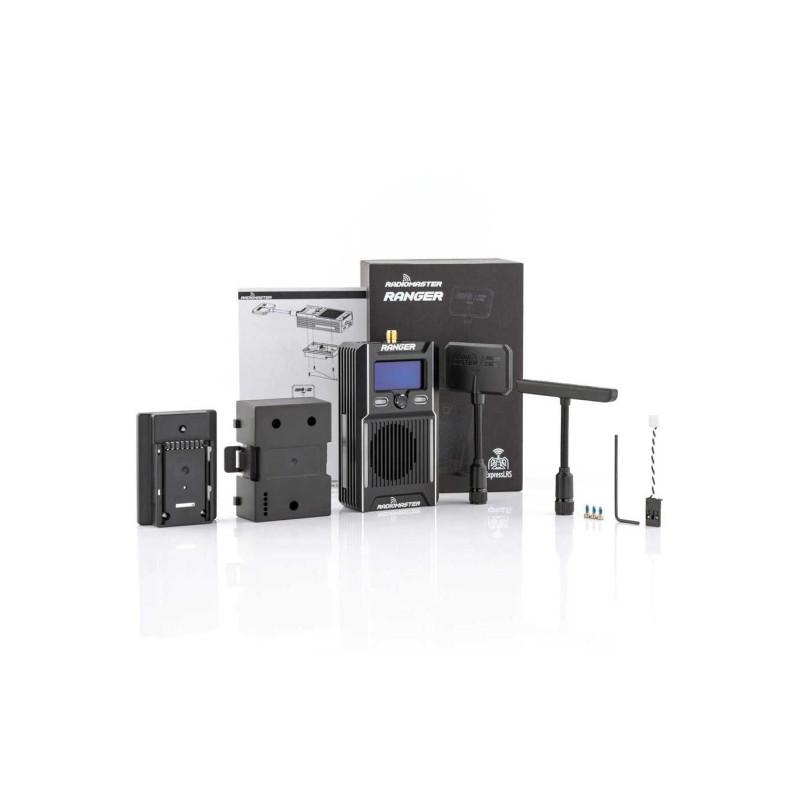

Package Contents

• 1 × Ranger Module
• 1 × Futaba CRSF Socket Cable
• 1 × JR Adapter
• 1 × Nano Adapter
• 1 × T Antenna
• 1 × Moxon Antenna
• 1 × Hex Socket Screwdriver
• 3 × M2×5 Screws
• 1 × Assembly Instructions

Briefly about the advantages: The Ranger combines the high technical efficiency of the ExpressLRS protocol with professional hardware execution: high packet rates up to 1000 Hz for minimal control latency, significant output power up to 30 dBm, a robust CNC-aluminum housing for optimal heat dissipation, and a rich set of connectivity options — Wi-Fi and Bluetooth for convenient updates and diagnostics. The kit includes all necessary adapters and antennas for quick setup and compatibility with various transmitters, making the Ranger a versatile choice for both freeride and competition.

Product type: Drones & Quadcopters > Transmitters. Brand: Radiomaster. This module is suitable for pilots who value a balance between power, configuration flexibility, and compactness. With various options (Micro, Nano), you can choose the Ranger that fits your equipment and tasks.
