RadioMaster Bandit 915mHZ ExpressLRS RF Module Radio Signal Transmitter — a high-performance radio module from the Radiomaster brand, developed in collaboration with the ExpressLRS team for use in UAVs, drones, and long-range radio communication systems. This module combines a reliable hardware platform with modern protocols, ensuring stable communication, high output power, and ergonomic solutions for professional pilots and enthusiasts.

Key Features

• Robust Design: The CNC-machined aluminum casing also serves as a heatsink for efficient heat dissipation and maintaining a stable operating temperature of the module.
• Control and Interface: The built-in OLED display and five-way navigation button allow for quick parameter setup and real-time monitoring of communication status directly from the transmitter.

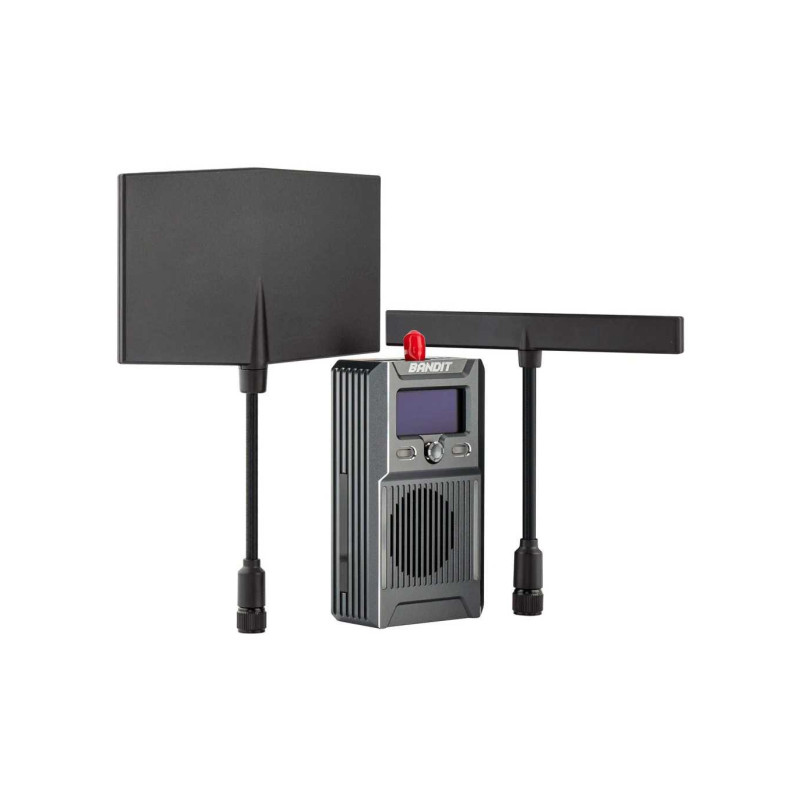

• Antenna Options: The kit includes two antennas — an omnidirectional T-antenna for short and medium distances and a directional Moxon antenna for long-range flights.
• Technology Support: The module supports Wi-Fi and Bluetooth for convenient connection and diagnostics, while the integrated TCXO generator enhances operating frequency stability.
• Energy Efficiency: The optimized hardware design ensures low power consumption, extending the system's operating time without recharging during flights.

Technical Specifications

• Model: RadioMaster Bandit 915MHz ExpressLRS RF Module
• Frequency: 915 MHz
• Microcontrollers: ESP32 (main), ESP8285 (secondary)
• RF Chip: SEMTECH SX1276
• Minimum/Maximum Refresh Rate: 25/200 Hz
• Output Power: up to 1 W

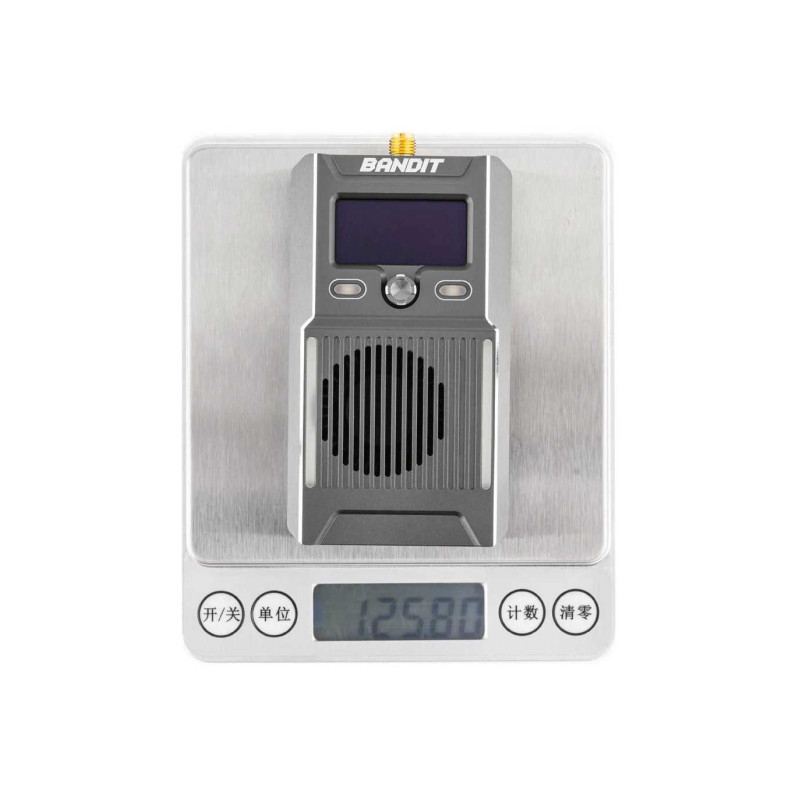

• Weight: 155 grams (with antenna)

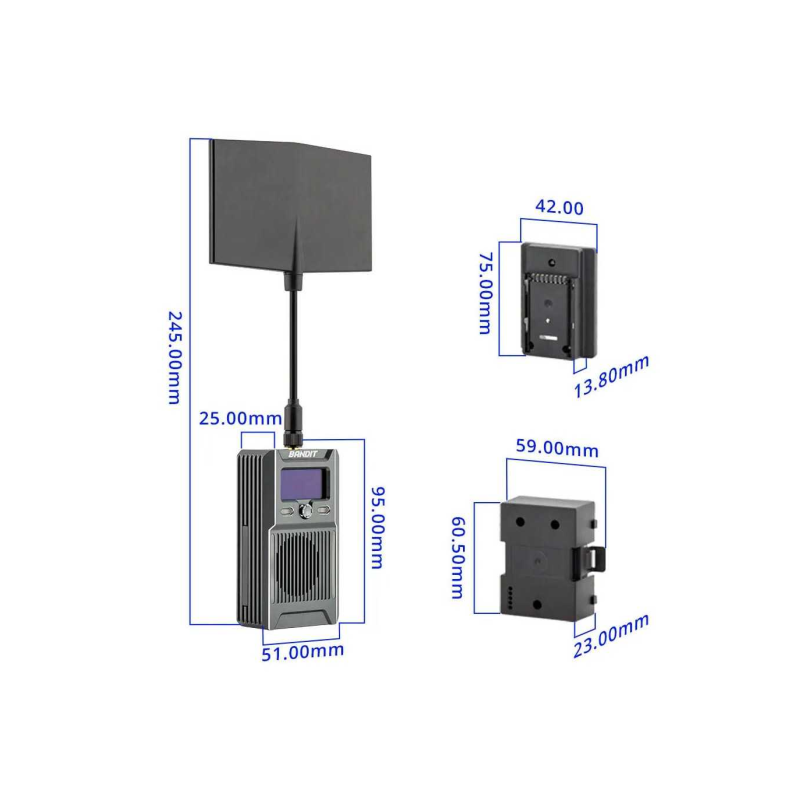

• Size: 90x51x24 mm

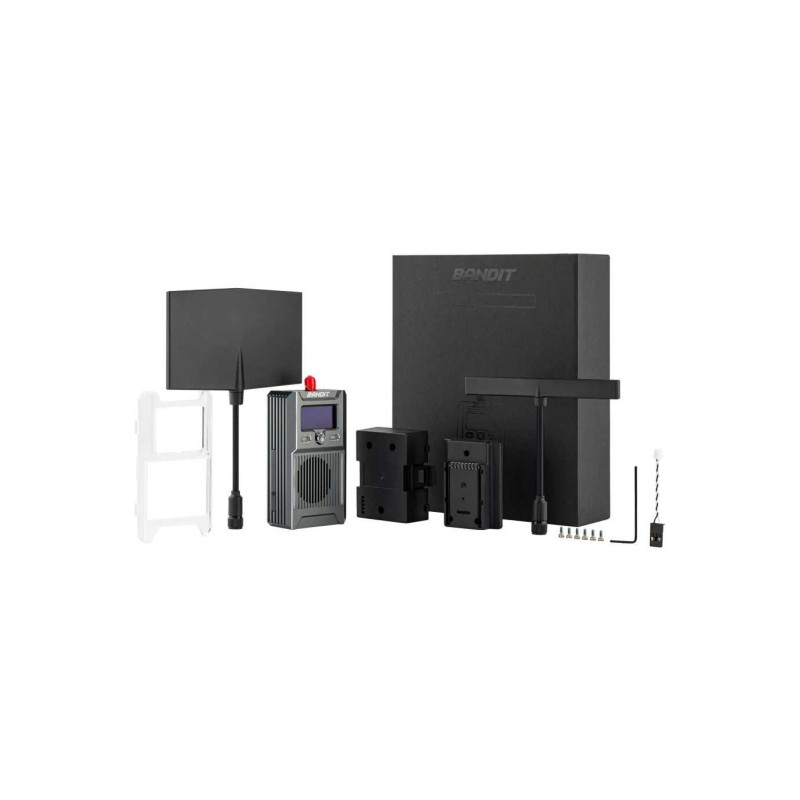

Package Contents

• 1 x RadioMaster Bandit radio module
• 1 x T-antenna
• 1 x Moxon antenna
• 1 x micro adapter
• 1 x nano adapter
• 1 x transparent protective cover
• 1 x UART cable
• 1 x Futaba CRSF cable
• 1 x 1.55 mm hex key
• 6 x M2*6 screw
• 1 x user manual

Antenna Application

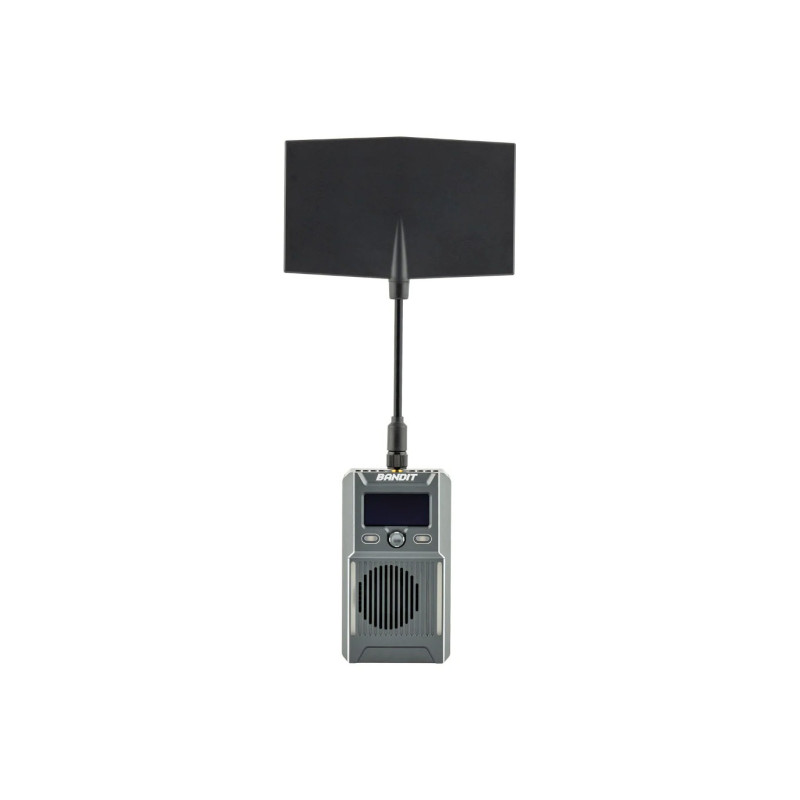

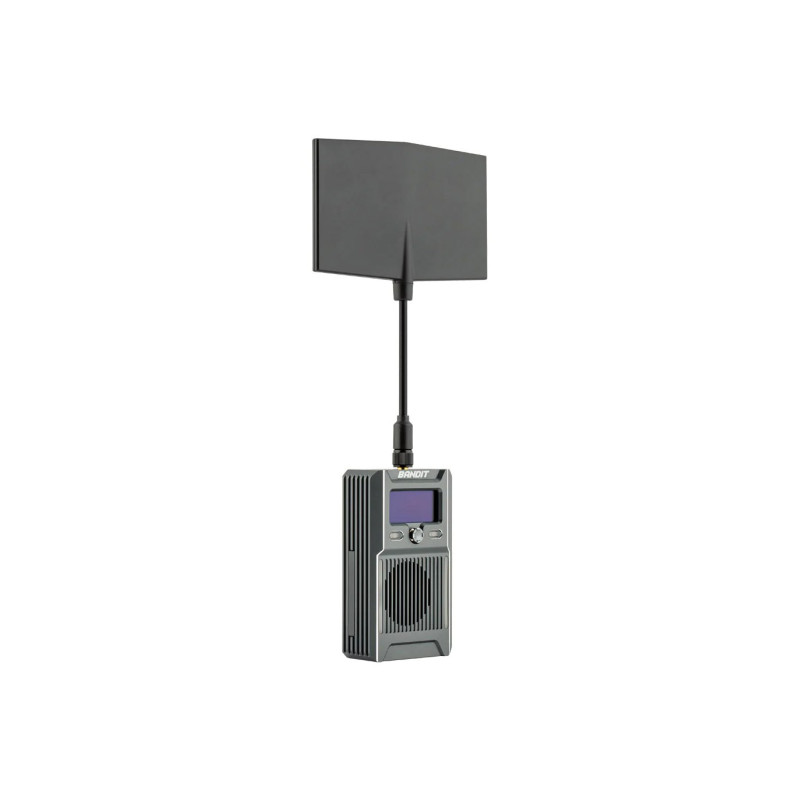

• MOXON Antenna — optimal for long-range flights due to its narrow beam pattern, which increases signal range and stability during extended flights.
• T-Antenna — an omnidirectional antenna for short and medium distances, providing uniform coverage around the transmitter and suitable for everyday use.

Additional Information

The module features interface sets for easy connection to various transmitters and receivers, is compatible with ExpressLRS firmware, and allows flexible configuration of frequencies and communication parameters. Thanks to its heatsink casing and built-in TCXO, the Bandit guarantees stable operation in various temperature conditions and operating environments. The combination of ESP32 as the main controller and ESP8285 as the secondary, along with the SEMTECH SX1276 RF chip, makes this module a reliable choice for both amateur FPV flights and professional long-duration missions and industrial monitoring.

The built-in OLED display and five-way button simplify configuration without additional tools, while Wi-Fi and Bluetooth support provide additional capabilities for diagnostics and updates. An output power of up to 1 W, a frequency range of 915 MHz, and adaptive refresh rates of 25–200 Hz ensure high accuracy and reliability of control in challenging conditions.

Manufacturer: Radiomaster. Product category: Drones & Quadcopters > Drone Components > Drone Parts > Transmitters.

View product images: Image 1, Image 2, Image 3

This module will be a reliable component of your drone control system, combining a robust hardware base, precise data transmission, and comfortable operation. If you are looking for an ExpressLRS-compatible transmitter for professional or amateur long-range flights — the RadioMaster Bandit 915mHZ meets the requirements for stability, range, and energy efficiency.
