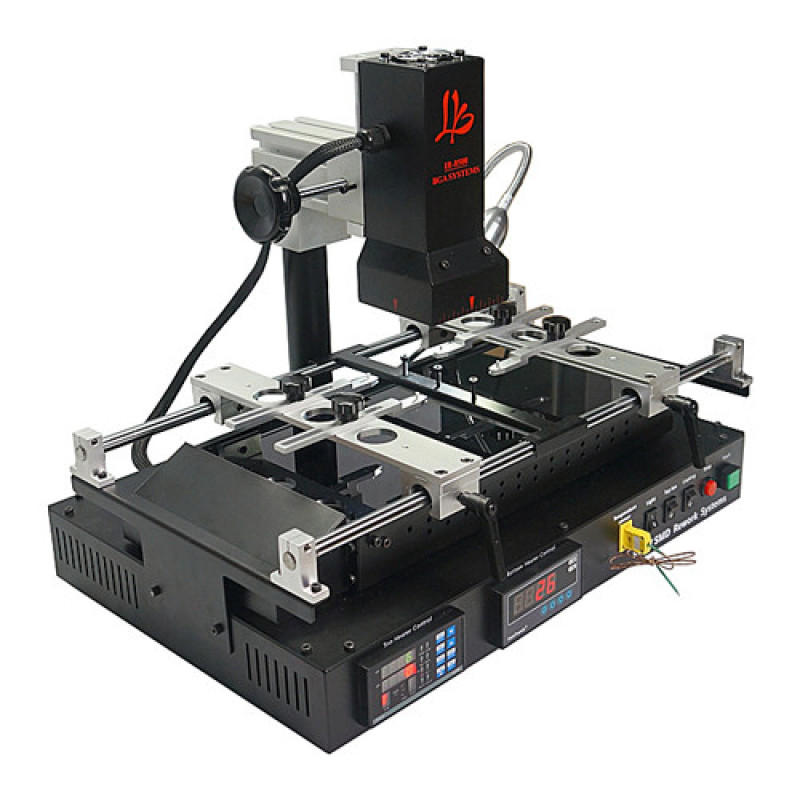

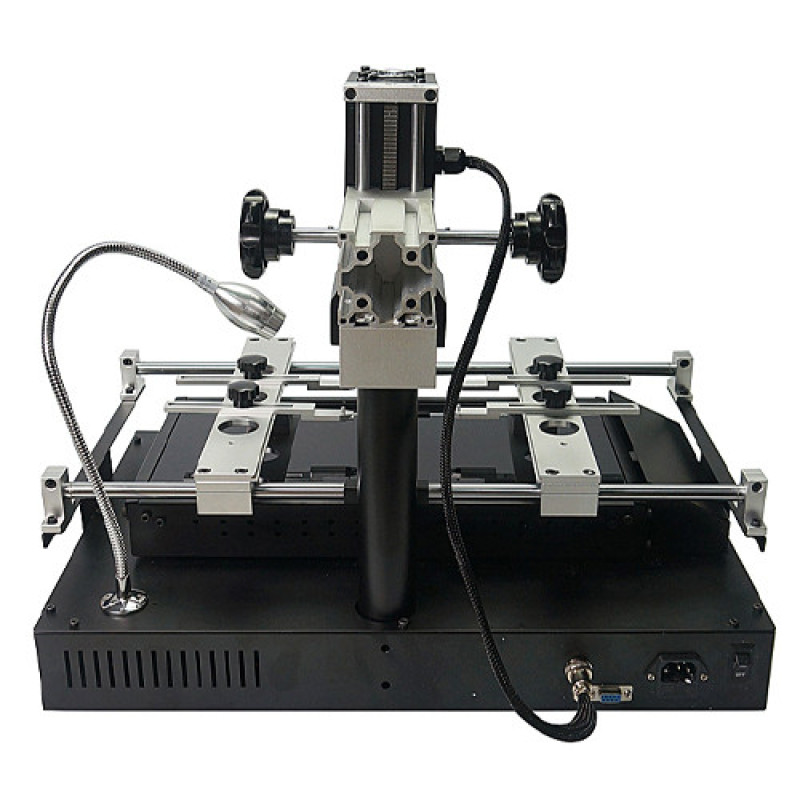

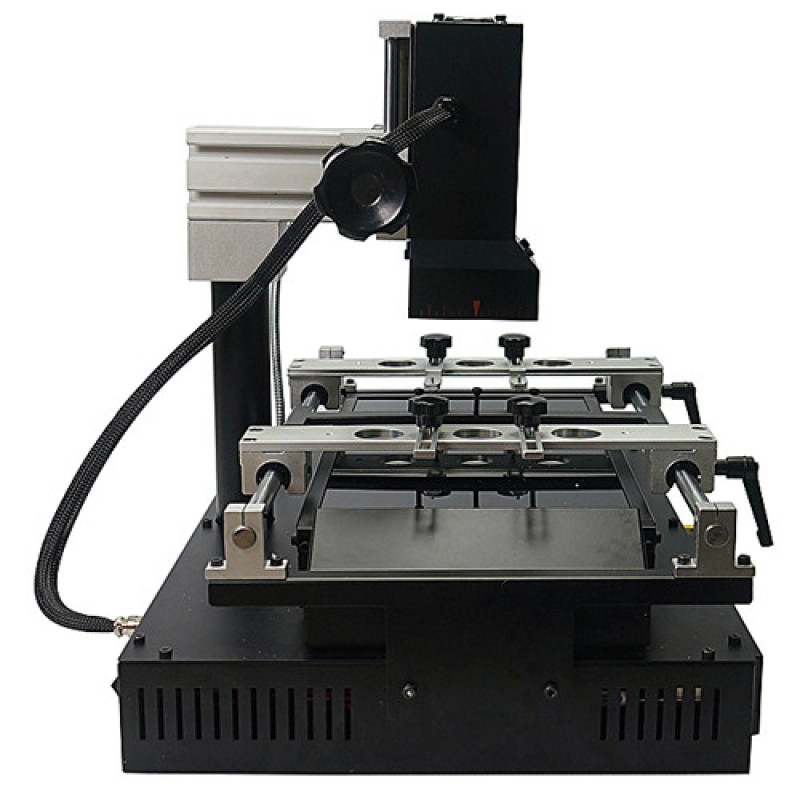

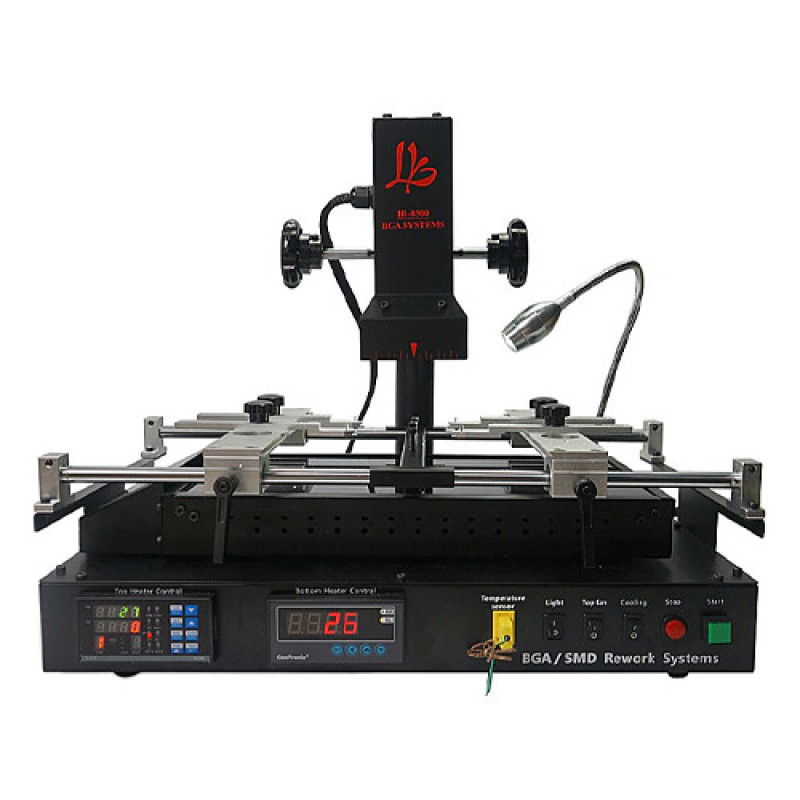

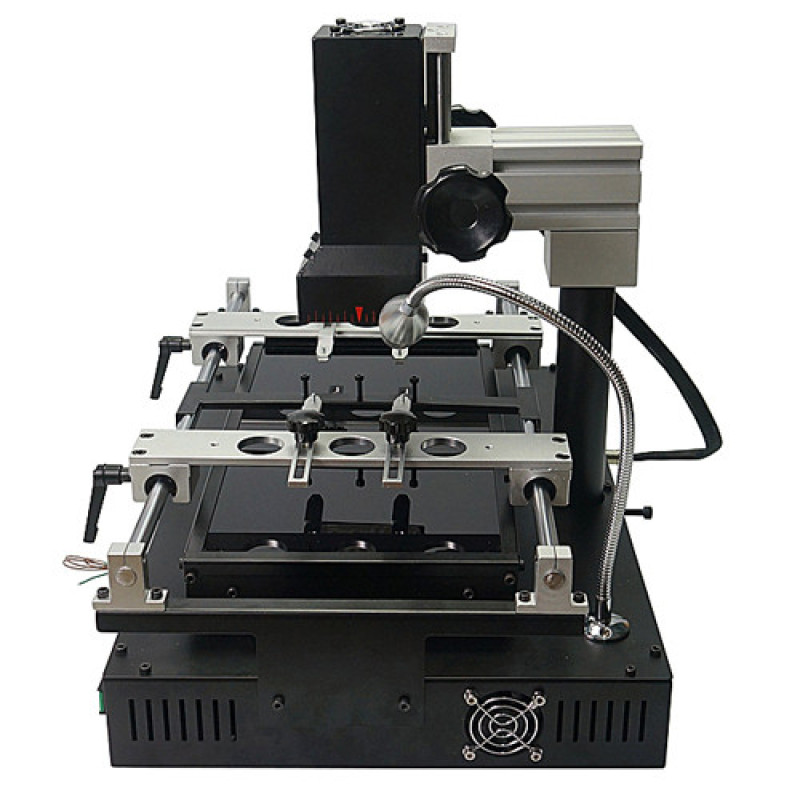

The high-class professional infrared soldering station IR8500 is designed for repairing and maintaining motherboards of laptops, desktop computers, server, communication, and industrial equipment, LCD TVs, gaming consoles, etc. Thanks to its large working area, it allows mounting boards of almost any size, and 2 independent infrared heaters ensure uniform heating of the required area or individual component.
Upper heater specifications:

Type: Infrared
Power: 450 W
Heater dimensions: 80 x 80 mm
Independent temperature control with feedback
High-precision closed loop
Error: ± 0.5 %
Audible operation indication

Lower heater specifications:

Type: Infrared
Power: 1600 W
Heater dimensions: 400 x 200 mm
Independent temperature control with feedback
High-precision closed loop
Error: ± 0.5 %

4-digit display indicators for each heater separately
Memory for 10 temperature profiles
Ability to set up to 8 temperature segments
Applicable for both leaded and lead-free soldering
Control and monitoring of the process and operating parameters via PC
Maximum board size: no more than 390 x 235 mm
Work area illumination — built-in lamp on a flexible arm
Dimensions: 50 x 33 x 46 cm
Weight (gross): 17 kg

Package contents:

IR8500 soldering station with two IR heaters and a set of fasteners for assembly
4 quick-change metal diaphragms, sized 25 x 25, 35 x 35, 45 x 45, and 55 x 55 mm
Set of BGA balls, 0.3, 0.35, 0.4, 0.45, 0.5, 0.6, and 0.76 mm in diameter; ~25,000 pcs of each type
Set of 29 BGA stencils of various sizes
Thermocouple
USB — RS232 adapter for PC connection ( )
Vacuum tweezers with nozzles
Classic metal tweezers
Flux gel, 10 ml volume
Heat-resistant tape, 6 cm wide and ~30 m total length
Copper braid, 3 mm wide and ~1.5 m long
Metal spatula
Cleaning brush
220 V power cable
