FPV Goggles EV800D 40CH 5.8G with DVR — modular FPV goggles/helmet for full flight immersion and simultaneous flexibility of use as a wearable helmet or as a standalone 5-inch monitor. Brand: China. Category: Drones & Quadcopters > FPV Goggles.

Brief Description and Purpose

The EV800D is designed for analog 5.8 GHz FPV systems and provides stable video signal reception thanks to its built-in 40-channel receiver with Raceband support. The modular design allows the helmet to be removed and the built-in 5-inch display to be used as a standalone monitor, which can be mounted on a tripod if needed. The body is made of soft, matte, pleasant-to-the-touch plastic, while soft face pads and adjustable straps ensure comfort during prolonged use.

Features and Functions

• Modular design: use as a helmet or as a standalone 5-inch monitor.
• Supports analog 5.8 GHz video signal only — compatible with analog FPV cameras.
• Built-in 5.8 GHz 40-channel receiver with Raceband support for quick frequency selection.
• Two antennas included: directional (for longer range reception) and omnidirectional (for signal stability).
• Video recording capability via micro SD card slot (DVR), supports cards up to 32 GB (Class 10 or higher).
• 3.5 mm headphone port for full audio immersion.
• Built-in 3.7V 2000mAh lithium-polymer battery, providing up to 3.5 hours of operation; charges via 5V.
• Bright 5-inch LCD display with 800×480 pixel resolution for a clear picture during flight.

Attention: This helmet only receives analog 5.8 GHz video signals. Modern, cheaper quadcopters often have digital cameras that are incompatible with the EV800D. Before purchasing, ensure your FPV camera is analog and operates at 5.8 GHz.

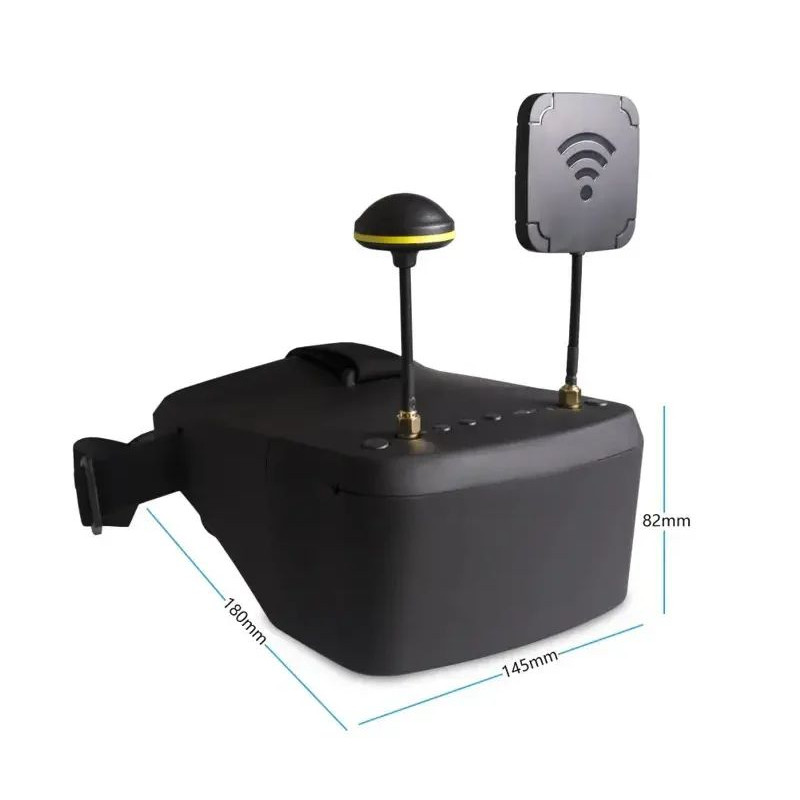

Additional Technical and Operational Details: The built-in DVR allows video recording to micro SD at 720×576 pixels; for stable recording, memory cards of Class 10 or higher are recommended. The RP-SMA antenna connector allows for the installation of other compatible antennas if needed. Dimensions of 180×145×82 mm and a weight of 362 g make the goggles compact and easy to transport, and the included hard case adds protection during storage and transport.

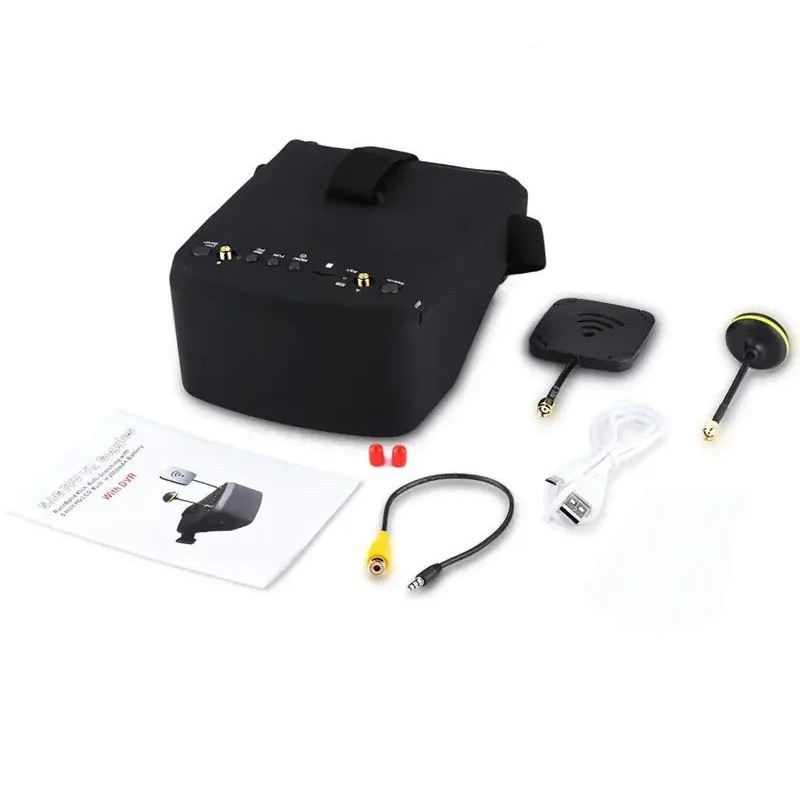

Package Contents:

• 1 x FPV Helmet EV800D
• 1 x Directional antenna
• 1 x Omnidirectional antenna
• 1 x USB cable
• 1 x AV cable

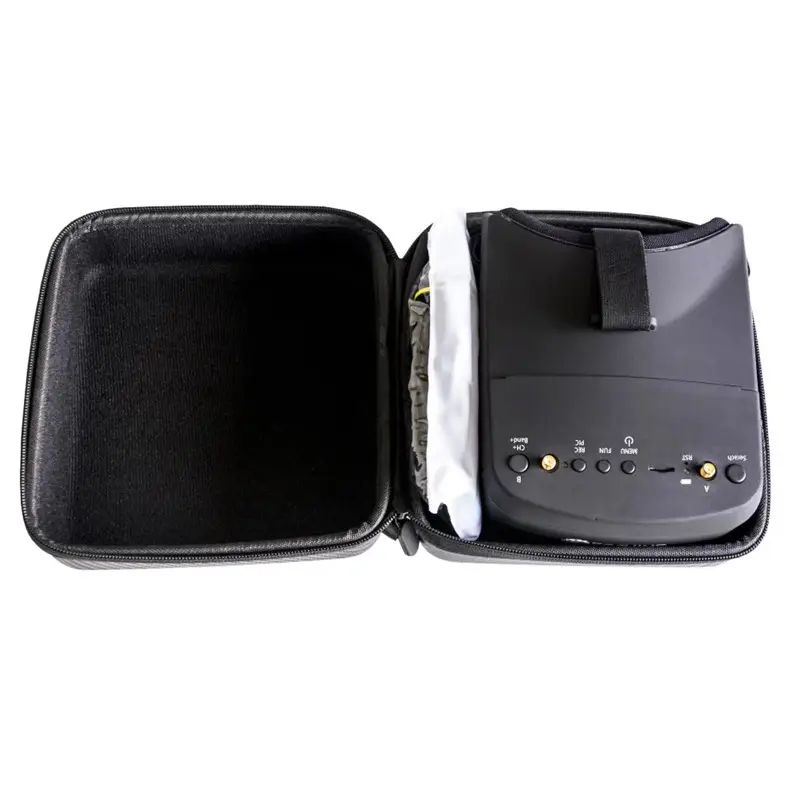

• 1 x Hard case

The EV800D is suitable for pilots working with analog FPV systems who are looking for a versatile device: a helmet for full immersion or a portable 5" monitor for shared viewing of the video feed. Brand: China. Product category: Drones & Quadcopters > FPV Goggles.
