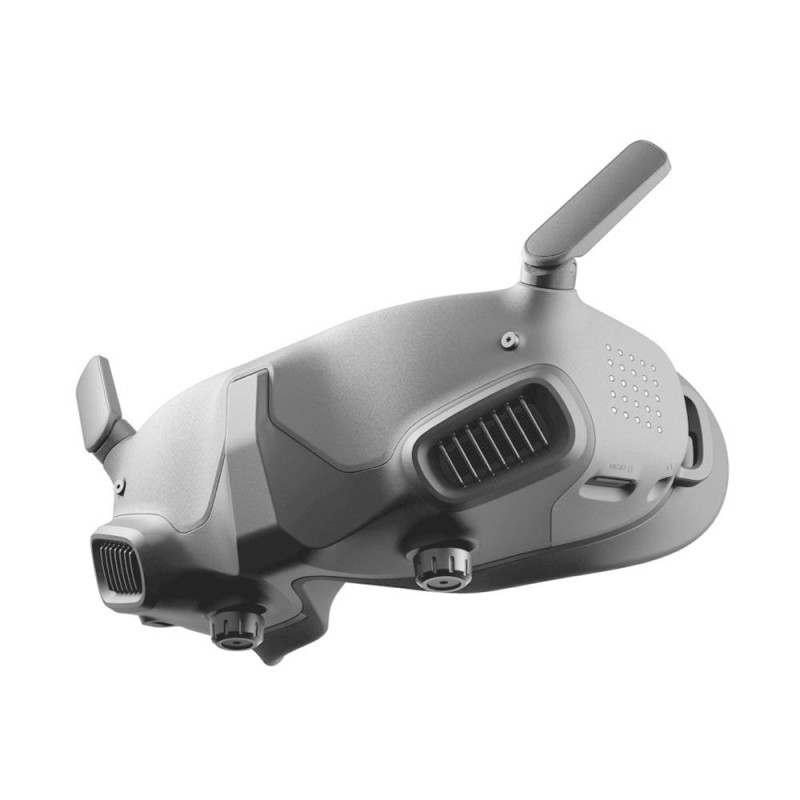

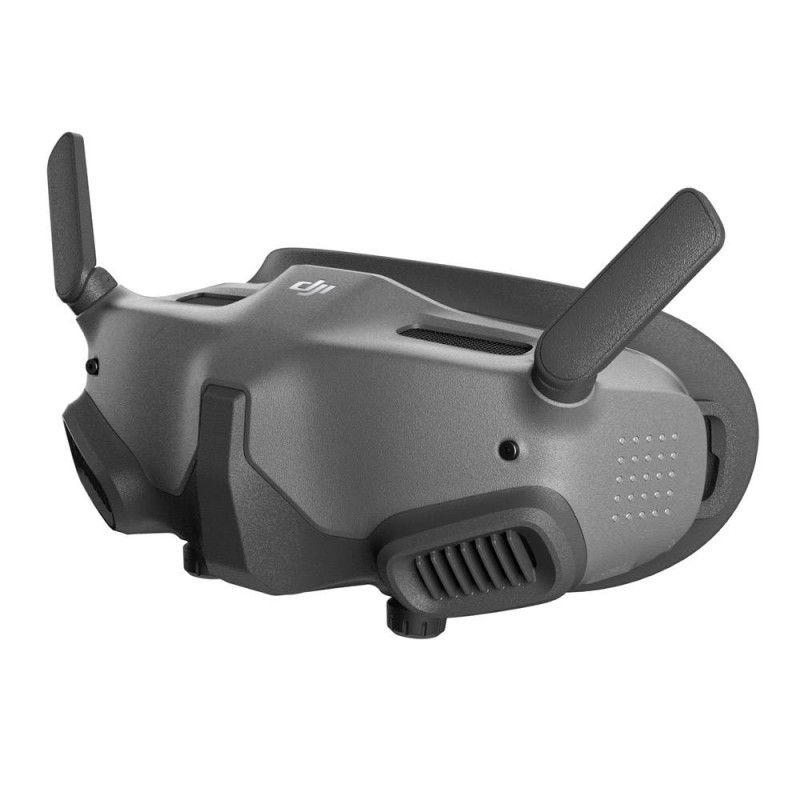

DJI Goggles 2 — Compact FPV Goggles for High-Quality Flight
Brand: DJI. DJI Goggles 2 are lightweight and compact FPV goggles designed for drone enthusiasts who value portability, high image quality, and comfortable ergonomics. This model is ideal for use with DJI Avata and other FPV drones. This product belongs to the category: Drones and Quadcopters > Drone Components > FPV Goggles.
Overview and Key Advantages
- Compact and lightweight form factor — convenient to carry and store; weight approximately 122 g.
- Dual HD Micro-OLED screens provide exceptional image clarity and support a refresh rate of up to 100 Hz for smooth viewing.
- A 51° FOV per screen offers deep immersion in flight.
- Battery life approximately 2 hours; battery capacity 1800 mAh, energy 18 Wh; battery chemical system LiNiMnCoO2, battery type Li-ion.
- Fast charging: maximum charging power 712.6 W (5 V/2 A, 9 V/1.4 A); charging temperature range from 70° to 45° C.
- Diopter adjustment from +2.0 D to -8.0 D with adjustment knob lock for stable settings during flight or storage.
- Support for modern formats and codecs: video/audio MP4 and MOV (video: H.264, H.265; audio: AAC, PCM); video recording format MOV; maximum bitrate 50 Mbps.
- Supports microSD cards up to 256 GB.
Communication and Operating Parameters
The goggles support a wide range of frequencies and communication protocols, ensuring stable high-definition video transmission: Wi‑Fi 802.11b/a/g/n/a protocol, DLNA support, Bluetooth 5.2. Bluetooth communication frequency: 2.400-2.4835 GHz. Wi‑Fi communication frequency: 2.400-2.4835 GHz; 5.150-5.250 GHz (for indoor use only); 5.725-5.850 GHz.
Technical Specifications
| Model | DJI Goggles 2 |
|---|---|
| Supported Formats | Video/Audio: MP4 and MOV (Video: H.264, H.265; Audio: ACC, PCM) |
| Wi‑Fi Transmission Power (EIRP) | 2.4 GHz: 20 dBm (FCC/CE/SRRC/KC); 5.1 GHz: 20 dBm (FCC/CE/KC); 5.8 GHz: 20 dBm (FCC/SRRC/KC), 14 dBm (CE) |
| Transmission Power (EIRP) | 2.4 GHz: 30 dBm (FCC), 20 dBm (CE/SRRC/KC); 5.8 GHz: 30 dBm (FCC), 23 dBm (SRRC), 14 dBm (CE/KC) |
| Operating Temperature Range | -10° to 40° C (14° to 104° F) |
| Bluetooth Communication Frequency | 2.400-2.4835 GHz |
| Wireless Streaming | Wi‑Fi: supports DLNA protocol |
| Bluetooth Transmission Power (EIRP) | 8 dBm |
| SD Card Support | microSD up to 256 GB |
| Maximum Bitrate | 50 Mbps |
| Wi‑Fi Communication Frequency | 2.400-2.4835 GHz; 5.150-5.250 GHz (for indoor use only); 5.725-5.850 GHz |
| Wi‑Fi Protocol | Wi‑Fi 802.11b/a/g/n/a |
| Bluetooth Protocol | Bluetooth 5.2 |
| Video Recording Format | MOV |
| FOV (Single Screen) | 51 |
| Charging Temperature Range | 70° to 45° C (32° to 113° F) |
| Maximum Charging Power | 712.6 W (5 V/2 A, 9 V/1.4 A) |
| Dimensions (L×W×H) | 73.04×40.96×26 mm |
| Operating Time | approx. 2 hours |
| Battery Chemical System | LiNiMnCoO2 |
| Weight | approx. 122 g |
| Voltage | 7-9 V (1.5 A) |
| Capacity | 1800 mAh |
| Energy | 18 Wh |
| Battery Type | Li‑ion |

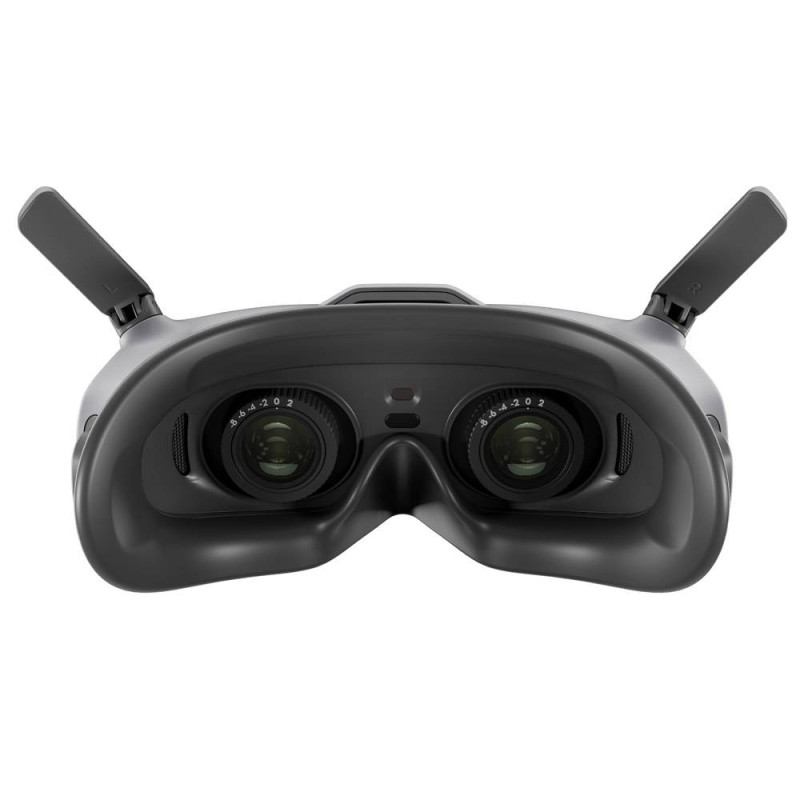

Diopter Adjustment
The correction range from +2.0 D to -8.0 D allows the goggles to be adapted to the pilot's individual needs. The adjustment knob locks, preventing accidental diopter changes during flight or storage.

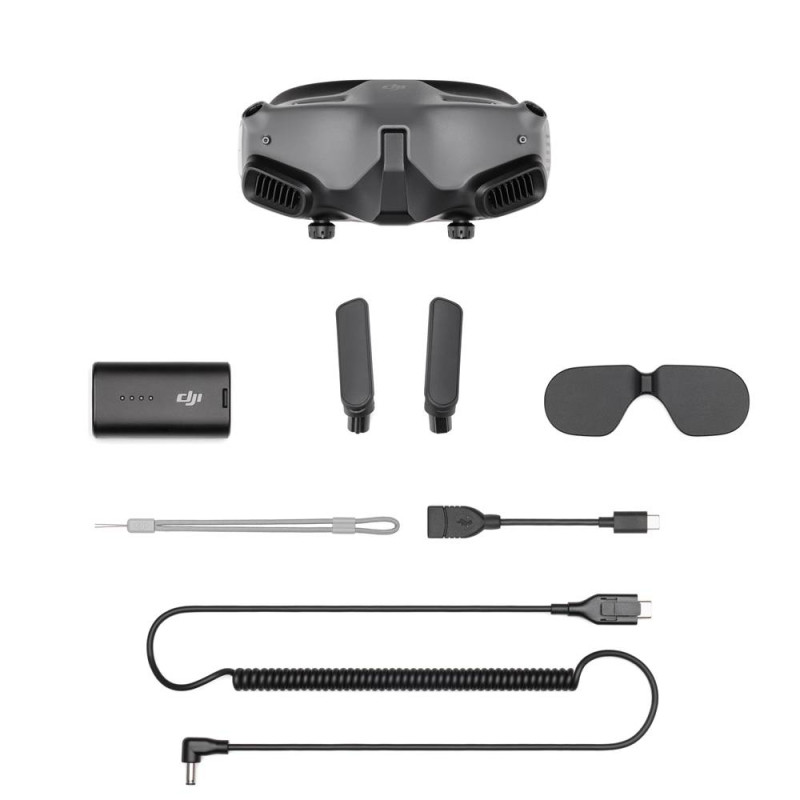

Package Contents

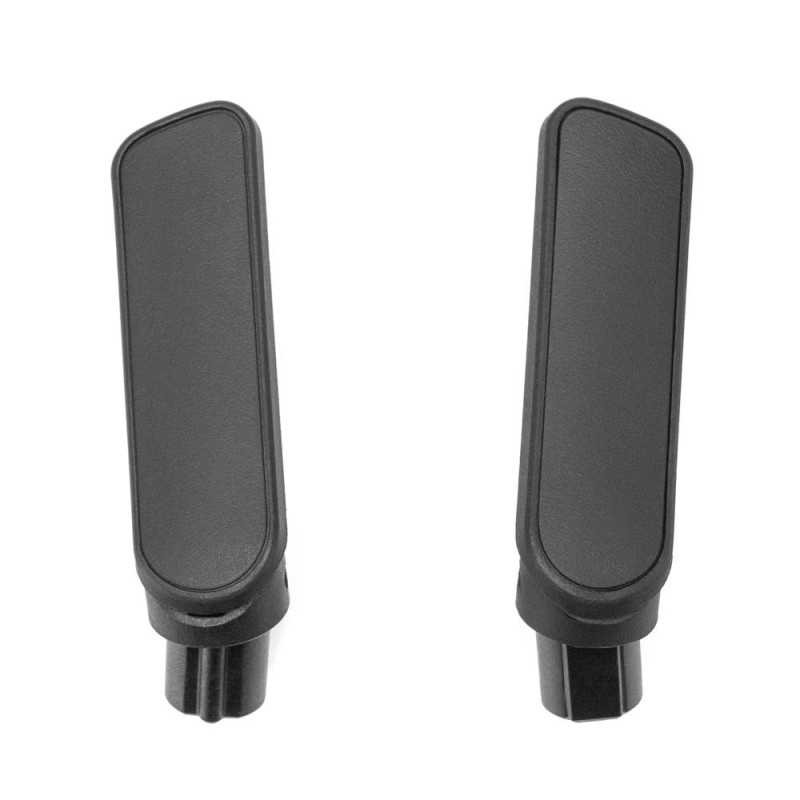

- 1x DJI Goggles 2 Dual-Band Antenna (set of 2)

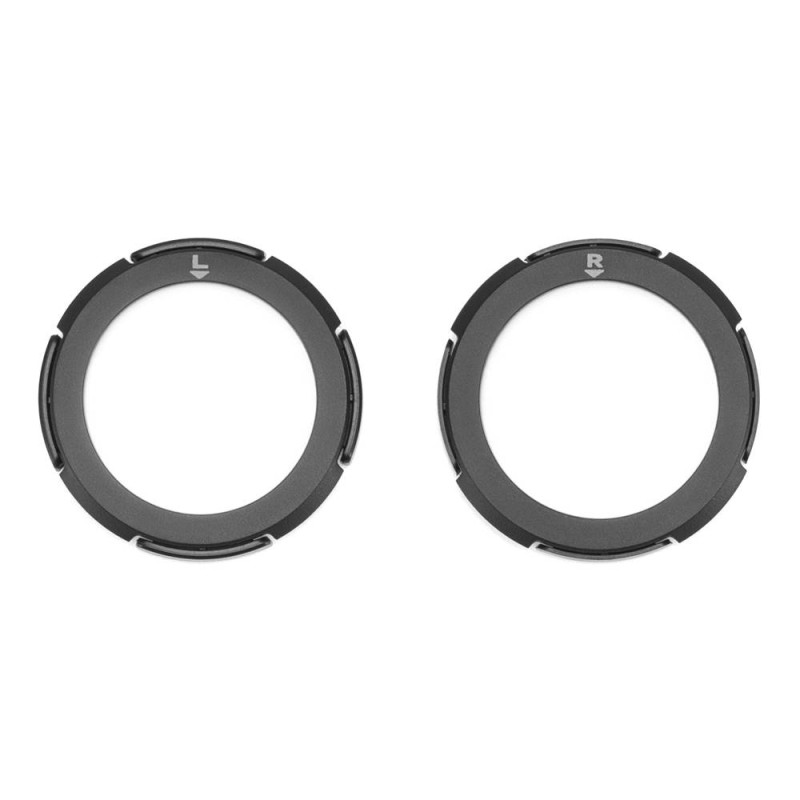

- 1x DJI Goggles 2 Eyeglass Frames (set of 2)

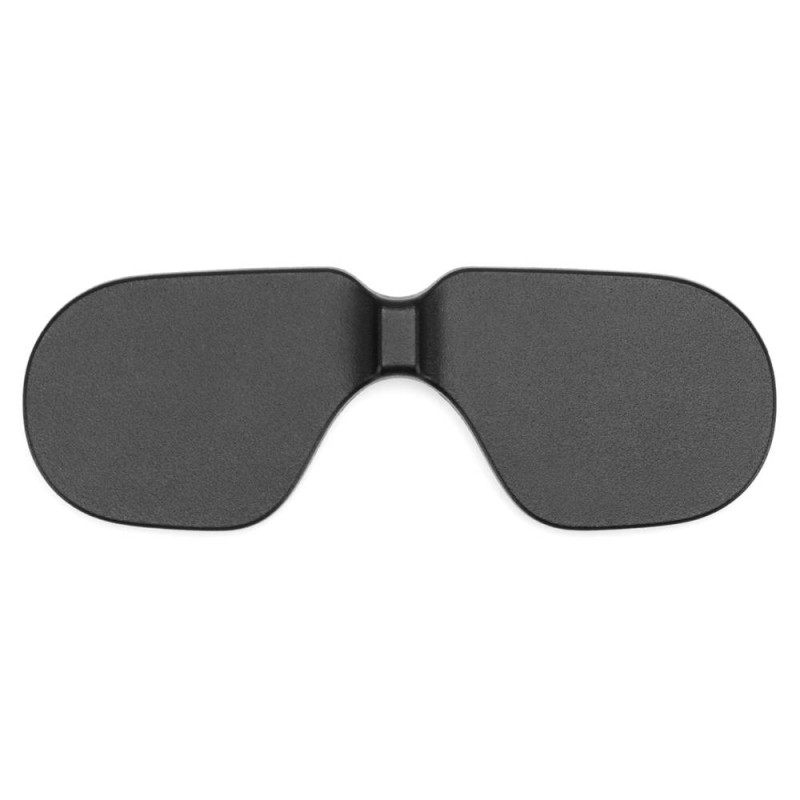

- 1x DJI Goggles 2 Screen Protector Film

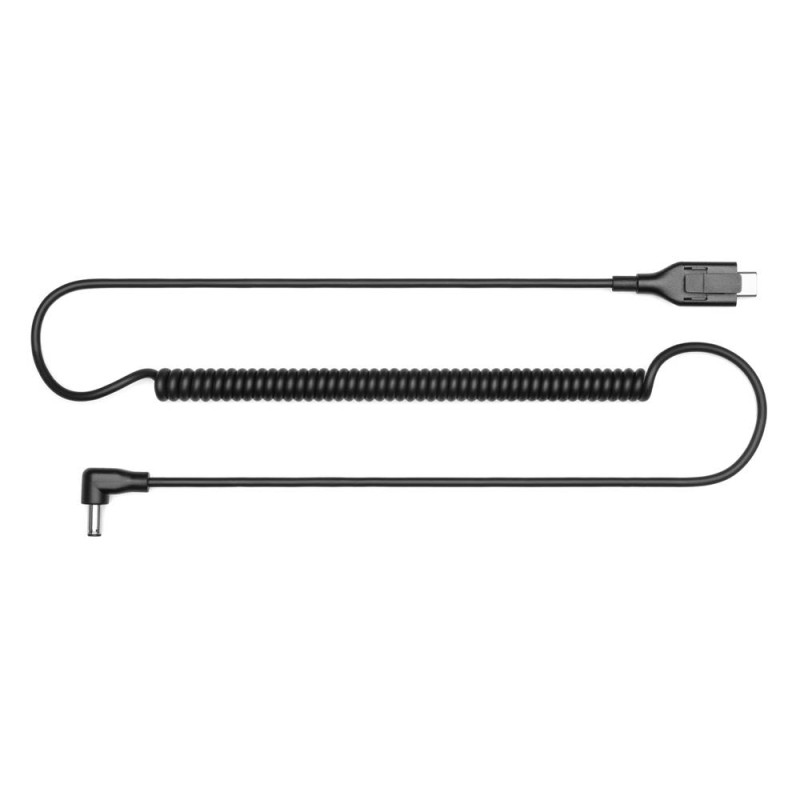

- 1x DJI Goggles 2 Power Cable
- 1x DJI Goggles 2 Headband

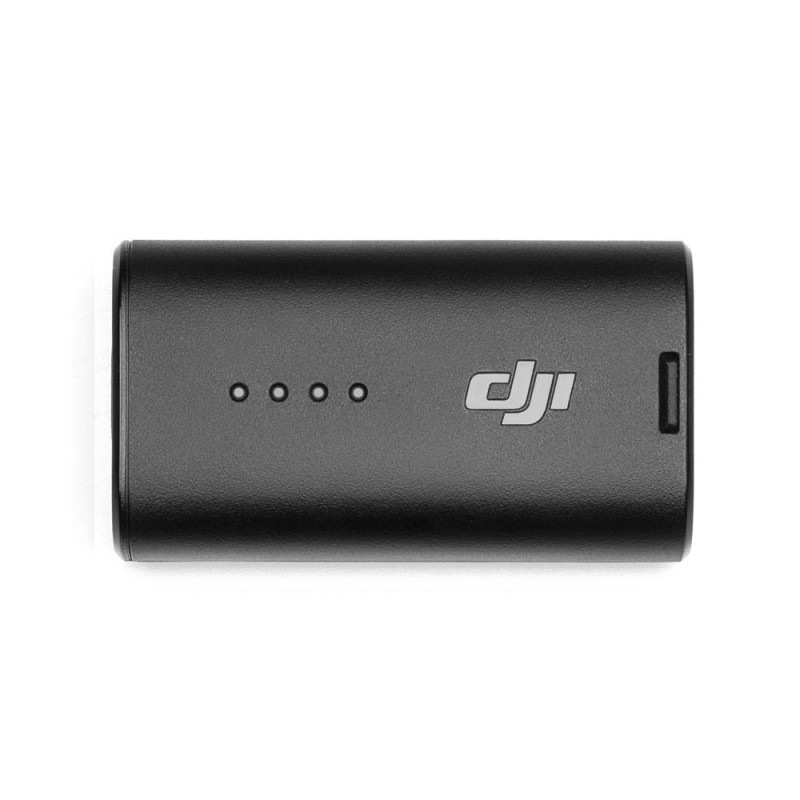

- 1x DJI Goggles 2 Battery
- 1x DJI Goggles 2

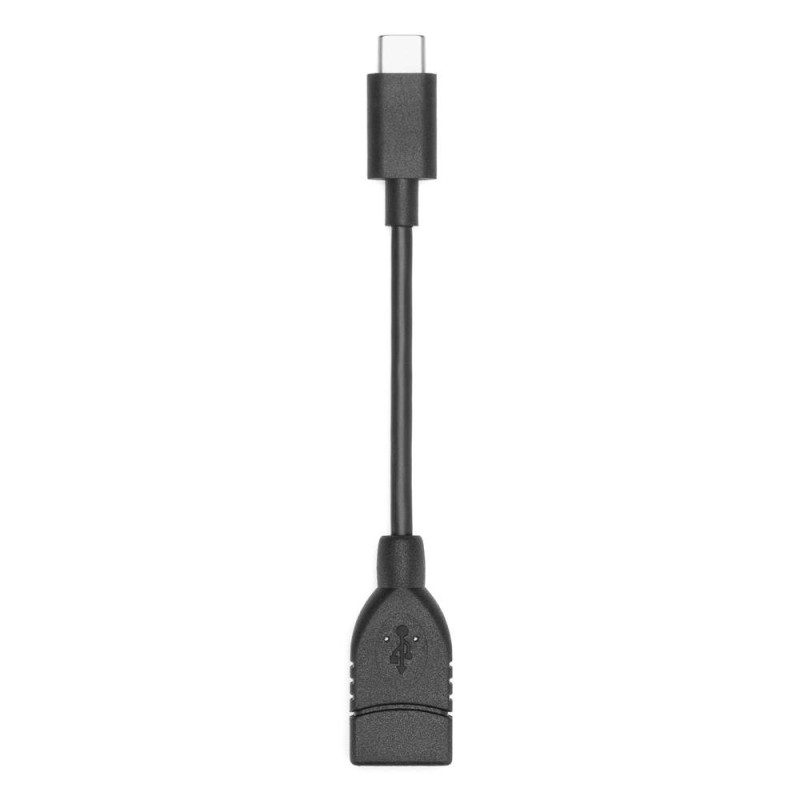

- 1x OTG Cable
DJI Goggles 2 — an excellent choice for those seeking a combination of portability, modern codecs, and extensive wireless connectivity. With H.264/H.265 support and a wide frequency range, these goggles ensure stable high-definition video transmission and playback during flight.
