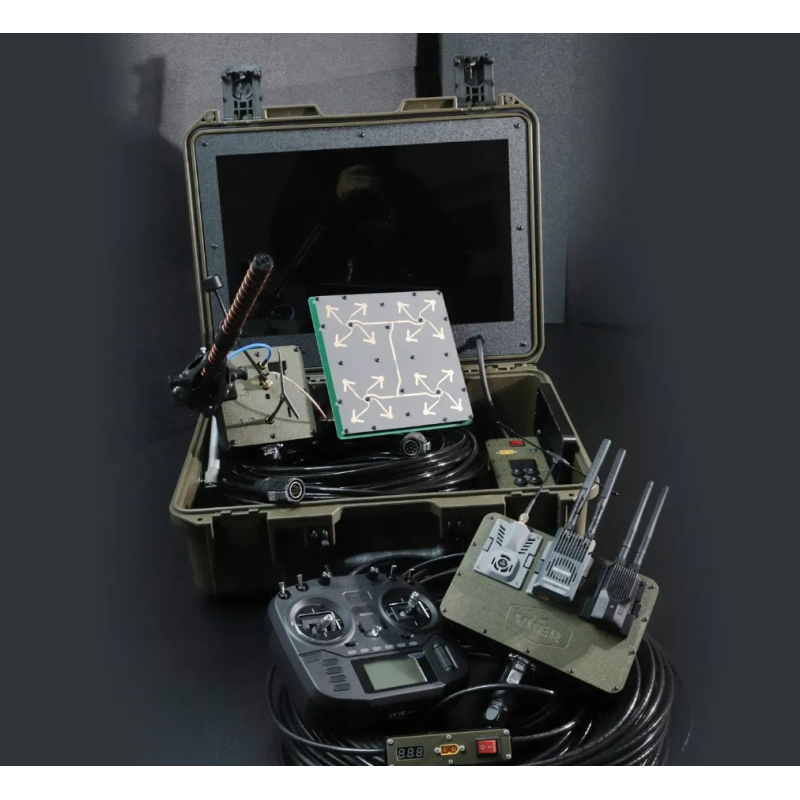

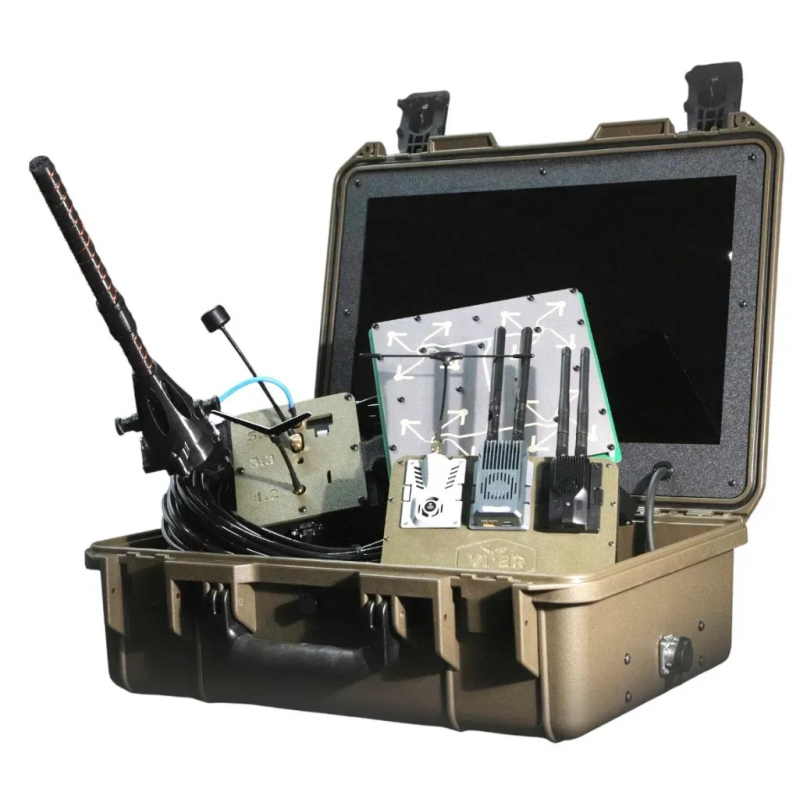

GCS FPV VITER 3
• THREE video bands: Full support for 5.8, 3.3, and 1.3 GHz frequencies with channel switching directly from the case.

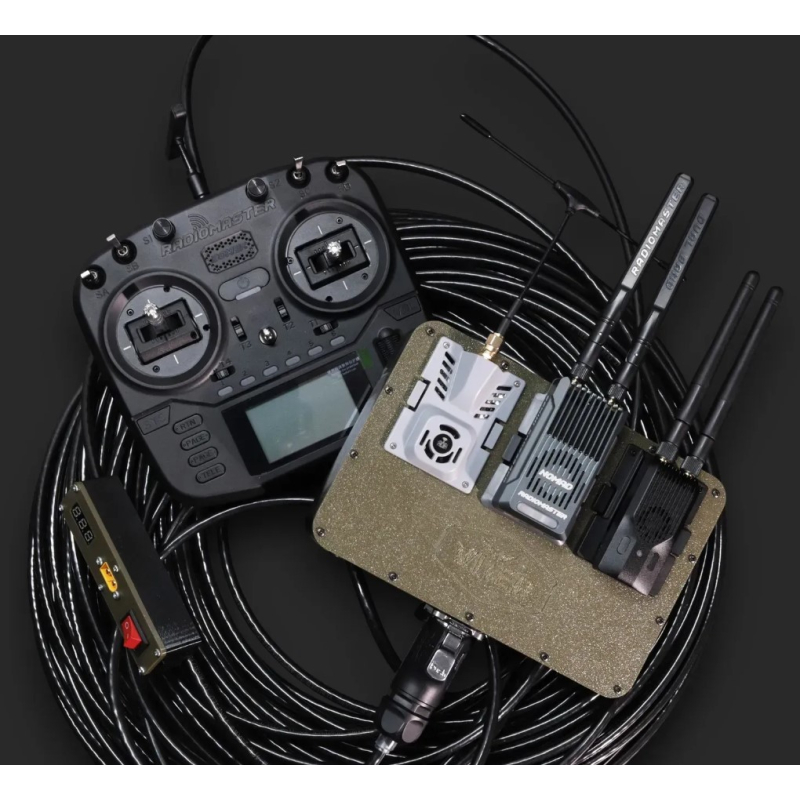

• Control system: Triversity technology (simultaneous operation of up to three transmitters) implemented for maximum signal stability. Supports CRSF and ELRS protocols. A separate system allows for separating video and control masts to minimize mutual interference.

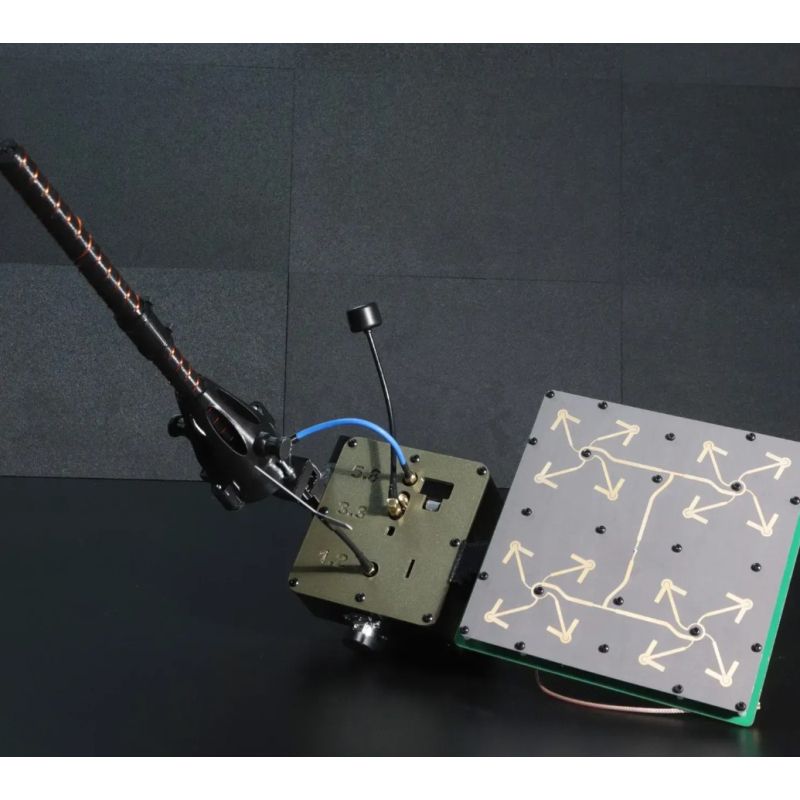

• Antennas: Full compatibility with Yagi, horn, patch, helix, and log-periodic antenna types.

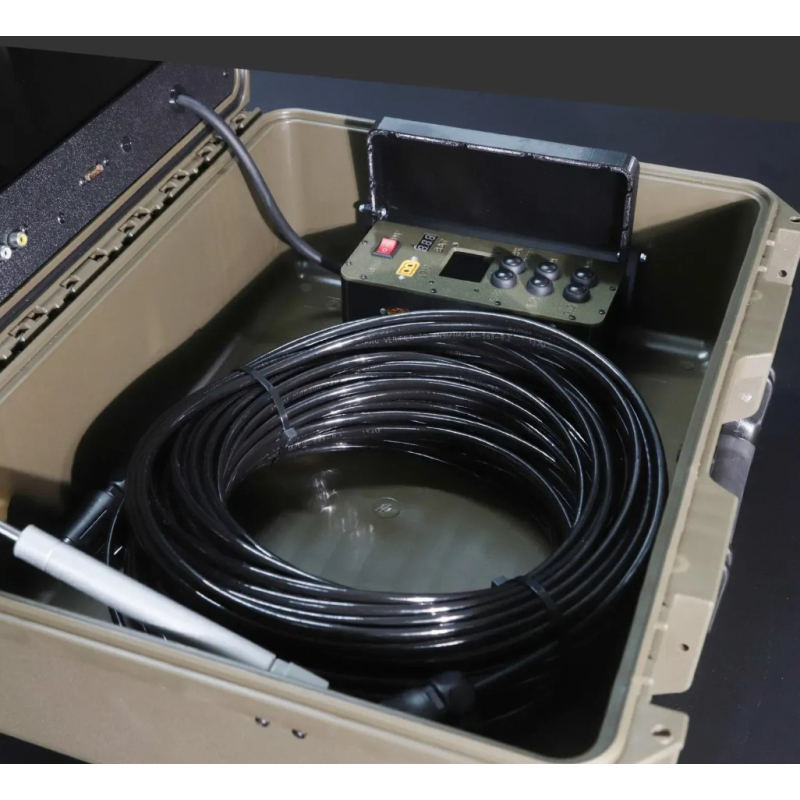

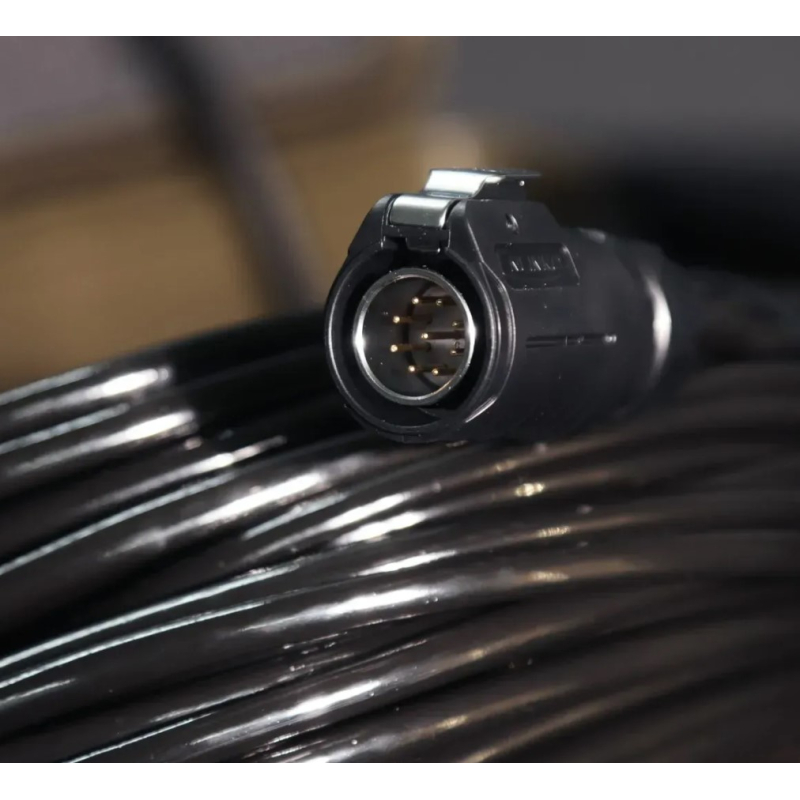

• Cable: Signal transmission via shielded copper cable up to 50 m long.

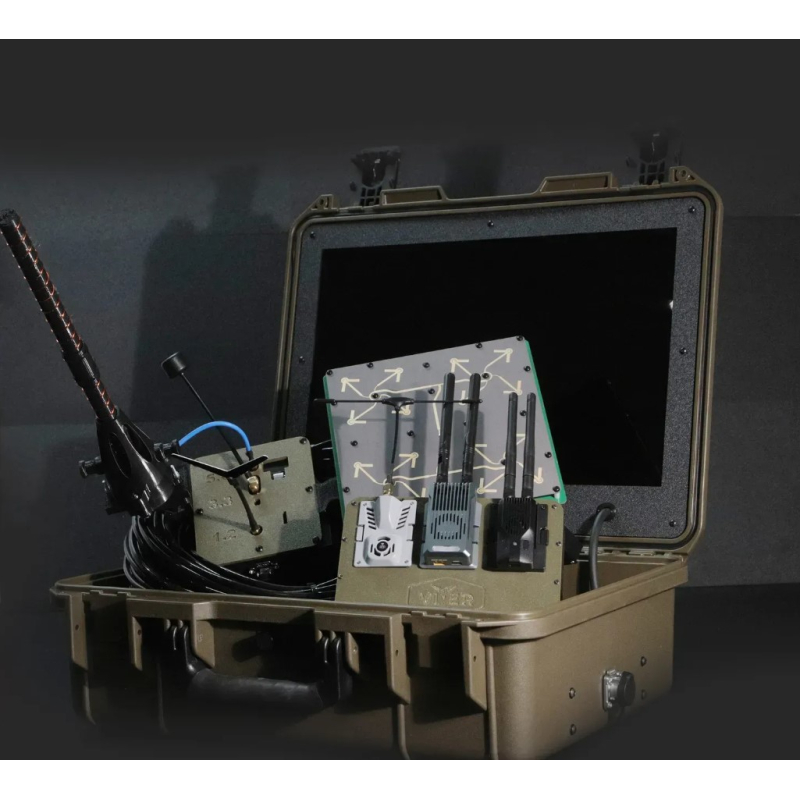

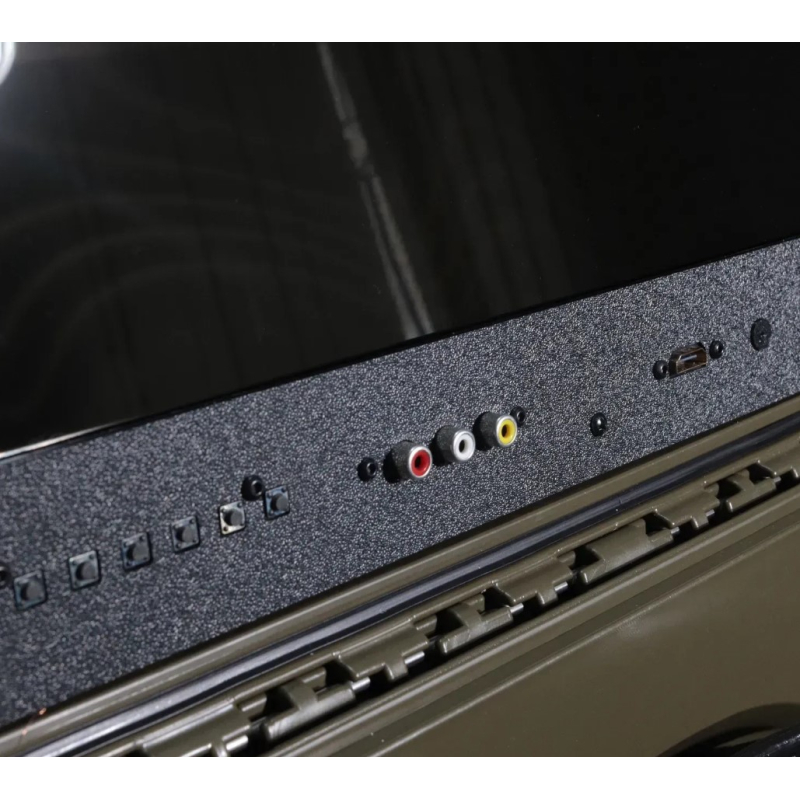

19" or 24" monitors (no blue screen) in a shock-resistant, sealed case.
• Power: Autonomous operation from 4–6S battery
The system configuration is flexible and adaptable to specific combat or technical tasks.
Specifications
| Purpose | FPV, Ground Stations, Repeaters |
|---|---|
| Voltage, V | 25 |
| Type | Analog |
| Gain, dBi | 19.0 |
| Operating range, tested, km | 50.0 |
| Encryption present | No |
| Rotary mechanism for ground antenna | No |
| Repeater | Optional |
| Overall dimensions (L x W x H), mm | 500*400*190 |
| Control antenna gain, dBi | 12.0 |
| Cable length, m | 50 |
| Power supply | Battery powered |
| Antenna rotation mechanism | Optional |
| Video frequencies | 1.2; 3.3; 5.8; 6-7.2 |
| Control frequencies | 430, 915, 2400 |
| Monitor | 19; 24 |
| Deployment time, min | 30 |
| Remote launch control capability | No |
| Product codified | No |
