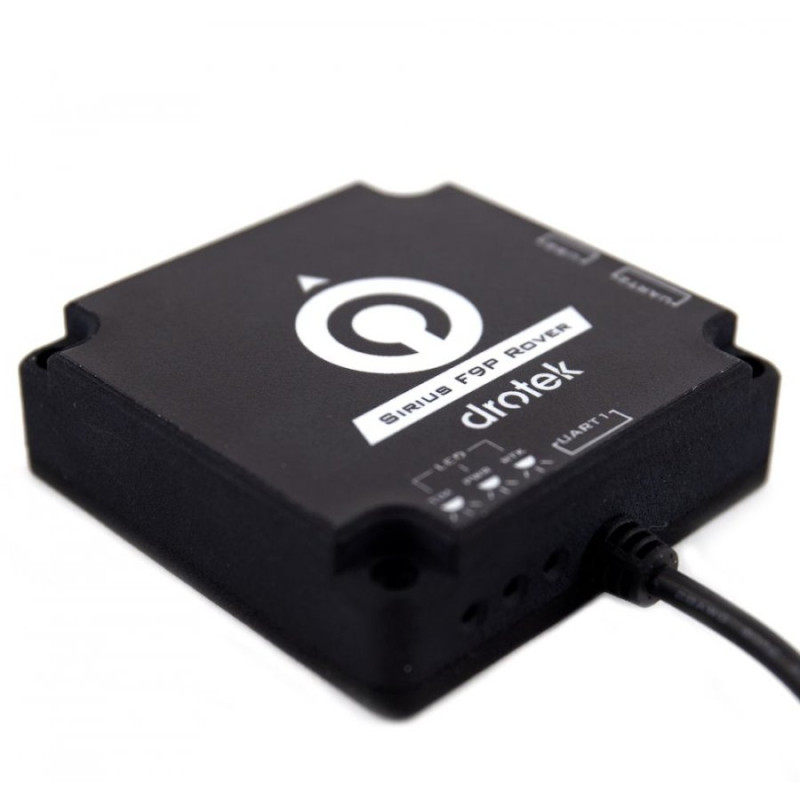

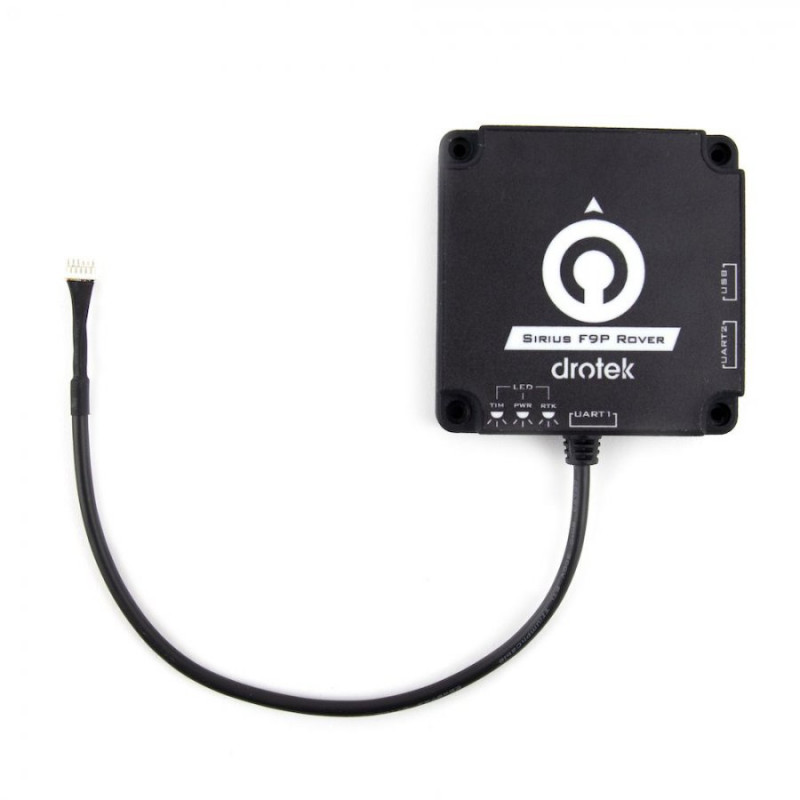

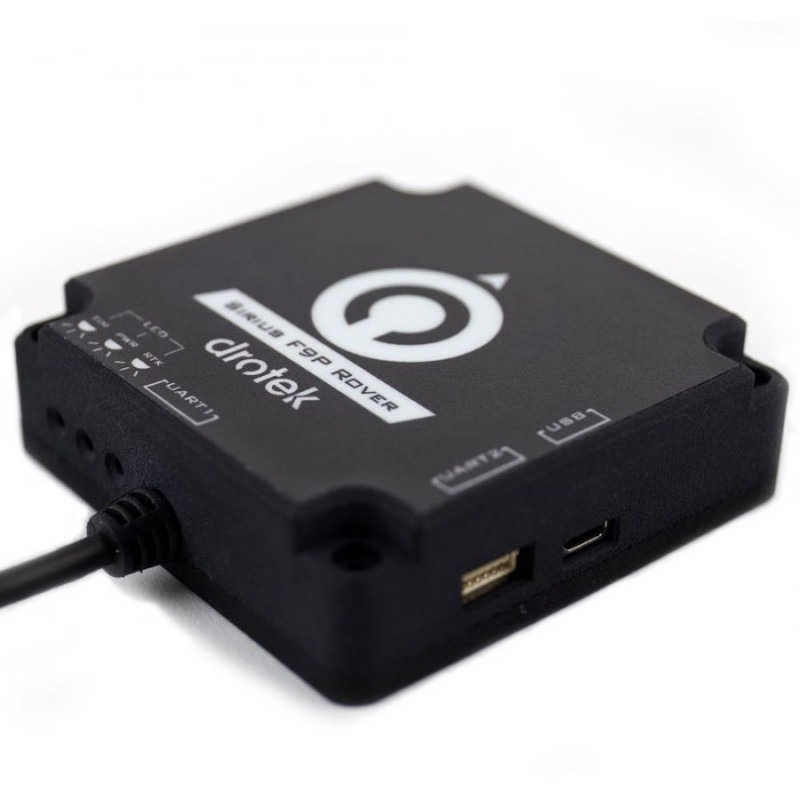

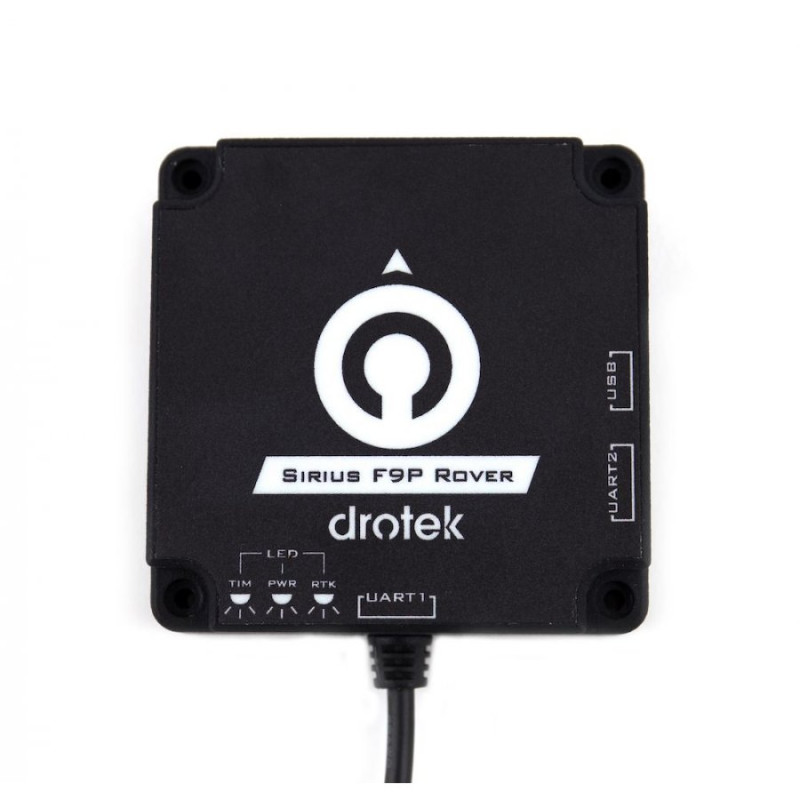

SIRIUS RTK GNSS ROVER (F9P + RM3100) Navigation Module

Brand: SIRIUS. Category: Drones & Quadcopters > Drone Accessories.

The SIRIUS RTK GNSS ROVER module, based on U-blox F9P technology, offers exceptional performance and reliability through multi-band GNSS support. Its compact design with an integrated active antenna makes the device ideal for installation on drones where weight and aerodynamics are critical.

The RTK version of the module is equipped with U-Blox's ZED-F9P module, providing high positioning accuracy up to 1 cm, fast convergence in less than 10 seconds, and a navigation data update rate of up to 20 Hz. In conjunction with a base module, your system gains the ability to perform precisely planned missions and complex maneuvers with high trajectory repeatability.

This module features fast convergence time and a high update rate, making it optimal for dynamic tasks: agricultural monitoring, aerial photography, infrastructure inspections, and geodetic work using UAVs.

Advanced High-Precision GNSS Capabilities:

• Improved accuracy in challenging conditions through the use of various satellite signals.
• Support for modern correction technologies (RTCM v 3.x, SSR, SBAS, PPP).
• Precise positioning even in areas with limited GNSS signal access (tunnels, parking lots, urban canyons) thanks to additional inertial sensors and dead reckoning algorithms.
• Built-in advanced anti-jamming and anti-spoofing technologies to ensure the highest level of security.

Professional RM3100 Magnetometer

A professional RM3100 magnetometer from Drotek is integrated into the kit. This module is ready for operation and provides high-precision magnetic field measurements, eliminating interference for accurate direction and orientation calculations. Thanks to the RM3100, your drone will confidently navigate its route and effectively avoid magnetic interference caused by motor operation or nearby metallic structural elements.

The SIRIUS RTK GNSS ROVER (F9P + RM3100) combines advanced GNSS technologies and professional orientation sensors, enhancing navigation reliability and accuracy in a wide variety of operating conditions. The module supports all major satellite systems: GPS, GLONASS, Galileo, BeiDou, and QZSS, ensuring stable global positioning.

This system is suitable for professional solutions where data accuracy and update speed are critical: cartography, infrastructure surveys, field monitoring, search and rescue operations, and other tasks requiring centimeter-level RTK accuracy.

Installation on UAV platforms is simple due to its compact housing and integrated active antenna, and compatibility with modern correction protocols ensures easy integration with existing base station systems and RTK data processing software.

If you need a reliable and accurate navigation subsystem for a drone with the ability to combat GNSS interference and improved orientation thanks to a magnetometer — the SIRIUS RTK GNSS ROVER (F9P + RM3100) will be an excellent choice.
