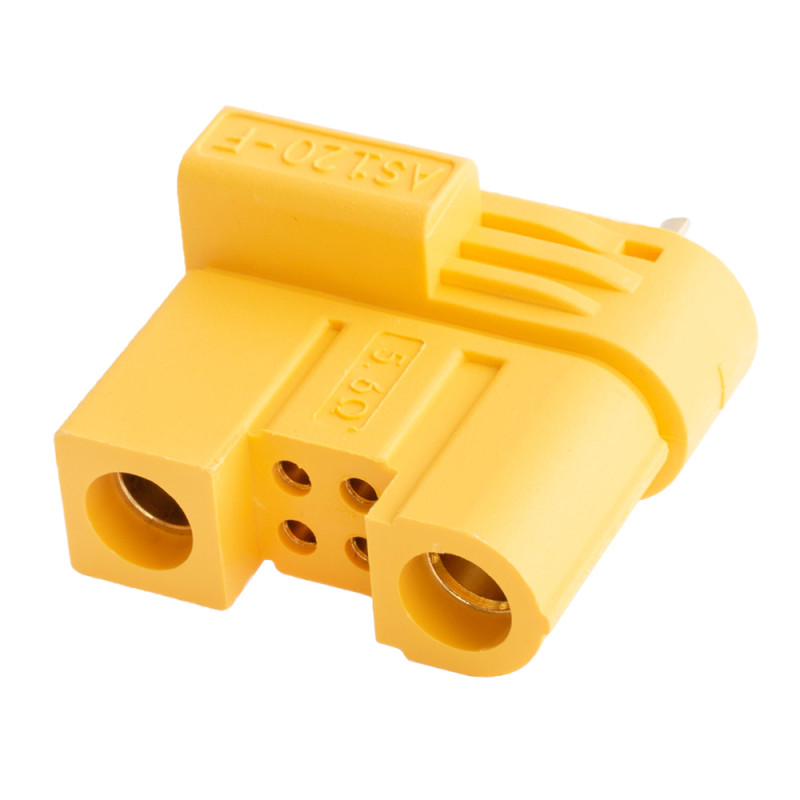

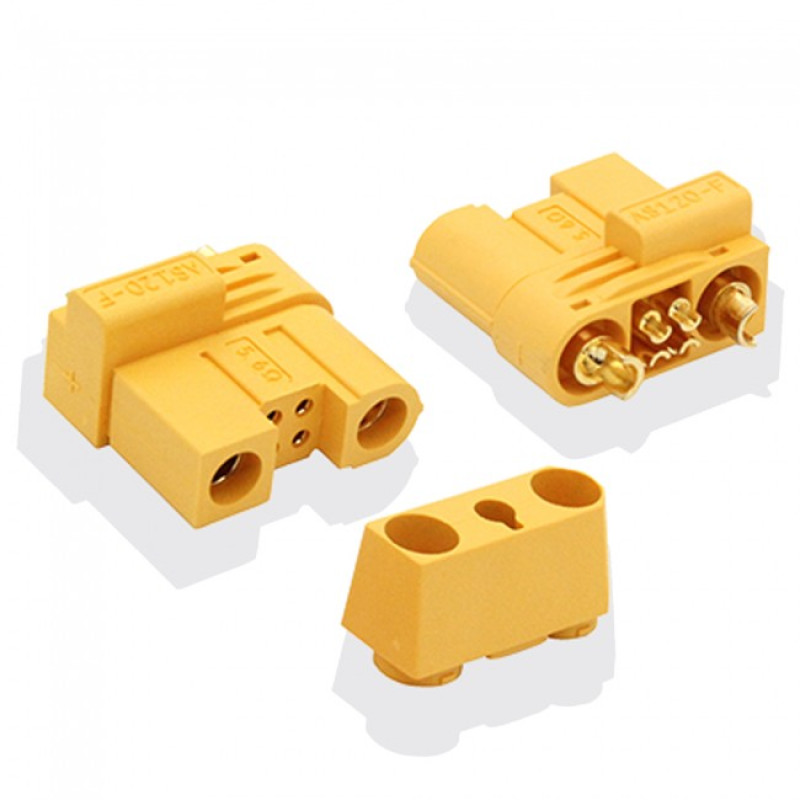

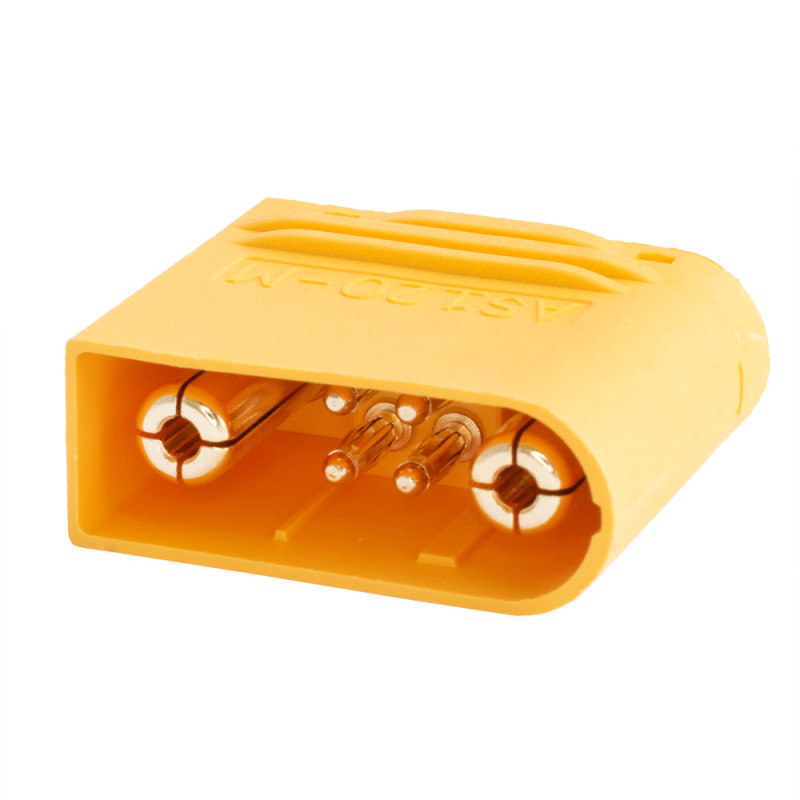

Power Connector AS120-F/M AMASS 55 cm.
The AS120-F/M power connector from AMASS is a reliable solution for connecting power sources in drones, quadcopters, and other electronic devices requiring high current output and stable contact. The finished cable length is 55 cm, with wire mounting. The kit consists of a paired AS120 series connector (female and male versions) with high-quality Gold flash plating and copper contacts.
| Specifications | Value |
|---|---|
| Manufacturer | AMASS |
| Description (female version) | DC power connector. Series: AS120 "female". For wire. Plating: Gold flash, current: 60A. Voltage: 80V. Flammability class: UL94V-0. Material: copper. Wire size: 7AWG. |
| Plug/Socket (female version) | Plug |
| Number of contacts | 6 |
| Connector series | AS120 |
| Mounting | for wire |
| Manufacturer | AMASS |
| Description (male version) | DC power connector. Series: AS120 "male". For wire. Plating: Gold flash, current: 60A. Voltage: 80V. Flammability class: UL94V-0. Material: copper. Wire size: 7AWG. |
| Plug/Socket (male version) | Socket |
| Number of contacts | 6 |
| Connector series | AS120 |
| Mounting | for wire |
Key technical specifications and advantages of this connector:
- Current: 60 A — suitable for powerful battery systems and power circuits.
- Voltage: 80 V — allows operation at high voltages for a wide range of applications.
- Gold flash plating — ensures low contact resistance and corrosion resistance.
- Contact material: copper — good conductivity and mechanical reliability.
- Number of contacts: 6 — multi-channel design for current distribution or additional connections.
- Flammability class UL94V-0 — increased safety level during heating and sparking.
- Wire size: 7AWG — allows connecting thick power conductors for minimal losses.
- Wire mounting — quick installation and the ability to replace the cable if necessary.
These AS120 series connectors from AMASS are ideal for use in the UAV industry, model building, electric transport, and other areas where reliable power connections are required. Thanks to their high current load and quality contact plating, the contacts maintain stability during intensive use, and the materials ensure a long service life.
Please note: the kit includes both parts of the pair — the female version and the male version, each with 6 contacts and the characteristics specified in the table. Manufacturer: AMASS. Series: AS120. Cable length: 55 cm.
