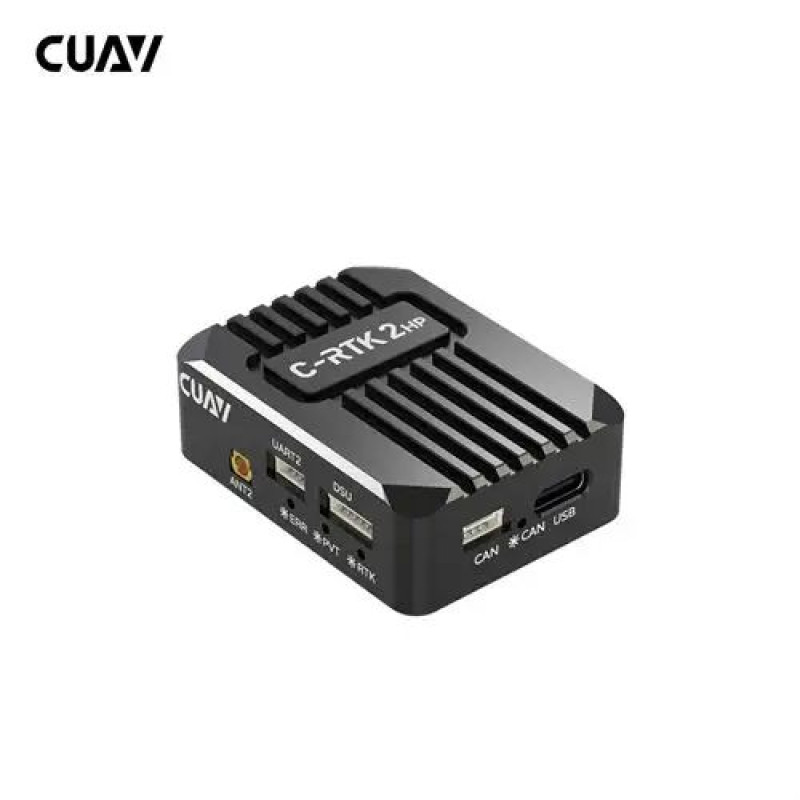

CUAV New C-RTK 2HP Navigation Module
CUAV New C-RTK 2HP is a professional RTK-enabled navigation module designed for unmanned aerial vehicles, autonomous vehicles, and industrial applications. The module provides centimeter-level positioning accuracy through differential RTK methods, making it an ideal solution for mapping, surveying, precision agriculture, infrastructure inspection, and industrial monitoring.
Key Advantages and Features:
- 1. RTK Receiver: Provides high-precision, centimeter-level positioning accuracy in real time.
- 2. Multi-Satellite System Support: Compatible with GPS, GLONASS, BeiDou, Galileo, and QZSS for reliable operation in various regions worldwide.
- 3. High Accuracy and Stability: Hardware and software solutions are optimized for stable position fixing even in challenging conditions.
- 4. Easy Integration: Standard DroneCAN and NMEA interfaces allow quick connection of the module to modern UAV controllers and other platforms.
- 5. Compact and Lightweight Design: Small dimensions and low weight minimally impact the platform's payload.
CUAV New C-RTK 2HP is designed for professional use: remote control of vehicles, integration into commercial and industrial UAVs, solutions for agro-aviation, applications in surveying and inspections. The module is compatible with modern controllers and suitable for projects where positioning accuracy and multi-frequency satellite constellation operation are critical.
Additional Information and Technical Specifications
Full technical data is provided below. These specifications will help assess the compatibility of CUAV New C-RTK 2HP with your hardware platform and operating conditions.
| Specifications | Description |
|---|---|
| Processor | STM32F4 |
| Compass Sensor | RM3100 |
| Gyroscope/Accelerometer | ICM42688 |
| Module Type | Multi-frequency positioning receiver (GNSS) with all constellation support |
| Channels | 1408 channels |
| GNSS | BDS (BeiDou), GPS, GLONASS, Galileo, QZSS (Quasi-Zenith Satellite System) |
| Antenna 1 (Primary) | – BDS: B1I, B2I, B3I – GPS: L1C/A, L2P/L2C, L5 – GLONASS: L1, L2 – Galileo: E1, E5a, E5b – QZSS: L1, L2, L5 |
| Antenna 2 | – BDS: B1I, B2I, B3I – GPS: L1C/A, L2C – GLONASS: L1, L2 – Galileo: E1, E5b – QZSS: L1, L2 |
| Data Protocol | DroneCAN/NMEA |
| Supply Voltage | 4.7~5.2 V |
| Operating Temperature | -20~85℃ |
| Size | 50 mm * 37 mm * 17 mm |
| DroneCAN Protocol Support | Yes |
| Dual Antenna Heading Estimation | Yes |
| STM32F4 Processor | Built-in STM32F4 processor |
| Built-in Electronic Compass | Built-in high-quality RM3100 electronic compass |
| Pulse Sensor System | ICM42688 Gyroscope/Accelerometer |
| Usage | Designed for remotely controlled vehicles |
| Module Type | Multi-constellation multi-frequency |

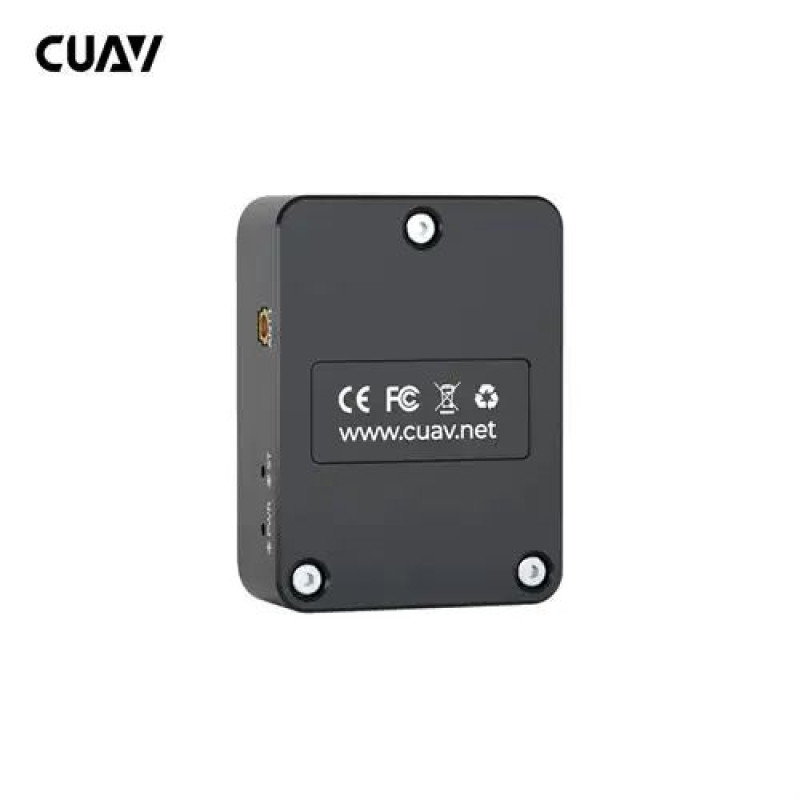

| Material | Made of metal |
| Brand | CUAV |
| Origin | China (origin) |
| Quantity | 3 |
Brand/manufacturer: CUAV; country of origin: China. Product type according to category: Drones and Quadcopters > Drone Components > Drone Accessories. The module is compatible with modern controllers, supports RTK integration and multi-frequency operation with various satellite constellations, features a durable metal casing, and extended connectivity options for professional solutions.
If you need a reliable solution with high positioning accuracy for commercial UAVs or autonomous systems, the CUAV New C-RTK 2HP offers an optimal combination of accuracy, stability, and ease of integration into projects of varying complexity.
