iFlight XING 2806.5 1300kv 1700kv 1800kv 2200kv Motor

The professional iFlight XING 2806.5 brushless motor is designed for heavier FPV quadcopters with 7-8 inch propellers. The model is available in several KV options and combines a durable construction, high efficiency, and excellent dynamic response during agile flights. Brand: iFlight. Product type: Drones & Quadcopters > Motors.

Features

• 4mm titanium alloy shaft for increased bend resistance and durability.
• One-piece aluminum bell and 7075 aluminum alloy base for maximum housing rigidity.
• High-quality Japanese NSK 11x5x5 mm bearings for smooth rotation and reduced friction.
• N52H arc magnets with a central slot, providing powerful thrust and rotational stability.
• Electromagnetically compatible magnets and stator, optimized to minimize electromagnetic interference.
• Bearing gap protection with an O-ring for dust and moisture protection.
• Additional motor wire protection to prevent premature cable wear.
• Dynamically factory calibrated to minimize vibrations and ensure smoother operation.

Specifications

• KV: 1300kv/700kv/1800kv/2200kv
• Configuration: 12N14P
• Shaft diameter: 5 mm
• Stator diameter: 28 mm
• Stator length: 6.5 mm
• Thread direction: Clockwise
• Internal resistance: 74 mOhm
• Input voltage: 3S-6S LiPo
• Max continuous power: 961 W (180 sec)
• Max continuous current: 39.4 A (60 sec)
• Bearing: NSK 11 x 5 x 5 mm
• Cable: 160 mm, 20AWG
• Mounting pattern: 19 x 19 mm, M3
• Dimensions: Φ29 × 19.25 mm

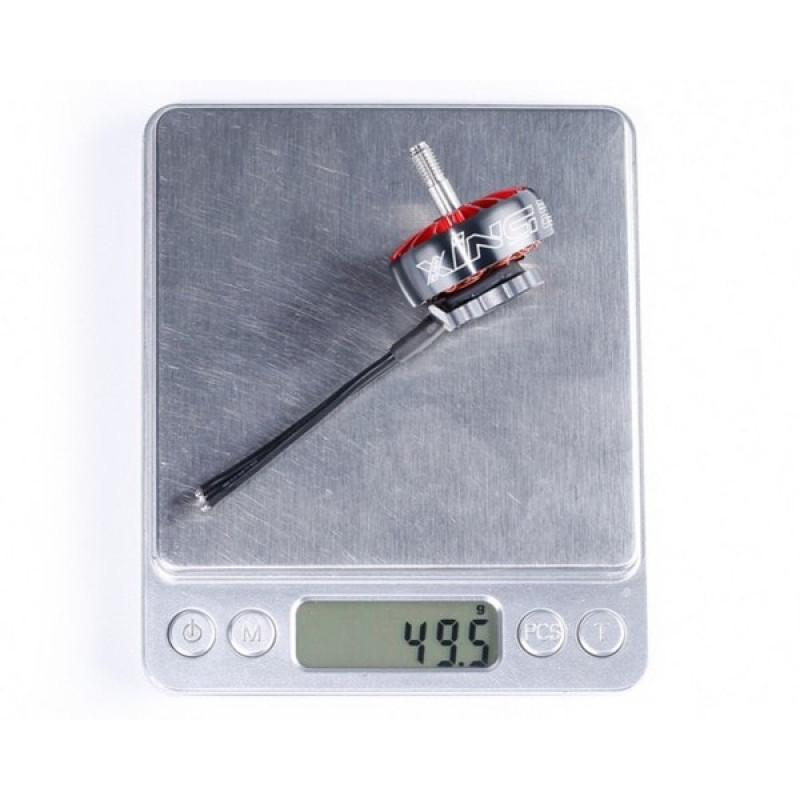

• Weight with wires: 49.5 g (with shortened wires)

Package Contents

• 1 x iFlight Xing 2806.5 1300KV brushless motor (note: other available KV versions are also listed in the title: 1700KV, 1800KV, 2200KV)
• 4 x M3 x 8 mm bolts
• 1 x M5 flanged nylon insert lock nut

Attention! When installing, excessively long bolts can damage the motor winding, leading to its failure. It is recommended to use bolts of the recommended length and check the bell clearance before final tightening.

This motor is suitable for enthusiasts and professionals building large freestyle and racing drones with 7-8 inch propellers. The combination of a durable housing, high-quality NSK bearings, and strong N52H magnets guarantees powerful thrust, reliability, and a long service life under intensive use.
