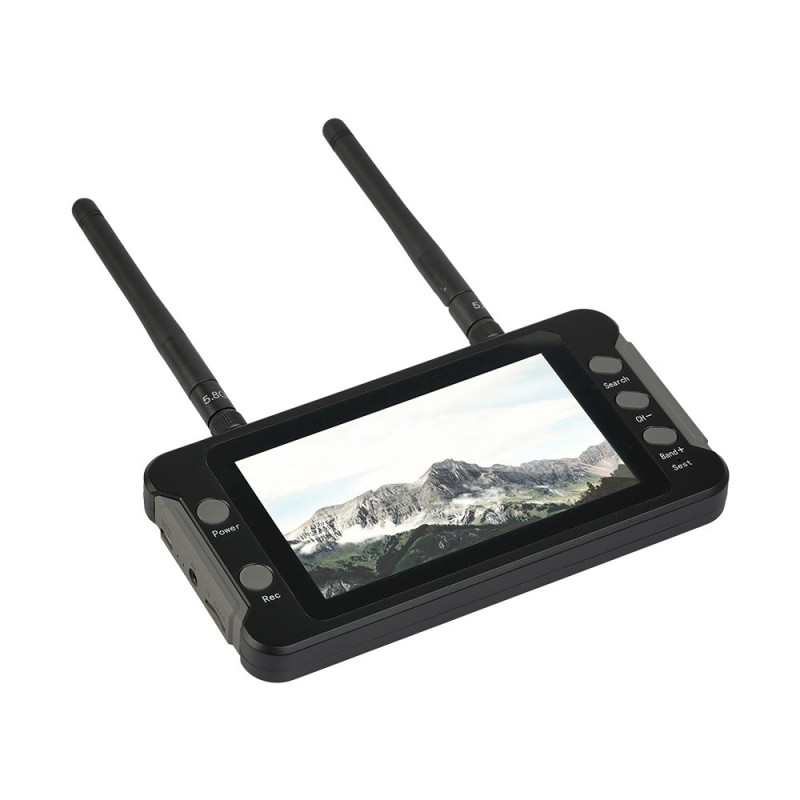

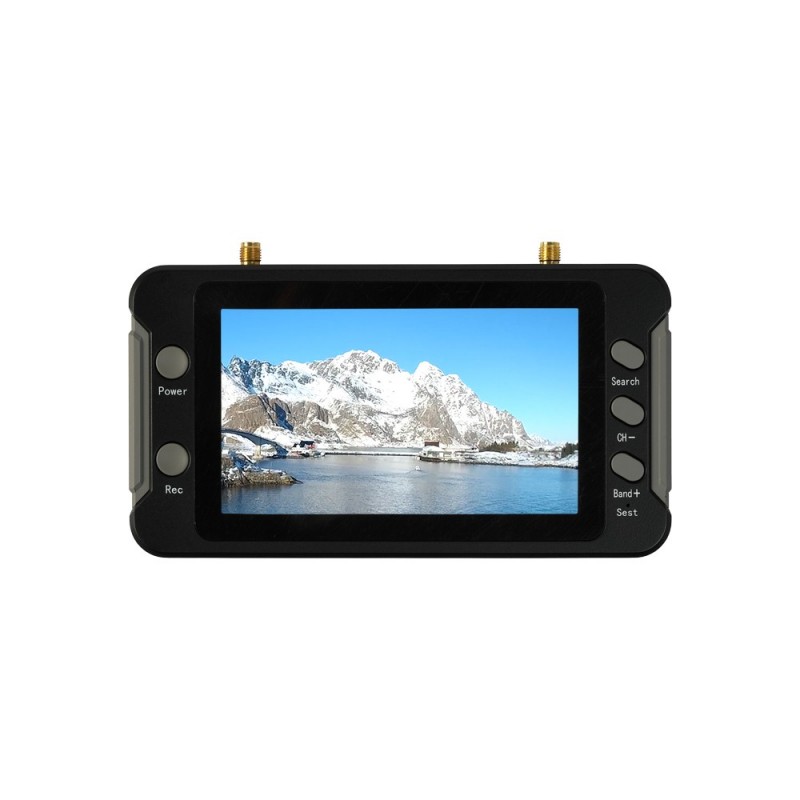

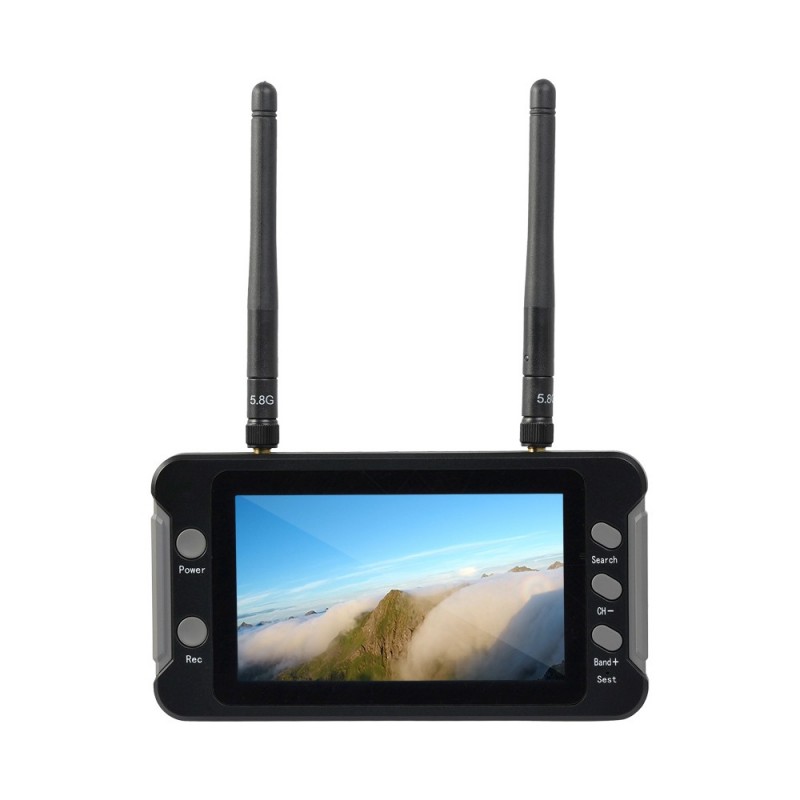

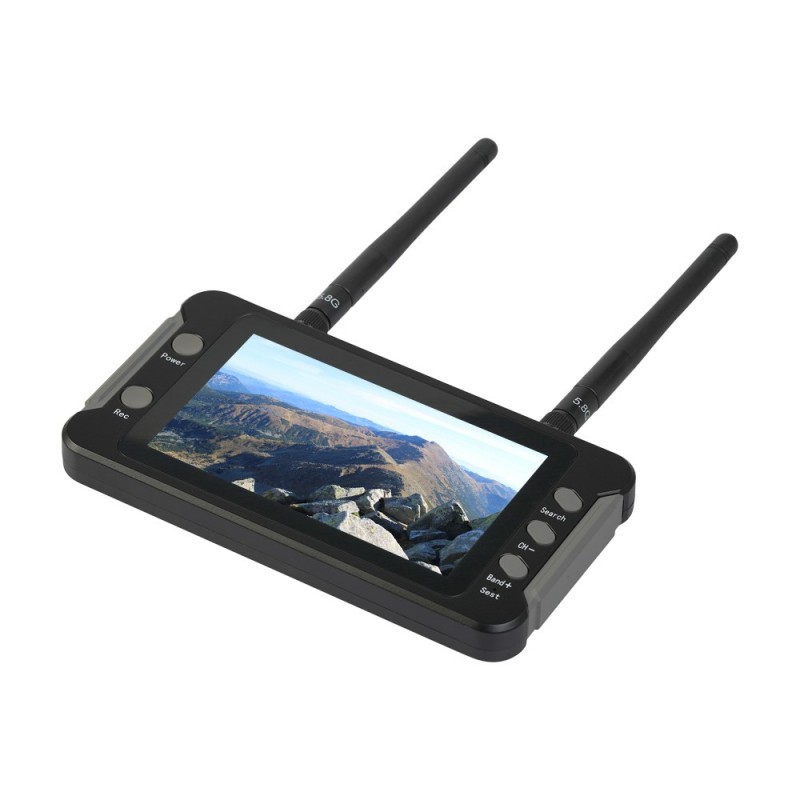

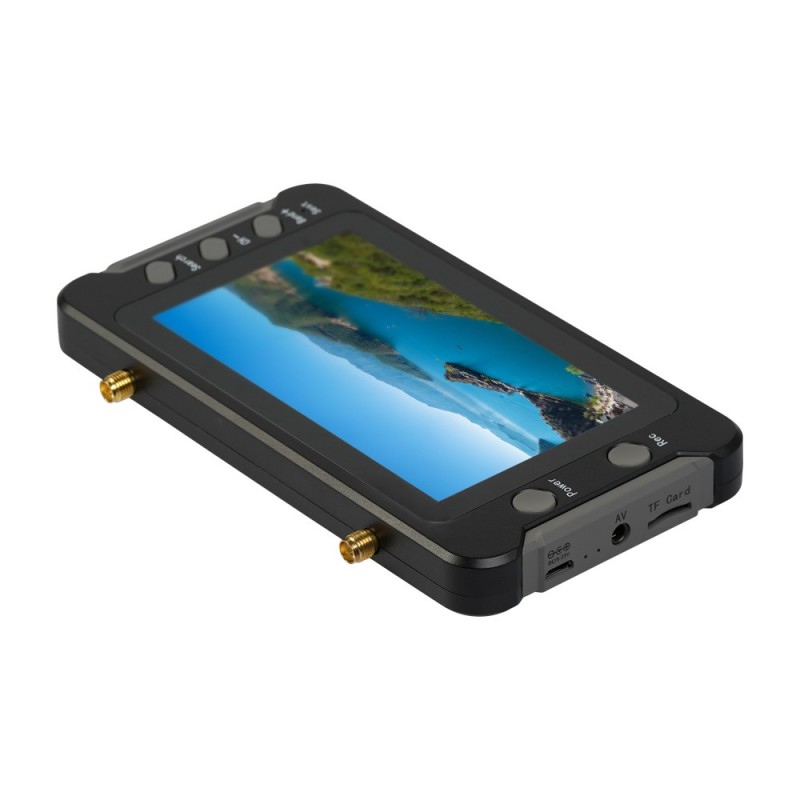

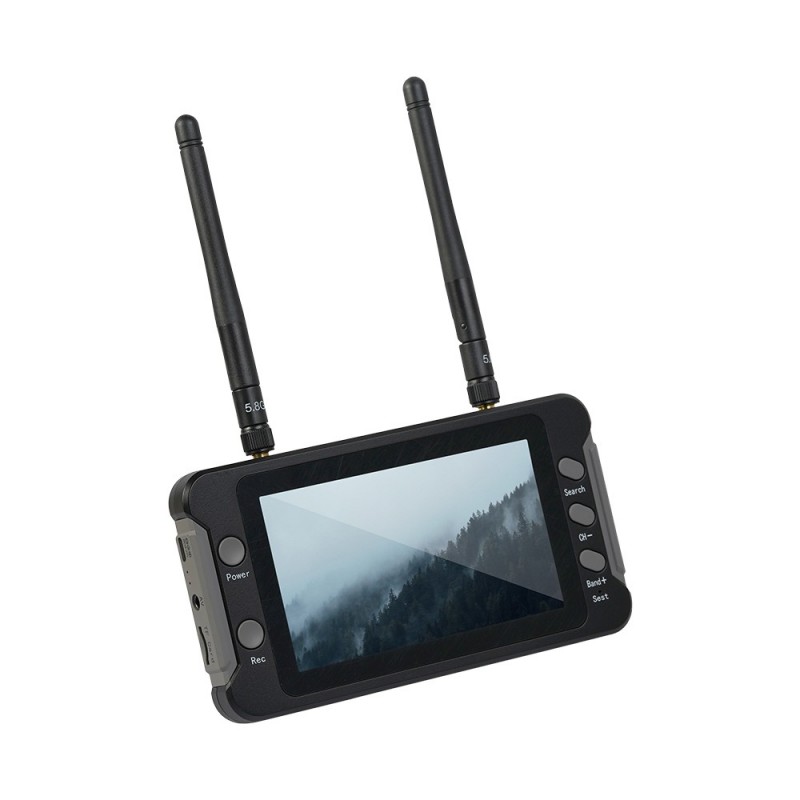

Foxeer 4.3 FPV Monitor 5.8G Display — a compact and functional 4.3-inch FPV monitor from the Foxeer brand, designed specifically for drone pilots who value stable video signal reception, autonomy, and the ability to record flight video. The device combines a high-quality HD display with 800×480 pixel resolution, a 16:9 aspect ratio, and brightness of about 500 lux, as well as a built-in 3.7V 1200 mAh battery for long sessions without additional power. This monitor belongs to the category: Drones and Quadcopters > Drone Accessories.

Key Advantages

• Supports diversity reception with dual 5.8 GHz antenna and 40 channels (40CH) for a reliable signal.
• Three DVR recording modes: VGA / D1 / HD, allowing video to be saved in the desired quality.
• MJPEG and AVI recording formats at 30 fps for smooth motion playback.
• Autonomous operation thanks to the built-in 1200 mAh battery; can be charged via USB port.
• Compact size and weight of only 159 g ensure convenient portability and mounting on the remote control.

Technical Specifications

• Display: LCD 4.3" (4.3 inches), 800×480 pixel resolution (HD), 16:9 aspect ratio, brightness ~500 lux.
• Receiver: 5.8G with 40 channels (40CH), dual antenna for diversity reception.
• Battery: built-in 3.7V 1200 mAh.
• Power adapter: DC 5V/2A (USB) or DC 5-23V, USB port is used only for battery charging.
• TF (microSD) card support: DVR up to 32 GB.
• Dimensions: 146×80×13 mm; weight: 159 g.
• 3.5 mm connector: Audio-Out / Video-In.
• Antenna: 2× RP-SMA (connector for external antennas).
• Frequency bands: A / B / E / F / R, ensuring compatibility with various FPV system standards.
• Video format: MJPEG, AVI; recording frame rate: 30 fps.
• Recording resolution: VGA / D1 / HD (HD corresponds to 800×480 for the display).
• Shutdown timer: off / 3 / 5 / 10 min.; sound mode: on/off.

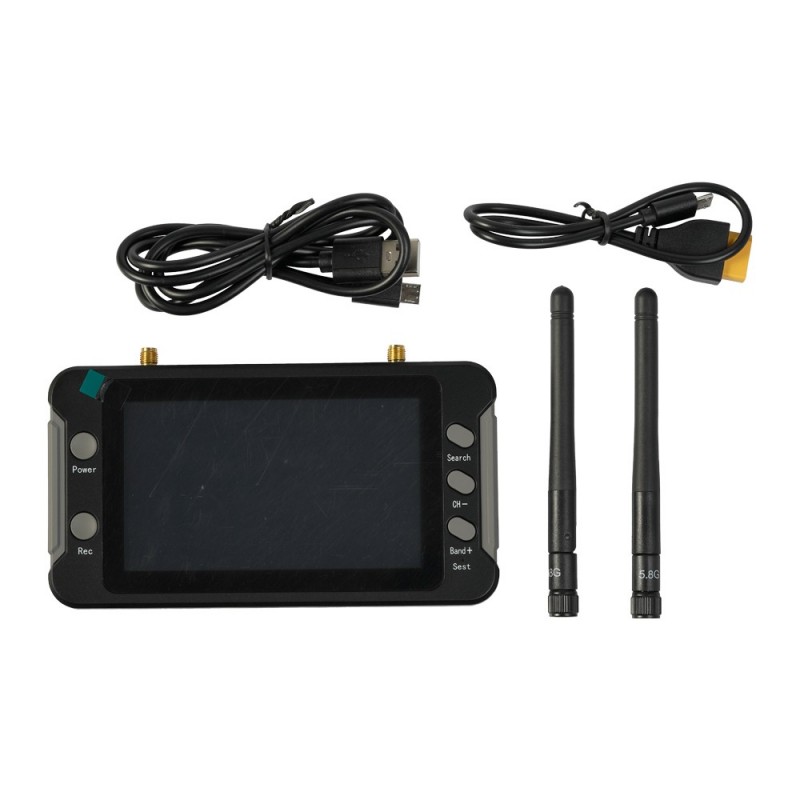

Package Contents

• 1× 4.3" DVR 5.8GHz 40CH FPV monitor.
• 1× Radio control bracket (radio control bracket).
• 1× Extended XT60 cable.
• 1× Linear antenna.
• 1× USB cable.
• 1× AV cable.
• 1× User manual.

The monitor is ideal for FPV flights for both beginners and experienced pilots: a simple interface, support for external antennas via RP-SMA, video recording directly to a TF card up to 32 GB, and the ability to power from USB 5V or a wide range of DC 5-23V make it a versatile solution. The reliable design, light weight of 159 g, and compact dimensions of 146×80×13 mm make the device convenient for long flights, and the built-in DVR allows you to capture important flight footage for further analysis. The Foxeer brand guarantees quality and compatibility with most 5.8 GHz FPV systems, and a full set of accessories included ensures quick and convenient connection of the monitor to your equipment.
