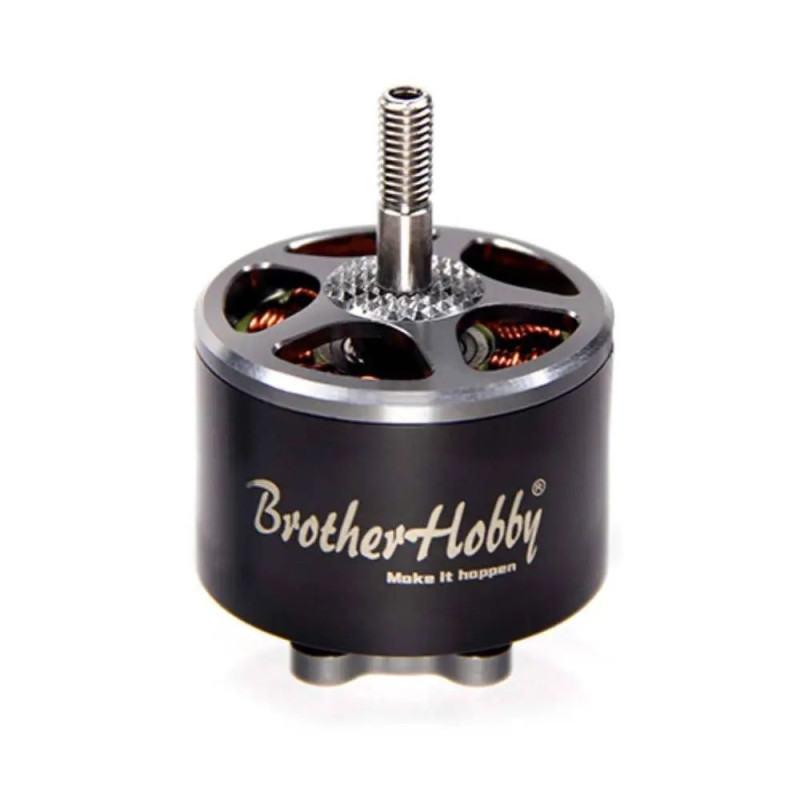

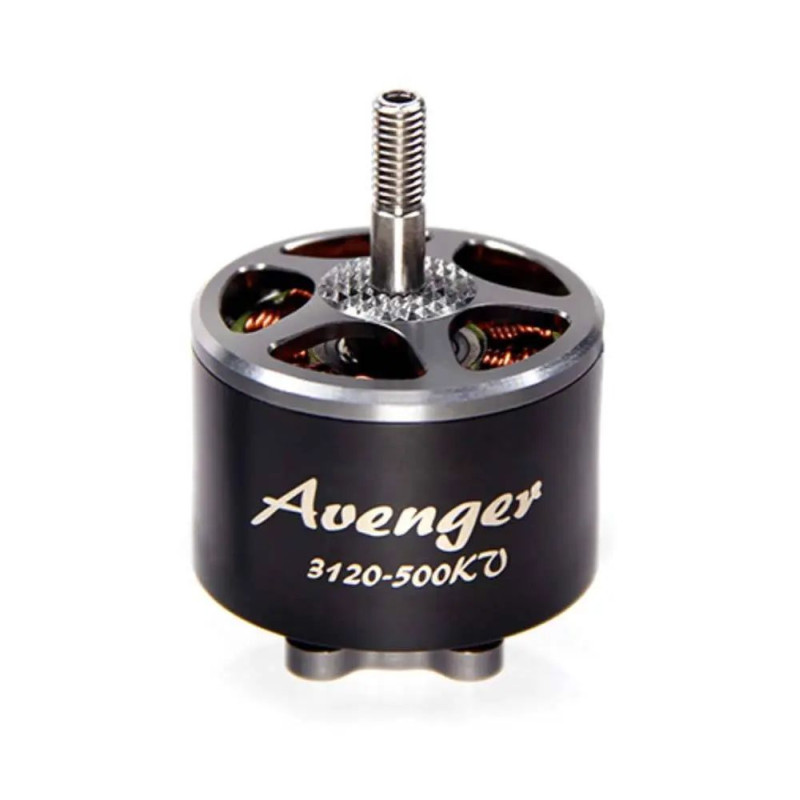

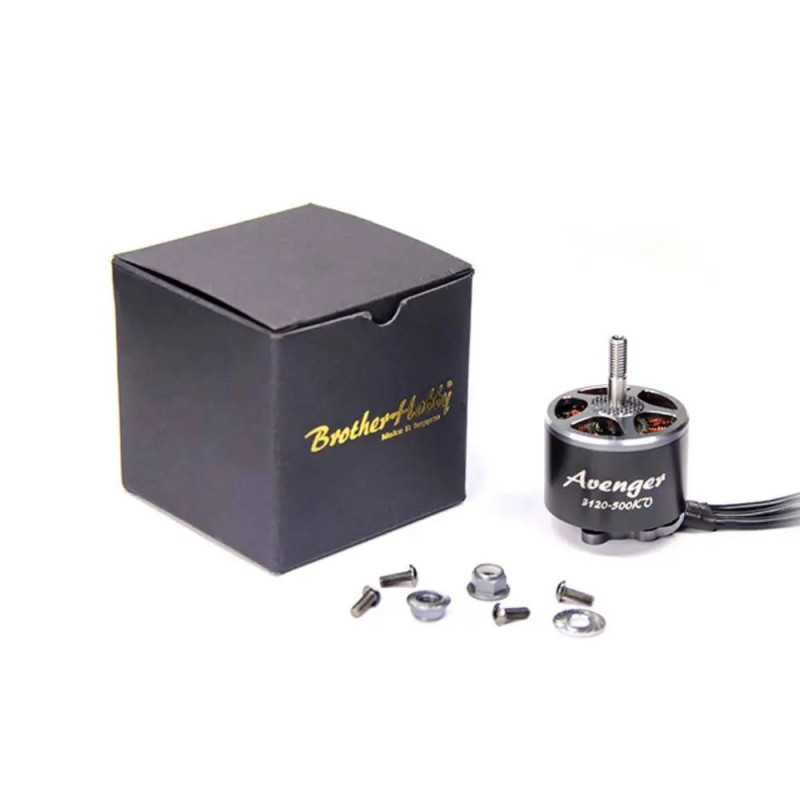

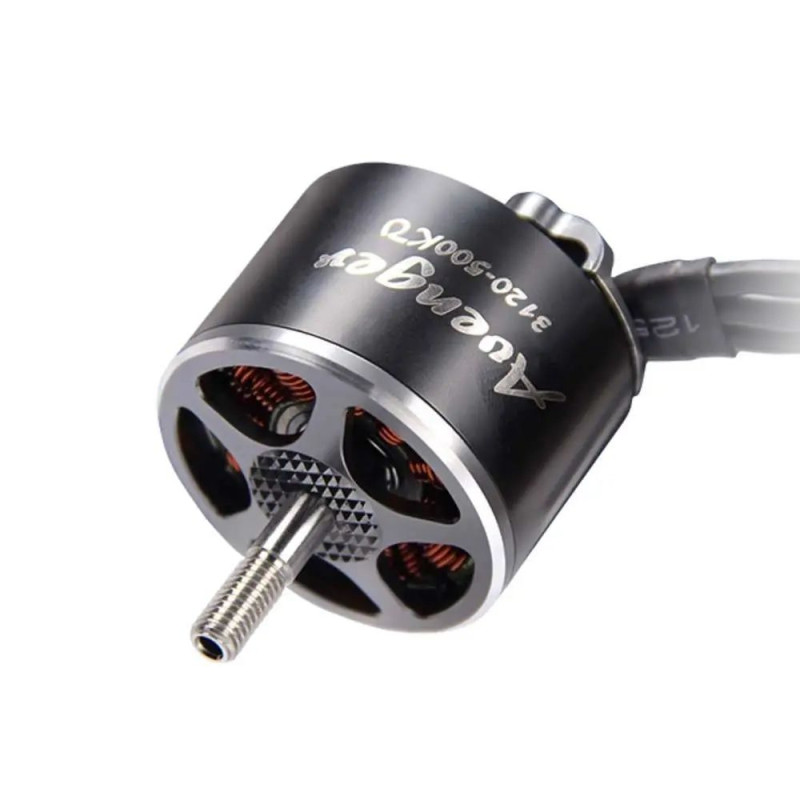

BrotherHobby Avenger 3120 Motor - 500KV / 700KV

Introducing the BrotherHobby Avenger 3120 Motor in 500KV and 700KV versions from the manufacturer BrotherHobby. This is a high-performance brushless motor designed for large multi-rotor drones that require powerful thrust, stability, and reliable operation under significant loads. The model is ideal for aerial photography, aerial videography, research missions, cargo transport, and tasks where flight stability and energy efficiency are critical.

• 1. Motor Type: BrotherHobby Avenger 3120 — a brushless motor for long-term operation and high energy efficiency.
• 2. KV Rating: Available in 500KV and 700KV options. The 500KV option is designed for maximum thrust and better heavy-lift capability; the 700KV option prioritizes speed and flight dynamics.
• 3. Stator Size: 31 mm stator diameter, ensuring high efficiency in converting electrical energy into mechanical thrust.
• 4. Weight: The approximate motor weight is ≈135 g — an optimal balance between structural strength and aircraft mass.
• 5. Housing Material: The housing is made of high-quality aluminum, which contributes to efficient heat dissipation and durability.

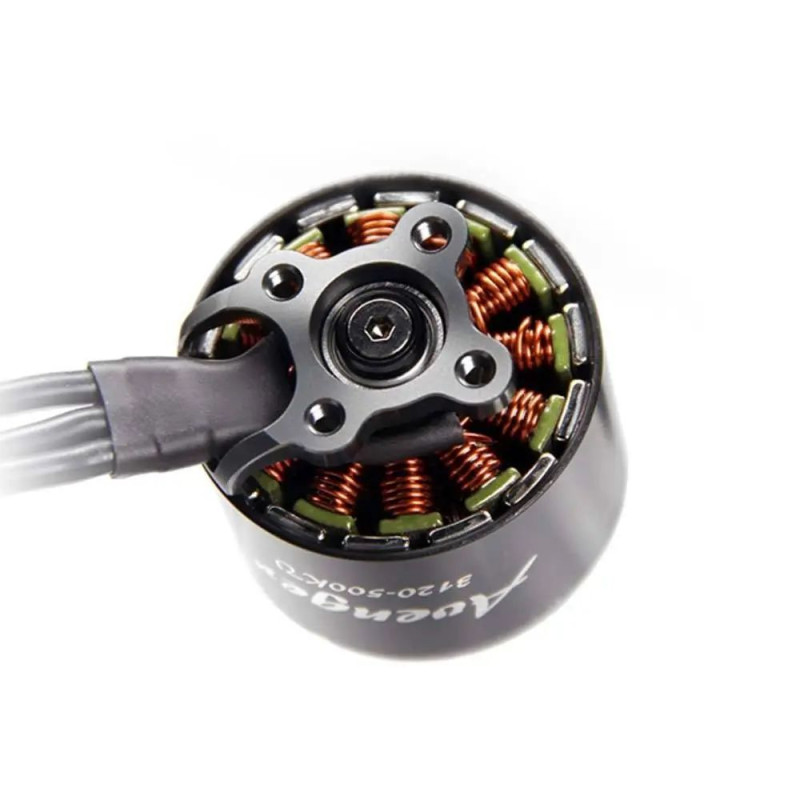

• 6. Number of Stator Poles: 12 poles for increased precision and smooth rotation.
• 7. Operating Voltage: Compatible with 6S (22.2V) and 8S (29.6V) batteries depending on the selected KV and performance requirements.
• 8. Mounting Thread: Standard M3 thread for propeller attachment and quick replacement.
• 9. Application: Large multi-rotor drones, aerial photography, videography, research tasks, heavier class racing competitions, and transport solutions for cargo delivery.

Specifications

The BrotherHobby Avenger 3120 combines engineering precision and quality materials, ensuring stable operation under high loads and reliable heat exchange thanks to its aluminum housing. The 12-pole stator enhances rotational smoothness and control sensitivity, while the standard M3 thread simplifies propeller selection and mounting. When choosing between 500KV and 700KV, consider your tasks: choose 500KV for maximum thrust and heavy lifting, and 700KV for higher speed and aggressive flight dynamics. The motor is compatible with 6S and 8S batteries, offering flexibility in configuration for specific flight profiles.

The product belongs to the category: Drones and Quadcopters > Drone Components > Drone Accessories. Manufacturer: BrotherHobby. Model: Avenger 3120 (500KV / 700KV).
