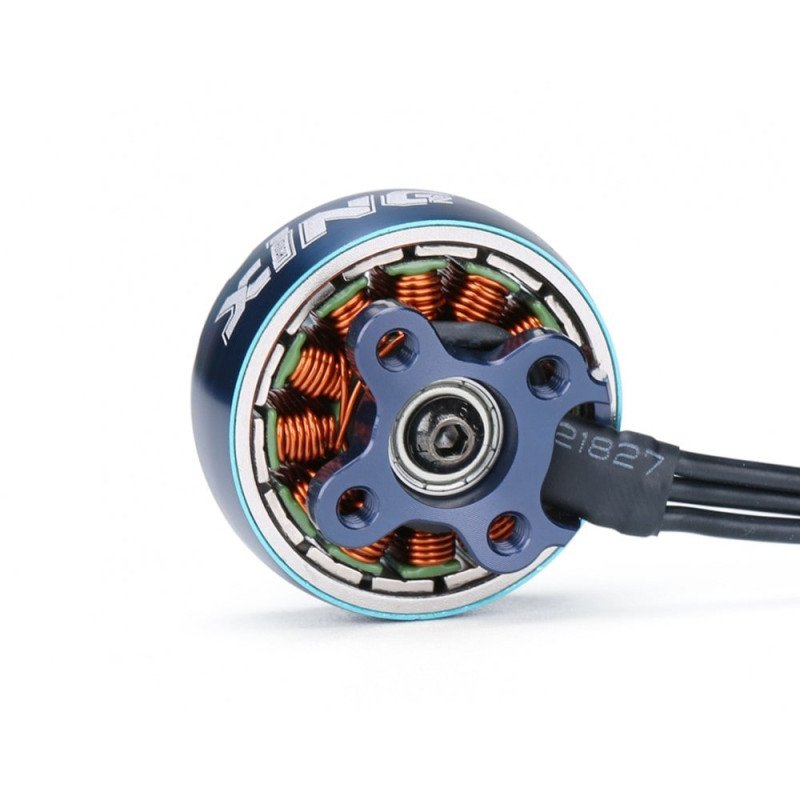

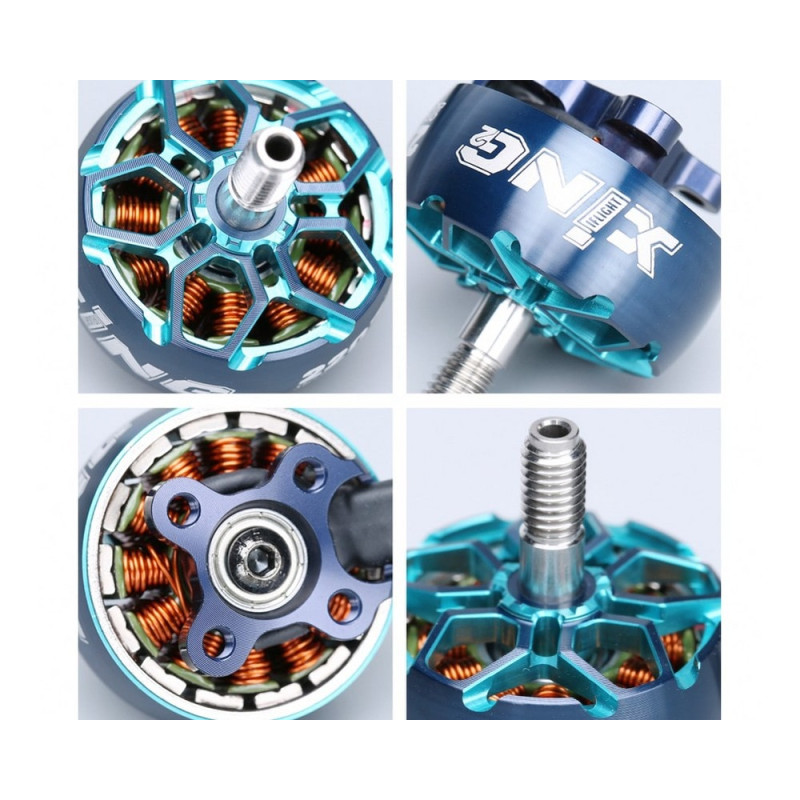

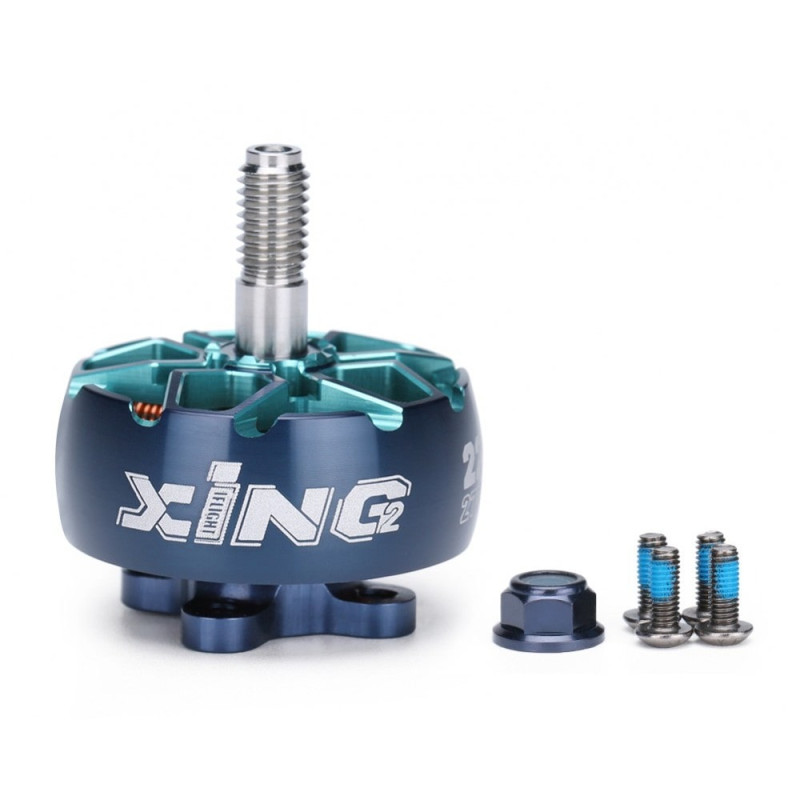

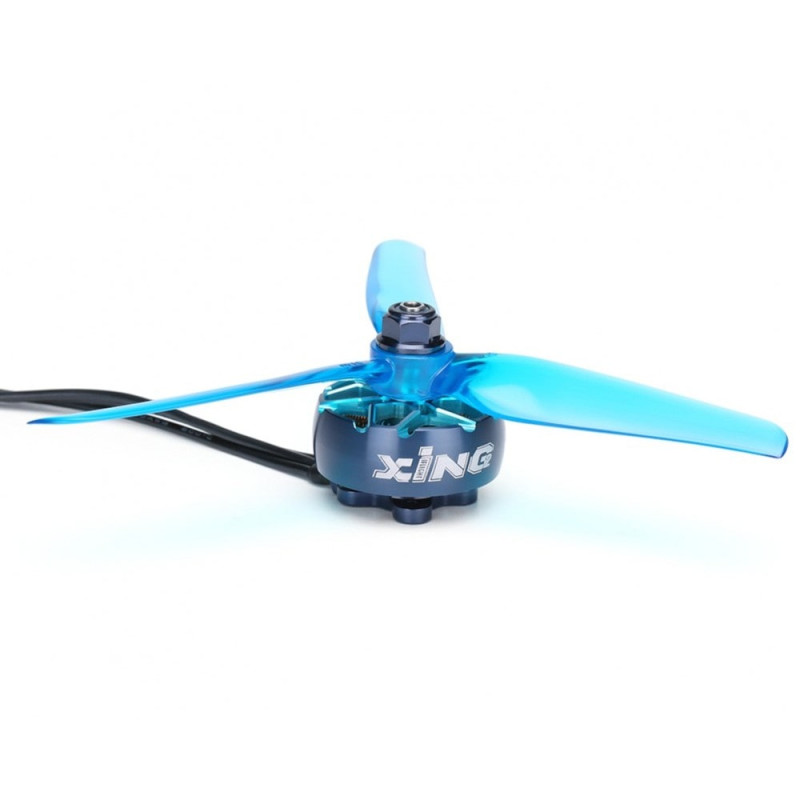

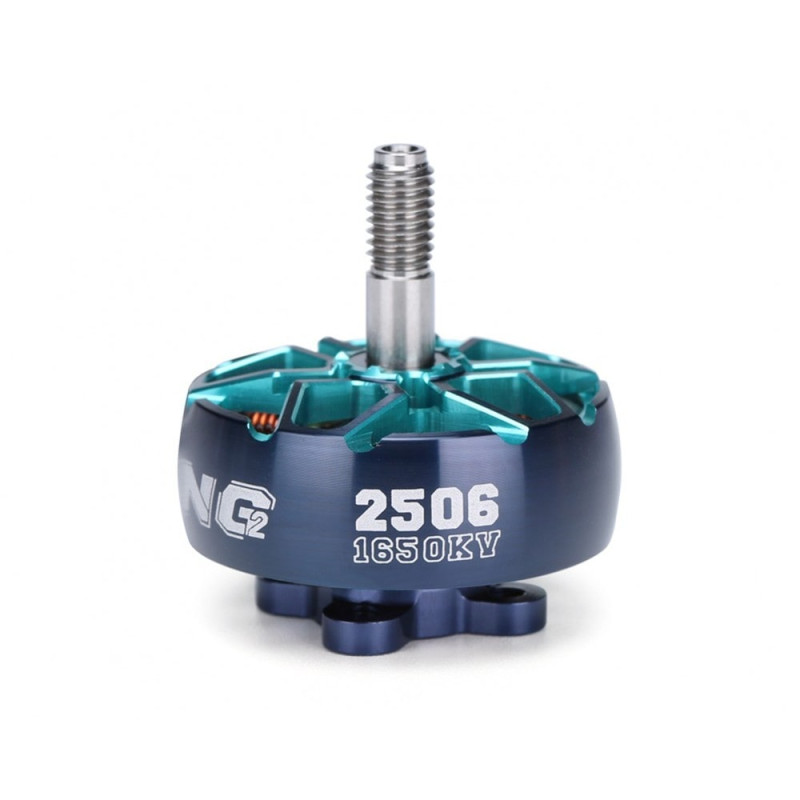

iFlight XING2 2506 Motor 1350KV / 1650KV / 1850KV

The iFlight XING2 2506 Motor is a high-quality brushless motor from the iFlight brand, designed for a wide range of multirotors: from camera platforms to racing quadcopters. When choosing between three KV options (1350KV, 1650KV, and 1850KV), it's important to consider your drone's tasks and the desired combination of speed, thrust, and maneuverability.

Detailed Specifications

• 1. Motor Type: Brushless Motor, characterized by high efficiency, reliability, and long service life.


• 2. KV Rating (RPM/V):
  • 1350KV: Moderate rotational speed, optimal for aircraft where stability and flight precision are a priority, such as for aerial photography and videography.


  • 1650KV: A balanced option for enhanced performance and maneuverability, suitable for versatile frames and medium-speed aircraft.


  • 1850KV: High RPM for racing drones and freestyle, where maximum speed and quick control reactions are crucial.


• 3. Stator Size: 25 mm stator diameter (2506 is the standard stator size designation).


• 4. Weight: Approximately 38 grams, which helps maintain a low unit mass and does not increase the overall weight of the copter.


• 5. Housing Material: The housing is made of high-quality aluminum, which promotes efficient heat dissipation and structural durability.


• 6. Number of Stator Poles: 12 poles, which increases rotational precision and makes motor operation more stable.


• 7. Operating Voltage: Recommended range 4S–6S (14.8V–22.2V), depending on the chosen KV and performance requirements.


• 8. Mounting Thread: Standard M3 for propeller attachment.


• 9. Application: Ideal for many types of multirotor platforms: aerial photo and video platforms, racing quadcopters, freestyle frames, and other custom builds where reliability, heat dissipation, and high performance are required.

This motor from iFlight combines modern materials and design solutions: an aluminum housing for better heat dissipation, a well-thought-out number of poles for stability, and the ability to work with a wide range of battery configurations (4S–6S). The KV options allow you to select the optimal motor for specific propellers and tasks — from smooth filming to aggressive racing and tricks.

This product belongs to the category: Drones & Quadcopters > Drone Accessories, and will be a reliable component of your build with the correct configuration and ESC selection.
