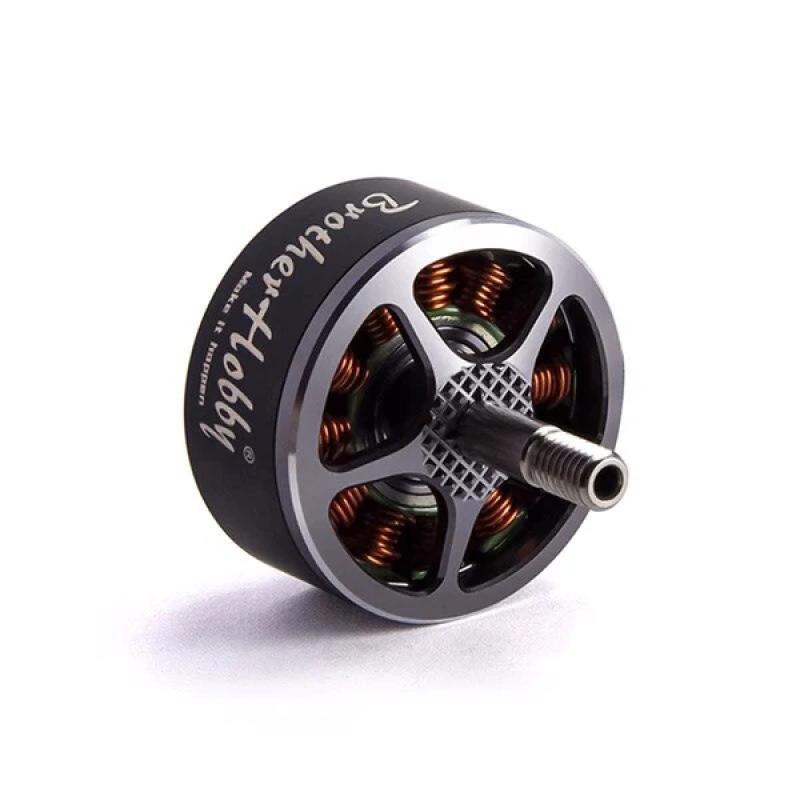

Brotherhobby Avenger 2810 900KV (Product ID: 11537) is a powerful and reliable brushless motor from the BrotherHobby brand, designed for various multi-rotor platforms. This motor combines high thrust, stability, and durability thanks to its thoughtful design and quality materials.

Model Overview

The Avenger 2810 900KV is a brushless motor ideally suited for both high-speed maneuverable aircraft and heavy-lift platforms with payloads. The design features efficient heat dissipation thanks to its high-strength aluminum casing, ensuring stable operation during intensive flights.

Key Features

• Motor Type: Brushless Motor — high efficiency and durability.
• KV: 900KV — approximately 900 RPM per 1V, an optimal value for balancing RPM and thrust.
• Stator Size: 28×10 mm (the 2810 designation means a stator diameter of 28 mm and a height of 10 mm).
• Number of Stator Poles: 12 poles — for precise and smooth rotation.
• Weight: approximately 72 g — optimal mass-to-power ratio.
• Casing Material: high-strength aluminum for better cooling and load resistance.
• Operating Voltage: recommended for 6S (22.2V) batteries — for increased thrust and performance.
• Mounting Thread: standard M3 for propeller attachment.
• Application: multi-copters for various purposes — aerial photo and video shooting, racing quadcopters, heavy-lift platforms, and other aerial systems requiring high thrust and stability.

The Brotherhobby Avenger 2810 900KV motor maintains a balance between weight and performance, making it a versatile solution for professional operators and hobbyists. The aluminum casing contributes to efficient heat dissipation, and the 12-pole stator configuration ensures smooth startup and consistent operation under load. The 900 KV value allows for good accelerated thrust when using 6S batteries, which is especially useful for platforms with higher payload weights.

Who It's For

• Professional drone operators requiring stable thrust and reliability.
• Racing pilots who value an optimal balance between KV and thrust.
• Designers of heavy-lift platforms for aerial photography and small cargo delivery.

The model fully matches the technical descriptions: Brotherhobby Avenger 2810 900KV, BrotherHobby brand, brushless type, KV 900, stator diameter 28 mm, weight approximately 72 g, aluminum casing, 12 stator poles, recommended operating voltage 6S (22.2V), M3 mounting thread, and wide application for quadcopters and multi-rotor platforms.
