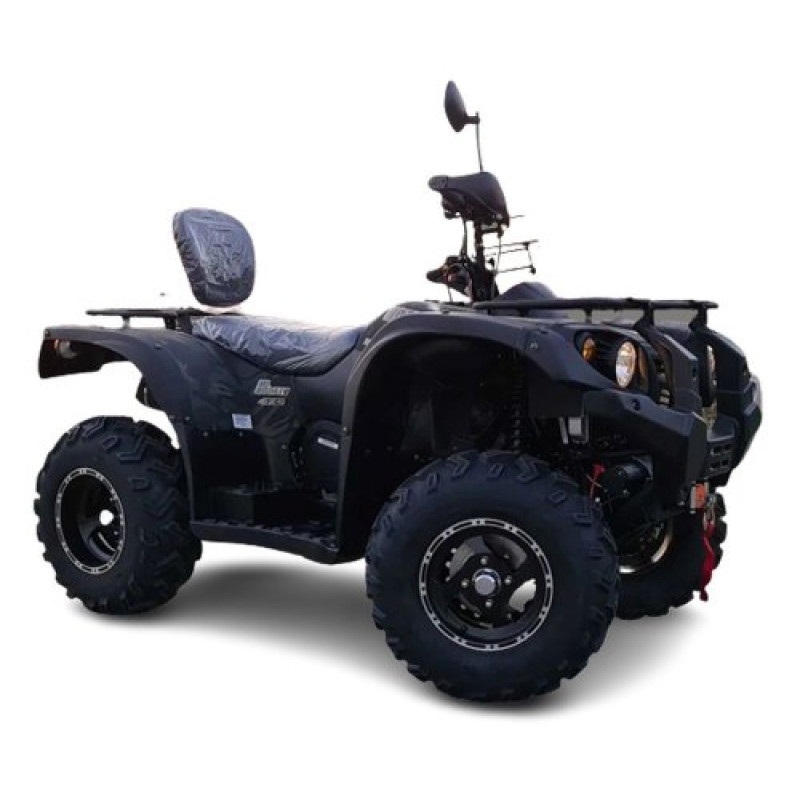

MotoLeader ML500 ATV Quad Bike
Brand: MotoLeader. This versatile quad bike in the Motor Vehicles > Quad Bikes category combines power, reliability, and a well-thought-out design for field work, hunting, or outdoor recreation.
The MotoLeader ML500 is equipped with a 500 cm3 4-stroke gasoline engine with a Delphi EFI injector, ensuring uniform fuel delivery and stable engine operation. The engine power is 35 hp at 6500 rpm. The starting system is an electric starter, and cooling is liquid, which increases efficiency in difficult conditions and under intense loads.
The transmission features an automatic gearbox (V-belt variator) with high, low, forward, neutral, and reverse modes. The quad bike can switch between 2x4 and 4x4 drive modes, has a differential lock, and a direct final drive for confident off-road movement and towing.
The braking system includes front disc brakes and a rear disc brake on the wheel axle. The suspension is independent front and rear with double A-arms, coil springs, and shock absorbers, providing a comfortable ride and good handling on uneven terrain. The wheelbase is 1365 mm, tire sizes: front 26x8-12, rear 26x10-12.
The 17-liter fuel tank ensures long runs between refueling; average fuel consumption is about 7 l/100 km. Quad bike dimensions: 2250x1365x1225 mm, weight: 329 kg.
The body and fairing are structurally designed for long-term operation: the plastic fairing is made of high-strength ABS plastic (front bumper, side mudguard, fender flares). The metal tubular fairing is integrated into the frame and allows for the installation of additional cases for cargo transport, making the ML500 a convenient and functional solution for work and recreation.
| Wheel formula | 4x4 |
| Engine power, hp | 35 hp at 6500 rpm |
| Engine type | gasoline, 4-stroke, Delphi EFI injector |
| Engine displacement, cm3 | 500 |
| Engine start system | electric starter |
| Cooling system | liquid |
| Gearbox (transmission) | automatic (V-belt variator) |
| Gearbox modes | high, low, forward, neutral, and reverse / all-wheel drive, 2x4 and 4x4 modes |
| Differential lock | yes |
| Final drive | direct |
| Front brakes | disc |
| Rear brake | disc on wheel axle |
| Wheelbase, mm | 1365 |
| Tire size | front 26x8-12, rear 26x10-12 |
| Fuel tank capacity, l | 17 |
| Dimensions, LxWxH mm | 2250x1365x1225 |
| Front suspension | independent, double A-arms, coil springs, shock absorbers |
| Rear suspension | independent, double A-arms, coil springs, shock absorbers |
| Average fuel consumption, l / 100 km | 7 |
| Weight, kg | 329 |
| Plastic fairing | high-strength ABS plastic (front bumper, side mudguard, fender flares) |
| Metal fairing | tubular, integrated into the frame with the possibility of installing additional cases |
The MotoLeader ML500 ATV is a well-considered choice for those seeking a reliable quad bike with good off-road capability, comfortable suspension, and a durable engine. The Delphi EFI injection system, liquid cooling, protected fairing design, and the ability to switch between 2x4 and 4x4 make the ML500 suitable for intensive use in various weather conditions and on challenging terrain. This is equipment that combines work qualities and opportunities for active recreation.
