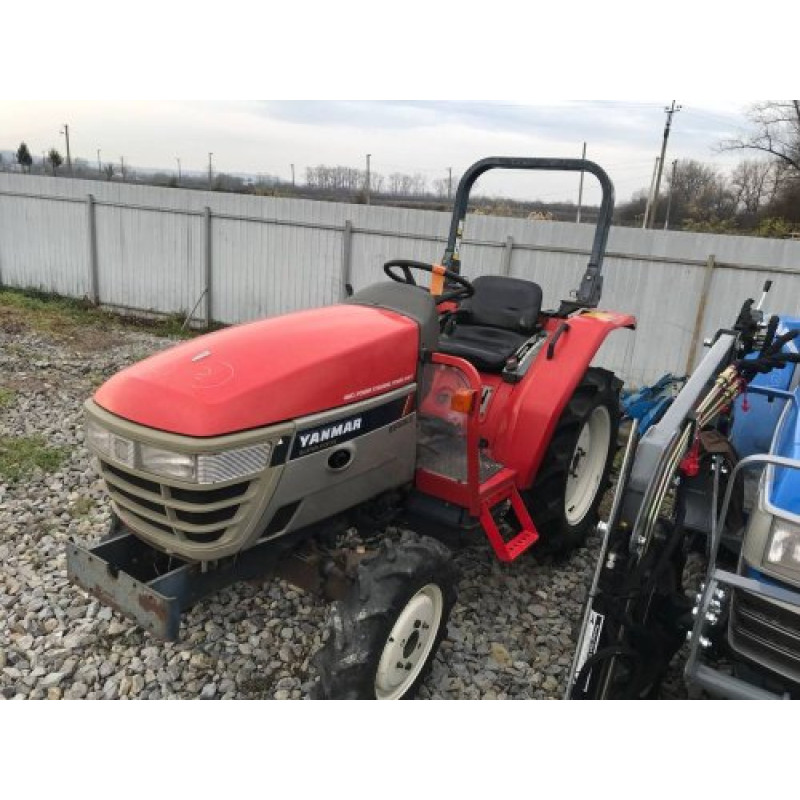

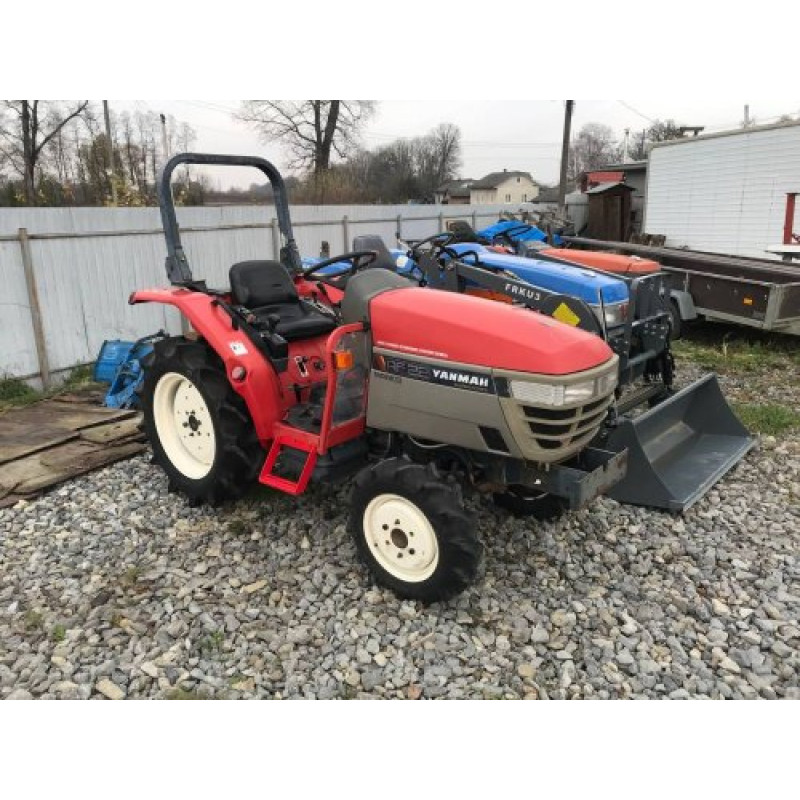

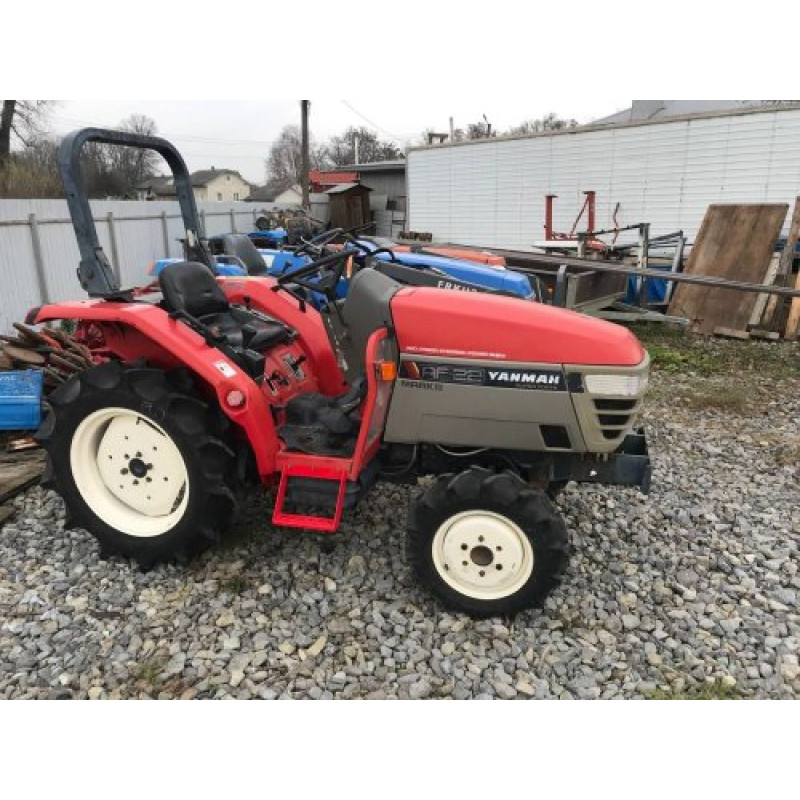

Yanmar AF22 Mini Tractor
The Yanmar AF22 mini tractor is a compact and reliable diesel mini tractor from the Yanmar brand, designed for small-scale farming, gardening, vineyards, and municipal work. This model combines a 22 hp engine, 4x4 all-wheel drive system, and economical fuel consumption, making the AF22 an ideal choice for a wide range of tasks in limited areas. The tractor belongs to the category: Tractors > Mini Tractors and is characterized by balanced performance and maneuverability.
Key Advantages at a Glance
- 22 hp power ensures efficient operation with plows, cultivators, and other mounted implements.
- 4x4 all-wheel drive and mechanical rear axle differential lock enhance off-road capability on difficult terrain.
- Three PTO speed modes (540/780/1200 rpm) guarantee compatibility with various mounted and trailed implements.
- Compact dimensions and a minimum turning radius of 2.7 m allow work in greenhouses and between rows.
- A lifting capacity of 600 kg enables the use of a wide range of equipment — plows, harrows, trailers.
Below are the technical specifications for the Yanmar AF22 model:
| Engine power, hp: | 22 |
| Wheel formula: | 4x4 |
| Engine type: | diesel |
| Number of cylinders: | 3 |
| Fuel tank capacity, L: | 18 |
| Transmission: | (4+4)x2 |
| Maximum travel speed, km/h: | 25 |
| Differential lock: | mechanical, rear axle |
| Brakes: | drum brake |
| Overall length, mm: | 2700 |
| Overall width, mm: | 1100 |
| Overall height, mm: | 1900 |
| Front wheel size: | 6-12 |
| Rear wheel size: | 8.3-22 |
| Minimum turning radius, m: | 2.7 |
| Lifting mechanism capacity, kg: | 600 |
| PTO speed, rpm: | 540/780/1200 |
| Weight, kg: | 850 |
Thanks to its three-cylinder diesel engine and (4+4)x2 transmission, the Yanmar AF22 provides sufficient traction and smooth movement for working with various mounted equipment. The 18 L fuel tank capacity allows for long work sessions without frequent refueling. A maximum travel speed of up to 25 km/h makes the machine convenient for transporting small loads on the site.
This mini tractor is optimal for tasks such as: plowing, cultivating, hilling, performing tasks with trailed and mounted implements, soil preparation, and transporting small loads. Compact dimensions of 2700x1100x1900 mm and a minimum turning radius of 2.7 m ensure high maneuverability in narrow rows and on sites with complex layouts.
The Yanmar AF22 is a practical solution for those seeking a compact, economical, yet powerful mini tractor from a trusted manufacturer. Brand: Yanmar. Product type: Tractors > Mini Tractors.
