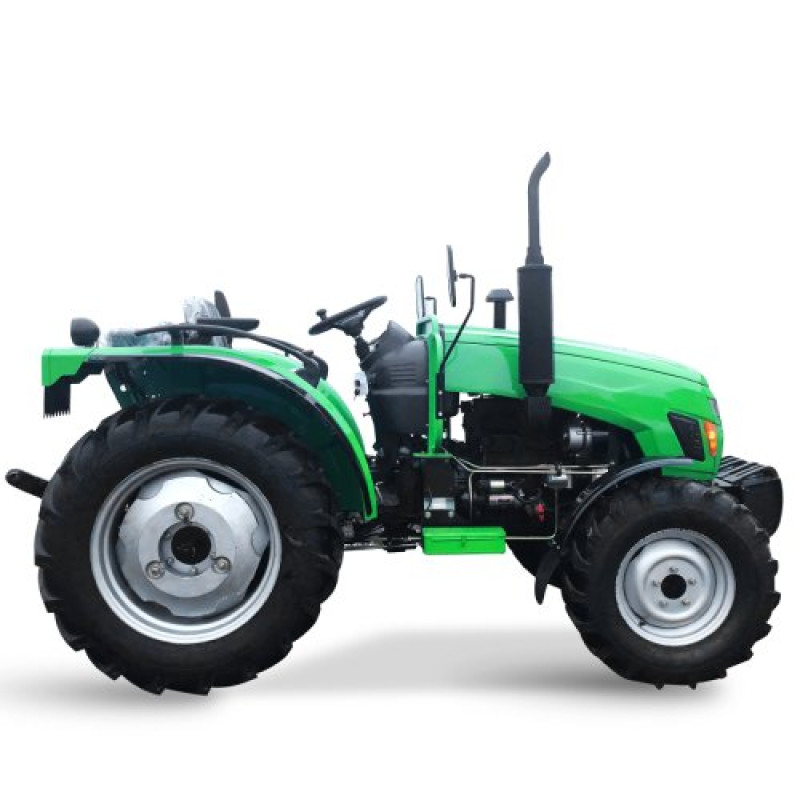

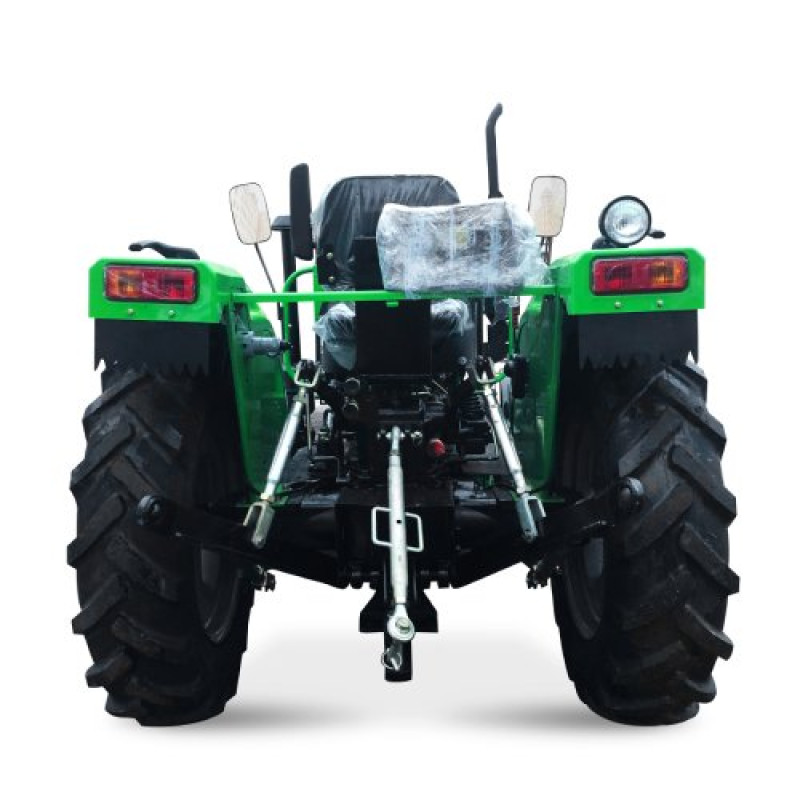

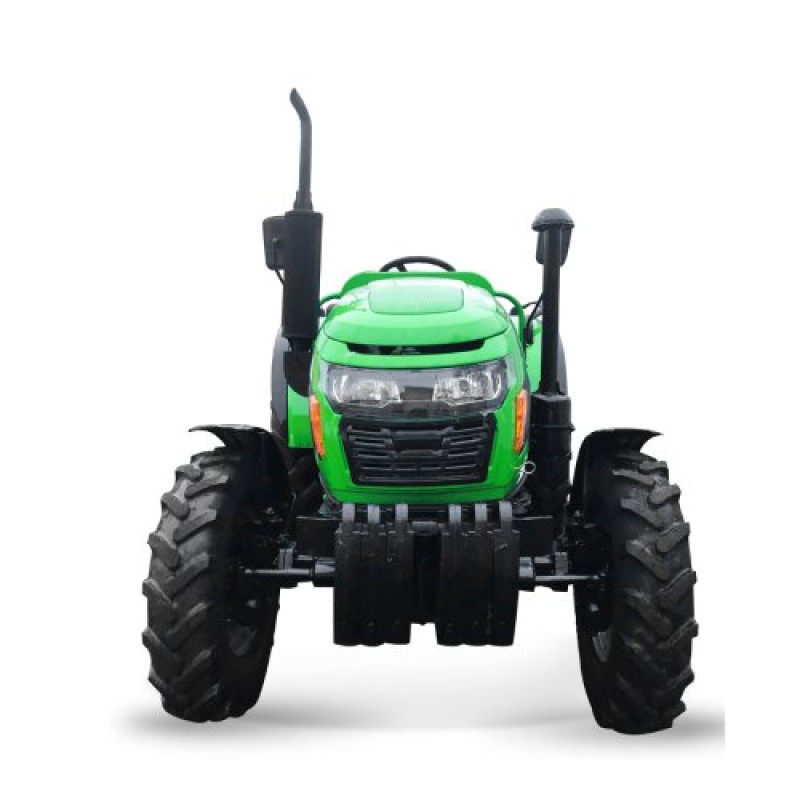

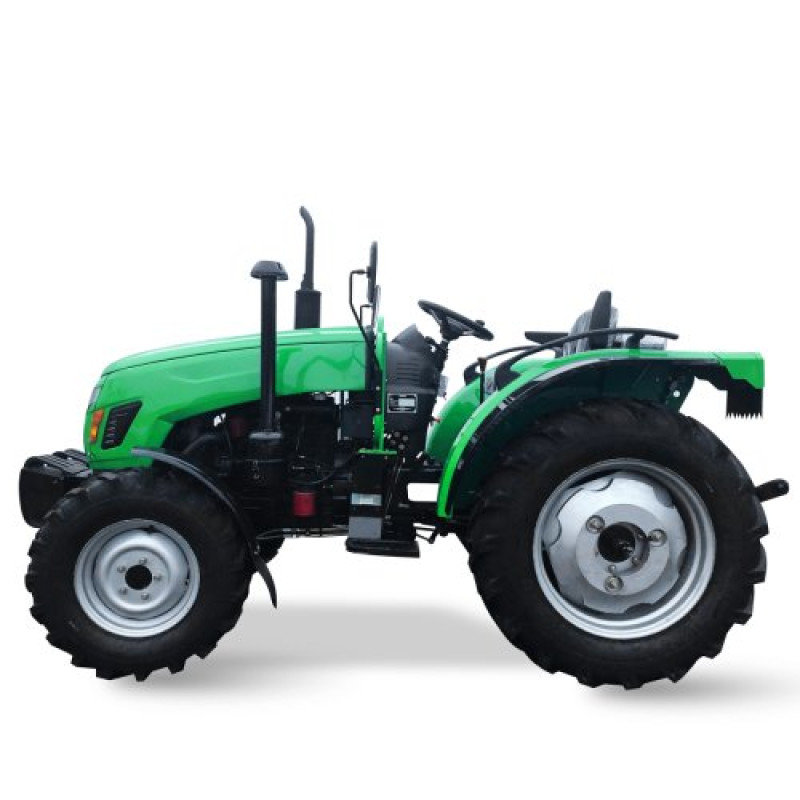

Mini Tractor DW 404 DR — A Powerful and Reliable Assistant for Your Farm
The DW 404 DR mini tractor from the DW brand is an optimal solution for farmers, owners of garden and homestead plots, as well as for construction and utility work. This model combines an energetic diesel engine, a water cooling system, and a robust transmission, ensuring stable operation under intensive loads. Its design features allow the DW 404 DR to be used for soil cultivation, sowing, grass mowing and haymaking, area cleaning and snow removal, as well as for a range of construction and utility tasks.
Briefly About the Main Advantages
- The 4L22BT engine model with a nominal power of 40 hp (29.4 kW) and a displacement of 2,156 cm3, a cylinder diameter of 85 mm, and a piston stroke of 95 mm provides high traction and a long service life.
- Water cooling maintains a stable engine temperature even during intensive operation.
- Adjustable front wheel track from 1240 mm to 1280 mm and rear wheel track from 1200 mm to 1400 mm allows easy adaptation of the tractor to various row spacings and crops.
- Suitable tires: front 7.50-16, rear 11.20-24 — ensure reliable grip on various soil types.
- Economical operation: fuel consumption up to 248 g/kWh, which keeps fuel costs moderate, and the payback period for investment is typically 2–3 years.
Practical Application and Configuration
Thanks to its compatibility with additional attachments, the DW 404 DR easily transforms into a versatile unit: plows, cultivators, trailers, mowers, loaders, and other equipment significantly expand the tractor's functionality. The complete machine increases work productivity and reduces execution time, making the DW 404 DR a profitable acquisition for small and medium-sized farms.
Commercial Terms and Support
You can buy the DW 404 DR mini tractor in the Flash Army online store via the application form on the website — a manager will contact you to clarify details. Delivery across Ukraine is free of charge at the company's expense. Installment payment options are available with the support of a partner bank. Technical support and consultations are available in Kyiv, Vinnytsia, Poltava, Chernihiv, Kharkiv, and other cities.
We also recommend paying attention to other models: Jinma 404, Shifeng 354, Dongfeng, Xingtai, Foton, Zoomlion, DTZ 5244, Bulat 454, Bulat 250, Bulat 254, Belarus 320.4, Shifeng 350, DW 244, DTZ 5404k, Solis 26, Solis RX 50.
Technical Specifications and Parameters of the DW 404 DR Model
| Model Information | |
|---|---|
| Tractor Type | Wheeled universal row-crop tractor |
| Tractor Traction Class | 0.8 |
| Engine Technical Specifications | |
| Nominal Traction Force, kN | 8 kN |
| Engine Model | 4L22BT |
| Engine Displacement, cm3 | 2,156 cm3 |
| Engine Power, hp and kW | 29.4 kW or 40 hp |
| Cylinder Diameter | 85 mm |
| Piston Stroke | 95 mm |
| Fuel Consumption | up to 248 g/kWh |
| Overall Dimensions, mm | |
| Wheelbase, mm | 1,830 mm |
| Overall Dimensions, mm | 3,340 mm x 1,585 mm x 2,000 mm (height to the top of the exhaust pipe) |
| Front Wheel Track, mm | 1,240 mm - 1,280 mm |
| Rear Wheel Track, mm | 1,200 mm - 1,400 mm |
| Agrotechnical Ground Clearance, mm | 410 mm |
| Clearance, mm | 320 mm |
| Minimum Turning Radius, m | 3.2 m |
| Structural Weight, kg | 1,500 kg |
| Gearbox (КПП) | |
| Clutch | Dry dual-disc |
| Power Take-Off (PTO) | |
| Number of Splines + PTO Diameter | 6 splines 35 mm |
| Travel Speed, km/h | |
| Maximum Speed, km/h | 25.77 km/h |
| Configuration | |
| Front Wheel Size | 7.50 - 16 |
| Rear Wheel Size | 11.20 - 24 |
| Other Characteristics | |
| Engine Oil Volume, L | 6 L |
| Engine Cooling System Volume, L | 11 L |
| Fuel Tank Volume, L | 28 L |
| Air Filter Oil Volume, L | 0.6 L |
| Front Axle Oil Volume, L | 4.0 L |
| Hydraulic Tank Oil Volume, L | 9.0 L |
If you need additional information or assistance in choosing a configuration, please contact Flash Army managers — we will select the optimal option for your tasks and operating conditions.
