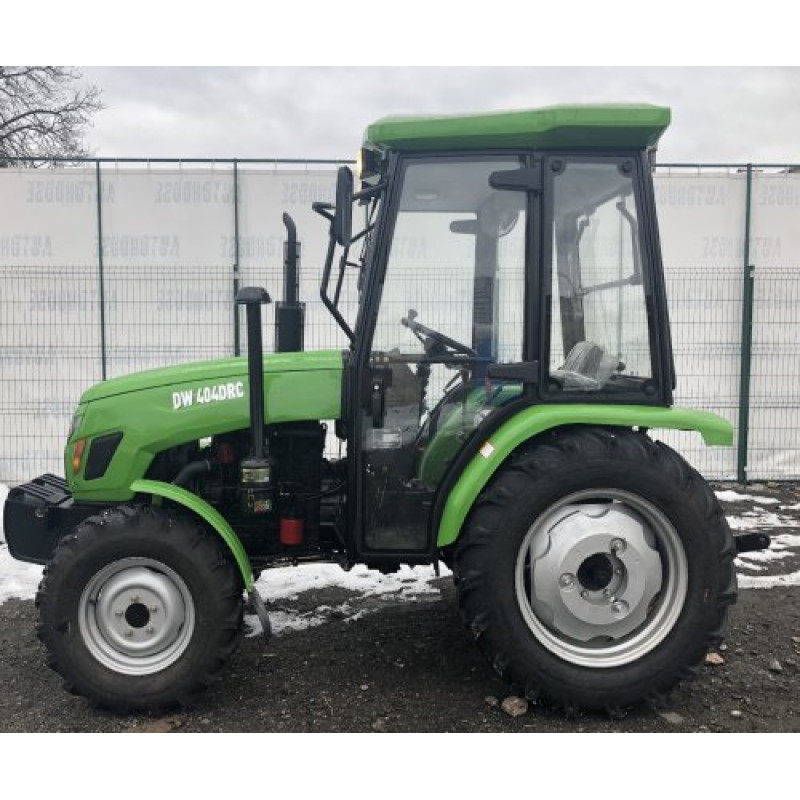

Mini Tractor DW 404 DRC — A Newcomer in Compact Machinery
Model: Mini Tractor DW 404 DRC. Manufacturer: DW. Category: Tractors > Mini Tractors. The DW 404 DRC combines power, reliability, and comfort: a 40 hp (29.4 kW) 4L22BT engine, vertical 4-cylinder 4-stroke with a water cooling system, ensuring stable operation in various conditions.
Comfort and Functionality for Year-Round Use

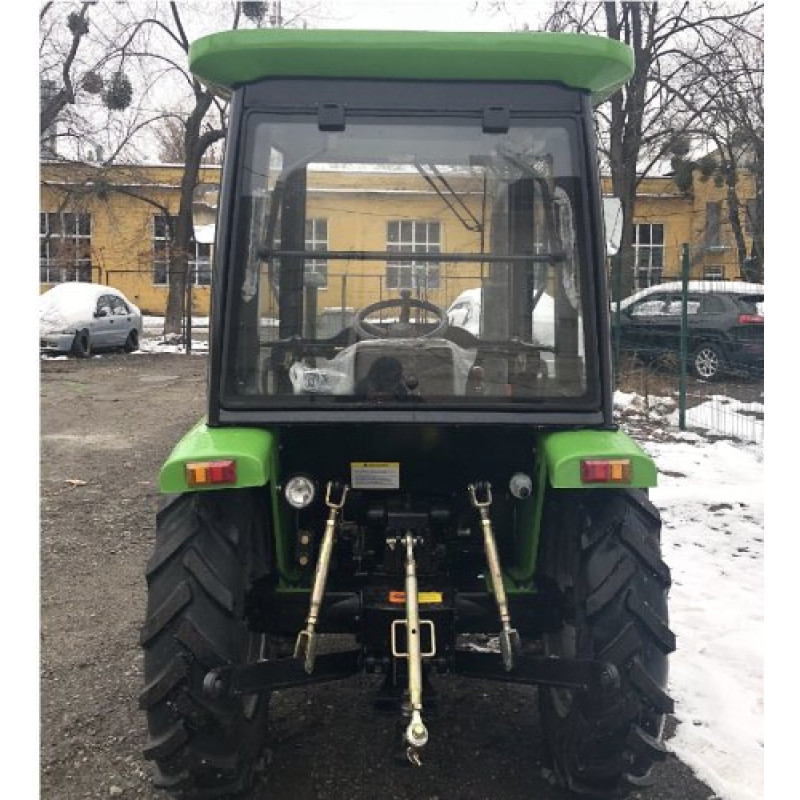

The mini tractor is equipped with a heated cabin, allowing work in cold weather. The electric starter simplifies engine ignition at low temperatures. The classic three-point hitch system and power take-off (PTO) shaft (540 / 1000 rpm) make the DW 404 DRC a versatile solution for agriculture, municipal work, and property maintenance.
- Efficient soil cultivation of any complexity.
- Fast execution of sowing and harvesting.
- Prompt preparation of feed and hay.
- Planning and cleaning territories, snow removal, transportation of bulk materials.
Price and Key Technical Advantages
Recommended price: $8400 — for this money, you get a well-assembled, productive machine with reliable components. Key technical specifications and advantages of the model include:
- Engine brand: 4L22BT.
- Power: 40 hp (29.4 kW) with water cooling for enhanced reliability.
- Engine start: electric starter.
- Differential lock for improved off-road capability.
- Power steering with a separate pump and oil reservoir — smooth and easy control.
- Wheels: rear 11.20-24, front 7.50-16 — excellent grip and stability.
Warranty, Delivery, and Service
When purchasing from the Flash Army online store, free delivery across Ukraine is available. The tractor comes with a warranty, and service support is available through a regional network of service centers. For additional questions, please contact a manager by phone or via the feedback form on the website.
Technical Specifications:
| Tractor power, hp (kW) | 40 (29.4) |
| Wheel formula | 4x4 |
| Engine brand | 4L22BT |
| Engine type | vertical, 4-cylinder 4-stroke |
| Engine start | electric starter |
| Engine displacement, cm3 | 2156 |
| Cylinder diameter / piston stroke | 85 x 95 |
| Nominal fuel consumption, g / kW * h | ≤238 |
| Fuel pump type | plunger, in-line |
| Nominal engine speed, rpm | 2350 |
| Engine oil type | mineral or semi-synthetic |
| Transmission (gearbox) | (4 + 4) x 2 |
| Transmission oil type, rear axle | transmission oil |
| Front axle oil type | transmission oil |
| Rear differential lock | + |
| Clutch | dry, single-disc |
| Power steering | with separate pump and oil reservoir |
| Cooling system fan drive | V-belt drive |
| Brake mechanism | drum type |
| PTO speed | 540 / 1000 |
| Hydraulic system pump type | gear pump |
| Maximum lifting capacity of hitch mechanism, kg | 550 |
| Minimum ground clearance, mm | 320 |
| Wheelbase, mm | 1820 |
| Wheel track, mm (rear / front) | 1230 / 1220 |
| Tire size (rear / front) | 11.20-24 / 7.50-16 |
| Minimum turning radius, m (with one-sided brake / without brakes) | 2.6 / 3.0 |
| Theoretical travel speed, km/h (forward / reverse) | 0.39-31.97 / 0.51-12.76 |
| Fuel tank volume, L | 28 |
| Engine crankcase volume, L | 4.5 |
| Transmission crankcase volume, rear axle, L | 18.0 |
| Front axle crankcase volume, L | 8.0 |
| Engine cooling system volume, L | 5.0 |
| Overall dimensions (LxWxH), mm | 3300 x 1600 x 2050 |
| Curb weight, kg | 1500 |
The DW 404 DRC is an optimal choice for those who value versatility, comfort, and reliability: the tractor is suitable for a wide range of tasks — from tilling land to cleaning and transporting materials, thanks to its configuration and technical parameters.
