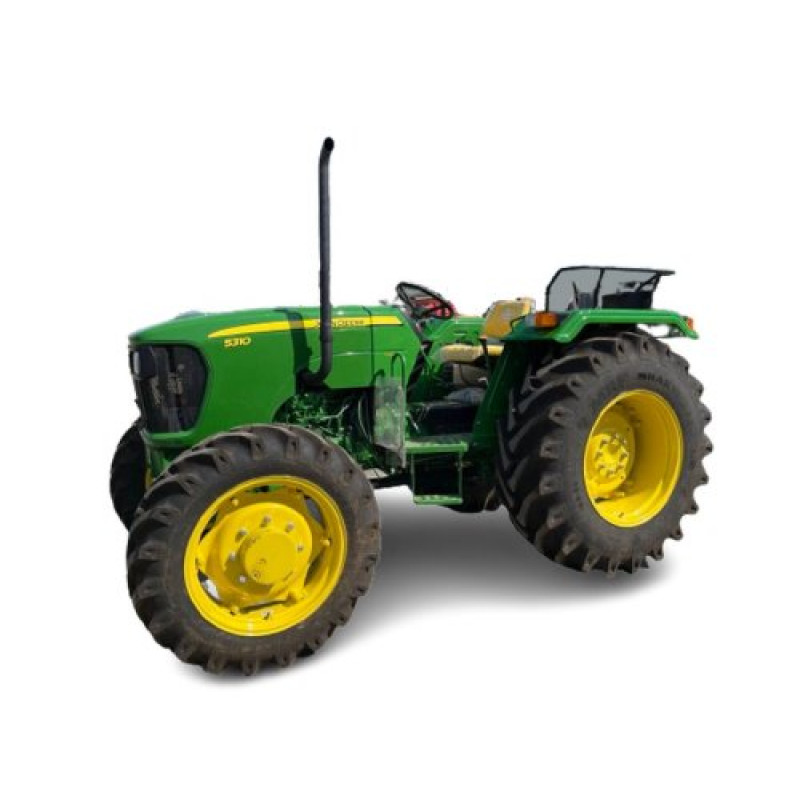

John Deere 5310D Mini Tractor
The John Deere 5310D mini tractor from the manufacturer John Deere is a reliable and versatile unit in the Tractors > Mini Tractors category for agricultural work, landscaping, and municipal tasks. The model combines sufficient power, a well-designed transmission, and an efficient hydraulic system, ensuring stable operation with mounted and trailed equipment.
Description and Purpose
The John Deere 5310D is equipped with a vertical, 3-cylinder, 4-stroke 3029T diesel engine with a displacement of 2900 cm3 and a bore/stroke of 98x105 mm. The tractor's power is 55 hp (40.4 kW), making it suitable for plowing, cultivation, transportation, and work with front and rear mounted implements. The presence of a (4+1)x1 gearbox, rear differential lock, and drum brakes ensures confident maneuvering on rough terrain, while power steering with a separate pump and oil reservoir enhances driving comfort.
Advantages
- Powerful 3029T diesel engine, 2900 cm3 displacement, guaranteeing durability and stable operation under intensive loads.
- Efficient (4+1)x1 transmission with transmission oil in the axles for reliability and longevity.
- Power steering with a separate pump and oil reservoir for convenient and precise control.
- Maximum lifting capacity of the three-point hitch 1400 kg for working with heavy equipment and trailers.
- Minimum ground clearance of 300 mm, allowing work on uneven terrain and between rows.
Specifications:
| Tractor power, hp (kW) | 55 (40.4) |
| Wheel formula | 4x4 |
| Engine type | vertical, 3-cylinder, 4-stroke 3029T diesel |
| Engine displacement, cm3 | 2900 |
| Cylinder bore / piston stroke | 98x105 mm |
| Fuel pump type | plunger, in-line |
| Rated engine crankshaft speed, rpm | 2350 |
| Engine oil type | mineral or semi-synthetic for diesel engines |
| Gearbox (transmission) | (4+1)x1 |
| Oil type in gearbox, rear axle | transmission oil |
| Oil type in front axle | transmission oil |
| Rear differential lock | yes |
| Clutch | dry, single-disc |
| Power steering | with separate pump and oil reservoir |
| Cooling system fan drive | V-belt drive |
| Braking mechanism | drum type |
| Power take-off (PTO) shaft speed, rpm | 540 |
| Hydraulic system pump type | gear pump |
| Maximum lifting capacity of three-point hitch, kg | 1400 |
| Minimum ground clearance, mm | 300 |
| Wheelbase, mm | 1950 |
| Tire size | rear 16.9-28, front 9.5-24.0 |
| Minimum turning radius, m | with one-sided brake 3.8; without brake 4.4 |
| Fuel tank capacity, L | 65 |
| Overall dimensions (LxWxH), mm | 3550x1900x1750 |
| Curb weight, kg | 2110 |
The John Deere 5310D provides an optimal balance between power and maneuverability: a minimum turning radius of 3.8 m with a one-sided brake allows working in confined spaces, while its weight of 2110 kg and dimensions of 3550x1900x1750 mm make the tractor stable and convenient for transport. The 65 L fuel tank allows for long working hours without frequent refueling. It is recommended to use mineral or semi-synthetic oil for diesel engines and transmission oils in the axles and gearbox to extend the service life of components.
This mini tractor is suitable for farmers, agricultural enterprises, and municipal services that require a reliable machine for a wide range of tasks: from soil cultivation to cargo transportation and working with mounted equipment. Manufacturer: John Deere. Product category: Tractors > Mini Tractors.
