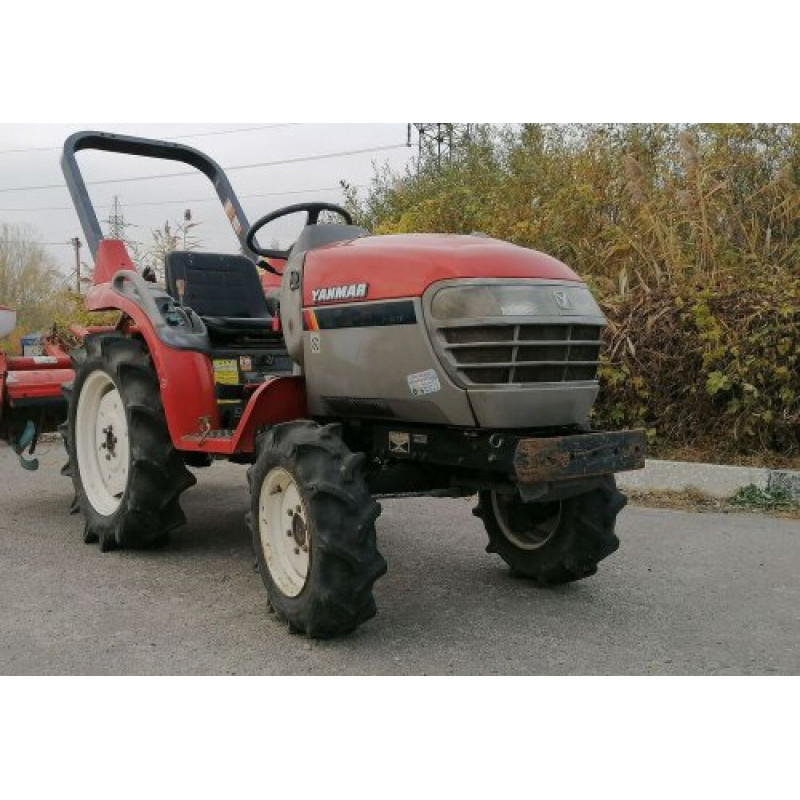

Yanmar AF-17 Mini Tractor — Reliable Diesel Compact Tractor
The Yanmar AF-17 mini tractor from the renowned manufacturer Yanmar is a versatile compact machine in the Tractors category, belonging to the Mini Tractors subcategory. This model is designed for gardening, small-scale farming, landscaping, and municipal services. Thanks to its 17 hp diesel engine, 4x4 all-wheel drive, and robust frame, the AF-17 combines maneuverability in narrow areas with stable traction on various soil types.
The Yanmar AF-17 is equipped with an economical 3-cylinder diesel engine that ensures long-lasting operation and reduced fuel consumption. The 20-liter fuel tank allows for extended operation without frequent refueling. The 8+8 gearbox provides a wide range of speed modes for field, loading, and transport operations, with a maximum travel speed of 13 km/h, which is optimal for on-site work.
Safety and control are ensured by a mechanical rear axle differential lock and drum brakes. The lifting mechanism with a working force of 300 kg allows for the use of a wide range of mounted and trailed equipment — from rotary mowers to small plows and trailers. The tractor's weight is 740 kg, which, along with its dimensions (length 2600 mm, width 1050 mm, height 1450 mm), makes it a compact solution for confined spaces.
The model is equipped with a power take-off (PTO) shaft with three speed modes: 540/805/1250 rpm, ensuring compatibility with various implements and significantly expanding the machine's application possibilities on the farm. The wheel sizes — front 6-12 and rear 8.3-20 — provide good cross-country ability and stability on most surfaces.
The Yanmar AF-17 mini tractor is suitable for owners of small farms, landscape design specialists, municipal services, and other users who need reliable and economical equipment. This model combines proven technical solutions: a 17 hp 3-cylinder diesel engine, 4x4 all-wheel drive, 20-liter tank capacity, 8+8 gearbox, PTO 540/805/1250 rpm, allowing it to solve both simple and more complex tasks of soil cultivation, haymaking, and cargo transportation on the site.
Below are the detailed technical specifications of the Yanmar AF-17 model, which will help assess its capabilities before purchase:
| Engine power, hp: | 17 |
| Wheel formula: | 4x4 |
| Engine type: | diesel |
| Number of cylinders: | 3 |
| Tank capacity, l: | 20 |
| Gearbox: | 8+8 |
| Max. travel speed, km/h: | 13 |
| Differential lock: | mechanical, rear axle |
| Brakes: | drum brake |
| Overall length, mm: | 2600 |
| Overall width, mm: | 1050 |
| Overall height, mm: | 1450 |
| Front wheel size: | 6-12 |
| Rear wheel size: | 8.3-20 |
| Lifting capacity of lifting mechanism, kg: | 300 |
| PTO speed, rpm: | 540/805/1250 |
| Weight, kg: | 740 |
The Yanmar AF-17 is an optimal solution for those looking for a compact yet powerful mini tractor with proven mechanics and an economical diesel engine. Thanks to its technical characteristics and reliable Yanmar brand, this model ensures long-term operation and high profitability when performing a wide range of tasks on the site.
