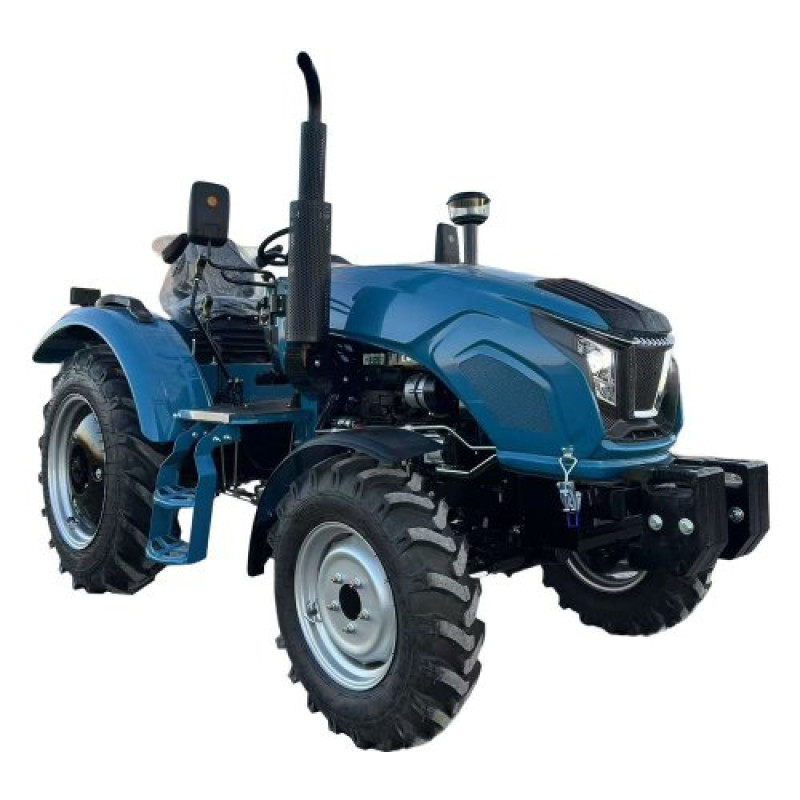

Mini Tractor HORST G244XU
Brand: HORST. The HORST G244XU model is a reliable, versatile mini tractor for homesteads, farm work, and municipal services. It is designed for plowing, cultivating, soil preparation, cargo transportation, and working with attachments. Equipped with a powerful three-cylinder diesel engine, liquid cooling system, and 4x4 all-wheel drive, ensuring confident movement across fields and on roads.
Key Features and Benefits
- Engine power: 24 hp (17.65 kW).
- Wheel formula: 4x4 — all-wheel drive for better traction on difficult terrain.
- Engine type: diesel, 4-stroke, direct injection, non-turbocharged.
- Number and arrangement of cylinders: 3, vertical.
- Starting system: electric starter.
- Cooling system: liquid, closed, with forced circulation of coolant; fan drive — V-belt transmission.
- Engine displacement: 1530 cm3; cylinder bore / piston stroke: 85 / 90 mm.
- Nominal fuel consumption: ≤275 g/kW*h; nominal crankshaft speed: 2300 rpm.
- Nominal traction force: 7.2 kN.
- Engine oil type: mineral or semi-synthetic for diesel engines; nominal oil consumption: 2.31 g/kW*h.
- Gearbox: (4+1)x2; main drive — direct.
- Types of transmission oil: Silver SAE 85W-90; Gold SAE 80W-90; Platinum SAE 75W-90.
- Rear differential lock: present.
- Clutch: dry 1-disc, constantly closed type.
- Steering: mechanical; brakes: on rear wheels, drum brakes.
- Power take-off (PTO) shaft: rear, splined; PTO speed: 540 / 1000 rpm.
- Hydraulic system: gear pump; number of hydraulic outlets: 2; maximum lifting capacity of attachment mechanism: 420 kg.
- Minimum ground clearance: 350 mm; wheelbase: 1650 mm; track width: front 1150 mm, rear 1200 mm.
- Tire size: front 7.50-16, rear 9.50-24.
- Trailer connector (socket) and power steering are available.
- Fuel tank capacity: 48 L; engine crankcase capacity: 4.5 L; gearbox and rear axle crankcase capacity: 14.0 L; front axle crankcase capacity: 3.0 L; engine cooling system capacity: 6.0 L.
- Overall dimensions (L x W x H): 3400x1500x1680 mm; curb weight: 1350 kg.
Detailed Technical Specifications Table
| Engine power, hp (kW) | 24 (17.65) |
| Wheel formula | 4x4 |
| Engine type | diesel, 4-stroke, direct injection, non-turbocharged |
| Number and arrangement of cylinders | 3, vertical |
| Engine starting system | electric starter |
| Cooling system | liquid, closed, with forced circulation of coolant |
| Cooling system fan drive | V-belt transmission |
| Engine displacement, cm3 | 1530 |
| Cylinder bore / piston stroke, mm | 85 / 90 |
| Nominal engine fuel consumption, g/kW*h | ≤275 |
| Nominal engine crankshaft speed, rpm | 2300 |
| Nominal traction force, kN | 7.2 |
| Engine oil type | mineral or semi-synthetic for diesel engines |
| Nominal engine oil consumption, g/kW*h | 2.31 |
| Gearbox (GB) | (4+1)x2 |
| Oil type in gearbox and rear axle | Silver SAE 85W-90; Gold SAE 80W-90; Platinum SAE 75W-90 (transmission) |
| Oil type in front axle | Silver SAE 85W-90; Gold SAE 80W-90; Platinum SAE 75W-90 (transmission) |
| Rear differential lock | + |
| Clutch | dry 1-disc, constantly closed type |
| Main drive | direct |
| Steering | mechanical |
| Brakes | on rear wheels, drum brakes |
| Power take-off (PTO) shaft | rear, splined |
| Hydraulic system pump type | gear pump |
| Power take-off (PTO) shaft speed, rpm | 540 / 1000 |
| Maximum lifting capacity of attachment mechanism, kg | 420 |
| Minimum ground clearance, mm | 350 |
| Wheelbase, mm | 1650 |
| Wheel track, mm | front 1150, rear 1200 |
| Tire size | front 7.50-16 rear 9.50-24 |
| Fuel tank capacity, L | 48 |
| Engine crankcase capacity, L | 4.5 |
| Gearbox and rear axle crankcase capacity, L | 14.0 |
| Front axle crankcase capacity, L | 3.0 |
| Engine cooling system capacity, L | 6.0 |
| Number of hydraulic outlets | 2 |
| Trailer connector (socket) | + |
| Power steering | + |
| Overall dimensions (L x W x H), mm | 3400x1500x1680 |
| Curb weight, kg | 1350 |
The HORST G244XU combines compact dimensions with extensive functionality: 24 hp, 4x4 all-wheel drive, a functional PTO with two speed modes, a practical mechanical gearbox, and a rear differential lock make this mini tractor an effective tool for farms and municipal enterprises. The reliable engine and transmission design ensure long-term operation with proper maintenance.
