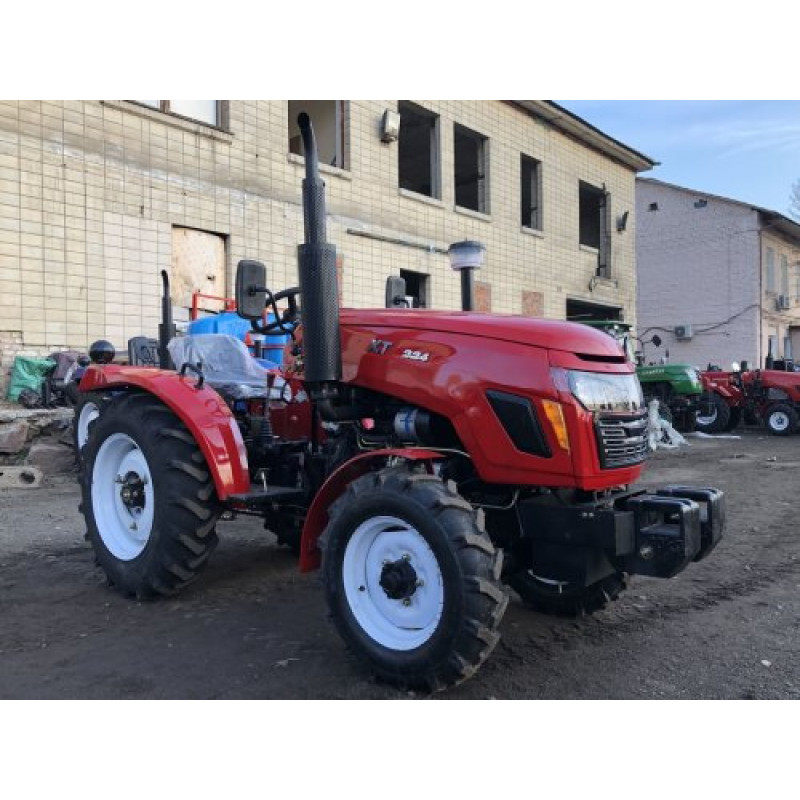

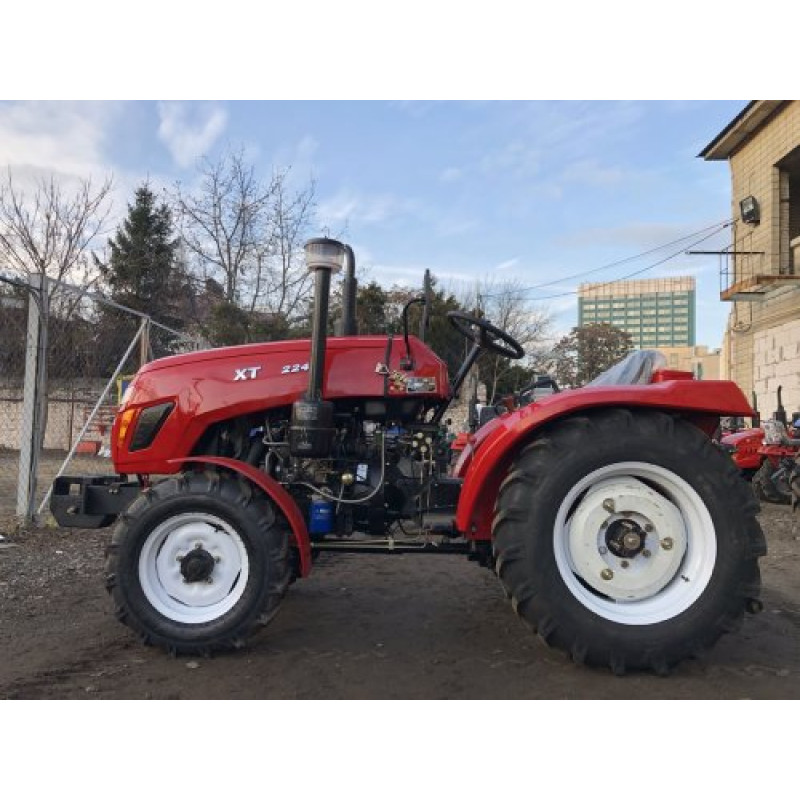

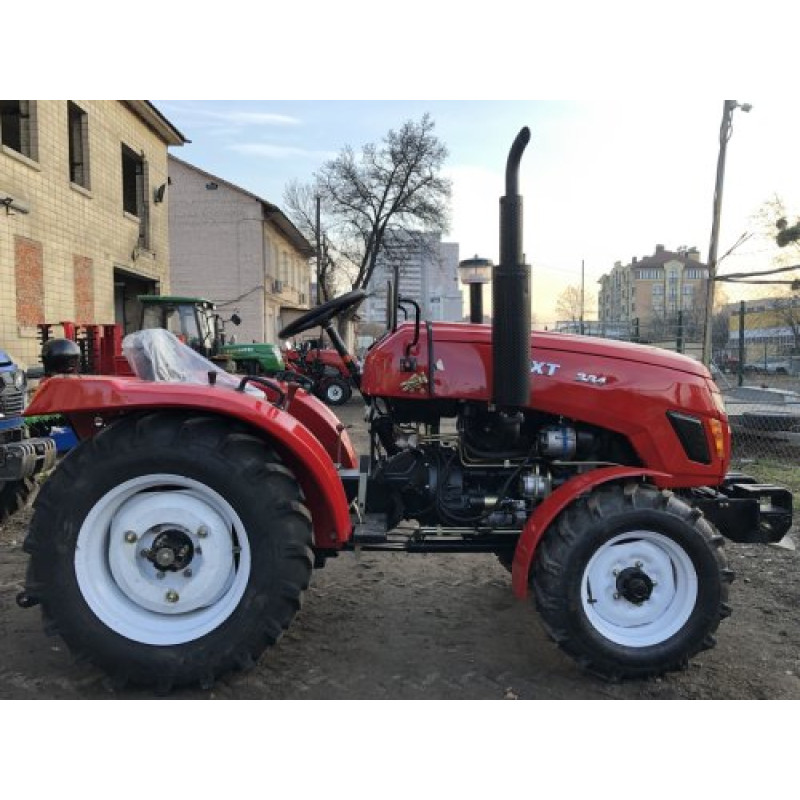

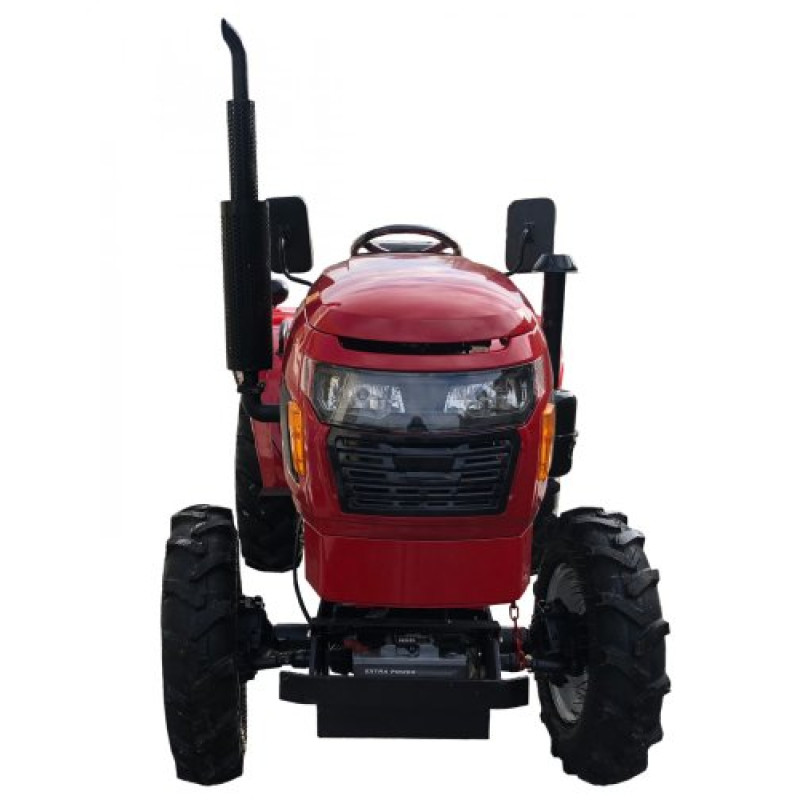

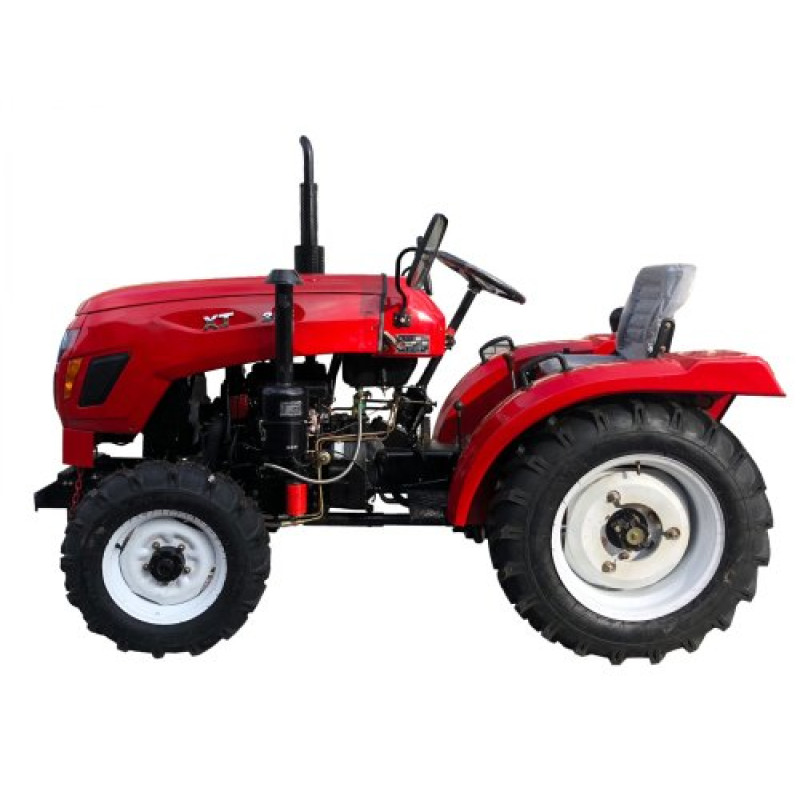

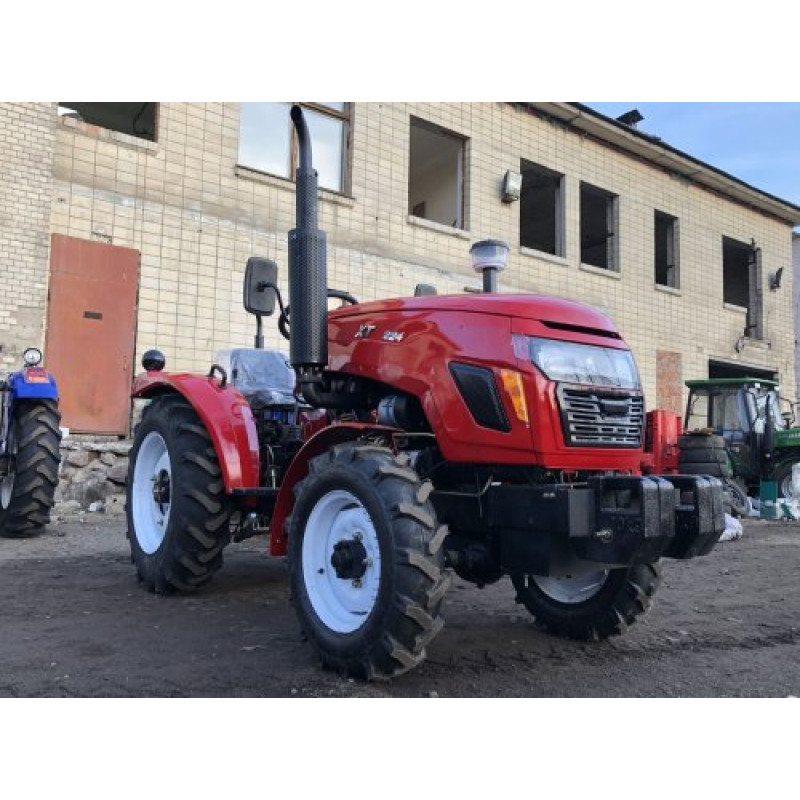

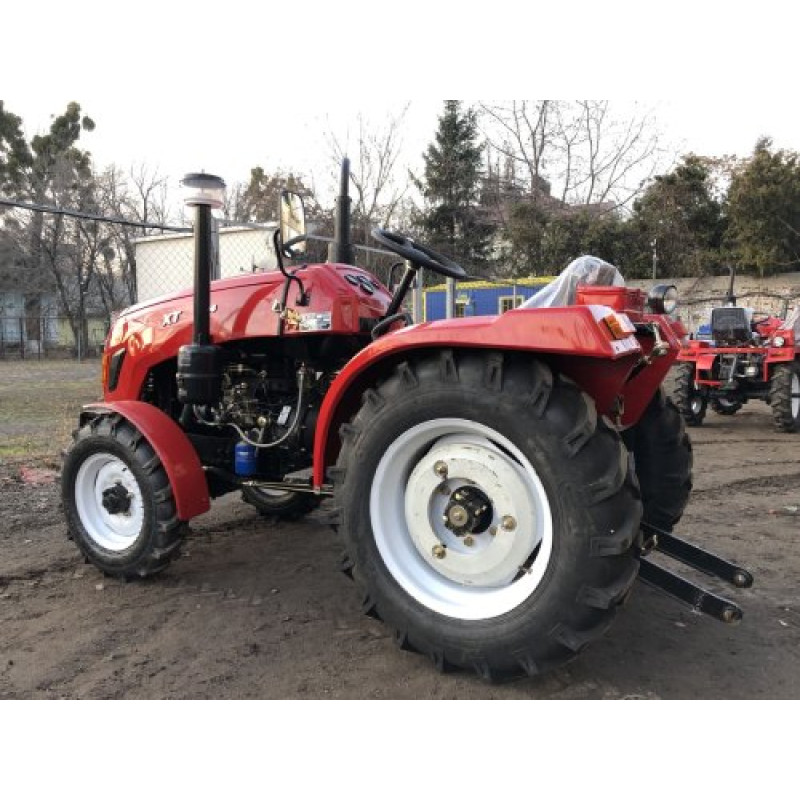

Mini Tractor XINGTAI XT-224

Model: Mini Tractor XINGTAI XT-224 manufactured by the Xingtai brand. This is a versatile and powerful machine suitable for agricultural work, municipal tasks, and transportation on plots up to 15 hectares. The design allows for attaching trailers with a load capacity of 1 to 2 tons, as well as various implements for tillage and field work. Category: Tractors, Motorcycles, ATVs, Boats (Vehicle) > Tractors > Mini Tractors

Engine and Fuel Consumption Description: Three-cylinder diesel engine with a four-stroke cycle, fuel injection, and cooling system. The engine is reliable, features an electric starter with safe start, and is noted for economical fuel consumption and low emissions. Recommended lubricant: mineral or semi-synthetic oil for diesel engines. Engine data: power 22 hp (17.6 kW), engine displacement 1.532 cm3, nominal crankshaft speed 2400 rpm, nominal fuel consumption 259 g/kWh, fuel pump type — plunger, inline.

Ergonomics and Driving Performance: The tractor is equipped with large wheels for navigating difficult terrain, with adjustable wheel track (front and rear wheel track 1000-1200 mm), ensuring maneuverability in narrow rows. Machine control is simple and intuitive. A rear differential lock is available to improve off-road capability. Wheel formula 4x4, minimum ground clearance 265 mm, wheelbase 1465 mm. Tire sizes: front 6.0 - 14, rear 9.5 - 20. Theoretical forward speed 2.84 - 31.45 km/h, reverse 2.84 - 10.78 km/h. Fuel tank capacity 17 L, engine cooling system capacity 6 L.

Advantages

• Powerful diesel engine and electric starter for reliable starting.
• Ability to use various implements and trailers 1–2 t.
• Adjustable wheel track and large tires for maneuverability and off-road capability.
• Economical fuel consumption and long engine service life.

We also recommend considering other mini tractors: Jinma 404, Shifeng 354, Dongfeng, Xingtai, Foton, Zoomlion, DTZ 5244, Bulat 454, Bulat 250, Bulat 254, Belarus 320.4, Shifeng 350 L, DW 244, DTZ 5404K, Tractor Solis 26, Solis 50, Shifeng SF-244.

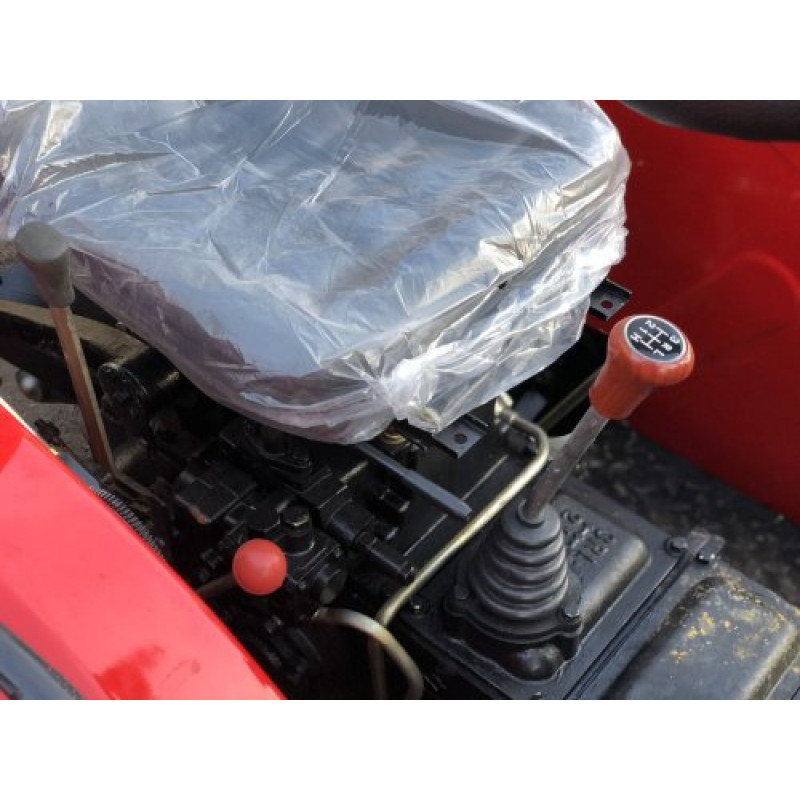

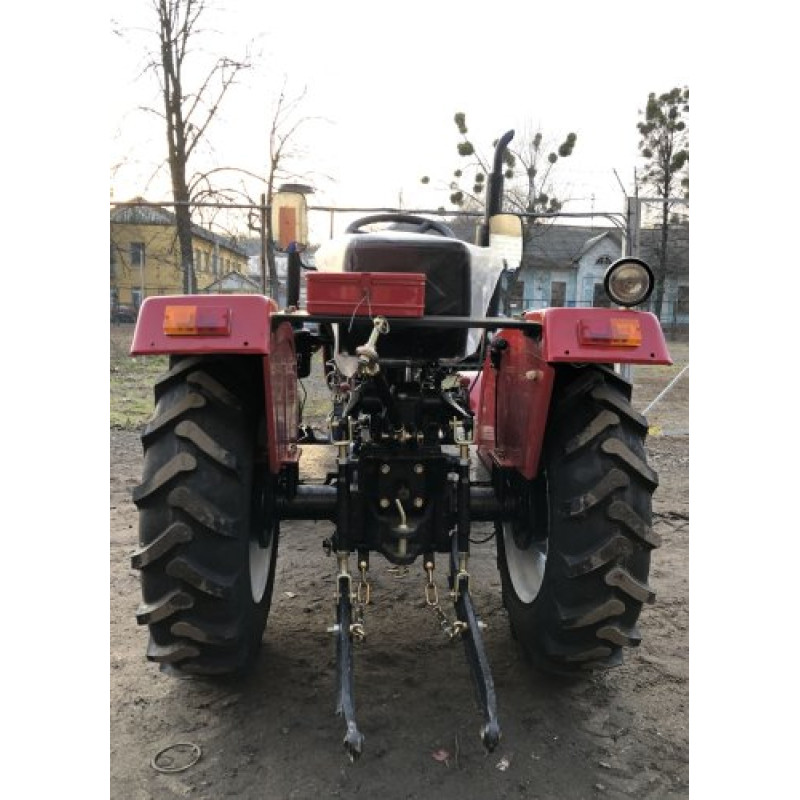

Additional Information: The text states the tractor dimensions as 2500×1200×1330 mm, while the technical table provides overall dimensions of 2580/1200/1330 mm. The text also indicates a lifting capacity of the hitch mechanism of 273 kg; the technical specifications list a maximum lifting capacity of 423 kg. Valves and transmission: gearbox (3+1)x2 mechanical, clutch dry, single-disc; oil in gearbox and axles — transmission fluid. Cooling system fan drive — circulating liquid; brake mechanism drum type; PTO rpm 540; hydraulic system pump type — gear; no power steering.

Technical Specifications:

You can buy the XINGTAI XT-224 at a favorable price with delivery in our online store. This model combines engine reliability, ease of operation, and a wide range of applications — from soil cultivation to municipal and transport work.
