MARK4 V2 10inch Carbon Frame

The MARK4 V2 10inch Carbon Frame (ID: 11023) — a powerful and lightweight structure for building large, long-range FPV drones. Manufacturer: China. Product type: Drones & Quadcopters > Frames. This carbon frame combines high rigidity and low weight, making it an ideal choice for assembling 10-inch aircraft with a large diagonal and stable flight behavior.

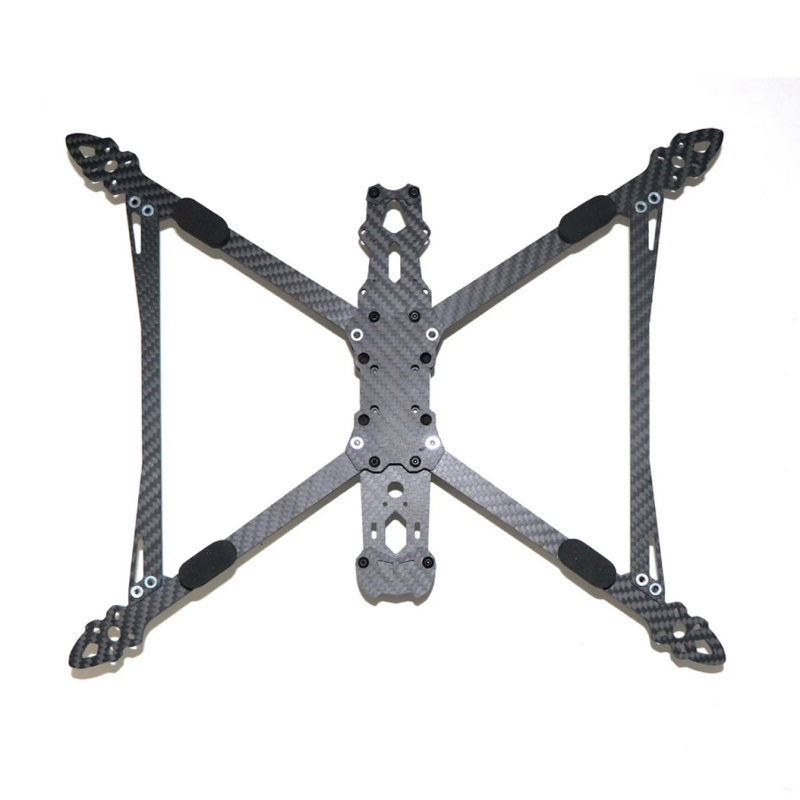

The MARK4 10" design is made of dense carbon, the arms are 7.5 mm thick and are additionally rigidly connected to each other, ensuring high diagonal rigidity of the arms. The diagonal distance between the motors is 473 mm, which makes the frame optimal for 10" propellers and long-range aircraft. The frame weighs only 270 g, allowing for a balance between strength and maximum payload for electronics and battery.

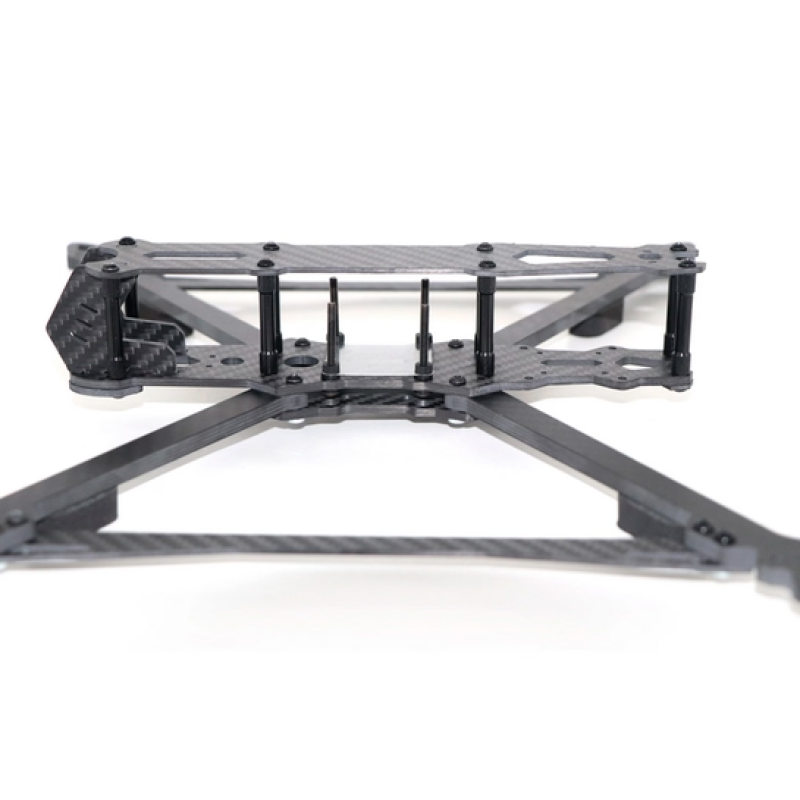

The MARK4 V2 provides universal mounting options for electronics: stack blocks with mounting holes 30.5×30.5 mm (M3) or 20×20 mm (M2) can be installed on the frame. Landing spots for the video transmitter are also available at 30.5×30.5 mm (M3) and 20×20 mm (M2), allowing easy placement of both analog video transmitters and modern digital modules. The special design of the side plates reliably protects a Micro-sized camera (19 mm) — it is installed in carbon supports for better protection during hard landings.

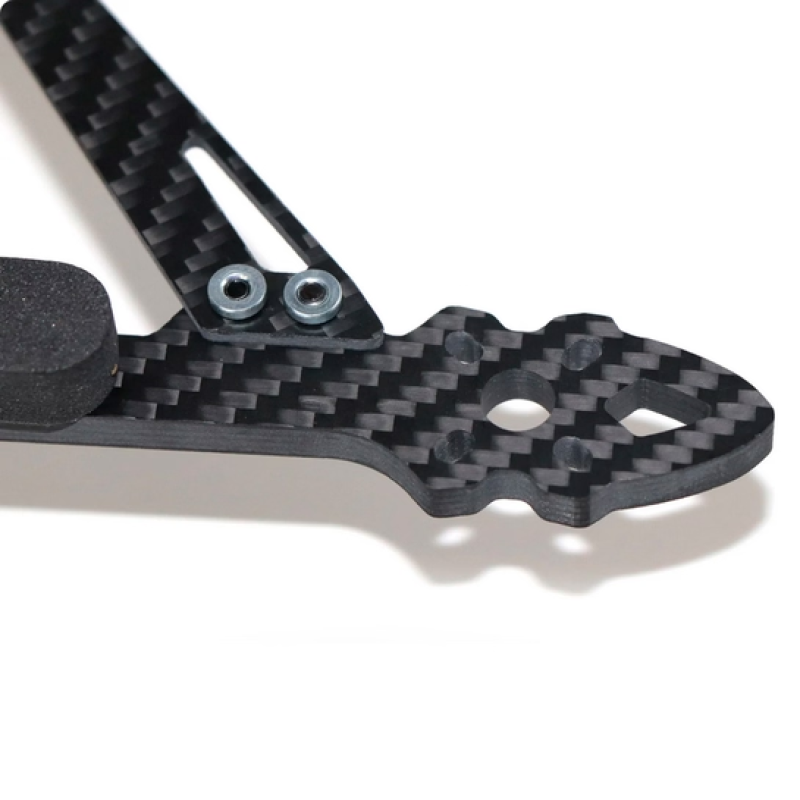

The frame is compatible with various video transmission systems: by default, it is optimized for analog transmission, but experienced builders can easily integrate digital solutions, including the DJI O3 Air Unit, thanks to well-designed mounting holes and a spacious rear compartment for video modules. Motors are attached to the arms using 16 mm or 19 mm diameter holes, ensuring compatibility with popular motor configurations.

Advantages of the MARK4 V2 10inch Frame

This frame is suitable for those planning to create a reliable and durable drone with a large diagonal: it combines secure camera mounting, the ability to accommodate various electronics, support for both analog and digital video systems, and a high safety margin due to thick carbon arms. An assembly based on MARK4 ensures flight stability, reduced vibrations, and increased structural reliability.

Technical specifications:

• Diagonal distance between motors: 473 mm
• Weight: 270 g
• Mounting holes for stacks: 30.5×30.5 mm M3 / 20×20 mm M2
• Mounting holes for video transmitter: 30.5×30.5 mm M3 / 20×20 mm M2
• Mounting holes for motors: 16 mm / 19 mm
• Arm thickness: 7.5 mm
• Top plate: 3 mm
• Bottom plate: 3 mm
• Camera size: Micro (19 mm)

The MARK4 V2 10inch frame will be a reliable foundation for your long-range FPV project, guaranteeing easy component installation and durability during intensive use. Suitable for enthusiasts who value structural rigidity and the ability to upgrade to digital video systems.
