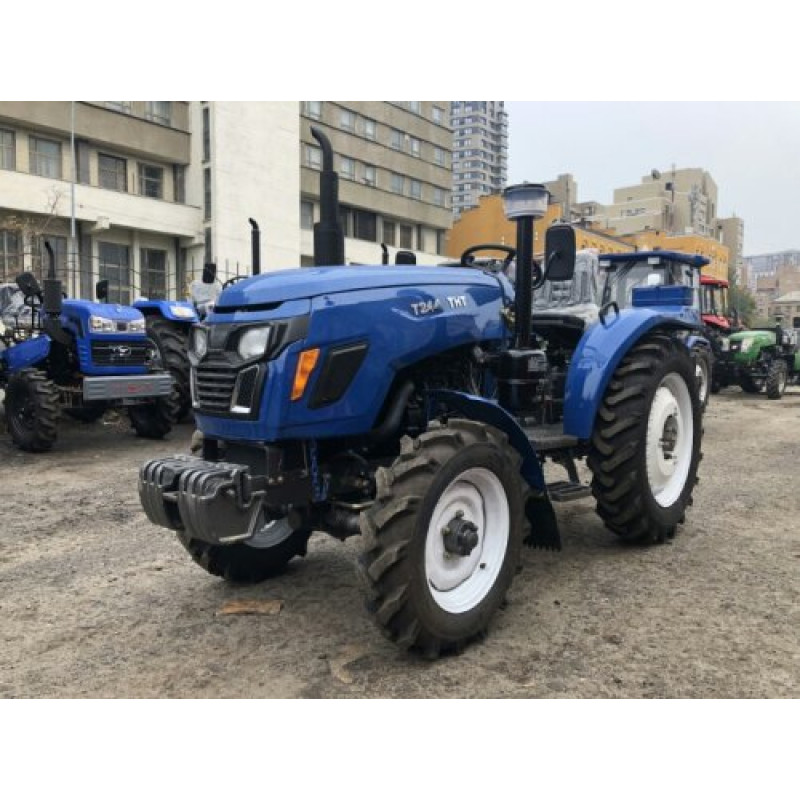

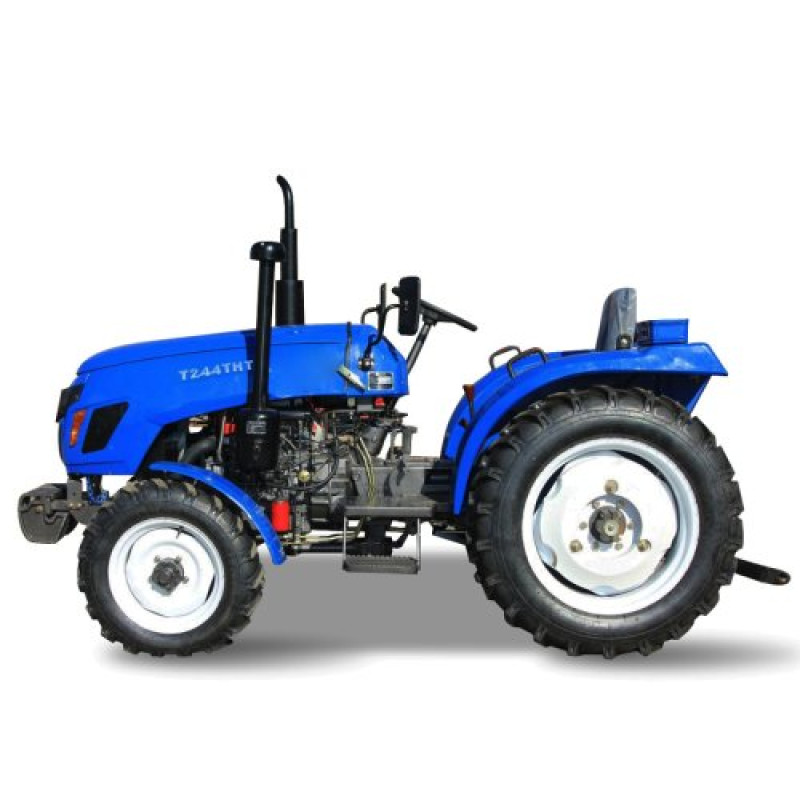

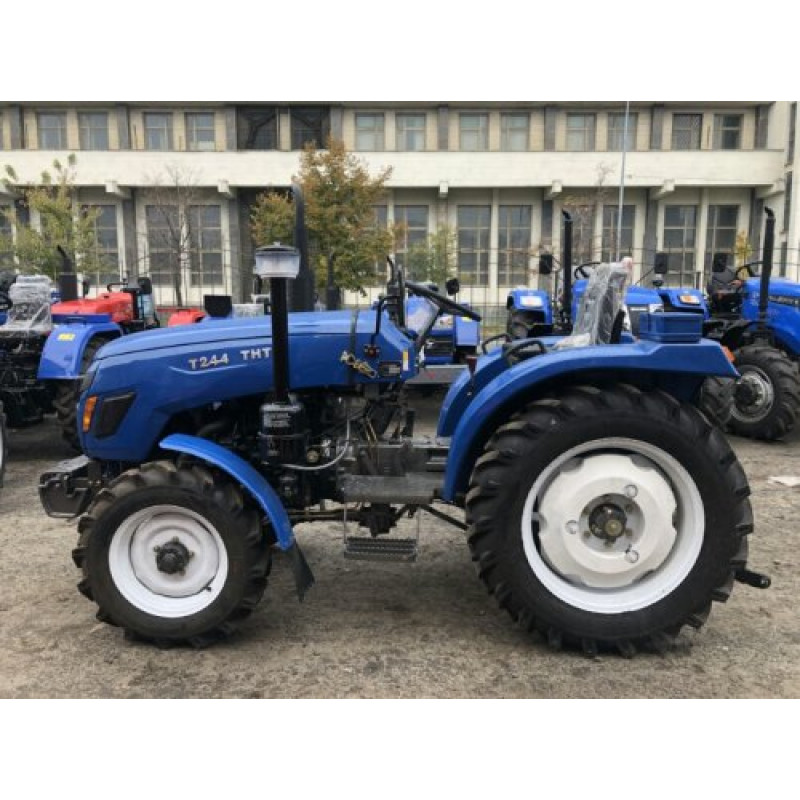

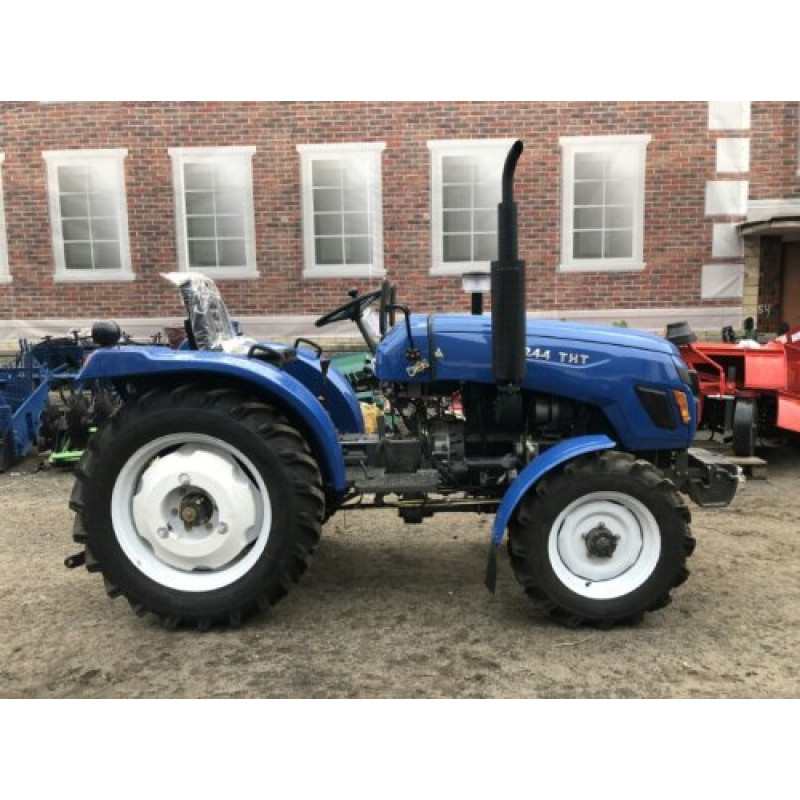

XINGTAI T-244 THT Mini Tractor — Compact and Versatile Farm Assistant

Model: Xingtai 244 THT. Manufacturer: Xingtai Industry Co., LTD. Tractor type: universal row-crop wheeled tractor with a traction class of 0.6 and 4x4 all-wheel drive with connectable front axle drive. Country of manufacture: China (PRC). This mini tractor combines compact dimensions and high productivity, optimal for cultivating plots from 0.15 to 4 hectares, municipal work, and small farming tasks.

Engine and Power Unit

Equipped with a three-cylinder diesel four-stroke engine KM385BT with direct fuel injection, without turbocharging, and with liquid (water) cooling. The technical description indicates an engine displacement of 1532 cm3, while the text also mentions a value of 1523 cm3, so when operating, it is worth referring to the specified characteristics for service. Nominal engine power: 24 hp (17.6 kW). Number of cylinders: 3, cylinder diameter: 85 mm, piston stroke: 90 mm. Fuel consumption up to 244 g/(kW*h). The cooling system ensures stable operation in warm weather and extends engine life; a cold start option is also provided.

Transmission, Brakes, and PTO

The gearbox is mechanical, stepped (located under the operator's seat) with 8 forward and 2 reverse gears (marking: 8 forward / 2 reverse), allowing for optimal working speed selection. Clutch — dry single-disc (dry dependent basket with one disc). Brake system: dry-type drum brakes on the rear wheels with separate pedals. Power take-off (PTO) shaft — rear semi-independent, PTO speed 540 - 720 rpm, number of splines and diameter: 6 splines, 35 mm.

Hydraulics and Steering

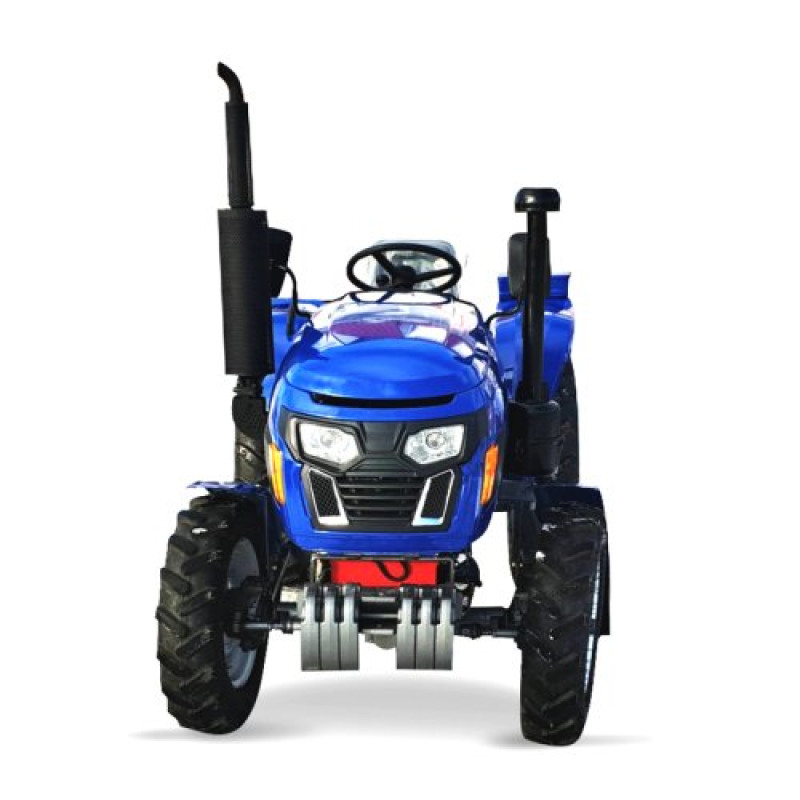

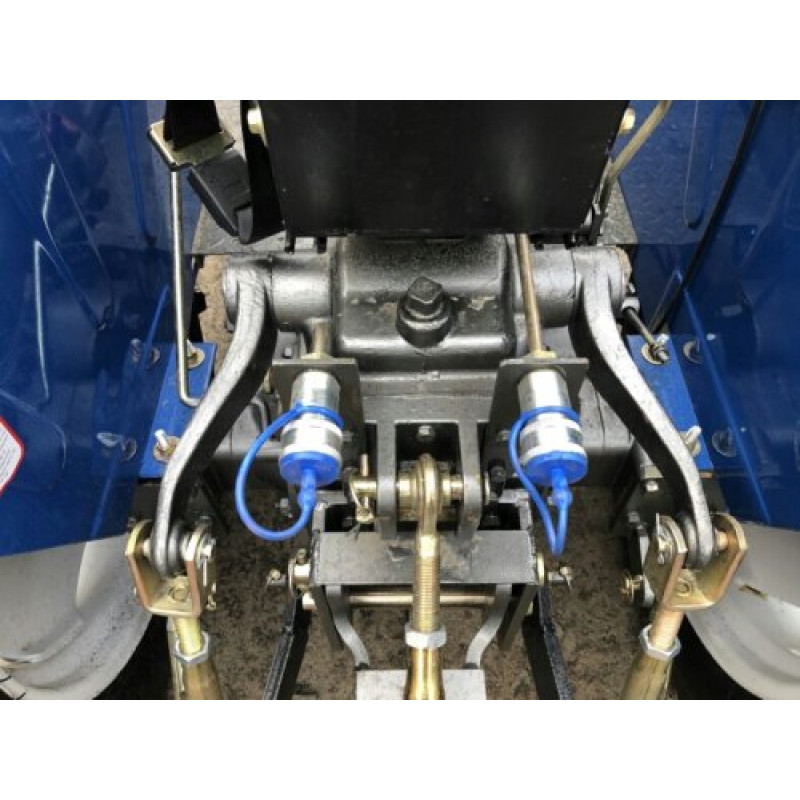

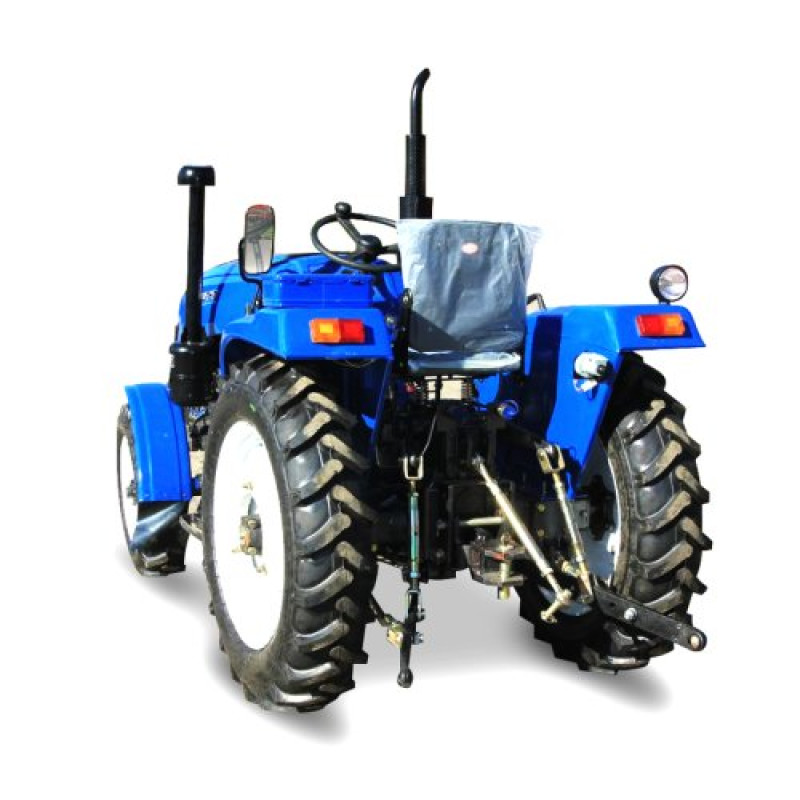

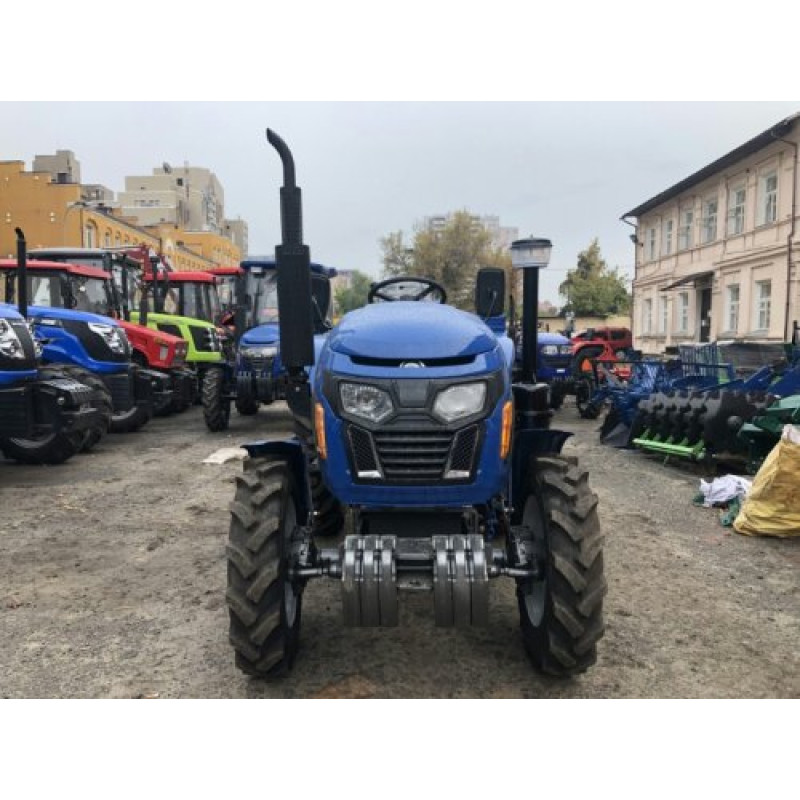

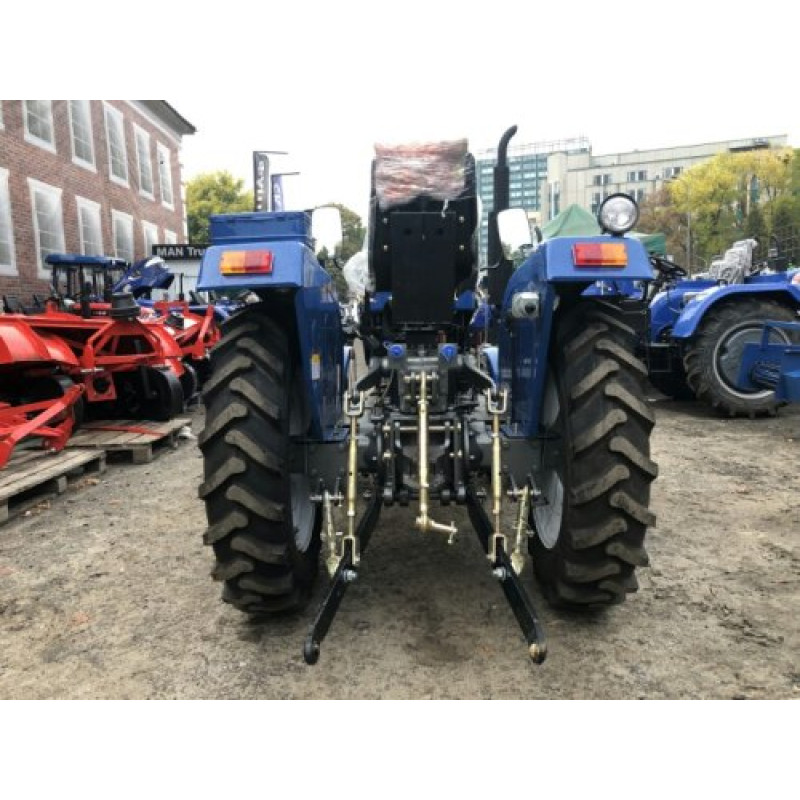

The tractor is equipped with power steering (GUR), which significantly facilitates maneuvering and reduces operator fatigue. Differential lock is present to reduce slippage on loose soils. The hydraulic system includes a three-point hitch, high-quality hydraulic cylinders, and hydraulic outlets, ensuring compatibility with various attachments. Front counterweights (6 weights) are installed for balancing with working implements.

Controls and Dashboard

The dashboard features an ammeter, temperature gauge, oil pressure gauge, and hour meter. The presence of power steering makes control smooth and comfortable even during intensive work.

Chassis, Dimensions, and Weight

Wheel formula: 4x4. Front wheel size: 6.00 - 16, rear: 9.50 - 24. Wheelbase: 1655 mm. Overall dimensions: 3100x1240x1960 mm. Front wheel track: 1270 mm, rear: 1230 mm. Agrotechnical ground clearance: 310 mm, clearance: 230 mm. Minimum turning radius: 2.7 m with one brake pedal depressed; 3.7 m without depressed brake pedal. Structural weight: 1222 kg.

Speed Characteristics

Maximum travel speed: forward from 2.2 to 32.0 km/h; reverse: from 3.0 to 13.6 km/h. This range allows for both field work and cargo transportation.

Capacities and Fluids

Engine oil volume: 6.5 L. Engine cooling system volume: 10 L. Fuel tank volume: 20 L. Transmission oil volume: 13 L. Front axle oil volume: 4 L. Hydraulic tank oil volume: 4.5 L. On-board electrical system voltage: 12 V.

Advantages of Xingtai T-244 THT

• Affordable cost for equipment in its class and high purchase efficiency.
• 4x4 all-wheel drive with front axle connection provides excellent off-road capability.
• Compact dimensions for maneuvering near trees, fences, and in confined areas.
• Compatibility with a wide range of mounted and trailed equipment (plow, mower, snow removal units, etc.).
• Reliable three-cylinder engine KM385BT with greater engine life and torque compared to single-cylinder counterparts.
• Stable operation in different seasons thanks to the liquid cooling system and cold start options.

Disadvantages and Remarks

Among the disadvantages: a less comfortable operator's seat on springs, which should ideally be replaced with a more comfortable one over time; the mass switch lever (left side under the hood) sometimes has reduced quality and may require replacement.

Practical Application

The Xingtai T-244 THT is effective for earthworks, sowing and cultivating small fields, harvesting small crops, transporting goods, snow removal, and other operations on homestead plots and farms. The 24 hp power is sufficient for most municipal and agricultural tasks.

Purchase Conditions

The tractor can be purchased with or without prepayment (payment upon receipt). Credit is available on favorable terms. Delivery and registration are possible in the cities of: Kyiv, Vinnytsia, Poltava, Chernihiv, Kharkiv. To order, submit an application on the Flash Army store website or contact the sales department.

Operating Recommendations

Regularly check oil and coolant levels (volumes listed above), monitor the condition of brakes and clutch. If necessary, replace the operator's seat for increased comfort. Using original or compatible attachments ensures versatility of application and longevity of components.

Technical Specifications

Summary: The Xingtai T-244 THT is an affordable, functional mini tractor with all-wheel drive, power steering, a reliable KM385BT diesel engine, and a versatile 8+2 mechanical transmission, suitable for farms requiring compact, maneuverable, and powerful equipment for various conditions. To purchase, submit an application on the website or contact the Flash Army sales department.
