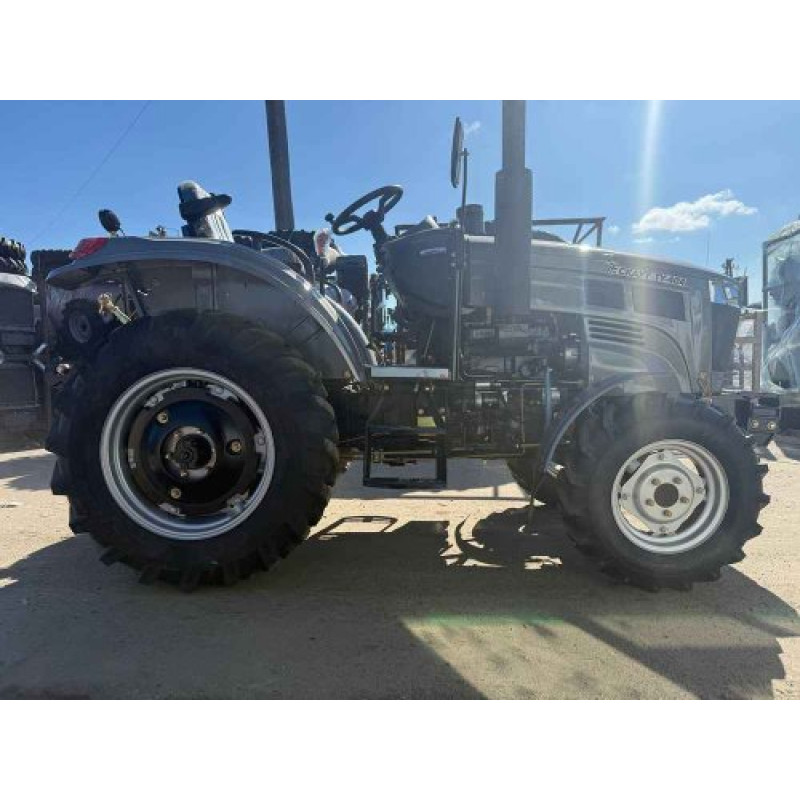

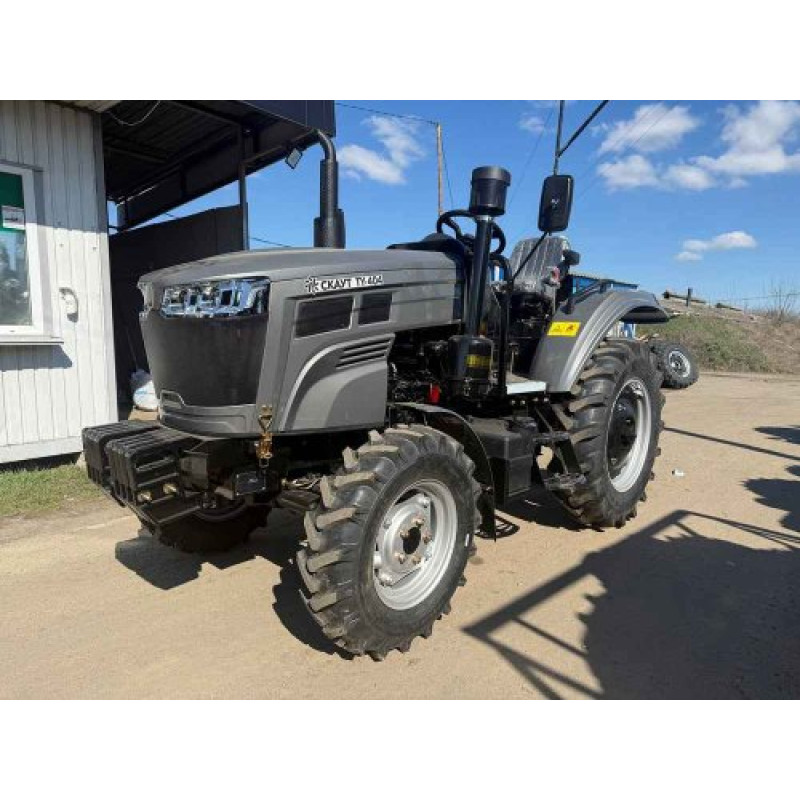

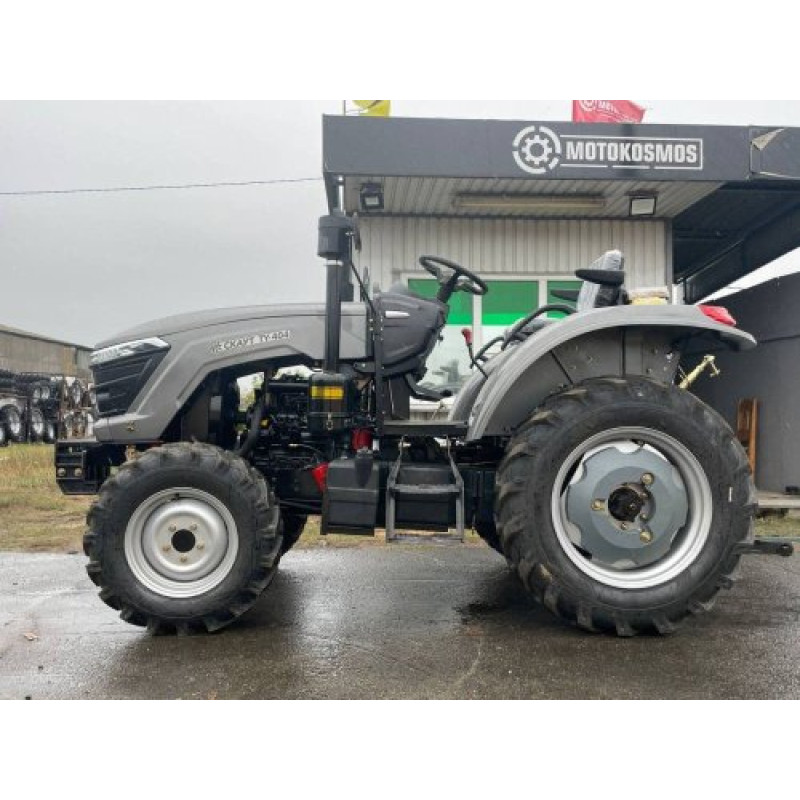

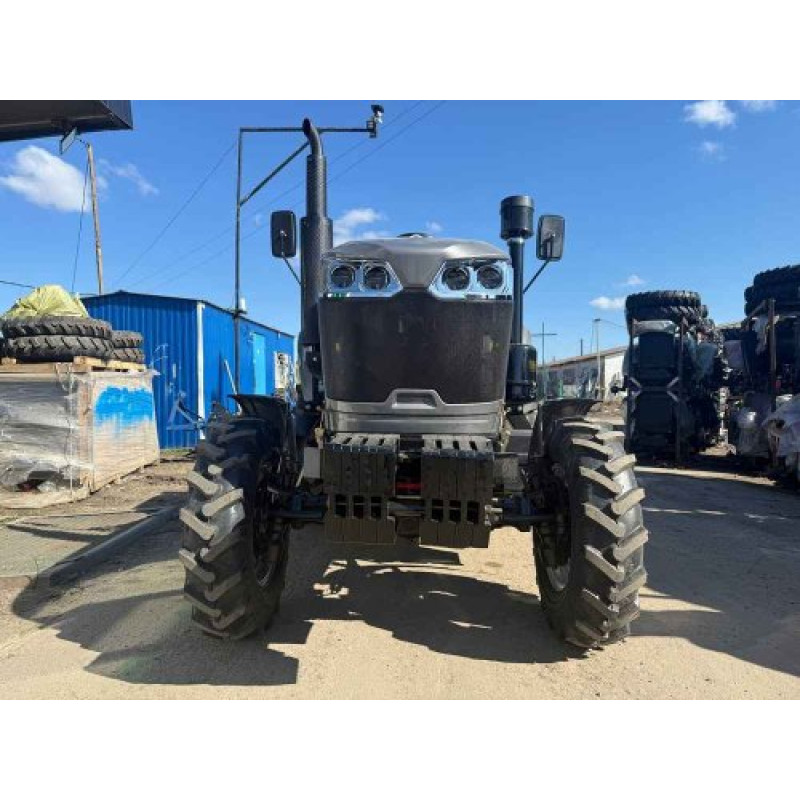

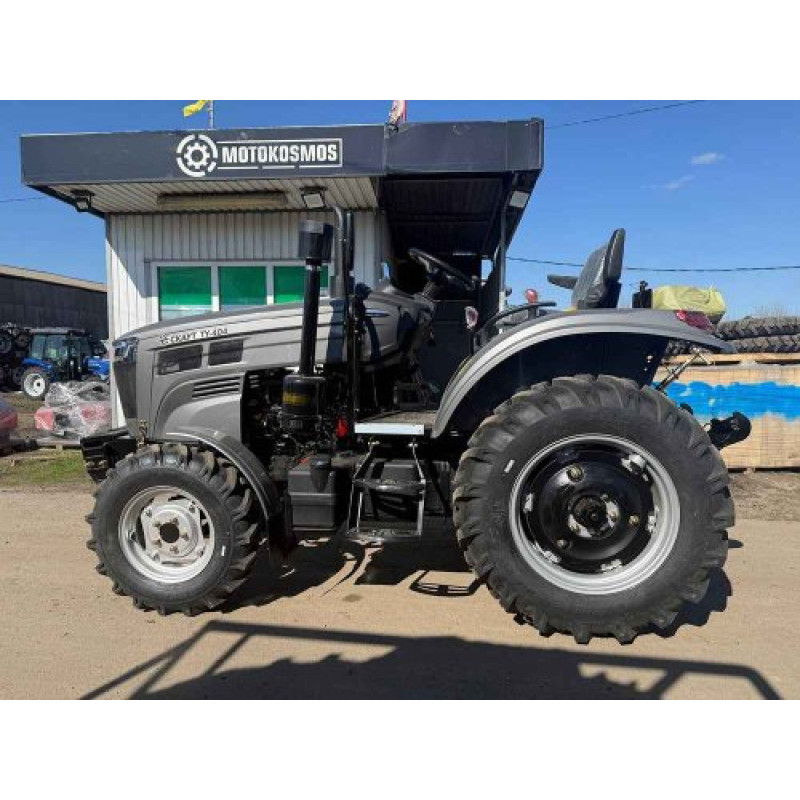

The Scout TY-404 Mini Tractor from the Scout brand is a reliable and multifunctional machine in the Mini Tractors category, designed for a wide range of agricultural and utility tasks: field cultivation, cargo transportation, work with mounted and trailed equipment, and maintenance of homestead areas.
Description and Advantages
The model is equipped with a KM490BT 4-stroke diesel engine with four vertical cylinders. The engine power is 40 hp (29.4 kW), and the displacement is 2545 cm3. The starting system is an electric starter, cooling is liquid, closed, with forced circulation, and the fan drive is V-belt. The nominal fuel consumption of the engine is ≤238 g/kWh, which makes the tractor economical during intensive operation.
Mechanics and Control

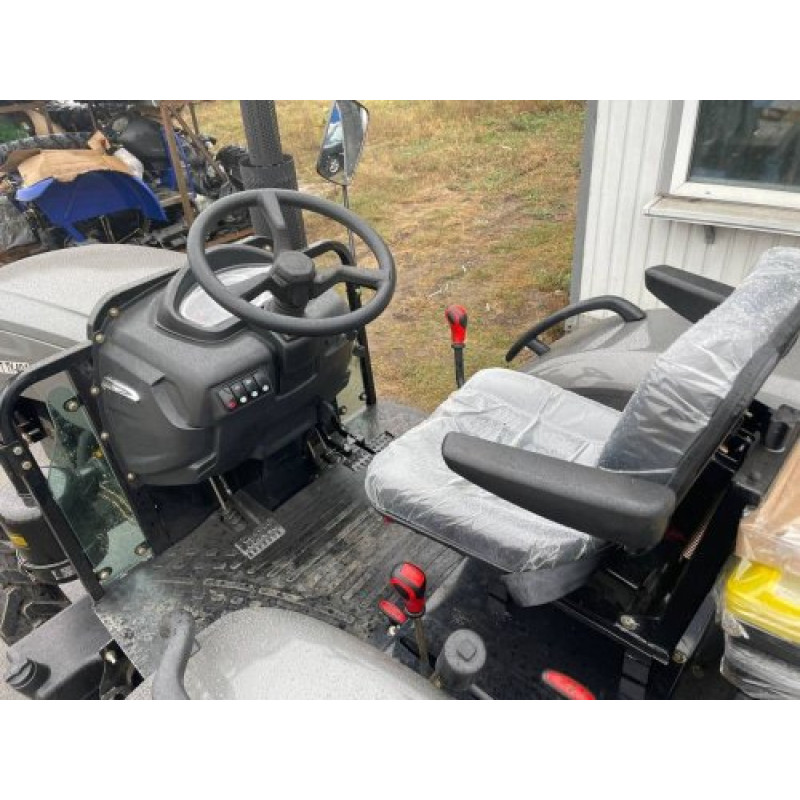

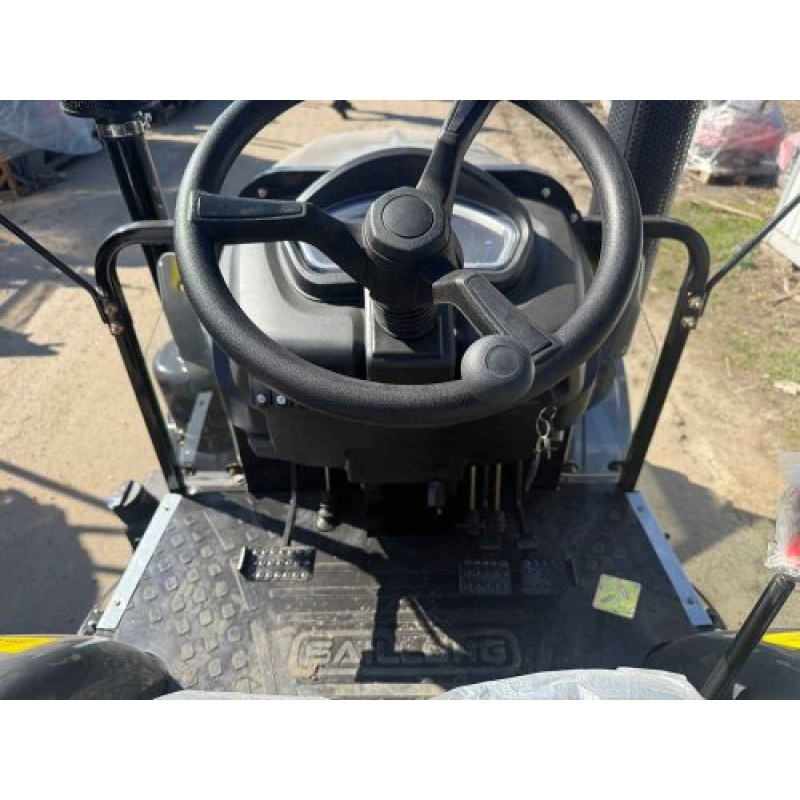

The transmission features a (4+4)x2 gearbox, the clutch is a dry 2-disc type, and the final drive is direct. A rear differential lock is available to improve off-road capability. Steering is hydraulic (power steering), ensuring comfortable maneuvers, and the braking system is implemented on the secondary shaft of the gearbox with brake drums.

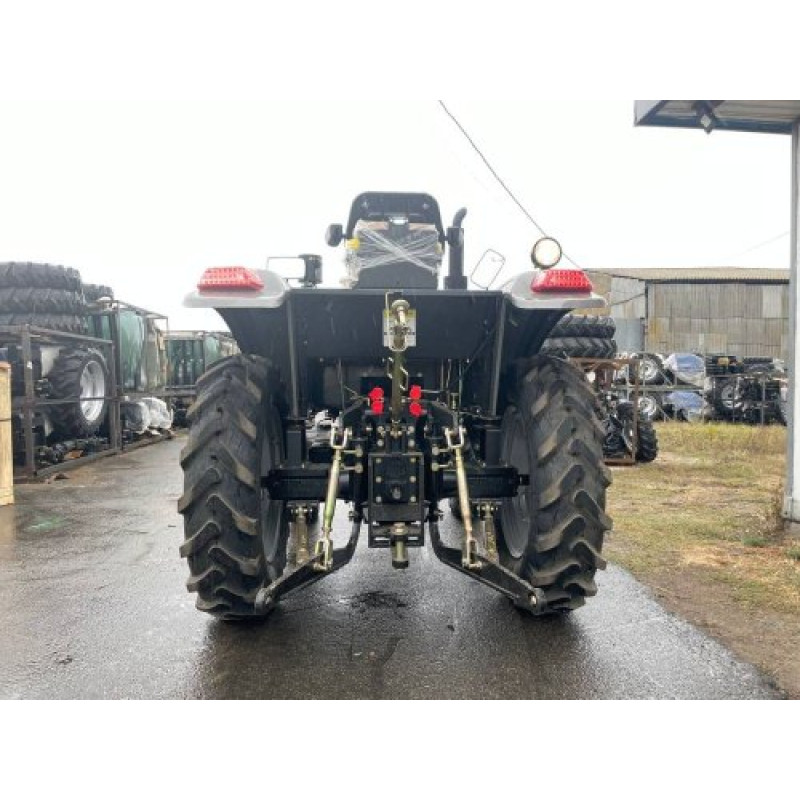

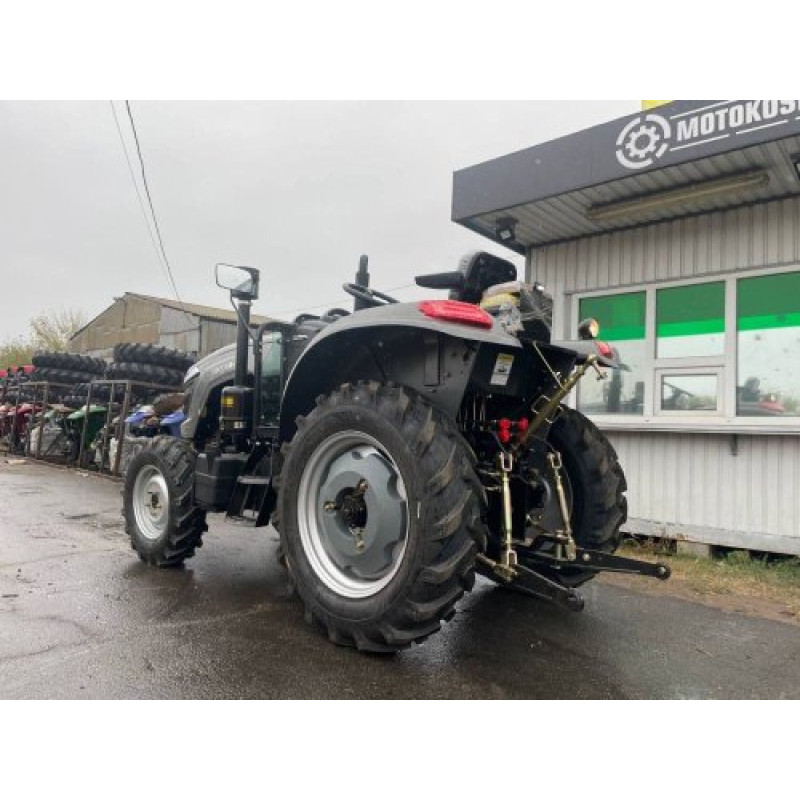

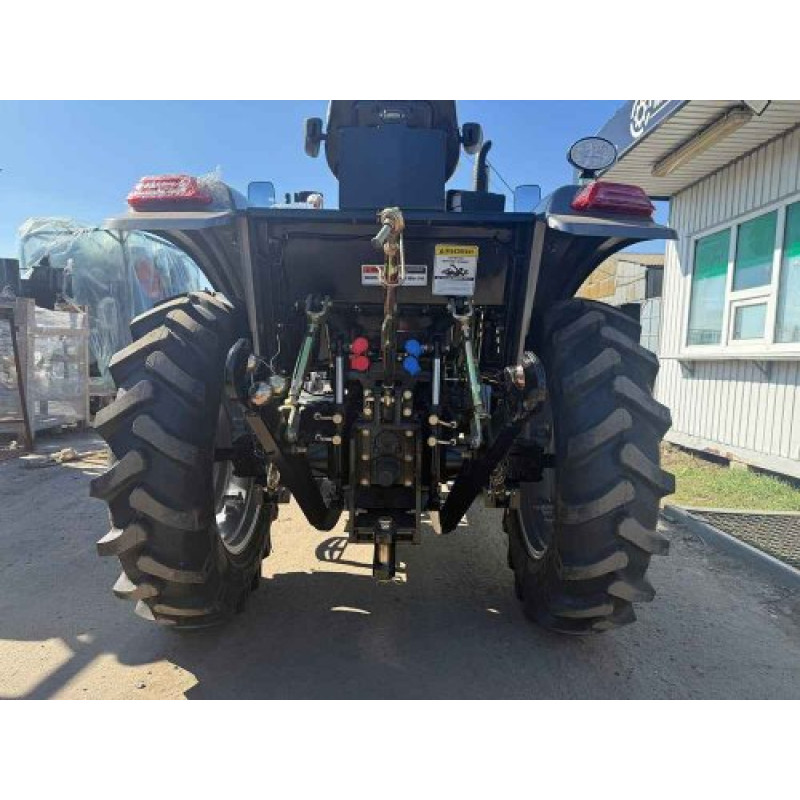

The power take-off (PTO) shaft is rear, splined, with modes of 540 / 1000 rpm, ensuring compatibility with a wide range of mounted and trailed equipment. The hydraulic system pump type is a gear pump for driving the hitch and a separate gear pump for power steering operation. The number of hydraulic outlets is 2, and the lifting capacity of the hitch mechanism is 750 kg.
Chassis, Dimensions, and Technical Parameters
The wheel formula is 4x4. The front/rear wheel track is 1200-1500 / 1200-1500 mm. Tire size: front 7.50-16, rear 11.20-24. The tractor's ground clearance is 310 mm. Dimensions (LxWxH) are 3350x1620x2100 mm, and the curb weight is 1590 kg. The model has a trailer connector (socket) and a compressor, which increases its versatility in operation.
Technical Specifications:
| Engine power, hp (kW) | 40 (29.4) |
| Wheel formula | 4x4 |
| Engine type | diesel, 4-stroke, KM490BT |
| Number and arrangement of cylinders | 4, vertical |
| Engine starting system | electric starter |
| Cooling system | liquid, closed, with forced circulation of coolant |
| Cooling system fan drive | V-belt drive |
| Engine displacement, cm3 | 2545 |
| Nominal engine fuel consumption, g/kWh | ≤238 |
| Gearbox (КП) | (4+4)x2 |
| Rear differential lock | + |
| Clutch | dry 2-disc |
| Final drive | direct |
| Steering | hydraulic |
| Brakes | on the secondary shaft of the gearbox, brake drums |
| Power take-off (PTO) shaft | rear, splined |
| Hydraulic system pump type | gear pump for hitch drive / gear pump for power steering operation |
| Hitch lifting capacity | 750 kg |
| Power take-off (PTO) shaft speed, rpm | 540 / 1000 |
| Wheel track | front 1200-1500, rear 1200-1500 |
| Tire size | front 7.50-16, rear 11.20-24 |
| Ground clearance, mm | 310 |
| Number of hydraulic outlets | 2 |
| Trailer connector (socket) | + |
| Compressor | + |
| Dimensions LxWxH mm | 3350x1620x2100 |
| Curb weight, kg | 1590 |
The Scout TY-404 Mini Tractor is an ideal choice for farmers and farm owners who need powerful, economical, and versatile equipment with all-wheel drive, advanced hydraulics, and the ability to work with various mounted equipment. Thanks to the splined PTO with two speed modes and the presence of a trailer connector and compressor, this tractor demonstrates high adaptability in field and utility tasks.
