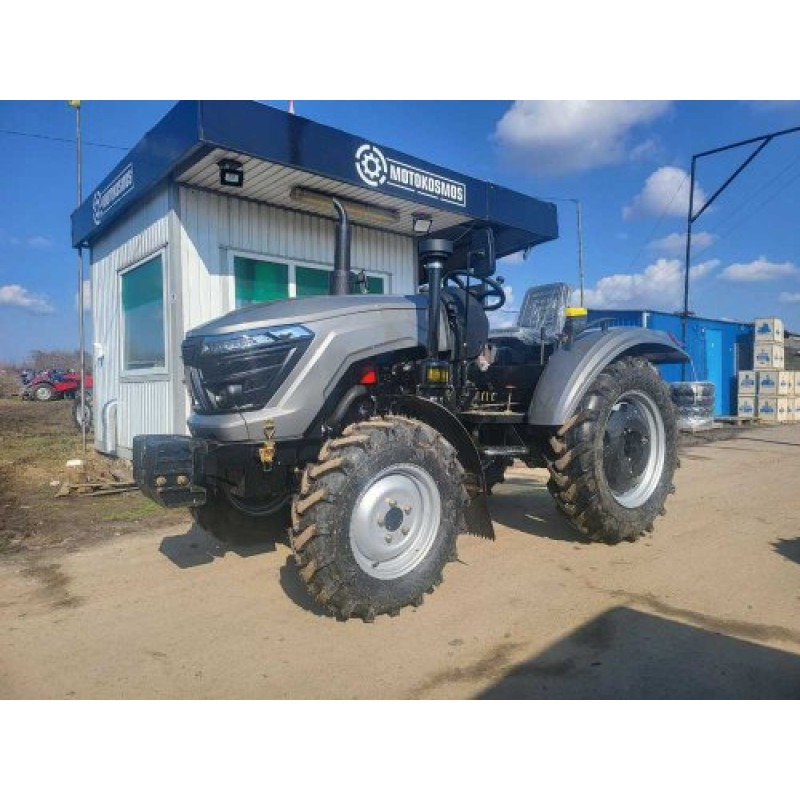

Scout TY-254 Mini Tractor — Powerful and Reliable Assistant for Small Farms
Brand: Scout. Category: Tractors > Mini Tractors. Product Type: Tractors, Motorcycles, ATVs, Boats (Vehicle) > Tractors > Mini Tractors. The Scout TY-254 mini tractor combines compact dimensions, all-wheel drive, and a well-thought-out design to perform a wide range of agricultural and municipal tasks. It is an optimal choice for farmers, owners of homestead plots, and municipal enterprises looking for a versatile and economical unit.
Advantages and Purpose
- Efficient operation on various soil types thanks to the 4x4 wheel formula and rear differential lock.
- Economical three-cylinder KM385 diesel engine provides reliable service life with moderate fuel consumption.
- Versatility: plowing, cultivation, fertilizing, transportation, working with mounted and trailed equipment, haymaking, and other tasks.
- Ease of control and maneuvering: power steering and optimal wheelbase ensure operator comfort and work precision.
The mini tractor features a robust mechanical gearbox, reliable clutch, and low operating costs, guaranteeing long service life in challenging conditions. The well-designed three-point hitch allows for connecting various mounted and trailed equipment, and two PTO modes increase compatibility with different types of implements.
Technical Specifications:
| Engine power, hp (kW) | 24 (17.6) |
| Wheel formula | 4x4 |
| Engine type | 3 cylinders, KM385 diesel engine |
| Engine displacement, cm3 | 1532 |
| Nominal fuel consumption g / kW * h | 275 |
| Nominal engine crankshaft speed rpm | 2350 |
| Nominal traction force kN | 4.7 |
| Gearbox (transmission) | mechanical (4+4)x2 |
| Rear differential lock | Yes |
| Clutch | Dry, dual-disc |
| Power steering | Yes |
| Braking mechanism | drum type |
| Power take-off (PTO) speed rpm | 540/1000 |
| Maximum lifting capacity of three-point hitch, kg | 660 |
| Wheelbase, mm | 1680 |
| Front wheel track, mm | 1220-1440 |
| Rear wheel track, mm | 1180-1370 |
| Front tire size | 7.5-16 |
| Rear tire size | 11.20-24 |
| Fuel tank volume L | 46 |
| Overall dimensions (LxWxH), mm | 3160x1670x1980 |
| Structural weight, kg | 1450 |
With 24 hp (17.6 kW) of power combined with a nominal traction force of 4.7 kN, the Scout TY-254 is a balanced solution for medium-load tasks. The mechanical (4+4)x2 gearbox provides a wide selection of speeds for field and flat terrain work, and the structural weight of 1450 kg ensures stability when working with mounted equipment.
The KM385 diesel engine with a displacement of 1532 cm3 and a nominal speed of 2350 rpm demonstrates reliability and durability, while a nominal fuel consumption of 275 g/kW*h makes operation economical. The presence of power steering and a rear differential lock increases off-road capability and ease of control in conditions requiring high maneuverability.
The Scout TY-254 is suitable for cultivating small and medium-sized land plots, cleaning territories in municipal services, transporting goods, and working with a wide range of mounted implements, for which PTO modes of 540/1000 rpm are available. Contact specialists for consultation and selection of the optimal configuration according to your tasks.
