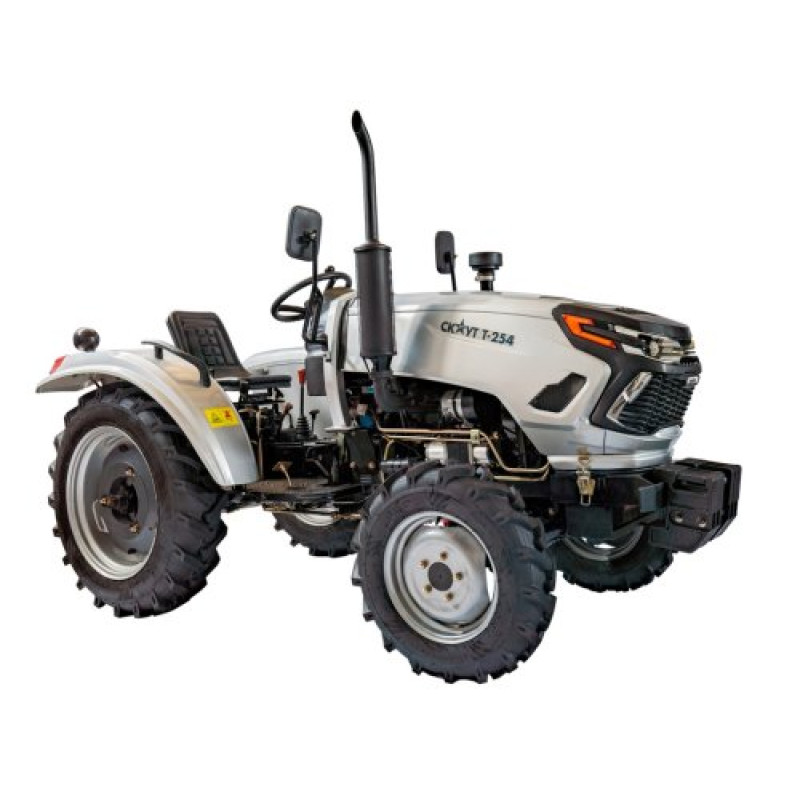

Mini Tractor Scout T-254 — Description and Advantages

The Scout T-254 mini tractor from the manufacturer Scout is a compact, reliable, and functional machine for small and medium-sized farms. Product type: Tractors, Motorcycles, ATVs, Boats (Vehicle) > Tractors > Mini Tractors. The T-254 model is designed for intensive work on farms, in gardens, in the municipal sector, and for small agricultural operations. Available for sale in the Flash Army online store with delivery across Ukraine, payment upon receipt, cash, bank transfer, credit, or installment options.

Engine and Electrical System

The tractor is equipped with a 24 hp (17.6 kW) diesel engine, 3 cylinders, model KM385, with a displacement of 1532 cm3. Nominal crankshaft speed is 2350 rpm. Nominal fuel consumption is 275 g/kWh. The engine has an air preheating system in the manifold for quick starting at low temperatures (down to -25 °C). The electrical system includes an external 350 W generator and a 100 Ah battery. The filtration system is three-level: top cover, metal filter, oil bath; multi-level fuel purification is used.

Chassis, Transmission, and Steering

Chassis: 4x4 all-wheel drive, mechanical gearbox with (4+1)x2 configuration and 10 shifts. Nominal traction force is 4.7 kN. There is forced rear differential lock and adjustable front and rear track. Clutch is dry, single-disc; braking mechanism is drum-type. The description contains an ambiguous mention of power steering: the text mentions power steering with a separate pump and fluid reservoir, while the technical table indicates "No" for power steering — please clarify the availability of power steering with the seller. Also, the text indicates a fuel tank volume of 50 L, but the technical table shows 20 L; please check the final configuration upon purchase.

Operator Comfort and Dashboard

Comfortable operation: spacious workplace, suspension seat, ergonomic lever placement. The digital panel monitors engine hours, fuel level, coolant temperature, oil pressure, and has a tachometer. The maximum lifting capacity of the hitch mechanism is 420 kg, allowing the tractor to be aggregated with various attachments.

Areas of Application

  • Agriculture: soil cultivation, sowing of vegetable and grain crops, potato planting, harvesting and transportation of crops.
  • Municipal sector: cleaning and leveling areas with a dozer blade, brush, front loader.
  • Farming: aggregation with a rotary or segment mower, baler for hay and feed harvesting.
  • Garden and park work: inter-row cultivation, irrigation, fertilization, and spraying.

Technical Specifications

Engine power, hp (kW)24 (17.6)
Wheel formula4x4
Engine type3 cylinders, KM385 diesel engine
Engine displacement, cm31532
Nominal fuel consumption g / kWh275
Nominal engine crankshaft speed rpm2350
Nominal traction force kN4.7
Gearbox (transmission)mechanical (4+1)x2
Rear differential lockYes
ClutchDry, single-disc
Power steeringNo
Braking mechanismdrum-type
Power take-off (PTO) speed rpm540/1000
Maximum lifting capacity of hitch mechanism, kg420
Wheelbase, mm1730
Front wheel track, mm1220, 1440
Rear wheel track, mm1120-1450
Front tire size6.0-16
Rear tire size9.5-24
Theoretical forward speed, km / h2.11-32.19
Theoretical reverse speed, km / h1.68-7.75
Fuel tank volume L20
Overall dimensions (LxWxH), mm3400x1465x1980
Structural weight, kg

1350

The Scout T-254 model combines technical simplicity and functionality, making it a cost-effective choice for farmers, private farm owners, and municipal enterprises. To clarify the configuration, availability of options (including power steering), and final price, please contact the Flash Army seller — we will help you choose the equipment for your tasks. Product code: 15291. Brand: Scout.
