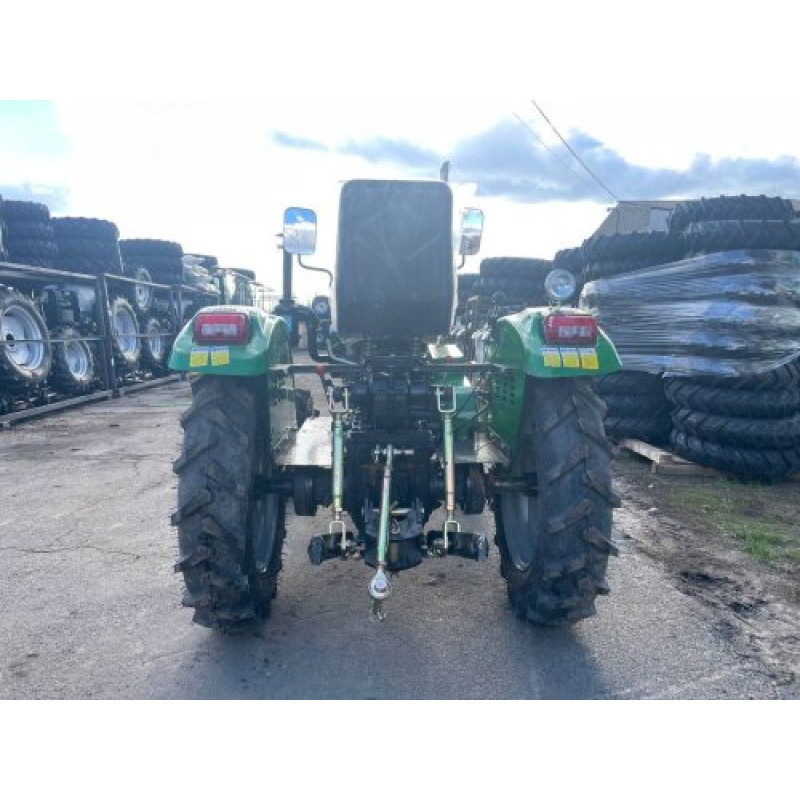

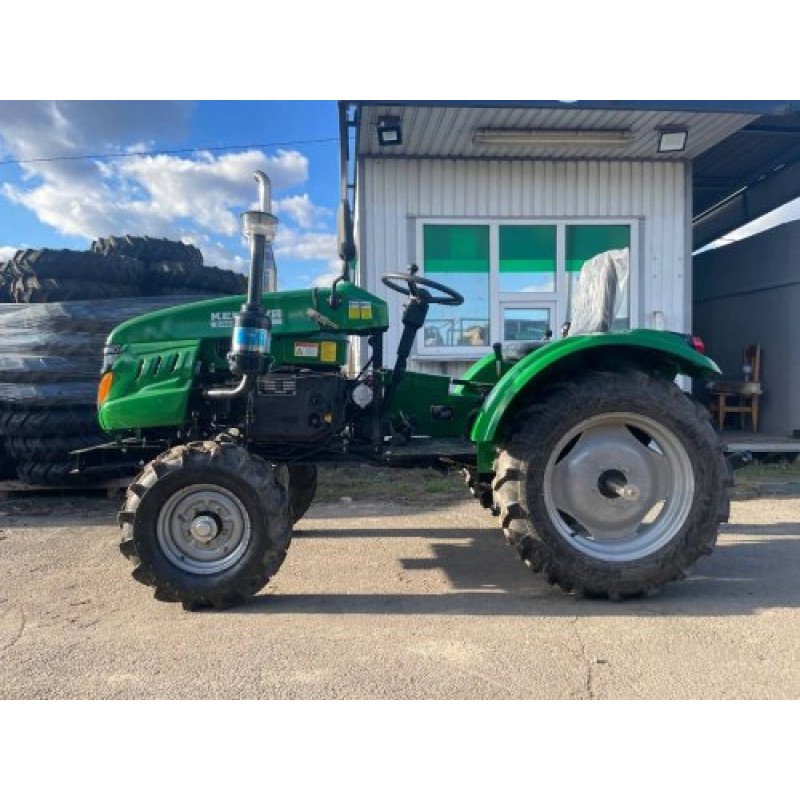

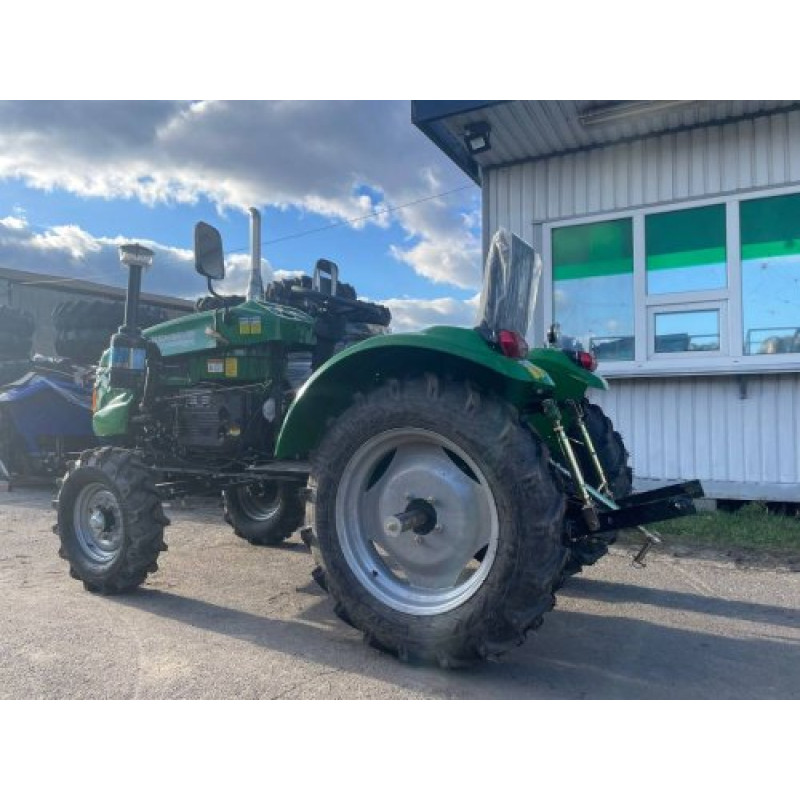

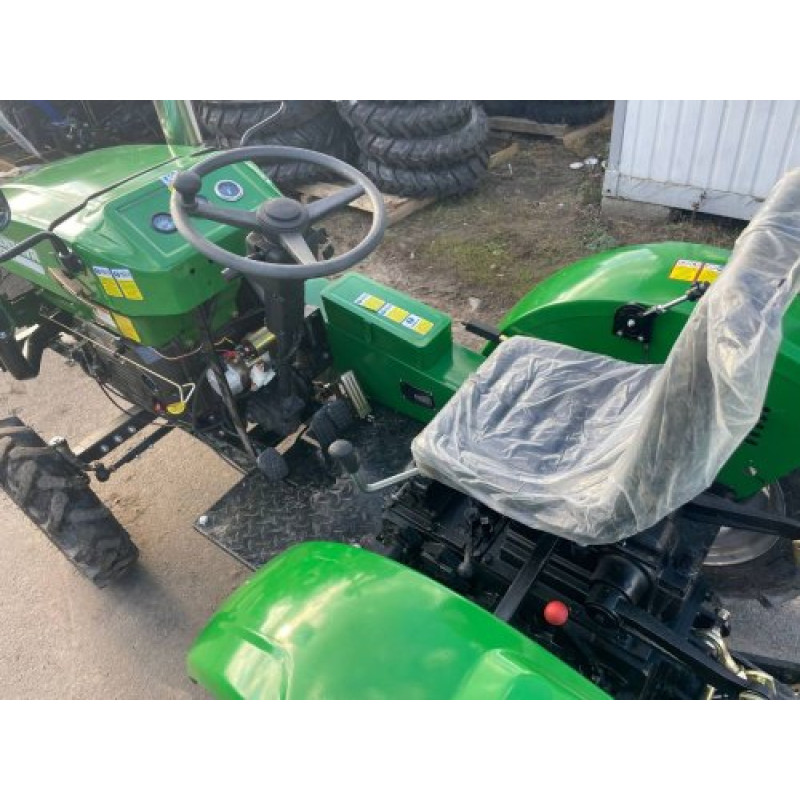

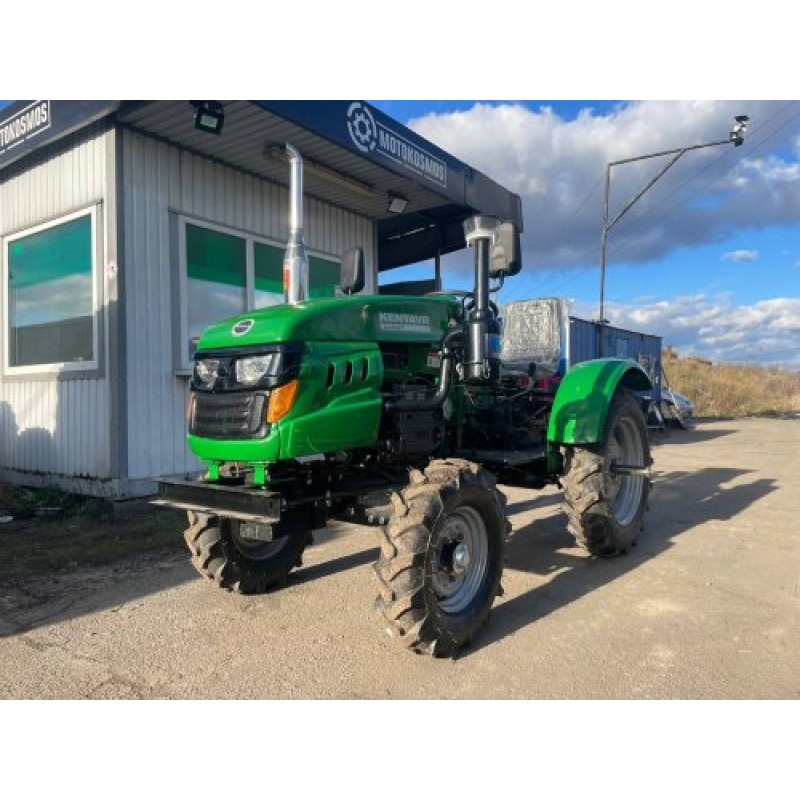

Mini Tractor KENTAVR 240BP
Brand: KENTAVR. The compact and versatile mini tractor KENTAVR 240BP is designed for a wide range of tasks on the farm, in the garden, for household use, and for municipal services. With 24 hp of power, a reliable diesel engine, and a well-designed transmission, this model efficiently works with mounted and trailed equipment.
This model belongs to the category: Tractors > Mini Tractors. It is suitable for small and medium-scale soil cultivation, cargo transportation, and work with plows, cultivators, and other mounted implements. The body and components are designed for intensive use, and its 740 kg weight ensures maneuverability and stability on fields and paths.
Key Advantages
- Economical 4-stroke diesel engine with forced (pump) cooling — reliability and long service life.
- 24 hp power — sufficient for most agricultural and household tasks.
- Universal gearbox (3+1)x2 with reverse for convenient maneuvering and operation in both directions.
- Power take-off (PTO) shaft with standard 540 rpm for connecting a wide range of mounted equipment.
- Maximum lifting capacity of the mounted mechanism 300 kg — for lifting medium plows, cultivators, harrows, and other implements.
Technical Specifications
A full list of technical parameters is provided below:
| Engine Power | 24 hp |
| Wheel Formula | 4x2 |
| Engine Type | 4-stroke, diesel engine with pump cooling |
| Gearbox | (3+1)x2 |
| Clutch | dry, single-disc |
| Cooling System Fan Drive | external in oil bath |
| Braking Mechanism | drum type |
| PTO Speed, rpm | 540 |
| Maximum Lifting Capacity of Mounted Mechanism, kg | 300 |
| Front Tire Size | 6.0-12 |
| Rear Tire Size | 7.5-20 |
| Front Wheel Track, mm | 950, 960, 970, 980 |
| Rear Wheel Track, mm | 1000-1240 |
| Ground Clearance, mm | 280 |
| Theoretical Forward Speed, km/h | 27 |
| Theoretical Reverse Speed, km/h | 10 |
| Fuel Tank Capacity, L | 15 |
| Overall Dimensions (LxWxH), mm | 2850x1270x1770 |
| Weight, kg | 740 |
The model is equipped with drum brakes and a dry single-disc clutch, simplifying maintenance. The ability to adjust the rear wheel track width within 1000–1240 mm and select the front track from 950, 960, 970, or 980 mm allows the tractor to be adapted to various crops and working conditions. A ground clearance of 280 mm ensures confident passage over uneven terrain and between rows.
Dimensions of 2850x1270x1770 mm and a weight of 740 kg make the KENTAVR 240BP a compact and stable unit for small and medium-sized farms. The 15 L fuel tank provides long autonomous operation without frequent refueling. Thanks to the 540 rpm PTO and 300 kg lifting capacity, the tractor is compatible with a large number of mounted implements and allows for various agricultural and municipal tasks.
The KENTAVR 240BP is a practical choice for those who need a reliable mini tractor for soil cultivation, garden care, cargo transportation, and municipal work.
