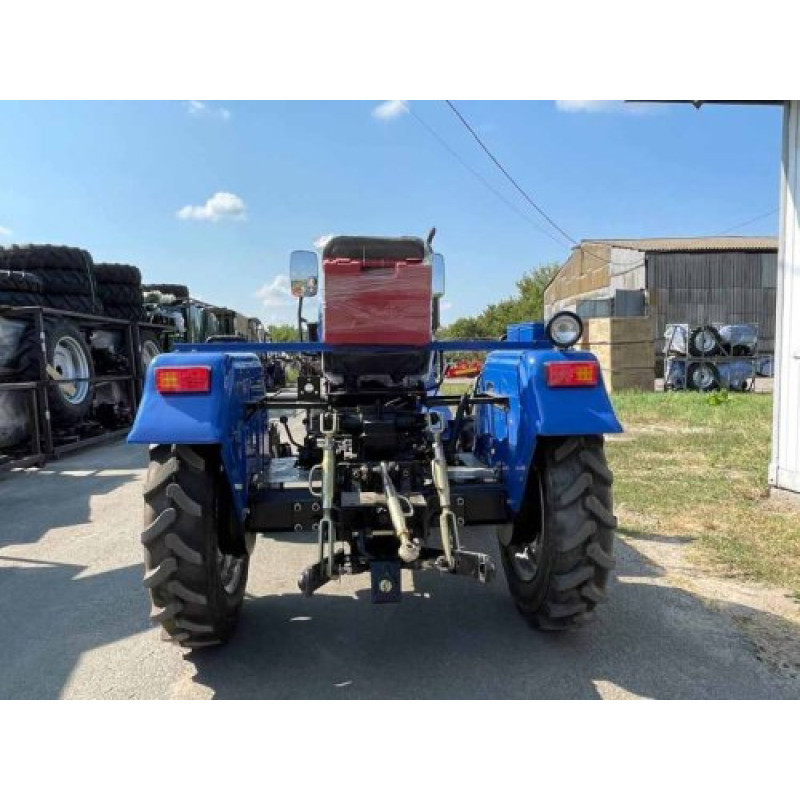

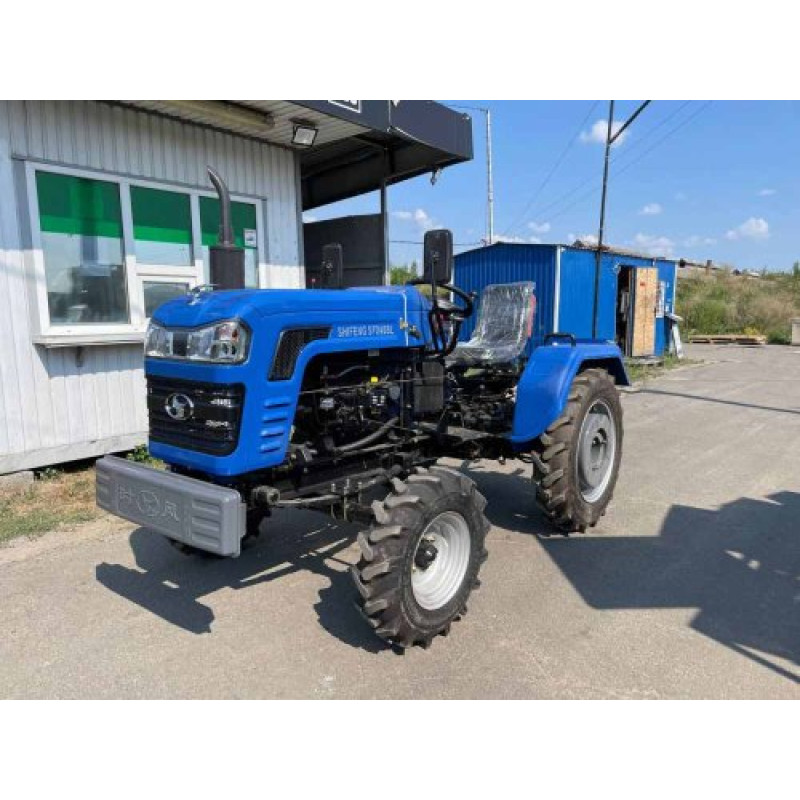

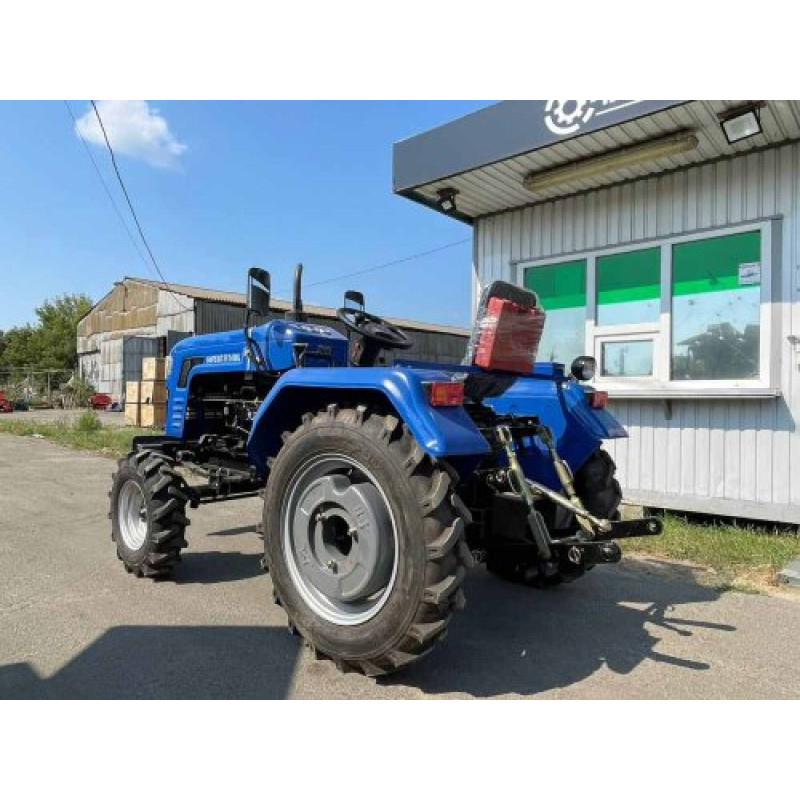

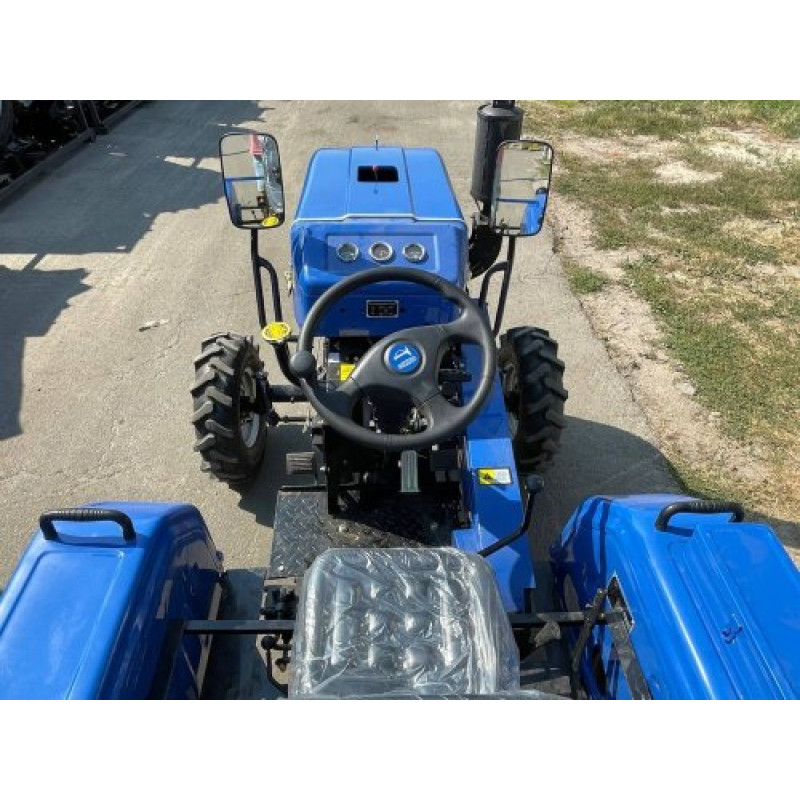

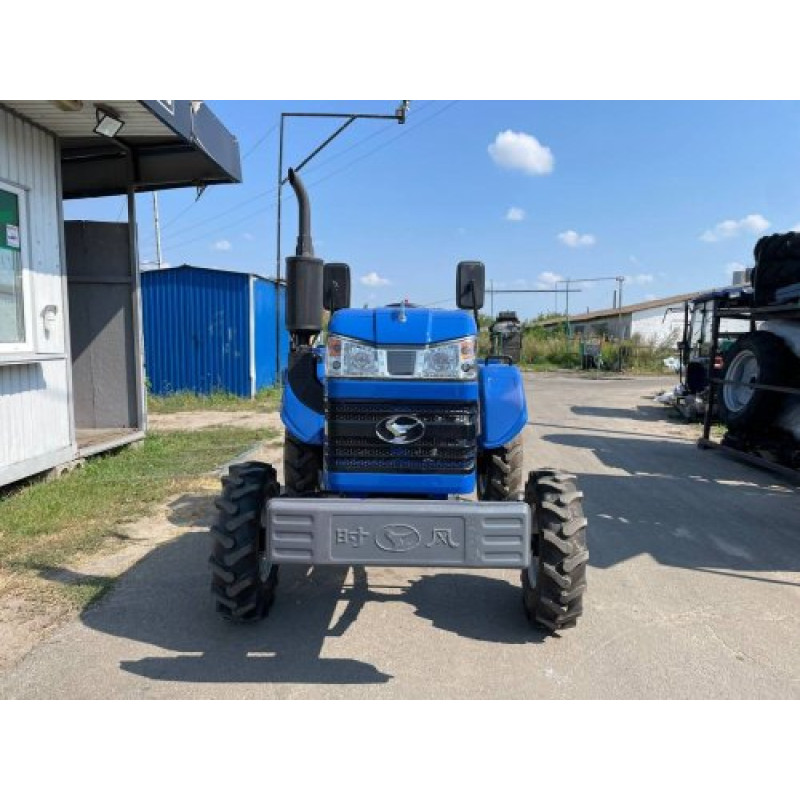

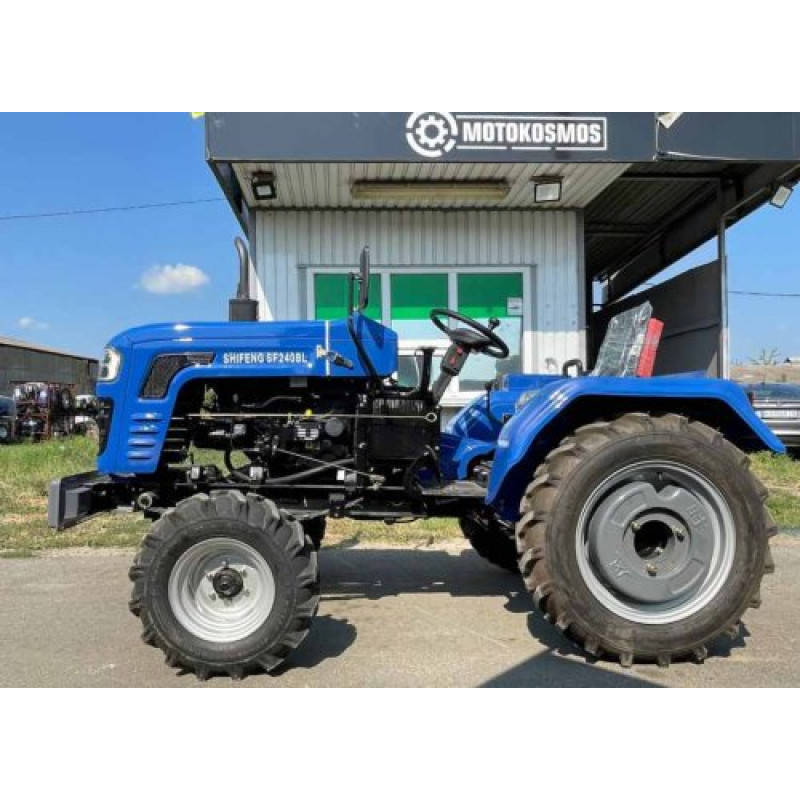

Mini Tractor Shifeng SF-240BL — Reliable Compact Assistant with 24 HP
The Shifeng SF-240BL mini tractor from the manufacturer Shifeng is a balanced unit in the Tractors > Mini Tractors category, combining an economical diesel engine, simple operation, and versatile application. The model is equipped with a 4-stroke, water-cooled diesel engine with a displacement of 1,344 cm3, developing a nominal power of 24 HP (17.6 kW) at 2,200 rpm. The nominal fuel consumption is ≤252 g/kWh, and the fuel tank holds 9 L, ensuring cost-effective operation without frequent refueling.
Specifications
| Engine power, HP (kW) | 24 HP (17.6) |
| Wheel formula | 4x2 |
| Engine type | 4-stroke water-cooled diesel engine |
| Engine displacement, cm3 | 1,344 |
| Nominal fuel consumption, g/kWh | ≤252 |
| Nominal crankshaft speed, rpm | 2,200 |
| Nominal traction force, kN | 4.7 |
| Transmission (gearbox) | non-synchronized mechanical (3 forward + 1 reverse) x 2 |
| Rear differential lock | yes |
| Clutch | dry, single-disc |
| Brake mechanism | drum type |
| Power take-off (PTO) speed, rpm | 540 |
| Maximum lifting capacity of hitch mechanism, kg | 300 |
| Wheelbase, mm | 1480 |
| Front wheel track, mm | 1170 |
| Rear wheel track, mm | 1200 |
| Front tire size | 6.0-12 |
| Rear tire size | 7.5-20 |
| Theoretical forward speed, km/h | 2.5-27.0 |
| Theoretical reverse speed, km/h | 5.5 |
| Fuel tank capacity, L | 9 |
| Engine crankcase capacity, L | 4.5 |
| Gearbox and rear axle crankcase capacity, L | 10 |
| Lift housing capacity, L | 3.2 |
| Engine cooling system capacity, L | 8 |
| Overall dimensions (LxWxH), mm | 2860x1400x1770 |
| Structural weight, kg | 1040 |
The model's transmission is a non-synchronized mechanical gearbox with two ranges (3 forward + 1 reverse x2), allowing for convenient operation at slow speeds for heavy tasks and faster speeds for transport. The presence of a rear differential lock enhances off-road capability on difficult terrains. The dry single-disc clutch simplifies maintenance, and drum brakes ensure reliable braking in field conditions.
The 540 rpm PTO allows for connecting a wide range of small-class mounted and trailed equipment. The maximum lifting capacity of the hitch mechanism is 300 kg, enabling most gardening, farming, and household tasks.
Advantages of Shifeng SF-240BL:
- Economical 24 HP 4-stroke diesel engine, ensuring stable operation and moderate fuel consumption.
- Compact dimensions of 2860x1400x1770 mm and a structural weight of 1040 kg for easy maneuvering in confined areas.
- Versatile transmission with two gear ranges and differential lock capability for operation in various conditions.
- 540 rpm PTO for connecting plows, tillers, mowers, and other equipment.
- Reliable components — dry single-disc clutch and drum brakes, simplifying maintenance.
The Shifeng SF-240BL is ideal for soil cultivation, crop planting, area cleaning, short-distance cargo transport, and working with small-class mounted equipment. The well-thought-out design, durable engine, and rational oil and coolant volumes (engine crankcase 4.5 L, gearbox and rear axle 10 L, lift housing 3.2 L, cooling system 8 L) ensure a long service life and ease of maintenance.
