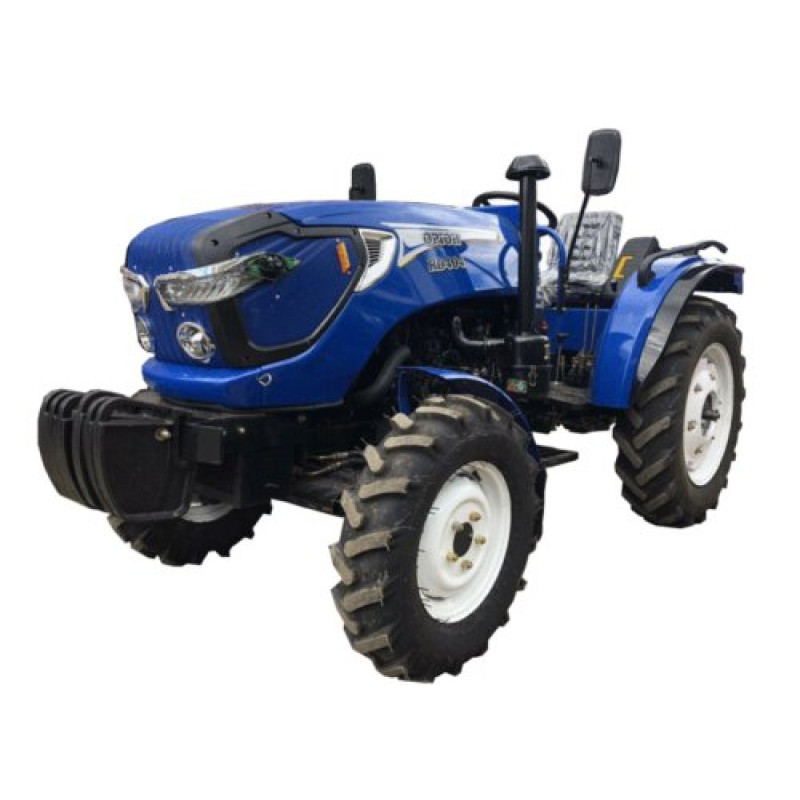

ORION RF-404 Revers Mini Tractor — A Powerful All-Rounder for Your Farm
The ORION RF-404 Revers mini tractor from the manufacturer Orion is modern, reliable, and durable equipment designed for agricultural, municipal, and transport tasks. The RF-404 model in the Revers version is equipped with a reversible gearbox, making it particularly convenient for operations with mounted and trailed equipment.
Key Advantages and Applications
This mini tractor is equipped with a four-cylinder 4L23BT diesel engine with a power output of 40 hp (29.42 kW) and a fuel consumption of 255 g/kWh, ensuring efficient operation under various loads. The power take-off (PTO) shaft operates in two modes — 540 and 1000 rpm, allowing for the connection of a wide range of mounted equipment: plows, tillers, seeders, potato planters, potato diggers, brushes, and blades. Thanks to 4x4 all-wheel drive, differential lock, and front and rear counterweights, the tractor operates confidently even on difficult or narrow terrain.
Transmission, Control, and Operator Comfort
The side-mounted gear shift box has a (4+4) x2 scheme, providing 8 forward and 8 reverse gears; the reverser facilitates maneuvering when working with mounted equipment. Power steering significantly reduces operator effort, and the electric starter ensures quick and reliable engine ignition. The turning radius is 3.2 m, which simplifies work in confined spaces.
Main Advantages:
- Powerful 4L23BT diesel engine, 40 hp (29.42 kW);
- Fuel consumption: 255 g/kWh;
- Power take-off shaft: 540/1000 rpm;
- 4x4 all-wheel drive with differential lock;
- Reverser and power steering for enhanced comfort and maneuverability;
- Ability to connect a wide range of mounted equipment and a maximum lifting capacity of the hitch mechanism of 665 kg.
The Flash Army online store provides doorstep delivery in Kyiv and Ukraine, an official manufacturer's warranty, and flexible payment options: cash, credit, or cashless payment with VAT. To buy the ORION RF-404 Revers, add the product to your cart on the website and wait for a manager's call, or contact us for a consultation.
Technical Specifications:
| Fuel consumption, g/kWh: | 255 |
| Engine type: | 4-stroke, 4-cylinder |
| Engine displacement, cc: | 2545 |
| Power, kW: | 29.42 |
| Power, hp: | 40 |
| Cooling: | water |
| Fuel tank volume, L: | 21 |
| Rotation frequency, rpm: | 2400 |
| Engine start: | electric starter |
| Oil volume in crankcase, L: | 3.5 |
| Cooling system volume, L: | 5 |
| Bore and stroke, mm: | 85/95 |
| Oil consumption, g/kWh: | 2.04 |
| Fuel supply: | direct injection |
| Oil pump: | plunger, inline |
| Clutch type: | dry, dual-disc |
| Ground clearance, mm: | 340 |
| Differential lock: | yes |
| Brake system: | drum brakes |
| Front wheel track, cm: | 1240-1450 |
| Rear wheel track, cm: | 1320-1570 |
| Turning radius, m: | 3.2 |
| Wheel formula: | 4x4 (all-wheel drive), reverser |
| Front tires: | 7.50-16 |
| Rear tires: | 12.40-24 |
| Maximum speed, km/h: | 2.12-31.39 |
| Overall dimensions L/W/H, mm: | 3200/1460/2000 |
| Steering: | with power steering |
| PTO shaft speed: | 540/1000 |
| Maximum lifting capacity of hitch mechanism, kg: | 665 |
| Wheelbase, mm: | 1800 |
| Weight, kg: | 1490 |
Please note: the description mentions rear tires as 11.2"-24 in the review text and 12.40-24 in the specifications table — these are variations in tire marking and sizes that may differ depending on the configuration.
Other important data: manufacturer — Orion; product category — Tractors > Mini Tractors. By purchasing the ORION RF-404 Revers, you get a reliable assistant for any seasonal and daily tasks in the field, on the farm, or in municipal services.
