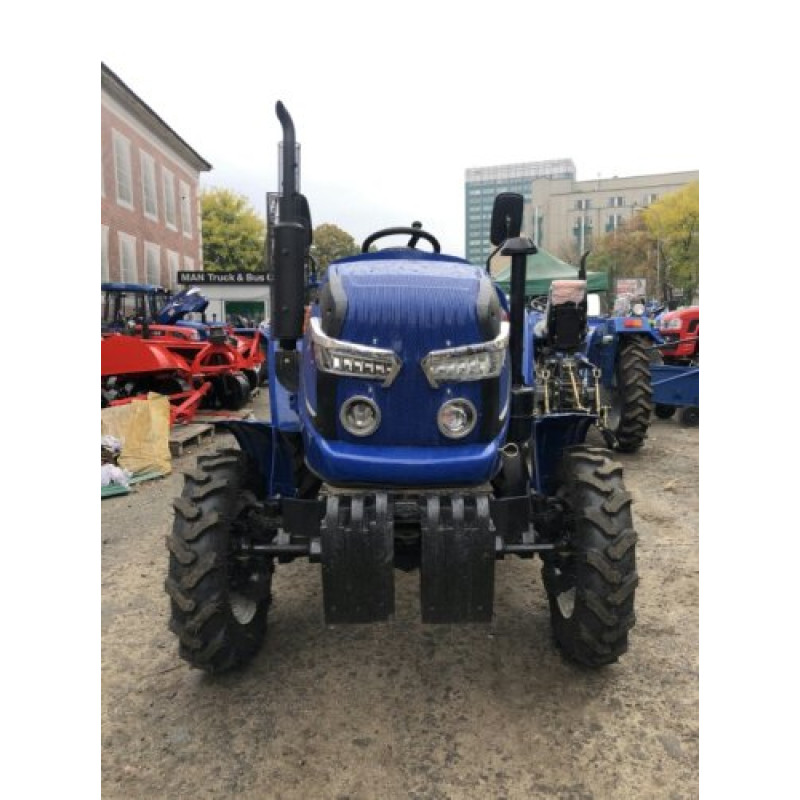

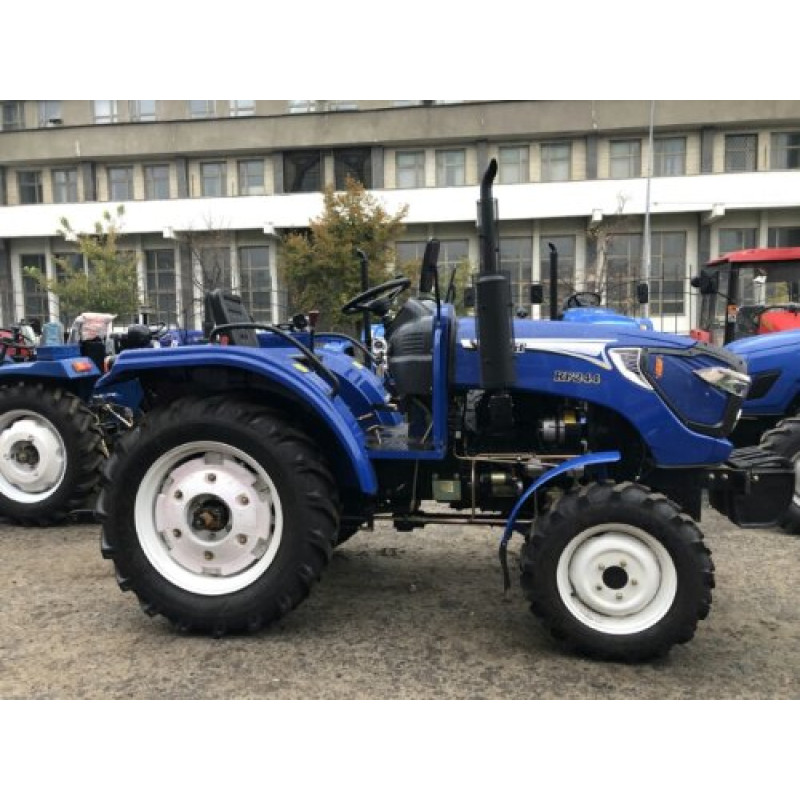

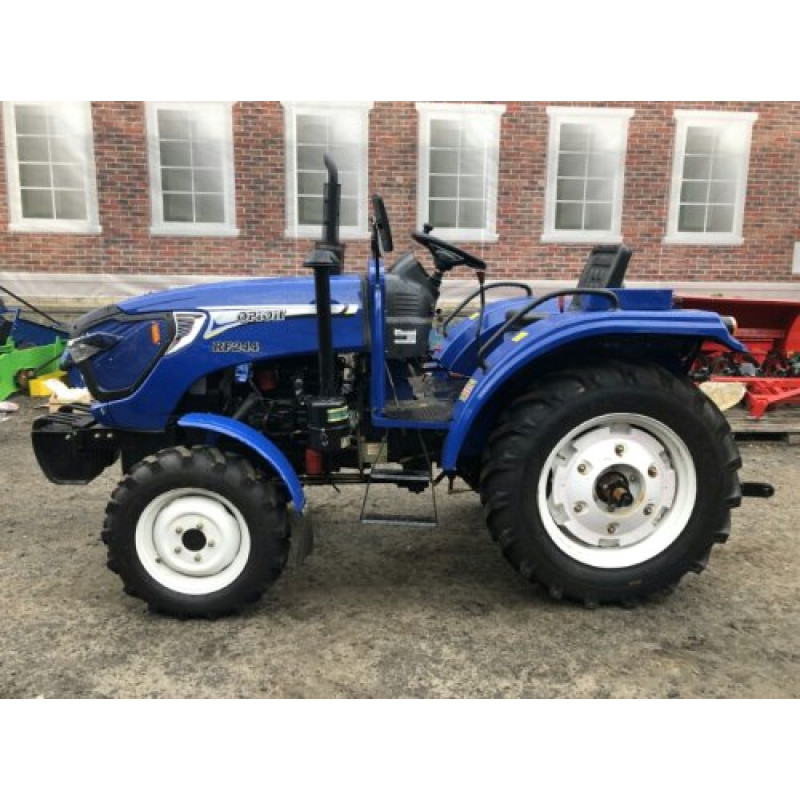

ORION RF 244 Mini Tractor — A Reliable Assistant for Farm and Municipal Work

The ORION RF 244 mini tractor from the manufacturer Orion is a versatile and economical solution for agriculture, transportation, and municipal work. The model combines 24 hp (17.65 kW) of power, compact dimensions of 3100x1500x1900 mm, and durable components, allowing it to be effectively used with a wide range of mounted and trailed equipment. The ORION RF-244 falls into the category: Tractors > Mini Tractors and is ideal for farmers, municipal services, and private households.

Engine and Operational Reliability

Engine: Three-cylinder diesel engine KM385BT, volume 1532 cm3, cylinder diameter/piston stroke 85/90 mm, nominal crankshaft speed 2350 rpm. Starting system — electric starter. Cooling system — liquid-closed with forced circulation, fan drive — V-belt transmission. Nominal fuel consumption ≤245 g/kW*h, nominal oil consumption 2.31 g/kW*h. Recommended oils: for the engine — mineral or semi-synthetic for diesel engines.

Off-road Capability, Transmission, and Steering

Drive and Chassis: 4x4 all-wheel drive, large tires (front 6.50-16, rear 11.2-24), and rear differential lock ensure confident off-road capability on various terrains. The gearbox is side-mounted, with a (4+1)x2 gear scheme providing a wide range of speeds. Clutch — dry 2-disc constantly closed type; main drive — direct. Steering — hydraulic, which, together with power steering, significantly eases operator work.

Maneuverability and Brakes: Minimum ground clearance 300 mm, wheelbase 1700 mm, front track 1200-1450 mm, rear track 1120-1440 mm. Minimum turning radius without brakes 3.0 m, with brakes 2.3 m. Brakes — on the secondary shaft of the gearbox, drum brakes.

Power Take-Off, Hydraulics, and Hitch

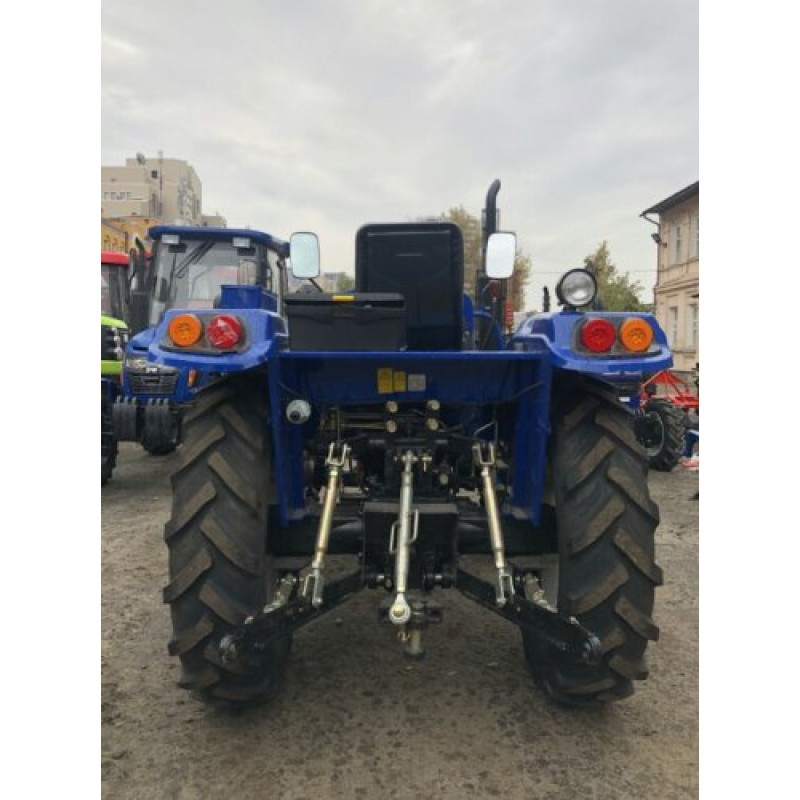

PTO and Hydraulics: The rear splined power take-off shaft operates in two modes: 540 and 1000 rpm, allowing connection of a wide range of agricultural and municipal implements. The hydraulic system is equipped with a gear pump (NSH) for both hitch drive and power steering operation. Maximum lifting capacity of the hitch mechanism — 420 kg. Number of hydraulic outlets — 4. Trailer connector (socket) is present.

Operator Comfort and Configuration

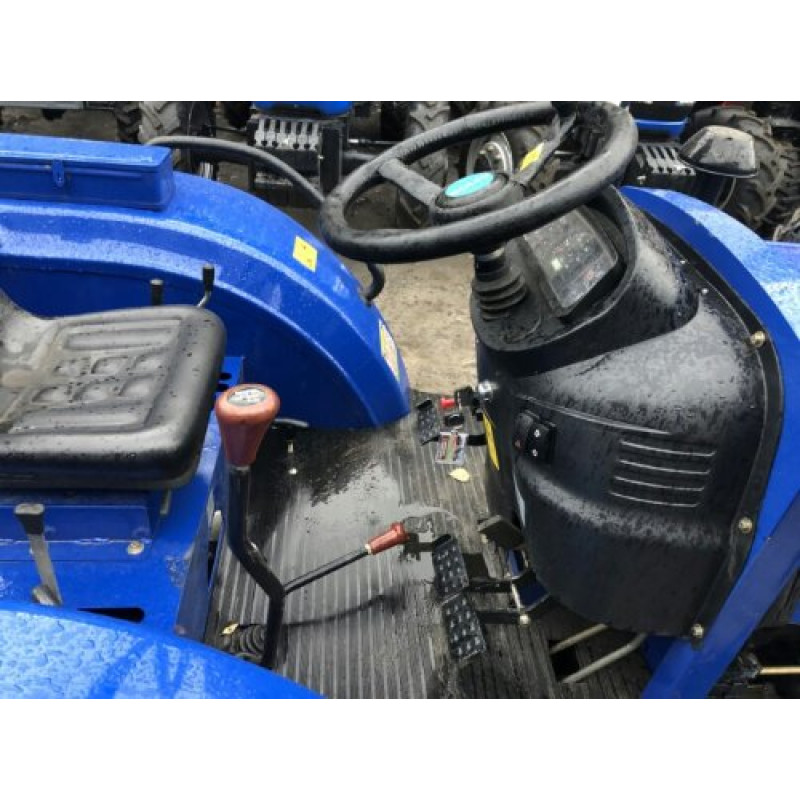

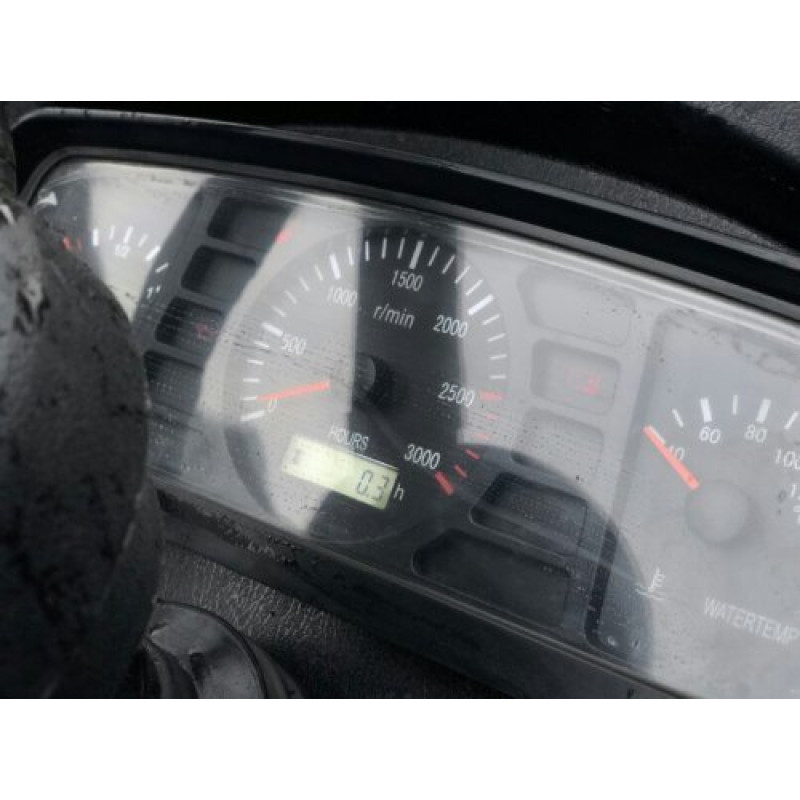

Comfort is provided by a seat with a shock absorber, an informative dashboard, and an hour meter. Rear weights are included in the configuration. A roll bar and compressor are not included. The tractor's curb weight is 1430 kg. Fuel tank capacity — 17.0 L.

Buying the ORION RF-244 at Flash Army store is easy: place an order on the website. We offer doorstep delivery in Kyiv and Ukraine, official manufacturer's warranty, the option to purchase on credit, cash payment, or cashless payment with VAT. Order now and get a reliable mini tractor for your tasks.

Below are the full technical specifications of the ORION RF-244 model:
