Orion RD 244 Mini Tractor — A Powerful and Durable Assistant for Your Farm

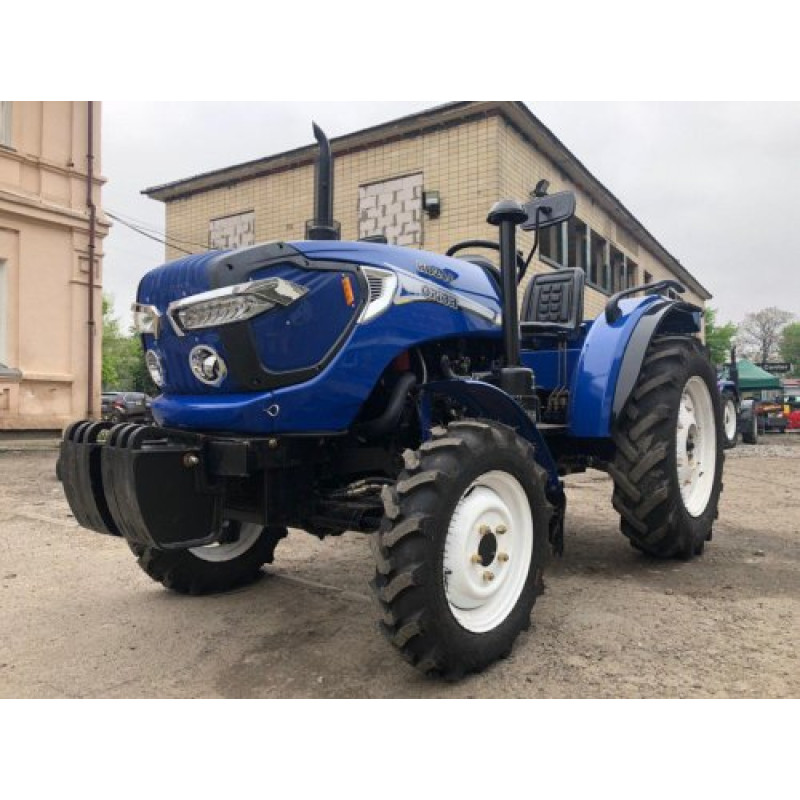

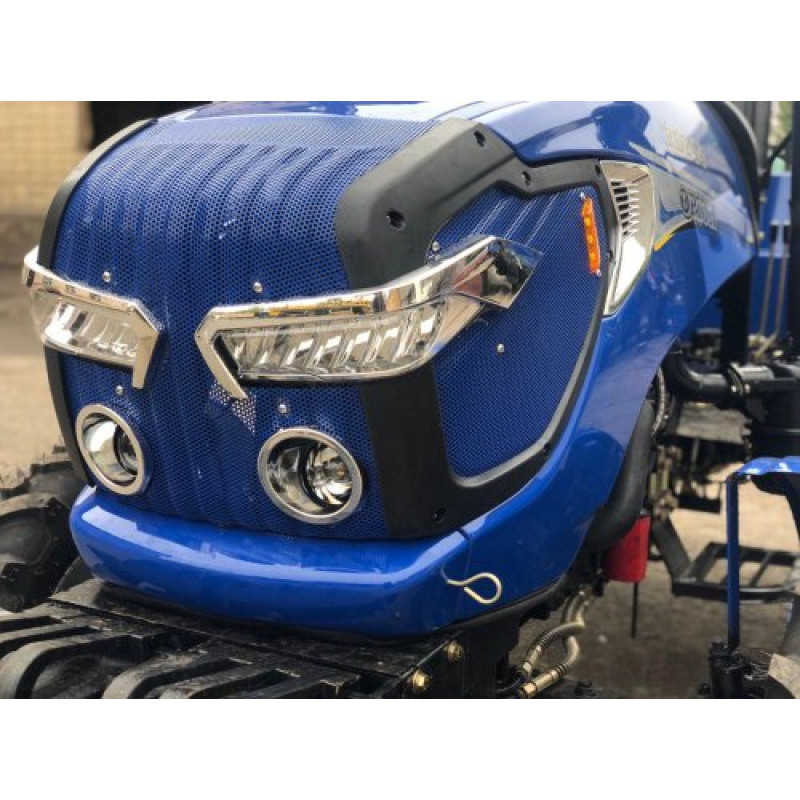

The Orion RD 244 mini tractor from the Orion brand is a new product for 2019, combining modern design, updated optics with projector headlights and LED turn signals, reinforced components, and a competitive price compared to Western counterparts. The RD 244 is designed for intensive use in private and farming households and is suitable for a wide range of agricultural and municipal tasks.

Design Features and Engine

The Orion RD 244 is equipped with a 3-cylinder, 4-stroke diesel engine with a liquid cooling system, providing a maximum power of 24 hp (17.65 kW). The description mentions the popular KM-385bt unit. Engine technical parameters: volume 1531.33 cm3, cylinder diameter/piston stroke 85/90 mm, nominal crankshaft speed 2350 rpm. The starting system is an electric starter, and the fan drive is a V-belt transmission. Recommended oil is mineral or semi-synthetic for diesel engines; nominal fuel consumption ≤275 g/kWh, nominal oil consumption 2.31 g/kWh.

Off-road Capability, Transmission, and Hydraulics

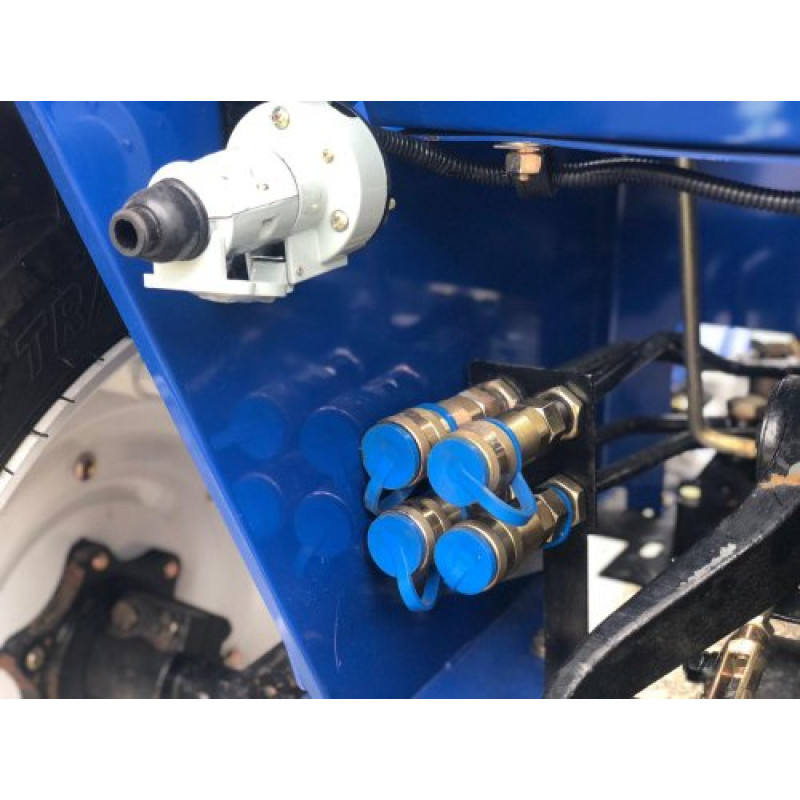

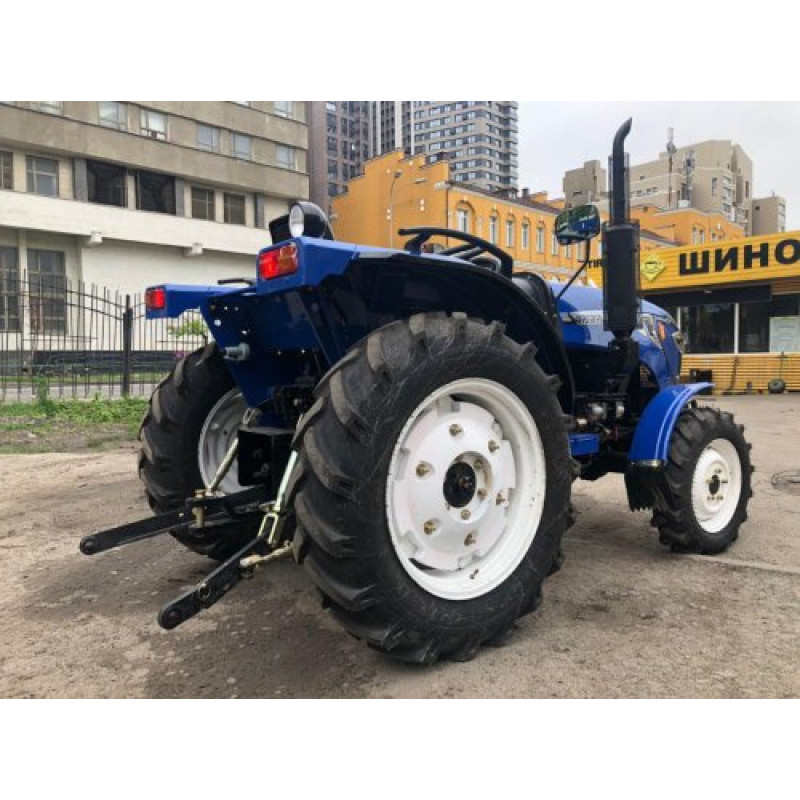

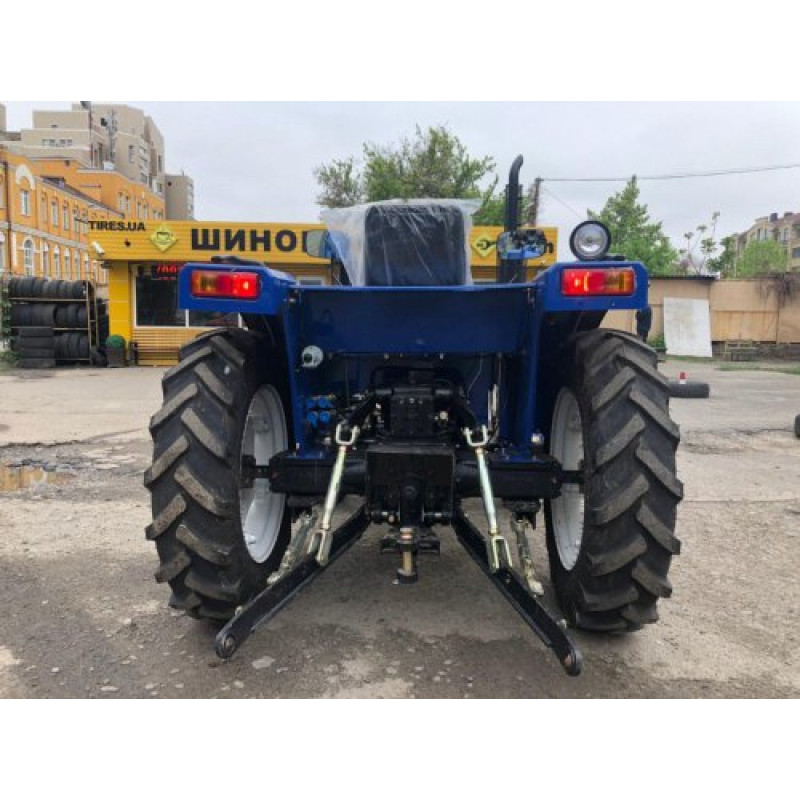

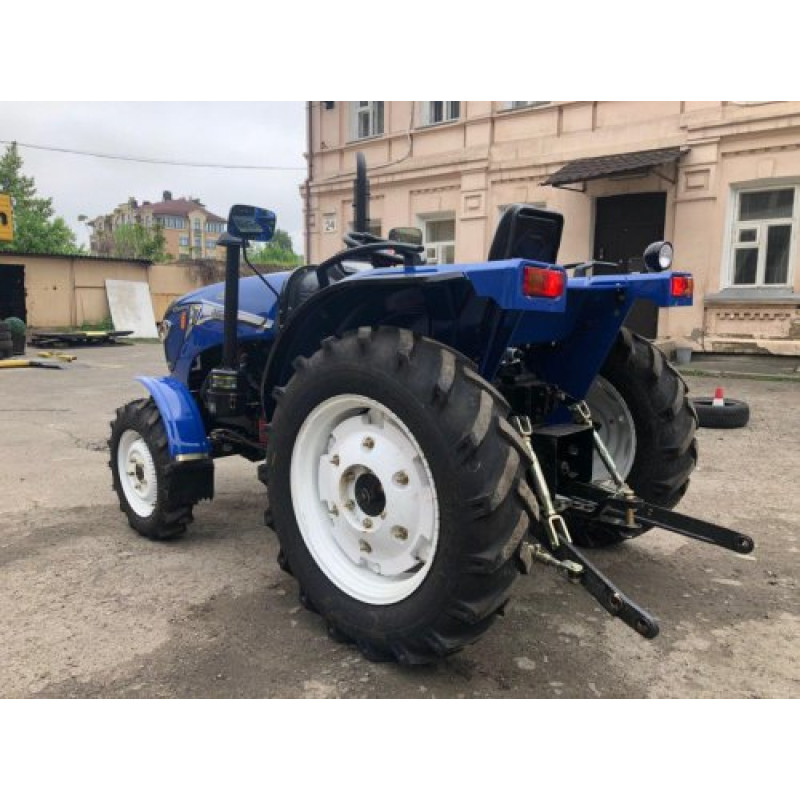

The model features 4x4 all-wheel drive with reinforced gear-driven front and rear axles, rear differential lock, and power steering. The gearbox is implemented according to the (4+1)x2 scheme, the clutch is a dry single-disc constantly closed type, and the main drive is direct. The hydraulic system uses a gear pump (NSh) to drive the hitch and power steering, and there is a reinforced three-point hitch for attachments with a maximum lifting capacity of 420 kg. The power take-off (PTO) is mentioned as two-speed: the description indicates 500/1000 rpm, while the technical table states 540/1000 rpm.

Practical Application

The Orion RD 244 assists in performing the following tasks:

• soil cultivation of any complexity;
• sowing and harvesting;
• forage and hay preparation;
• debris and snow removal;
• transportation of bulk and other goods.

The designers implemented modernization of the front and rear axles, reinforced the hydraulic system, installed updated optics, powerful counterweights on the front and rear wheels, and an ergonomic dashboard. This makes the RD 244 more reliable, stable, and comfortable to operate.

Comfort and Driving Characteristics

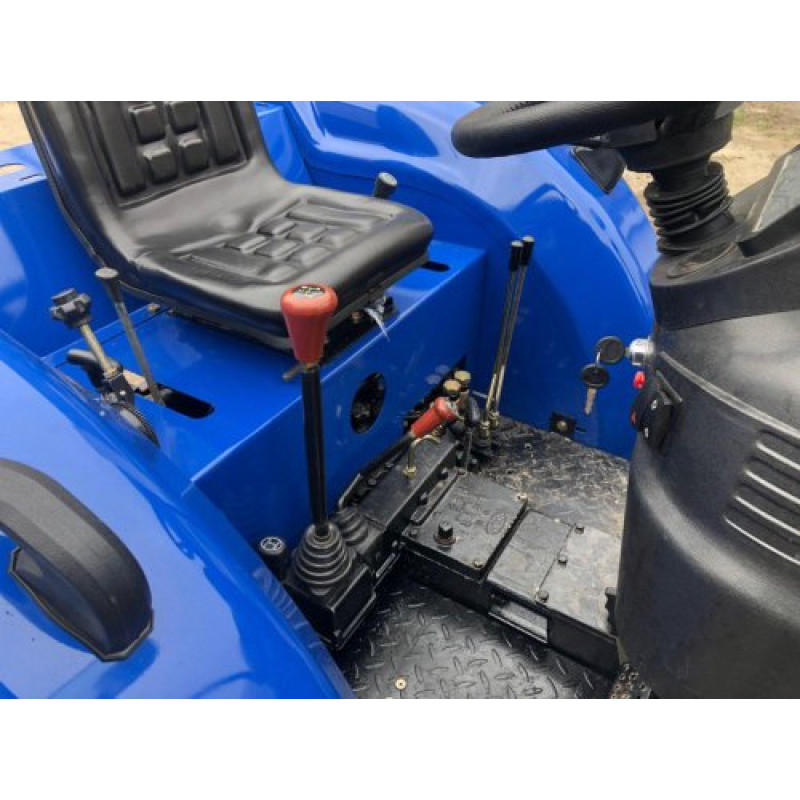

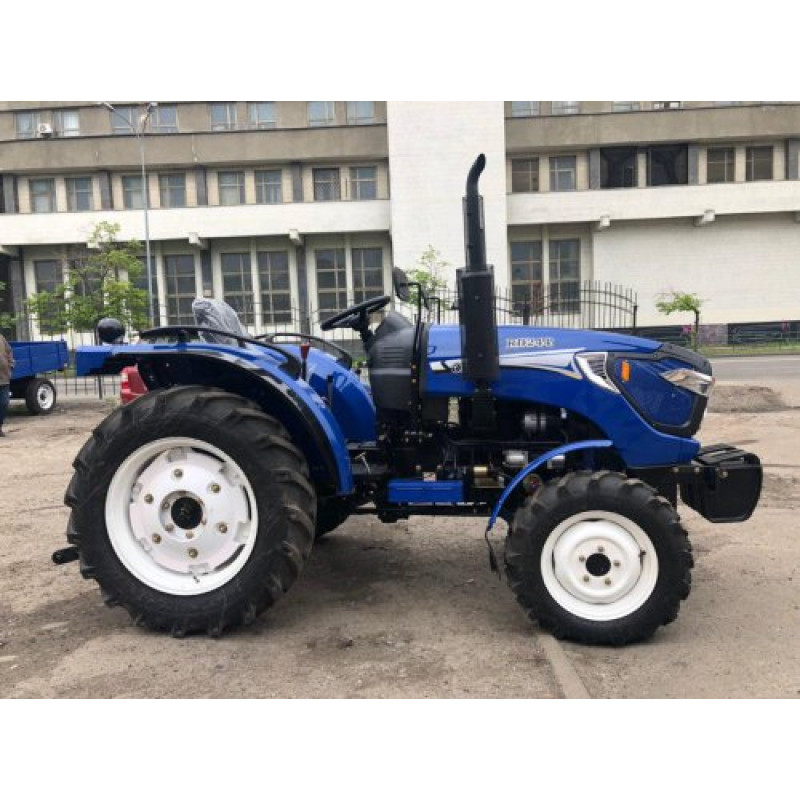

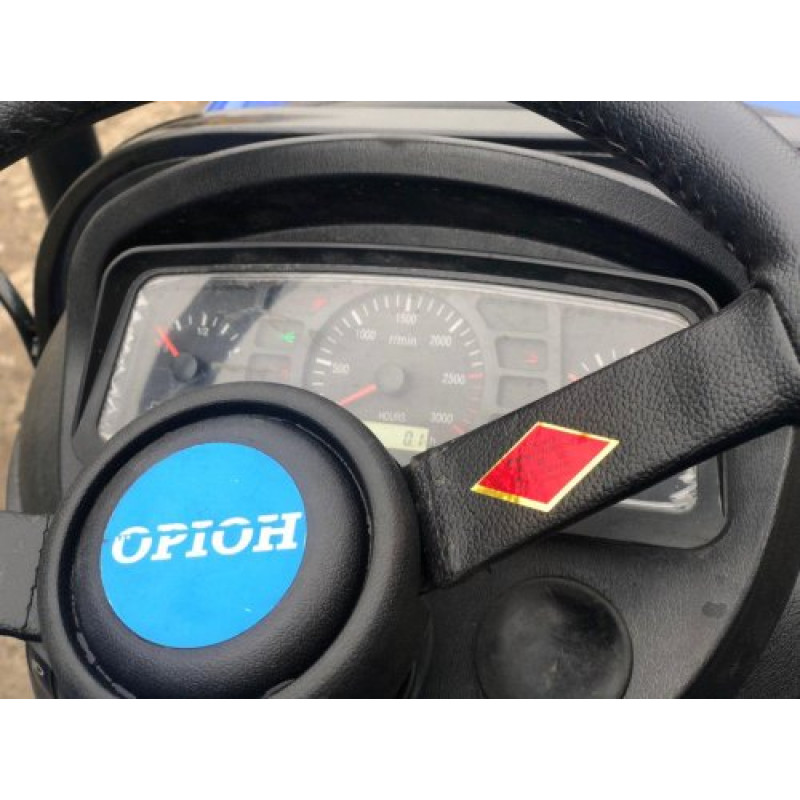

The tractor has a comfortable seat with a shock absorber and an hour meter. The text mentions possible wheel size options: 7.50-16 / 11.20-24, while the technical table indicates 6.50-16 / 9.50-24 — these differences should be clarified with the manager when ordering. The agrotechnical clearance also has variations: the descriptive part states 320 mm, while the technical table indicates a minimum clearance of 300 mm. Wheelbase is 1700 mm, front wheel track 1200 mm, rear 1230 mm. Minimum turning radius: without brakes 3.0 m, with brakes 2.3 m.

Fuel, Consumption, and Tanks

The fuel tank capacity is 17 L, ensuring long operation without frequent refueling. Engine crankcase volume is 6.6 L; gearbox and rear axle crankcase volume is 11.0 L; front axle volume is 4.0 L; engine cooling system volume is 6.0 L. Nominal engine fuel consumption is ≤275 g/kWh, nominal oil consumption is 2.31 g/kWh.

Additional Components and Service

The basic configuration includes a splined rear PTO shaft, a trailer connector (socket), and brakes on the secondary gearbox shaft (brake drums). A compressor and roll bar are not included in the basic configuration, but rear weights are present. The tractor's curb weight is 1310 kg. The store offers delivery throughout Ukraine: free of charge in Kyiv and the region, and by arrangement in other regions. Warranty and post-warranty service are available, as well as technical support by phone.

How to Order

To order the Orion RD 244, add the product to your cart and submit an application with your contact details and delivery address. Payment is possible upon receipt. The website also offers recommendations for selecting attachments and consultations with managers regarding configuration options and tire sizes/dimensions.

Highlighted advantages of the model:

• modernization and reinforcement of gear-driven axles;
• reinforced hydraulics with NSh;
• updated optics with LED elements;
• counterweights on wheels and front for better stability;
• high-quality dashboard, similar to solutions from leading manufacturers.

Alternative models and brands: The description mentions models and brands that can serve as alternatives: Jinma 404, Shifeng 354, Dongfeng, Xingtai, Foton, Zoomlion, DTZ 5244, Bulat 454, Bulat 250, Bulat 254, Belarus 320.4, Shifeng 350, DW 244, DTZ 5404K, Solis 26, Solis RX 50. The Forte brand is also mentioned. Supplier/seller: Motokosmos / Flash Army.

Technical specifications:

The text also mentions alternative dimensions 3350x1600x2000 and other size and tire options, which should be clarified with the manager when ordering. Let your farm work more efficiently with the Orion RD 244 mini tractor — reliable, versatile, and affordably priced.
