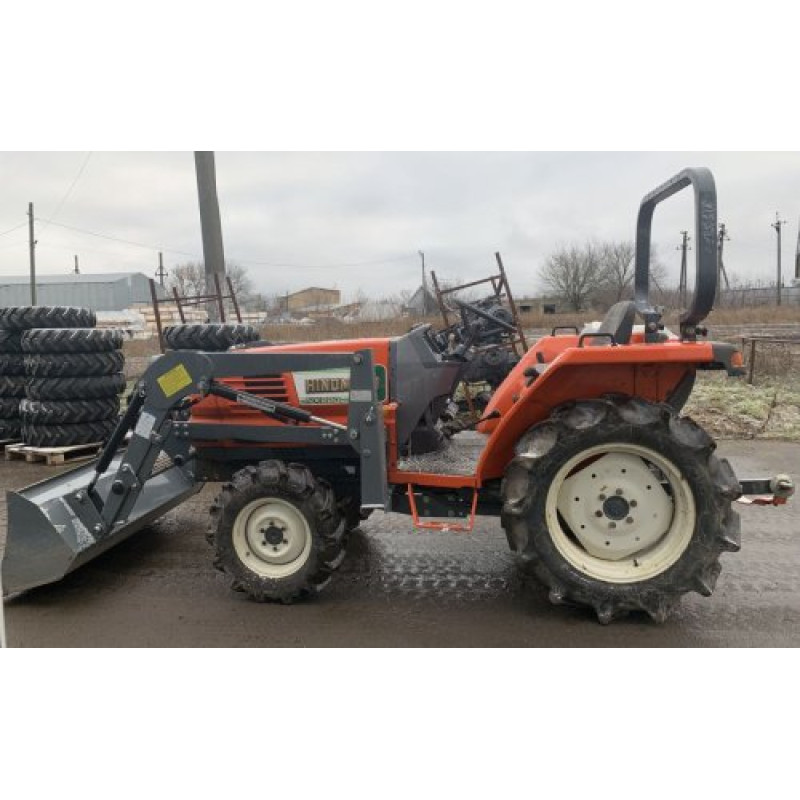

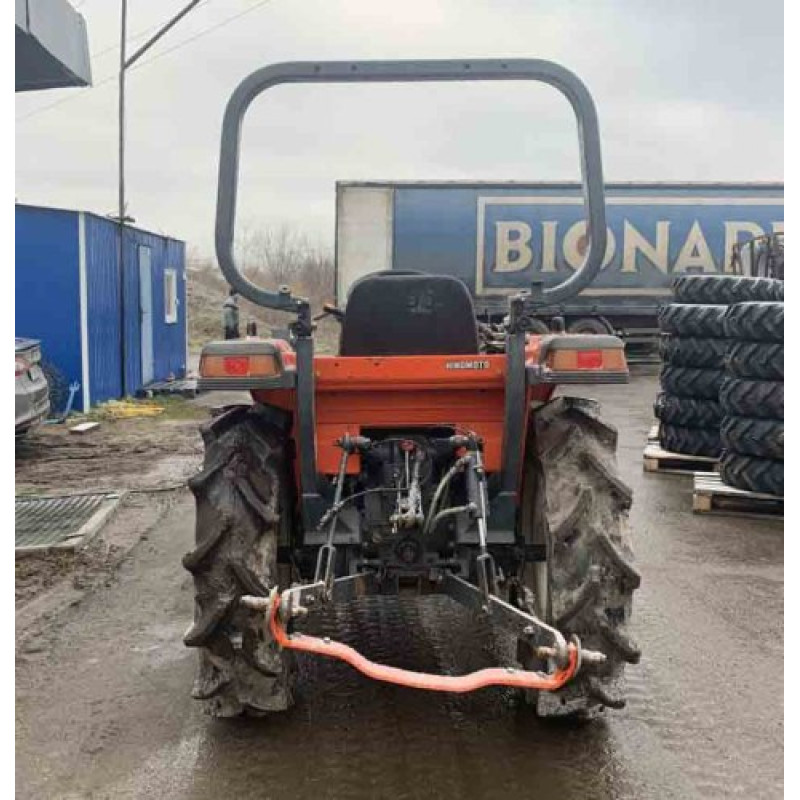

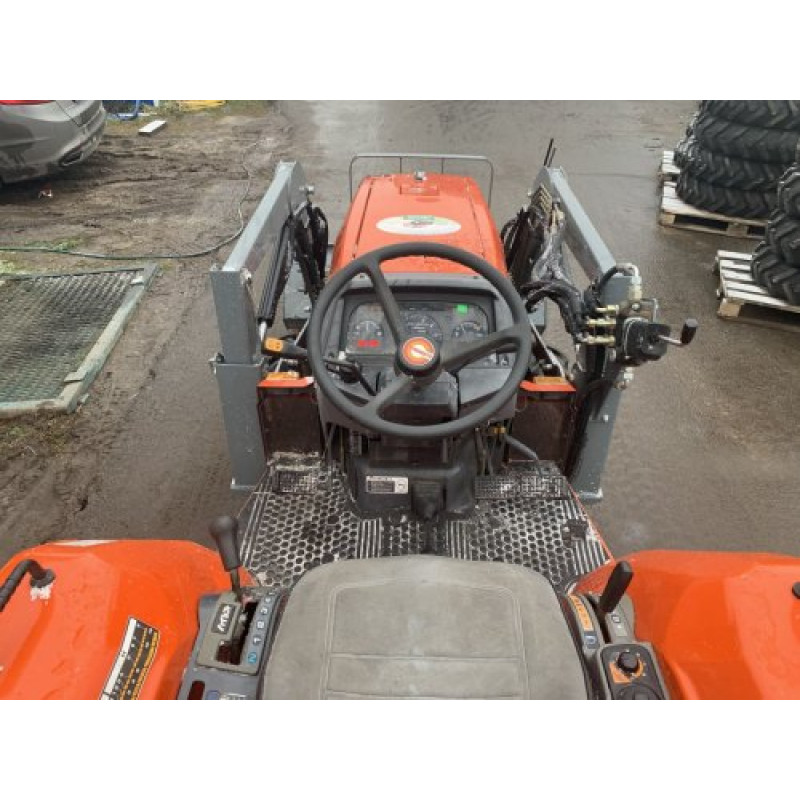

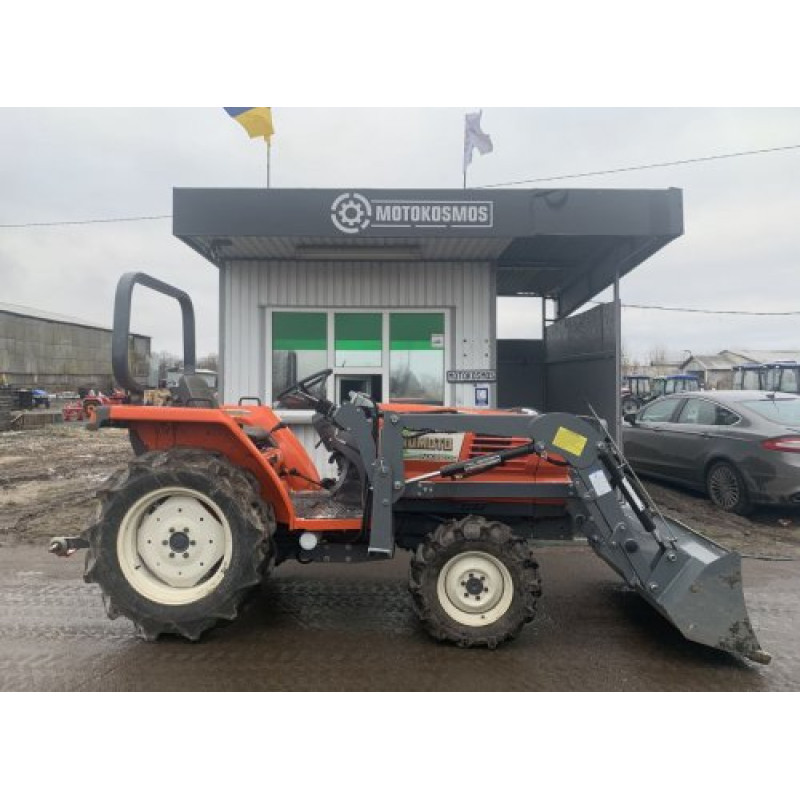

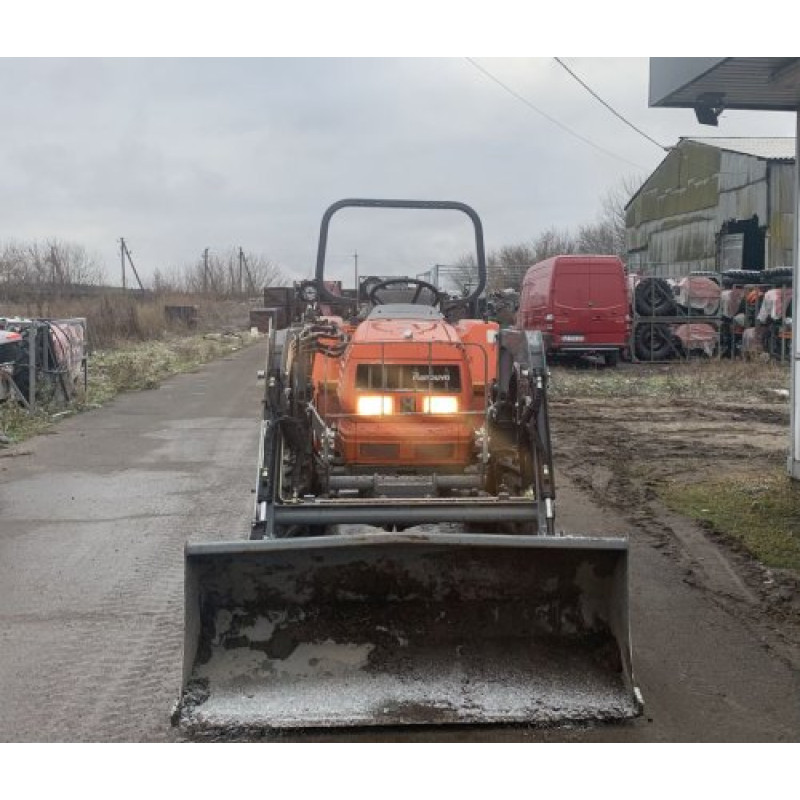

HINOMOTO NX-220 Mini Tractor — A Reliable Choice for Small Farms
The HINOMOTO NX-220 mini tractor from the Hinomoto brand combines compact dimensions with powerful technical solutions, making it optimal for small and medium-sized farms, utility work, and private plots. This model is designed to perform a wide range of agricultural operations: soil cultivation, sowing, spraying, cargo transportation, and working with mounted and trailed equipment.
Advantages and Purpose
The HINOMOTO NX-220 is equipped with a three-cylinder diesel engine with a power of 22 hp, features 4x4 all-wheel drive, and mechanical locking of the rear axle differential, ensuring high cross-country capability on difficult terrains and in adverse conditions. Its compact size and a minimum turning radius of 2.7 m guarantee maneuverability in narrow rows, orchards, and greenhouses.
Key Characteristics
- Brand: Hinomoto
- Model: HINOMOTO NX-220
- Category: Tractors > Mini Tractors
- Engine Power: 22 hp
- Wheel Formula: 4x4
- Engine Type: Diesel
- Number of Cylinders: 3
- Fuel Tank Capacity: 24 L
- Transmission: (8+8)x2
- Maximum Speed: 25 km/h
- Differential Lock: Mechanical, rear axle
- Brakes: Drum brake
- Dimensions (LxWxH): 2750 x 1200 x 1800 mm
- Minimum Turning Radius: 2.7 m
- Lifting Capacity of Lifting Mechanism: 600 kg
- PTO Speed: 540/780/1200 rpm
- Weight: 830 kg
The reliable diesel engine ensures economical fuel consumption and a long service life under intensive use. The robust multi-stage transmission allows for precise selection of the operating mode for specific tasks and types of mounted equipment, while various PTO speeds ensure compatibility with most agricultural implements.
Compact dimensions (length 2750 mm, width 1200 mm, height 1800 mm) simplify transportation and storage, and a weight of 830 kg provides sufficient stability during field work. A lifting capacity of 600 kg allows for efficient work with medium-sized mounted equipment, while maintaining maneuverability and economy.
Technical Specifications:
| Engine Power, hp: | 22 |
| Wheel Formula: | 4x4 |
| Engine Type: | Diesel |
| Number of Cylinders: | 3 |
| Tank Capacity, L: | 24 |
| Transmission: | (8+8)x2 |
| Maximum Travel Speed, km/h: | 25 |
| Differential Lock: | Mechanical, rear axle |
| Brakes: | Drum brake |
| Overall Length, mm: | 2750 |
| Overall Width, mm: | 1200 |
| Overall Height, mm: | 1800 |
| Minimum Turning Radius, m: | 2.7 |
| Lifting Capacity of Lifting Mechanism, kg: | 600 |
| PTO Speed, rpm: | 540/780/1200 |
| Weight, kg: | 830 |
The HINOMOTO NX-220 is a versatile unit for those seeking a combination of performance, economy, and compactness. Its reliable design, all-wheel drive, and convenient operating characteristics make this mini tractor an effective tool for seasonal and daily tasks.
